How to make your customized led strip light?
author: Ivan Huang
2023-05-07
LED strip lights are a popular choice for both home and commercial lighting projects. They offer versatility, energy efficiency, and a variety of colors and patterns to choose from. However, sometimes off-the-shelf LED strip lights may not meet your specific needs or design preferences. In such cases, making your own customized LED strip light can be a great solution.
This article will guide you through the steps to make your own customized LED strip light, including choosing the materials, designing the LED strip light, and troubleshooting common issues.
Materials Needed
Before starting the process of making a customized LED strip light, it's essential to gather all the necessary materials. These include:

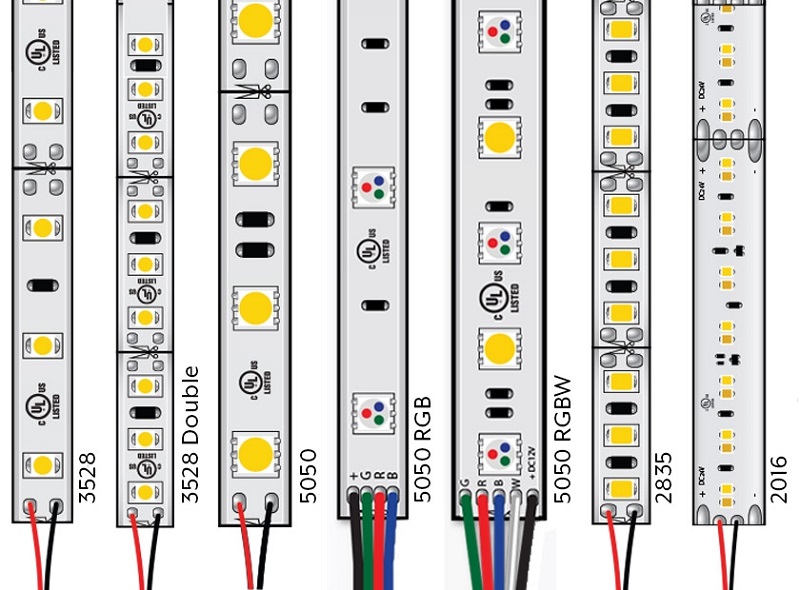

A. LED strip lights: Choose the type and color of LED strip lights that fit your project's requirements. You can choose from single-color, RGB, or RGBW LED strip lights.
B. Soldering iron and solder: You'll need a soldering iron and solder to connect the wires to the LED strip lights.
C. Wire cutters and strippers: To ensure accurate wire stripping and cutting, use wire cutters and strippers.
D. Heat shrink tubing: Heat shrink tubing will protect and insulate the connection between the wires and LED strip lights.
E. Power supply: Choose a power supply that matches the wattage and voltage of your LED strip lights.
F. led Connectors: Connectors make it easy to attach and detach the LED strip lights.
G. Optional: Dimmer switch, diffuser cover, and mounting clips: Dimmer switches can adjust the brightness of the LED strip lights. Diffuser covers help distribute the light more evenly, and mounting clips help secure the LED strip lights in place.
Designing Your LED Strip Light
A. Determine the length and brightness
Before starting your project, you should determine the length of the LED strip light that you will need. Measure the space where you plan to install the strip light and make sure to take note of the dimensions. This will help you determine how many LED strip light reels you will need.
Another important consideration is brightness. LED strip lights come in various brightness levels measured in lumens. The brightness you choose will depend on the intended use of the lighting. For example, you might want brighter lights in your kitchen or work area and dimmer lights in your bedroom or living room, in this way, high efficiency led strip maybe a goods solution for you.
B. Choose the color and temperature
LED strip lights come in a variety of colors and temperatures, from warm white to cool white, and even multi-colored options. Consider the ambiance you want to create in the space and choose the appropriate color and temperature accordingly. For example, warm white is perfect for creating a cozy and inviting atmosphere, while cool white is ideal for task lighting in areas such as a workshop or garage.
C. Decide on the placement and pattern
Decide on the placement and pattern of your LED strip lights. Do you want to install them in a straight line or curve them around a corner? Do you want to highlight specific areas or create a more even distribution of light? These decisions will affect the type of connectors and accessories you will need for your project.
D. Sketch the design and calculate the wattage
Sketch your design and calculate the wattage of your LED strip light project. The wattage of the LED strip light will depend on the length and brightness of the strip light you choose, as well as the pattern and placement of the lights. This is important to determine the appropriate power supply and wiring needed for your project.
Preparation and Safety
A. Turn off the power
Before beginning any electrical work, it's important to turn off the power to the area you will be working in. This will prevent any potential accidents or electrical shocks.
B. Wear protective gear
When working with LED strip lights, it's important to wear protective gear, such as safety glasses and gloves, to prevent injury. Additionally, be careful when handling the LED strip lights as they can be fragile.
C. Prepare your workspace
Prepare your workspace by ensuring that it is clean and free of any debris or obstacles. This will allow you to work more efficiently and reduce the risk of accidents. Make sure that you have all the necessary tools and supplies readily available.
D. Test the LED strip light before installation
Before installing the LED strip lights, it's important to test them to ensure that they are functioning properly. This will allow you to identify any potential issues or defects and address them before installation. Testing the LED strip lights can also help you determine the appropriate placement and pattern for your project.
By following these guidelines, you can ensure a successful and safe LED strip light project that meets your customized lighting needs.
Steps to Make Your Customized LED Strip Light
A. Cut the LED strip light to the desired length
Once you have your design and the necessary components, the first step in making your customized LED strip light is to cut the strip to the desired length. LED strip lights usually come with cut marks every few inches or so. You can use scissors or a sharp utility knife to cut the strip along these marks.
It's important to note that you should only cut the strip light at the designated cut points. Attempting to cut the strip light in between these points can damage the circuit and render the strip light unusable.
B. Solder the wires to the LED strip light
Once you have your LED strip light cut to the desired length, the next step is to solder wires to the connection points on the strip. You will need to use a soldering iron and solder wire to do this.
First, strip the insulation from the ends of the wires that you will be soldering to the LED strip light. Next, heat up the soldering iron and apply a small amount of solder to the tip. Hold the soldering iron to the connection point on the strip light and touch the solder wire to the connection until the solder melts and adheres to the connection point. Repeat this process for each connection point on the strip light.
C. Use heat shrink tubing to insulate the connection
Once you have soldered the wires to the LED strip light, it's important to insulate the connections to prevent them from coming loose or shorting out. The best way to do this is to use heat shrink tubing.
Cut a piece of heat shrink tubing that is slightly longer than the length of the solder joint. Slide the tubing over the solder joint and use a heat gun to apply heat to the tubing. As the tubing heats up, it will shrink and conform to the shape of the solder joint, providing a secure and insulated connection.
D. Connect the power supply and test the LED strip light
After insulating the connections, the next step is to connect the LED strip light to a power supply and test it to ensure that it's working properly. You will need to use a power supply that is rated for the correct voltage and amperage for your specific LED strip light.
To connect the power supply, simply match the positive and negative wires on the LED strip light to the positive and negative terminals on the power supply. Once you have connected the power supply, turn on the power and check that the LED strip light is working correctly.
E. Attach connectors if desired
If you want to be able to easily disconnect the LED strip light for maintenance or relocation purposes, you can attach connectors to the wires. There are a variety of connectors available that are compatible with LED strip lights.
To attach a connector, simply strip the insulation from the ends of the wires and insert them into the appropriate terminals on the connector. Use a crimping tool to crimp the connector onto the wires.
F. Optional: add a dimmer switch, diffuser cover, or mounting clips
Finally, there are a variety of optional components that you can add to your LED strip light to customize its functionality and appearance. For example, you can add a dimmer switch to adjust the brightness of the light, a diffuser cover to soften the light and provide a more even glow, or mounting clips to secure the strip light in place.
These optional components can be easily added to the strip light by following the manufacturer's instructions for installation.
VI. Troubleshooting Common Issues
While making a customized LED strip light, it is possible to encounter some issues. Here are some common issues and how to troubleshoot them:
A. Incorrect wiring
Incorrect wiring is a common issue that can lead to your customized LED strip light not working properly. The LED strip light has a positive and negative wire, and if these wires are not connected to the power supply properly, the LED strip light won't work. Make sure you follow the manufacturer's instructions for wiring and double-check your connections before testing the LED strip light.
B. Overheating or burning out the LED chips
Overheating or burning out the LED chips is another common issue with LED strip lights. This can happen if the LED strip light is not properly cooled or if it is exposed to high temperatures for an extended period. To prevent this, make sure you use an appropriate power supply and don't exceed the maximum wattage for your LED strip light. Additionally, make sure you have proper ventilation and cooling for your LED strip light.
C. Power supply issues
Power supply issues are also common with LED strip lights. If the power supply is not providing enough power or if it is providing too much power, this can cause issues with the LED strip light. Make sure you use a power supply that is rated for your LED strip light and double-check your connections to ensure they are properly wired. If you are still experiencing power supply issues, try using a different power supply to see if that resolves the issue.
It is important to troubleshoot any issues with your customized LED strip light before using it in a project. This will ensure that the LED strip light functions properly and lasts as long as possible.
Conclusion
Making your own customized LED strip light can be a rewarding and fun project that allows you to have full control over the design and functionality of your lighting. By determining the length, brightness, color, and placement of the LEDs, you can create a unique and personalized lighting solution for your space.
