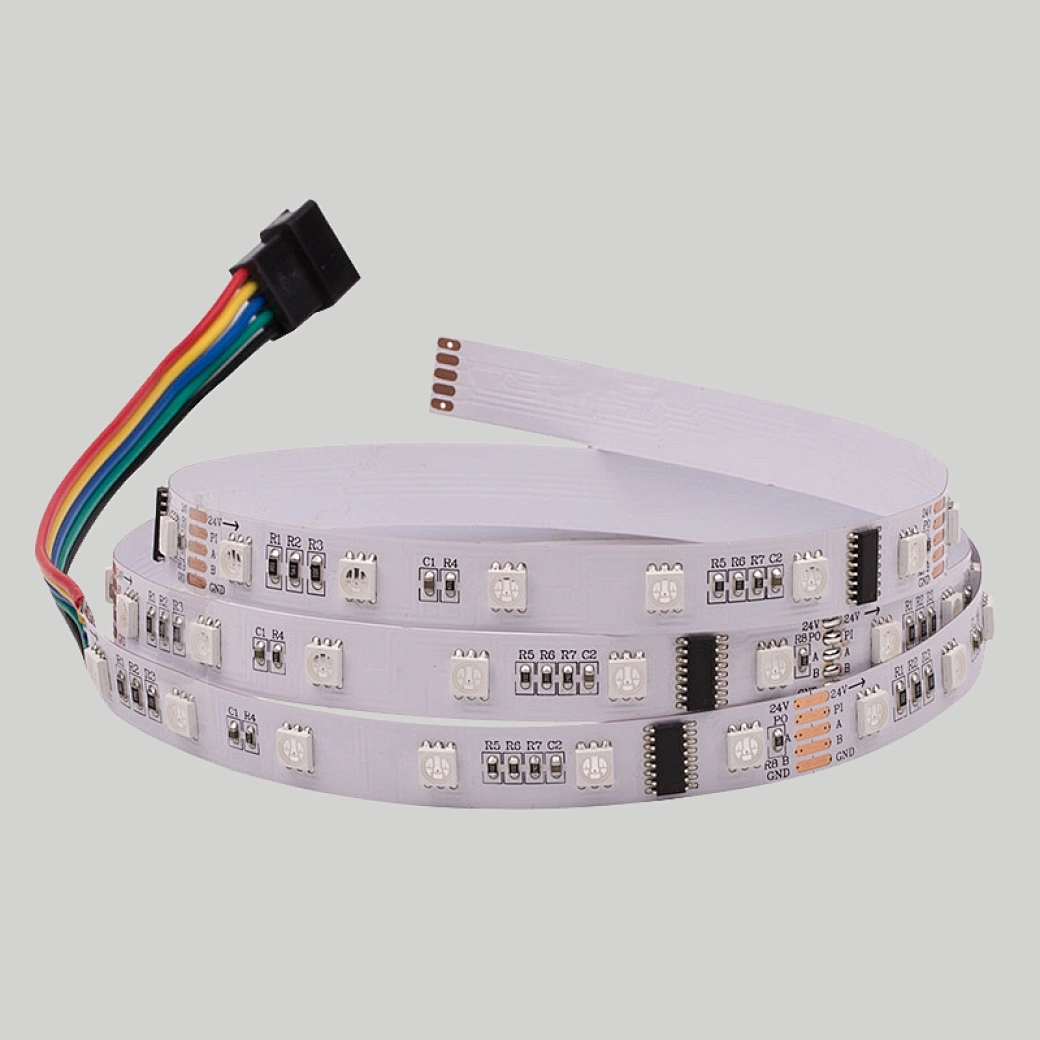

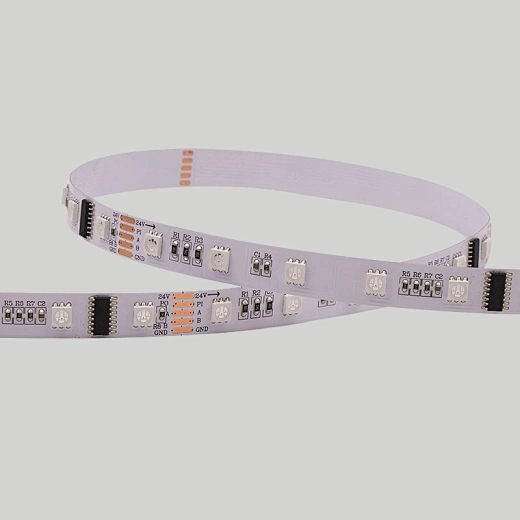

UCS512C4 24V 5050 48leds/M rgb led strip
HR00-UCS512C4-48-20P12
Best manufacturer & supplier of China ucs512 ucs512c4 5050 dmx ic chip rgb led strip light from China, ISO9001:2015, ETL, CE, RoHS, etc. OEM & ODM available.
Delivery
EXW
minimum order
30 meters
Supply Ability
600000meters / Month
Country of Origin
Shenzhen
Stock Time
7-12Day
Quantity:
China ucs512 ucs512c4 5050 dmx ic chip rgb led strip light for outdoor landscape
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.
Feature of ucs512c4 led strip
For dmx led strip
1.No matter what or how many ic broken, the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage does not affect other parts of the strips and continue work, etc.
2.24V RGB DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI: Write the address, one address cable
GND: connect to power supply GND & controller GND
3.48leds/M, DC24V is one IC with 6pcs leds, it can work with Madrix and some DMX controllers to program
Specification
Item | Specification | Item | Specification |
Item Name | ucs512c4 led strip | Light Source | 5050 RGB |
IC Type | UCS512C3/UCS512C4 | IC QTY | 8pixels/M |
LED QTY | 48leds/M | IC Location | External IC |
Color | RGB Dream Color | Voltage | DC24V |
Working T | -20 to 45 Degree | Power | 11.52W/M |
PCB color | Black/White | Angle | 120 degrees |
IP Rating | IP20/65/66/68 | Cutting Unit | 6.25cm |
Package | Anti-Static Bag | OEM&ODM | Available |
Dimension | 5000mm*12mm | Lifetime | 50000hrs |
Certificate | ETL, CE, RoHS, Reach... | Warranty | 3 years |
Dimension (mm)

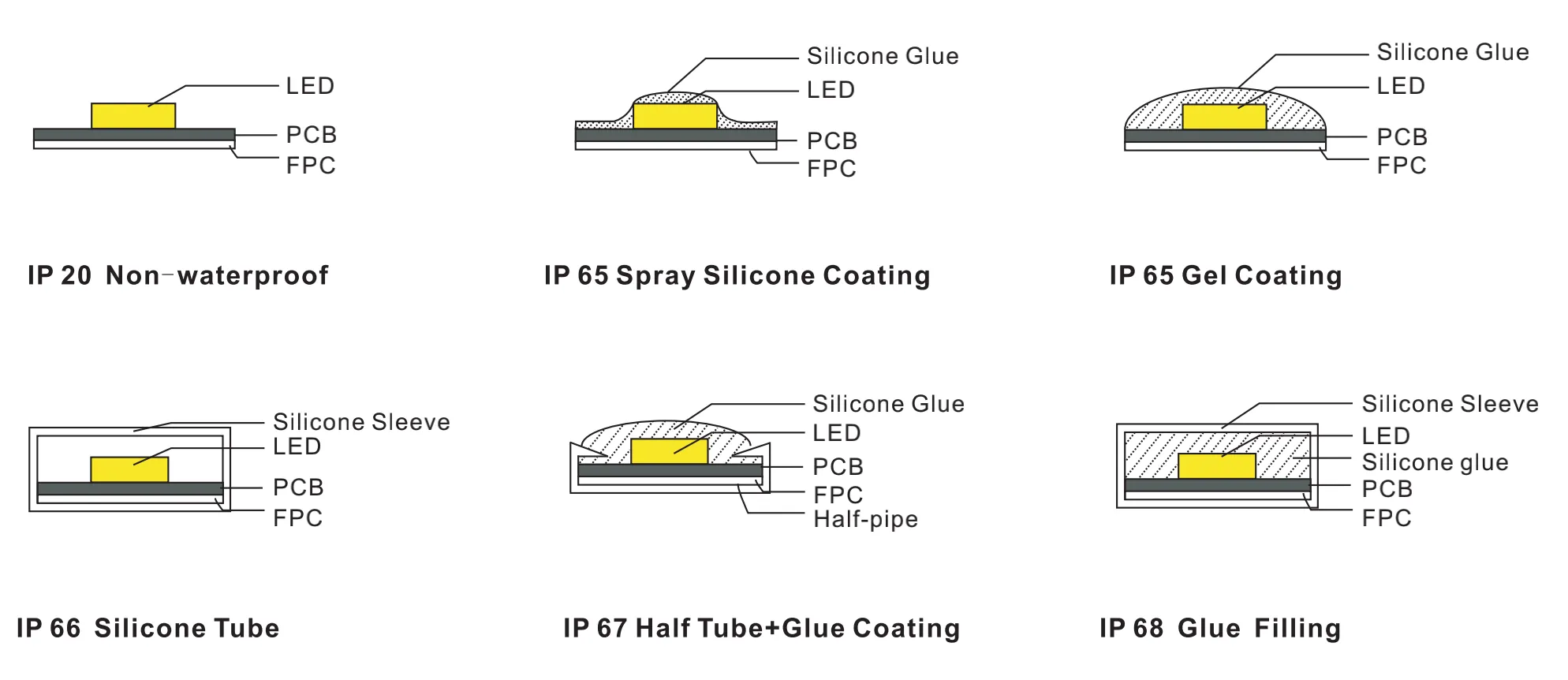

IP Rating
Application of ucs512c4 led strip
