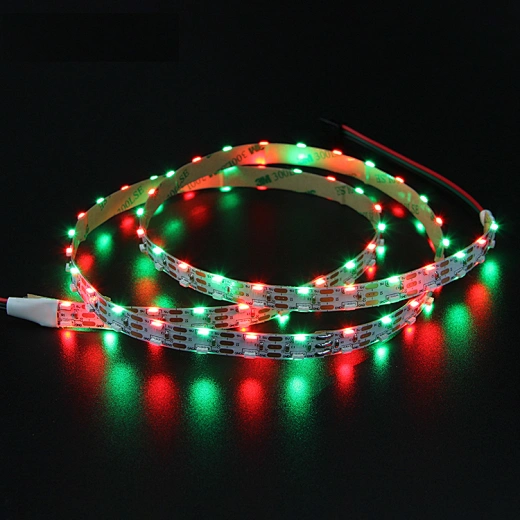

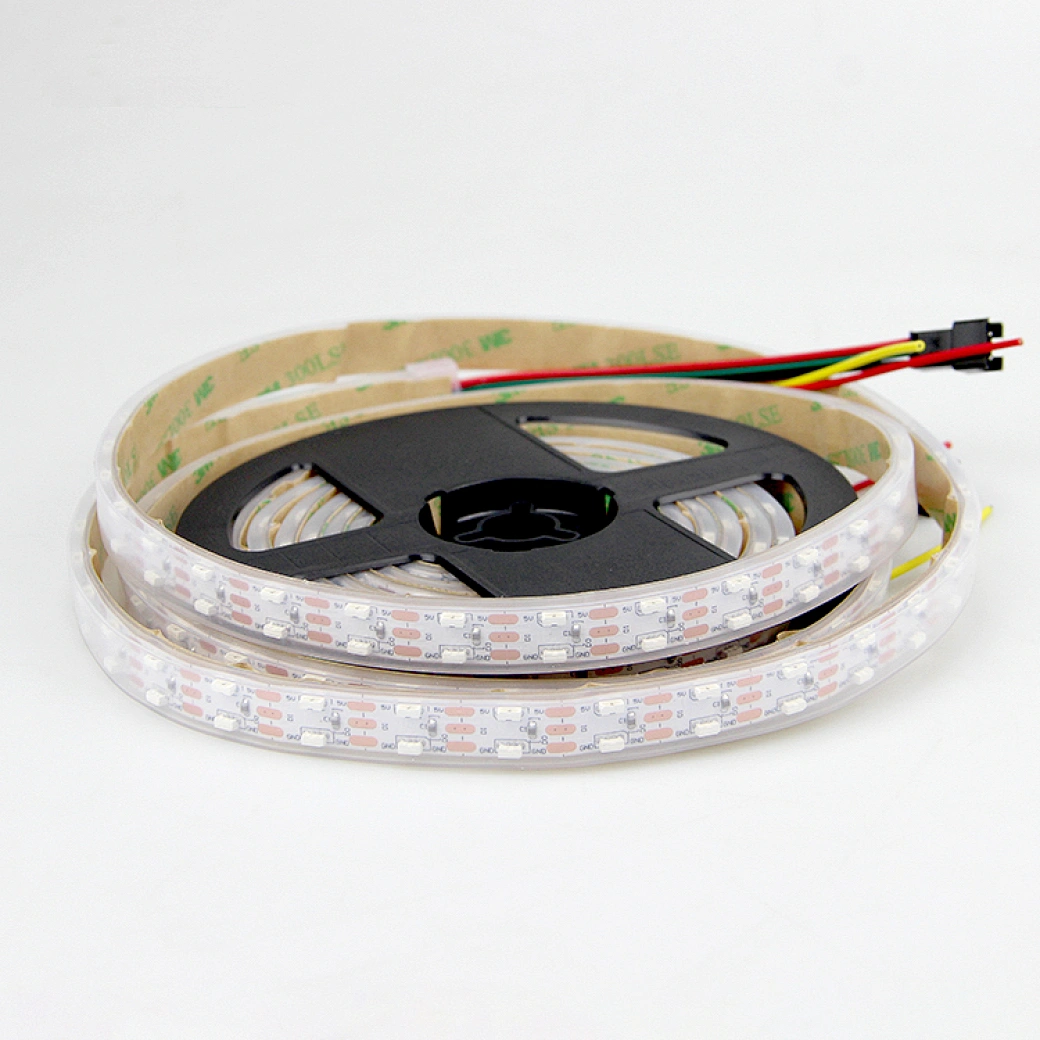

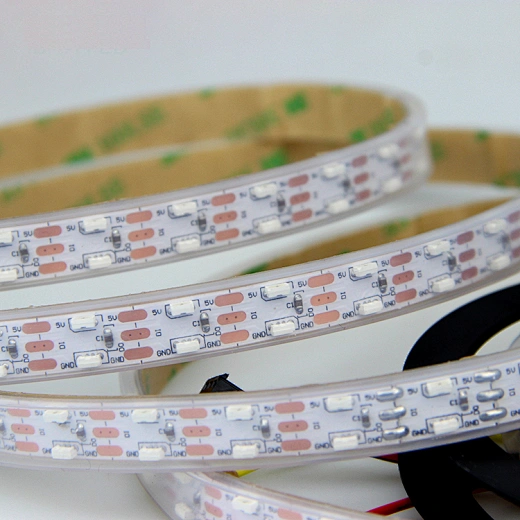

SK6812 4020 Dual Edge Side 120leds/M rgb led strip
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.
Feature of sideview sk6812 4020 led strip
For double row sideview rgb sideview sk6812 4020 led strip
1, Original SK6812 4020 led, more stable in quality and higher brightness
2. DC5V design with 1led/cut, individually addressable, more flexible in software control
3. Pixel rgb double sideview function, can be used in special applications like cars, LED curtains, etc.
4. The gray levels of each pixel of 256 levels, and the refresh frequency reaches 2KHz/s
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
Specification
| Item | Specification | Item | Specification |
| Item Name | sideview sk6812 4020 led strip | Light Source | 4020 RGB |
| IC Type | SK6812 | IC QTY | 120pixels/M |
| LED QTY | 120leds/M | IC Location | Internal IC |
| Color | RGB Dream Color | Voltage | DC5V |
| Working T | -20 to 45 Degree | Power | 24W/M |
| PCB color | Black/White | Angle | 120 degrees |
| IP Rating | IP20/65/66/68 | Cutting Unit | 1.67cm |
| Package | Anti-Static Bag | OEM&ODM | Available |
| Dimension | 5000mm*10mm | Lifetime | 50000hrs |
| Certificate | ETL, CE, RoHS, Reach... | Warranty | 3years |
Dimension: mm
IP Rating
Application of sideview sk6812 4020 led strip
