SK9822/APA102/HD107S 144led/M RGB Led Strip
Feature of hd107s led strip
APA102/HD107S/ SK9822 led strip
2. With signal self-detection function
3. Fast transmission speed, the maximum serial input data frequency is 30MHZ
4. Two-wire data transmission, built-in oscillation supports uninterrupted PWM output, which can keep the picture still
5. DC5V design with 1led/cut, individually controlled
6. Strong flexible for heat dissipation and real 3M tape for a strong installation
Item | Specification | Item | Specification |
Item Name | hd107s led strip | Light Source | 5050 RGB |
IC Type | SK9822/APA102/HD107S | IC QTY | 144pixels/M |
LED QTY | 144leds/M | IC Location | Internal IC |
Color | RGB Dream Color | Voltage | DC5V |
Working T | -20 to 45 Degree | Power | 34.56W/M |
PCB color | Black/White/Yellow | Angle | 120 degrees |

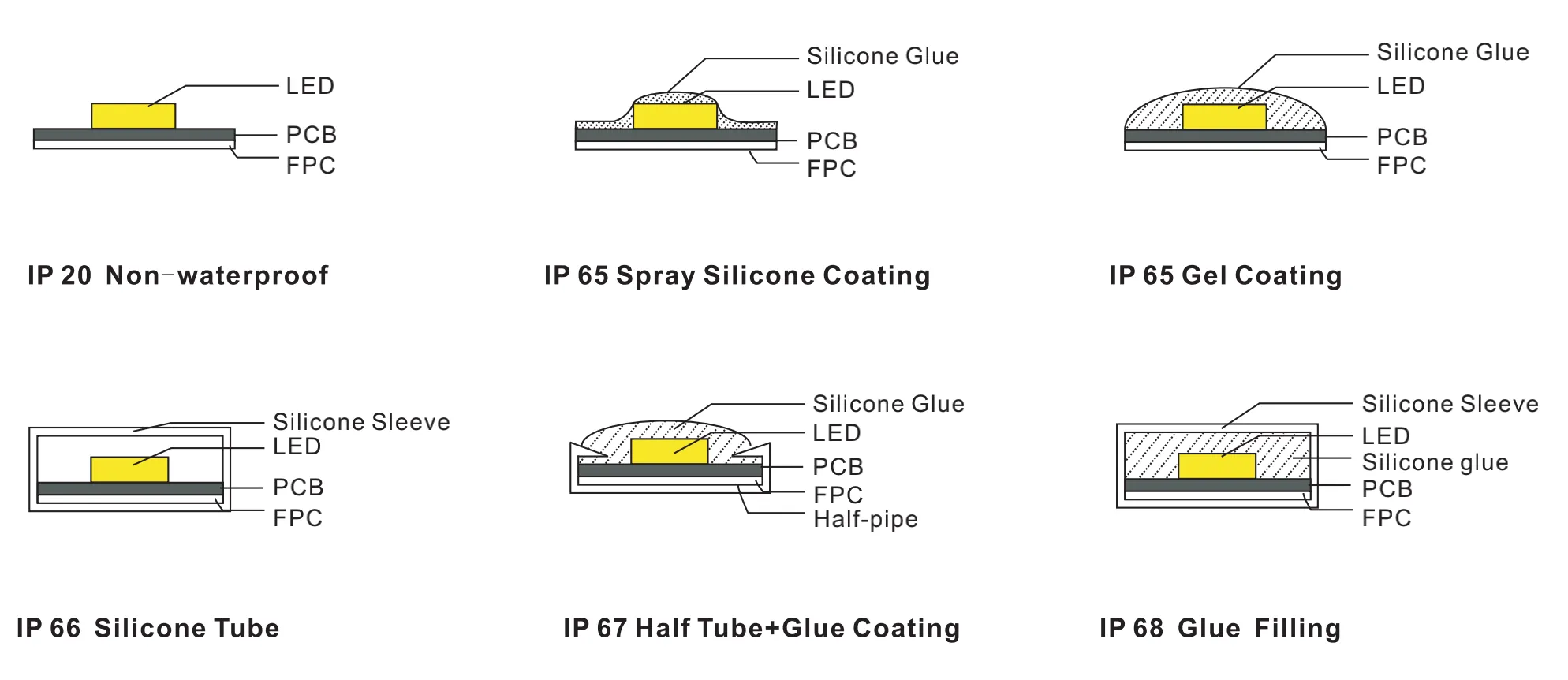

IP Rating | IP20/65/66/68 | Cutting Unit | 6.94mm |
Package | Anti-Static Bag | OEM&ODM | Available |
Dimension | 5000mm*12mm | Lifetime | 50000hrs |
Certificate | ETL, CE, RoHS, Reach... | Warranty | 3years |
Dimension: mm
Customized Your Specific Pixel Led Light
10 Professional engineers are here to serve you
Looking to light an irregular space or a super creative project? As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, be it residential or commercial, or even industrial.
We can easily translate your lighting needs and provide customized lighting solutions. We have the ability to recommend you suitable pixel led strip, controller and software for the whole project, and give you suggestions during your installation.
At the same time, our experts can provide you with full PCB design support and create LED strips that are just the right pixel IC, color, size, shape, and brightness.
You only need to share us your creative ideas or design, then the rest leave to us Hanron. We will give you a surprise!
Why choose Hanron?
Commercial grade products and professional service
Hanron Company Profile
100+ employees to support your orders
Top Pixel LED Strip Light Manufacturer in China
Hanron is a top developer, designer, supplier and manufacturer of high quality addressable led strip lights and led neon lights.
Founded in 2010, Hanron has cultivated a group of talent of 100+ people, including 10 technical engineers and 20 sales engineers. Our company has passed the ISO9001: 2015 quality management system and most of our products are compliant with certifications like ETL, BIS, CE, RoHS, Reach, TUV CB, LM80, etc.
After years of development, we have 500+ types of addressable led strip lights for your reference. According to customers' design documents or application scenarios, we can also provide professional advice and OEM&ODM services.
