SP105E LED Controller

Features of SP105E led controller

1) Long-distance APP remote control via WIFI;
2) Support routing mode(AP) and LAN connection mode(STA);
3) Support almost every kind of one-wire or two-wire LED driver IC ;
4) Brightness adjustable, With 180 kinds of patterns and 8 kinds of color adjustable patterns;
5) Creatively using the from-image-to-effect method for the user to DIY any effect;
6) Support setting pixel number and segments number, able to control up to 2048pixels;
7) DC5V~24V wide range working voltage, preventing reverse connection of power supply;
8) User setting saving;

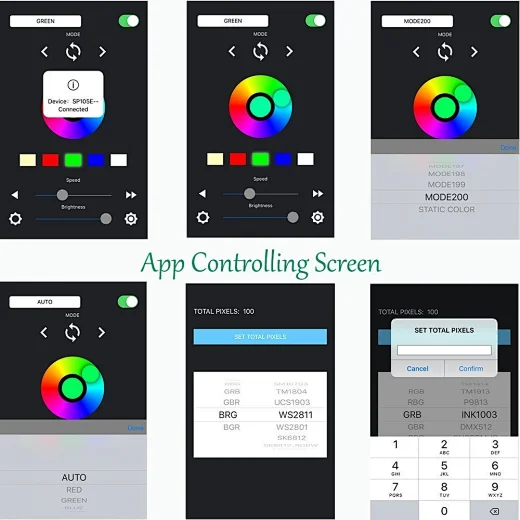

App control

Both the IOS version and Android OS version are available. (hardware should support WIFI)
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search ”LedShop” in App Store or Google pay or scan this QR code to download and install the App:



Specifications

Working temperature: -20~60 Degrees Celsius
Working Voltage: DC5V~24V;
Working Current:20mA~130mA;
Remote distance:30 Meters;
Product size: 85mm*45mm*22mm;
Product weight: 40g ;
Certificates: CE, RoHS;



Working Mode and Connecting

AP(Access Point) mode: Controller and Phone connect directly, the controller works as an access point.
Connect steps:
1) When the device is not connected to any WIFI network, power on the controller and wait for the 20s and then the controller will switch into AP mode ;
2) In the WIFI setting page, find and connect the controller(named likeSP105E_xxx, the default pin code is 12345678),
3)Open the LED Shop App, then the controller will be shown on the device list;

*STA(Station) mode: Controller and phone are in the same WIFI network, in this network, users can operate the controller smoothly.


Connect steps

1)When the device is not connected to any WIFI network, power on the controller, the controller will remain in Wait-For-Connet mode for 20 seconds;
2) Make sure that your phone is connected to a WIFI network, Open LED Shop APP, press the Add Device button, input the WIFI pin code, then press the OK to confirm and wait for the configure processing finish;
3) When the controller successfully enters the WIFI network, it will be shown on the device list;
4) User can select the controller and remove it from the network by pressing the Remove Device button, then the controller will switch into AP mode.

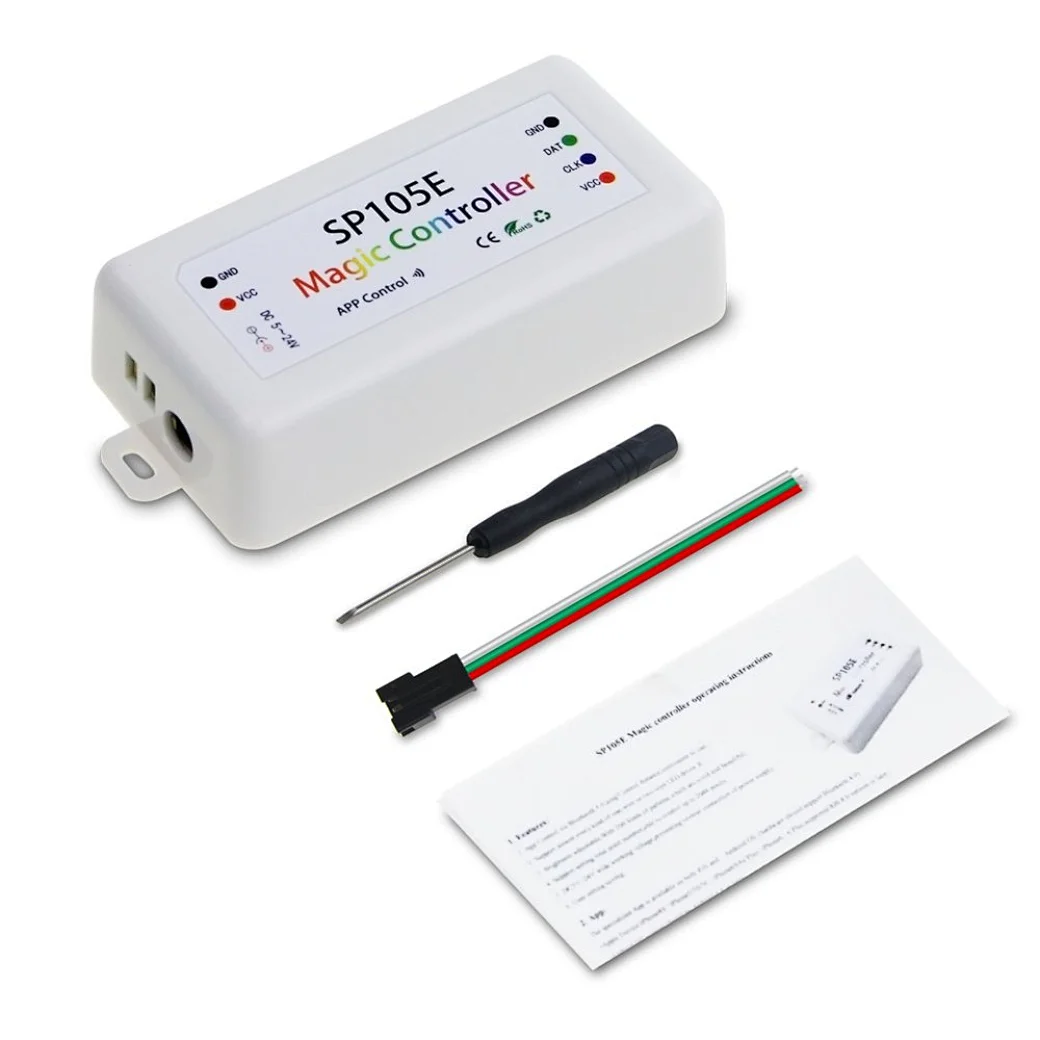

Package includes:
1x SP10sE  LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual

This device does not work under 5 ghz wifi
