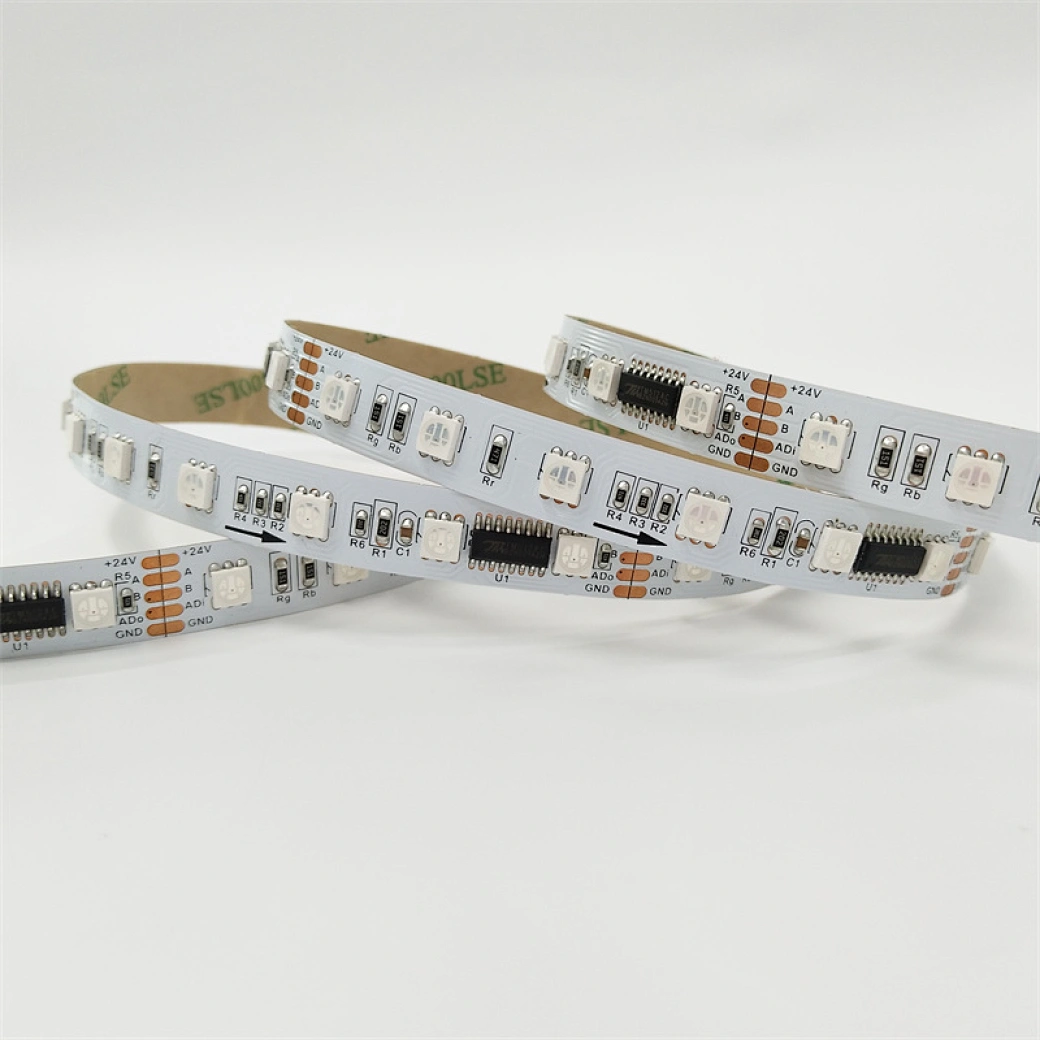

TM512AC4 RGB 24V 60led/m led strip
HR00-tm512ac-rgb-60-12
Best manufacturer & supplier of 5050 60LED DC12V RGB addressable tm512c4 led strip light from China. ISO9001:2015, ETL, CE, RoHS, etc. OEM & ODM available.
Delivery
EXW
minimum order
30 meters
Supply Ability
600000meters / Month
Country of Origin
Shenzhen
Stock Time
7-12Day
Quantity:
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.
Feature
tm512ac4 led strip light
1.No matter what or how many ic is broken, the led strip will work usually.
DMX IC we use the 5 cable dmx512 double signal,256 high grayscale brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage does not affect other parts of the strips and continue work, etc.
2.24V RGB DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI: Write the address, one address cable
GND: connect to power supply GND & controller GND
3.60leds/M, DC24V is one IC with 6pcs leds, it can work with Madrix and some DMX controllers to program
DMX IC we use the 5 cable dmx512 double signal,256 high grayscale brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage does not affect other parts of the strips and continue work, etc.
2.24V RGB DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI: Write the address, one address cable
GND: connect to power supply GND & controller GND
3.60leds/M, DC24V is one IC with 6pcs leds, it can work with Madrix and some DMX controllers to program
Specification
Item | Specification | Item | Specification |
Item Name | tm512ac4 led strip light | Light Source | 5050 RGB |
IC Type | tm512ac4 | IC QTY | 10pixels/M |
LED QTY | 60leds/M | IC Location | external IC |
Color | RGB | Voltage | DC24V |
Working T | -20 to 45 Degree | Power | 14.4W/M |
PCB color | Black/White/Yellow | Angle | 120 degrees |
IP Rating | IP20/65/66/68 | Cutting Unit | 16.7mm |
Package | Anti-Static Bag | OEM&ODM | Available |
Dimension | 5000mm*12mm | Lifetime | 50000hrs |
Certificate | ETL, CE, RoHS, Reach, etc. | Warranty | 3 years |
Dimension (mm)
The waterproof version of tm512ac4 led strip light
Application of tm512ac4 led strip light
