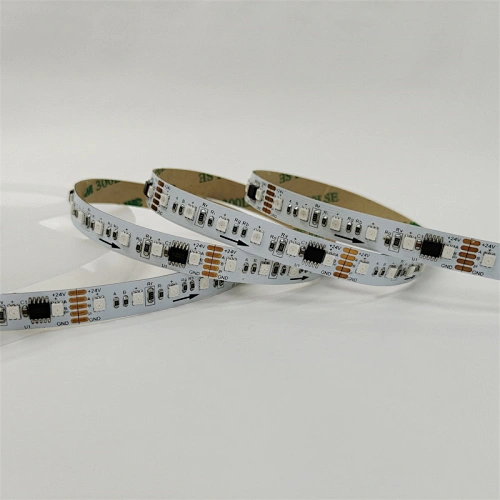

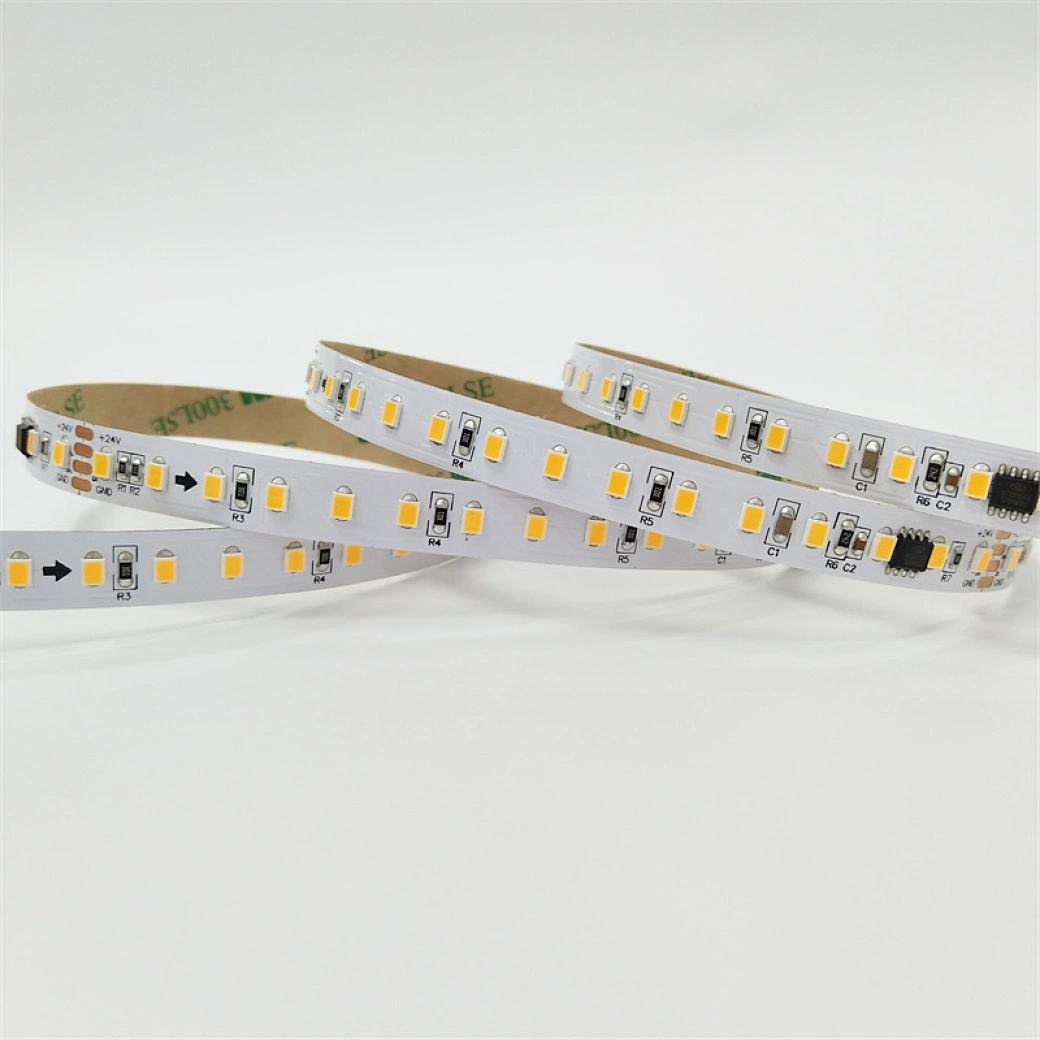

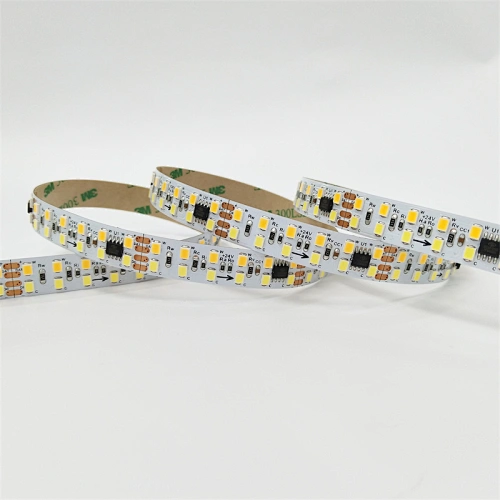

UCS512B3 white 24V 120led/m led strip
HR00-ucs512b3-w-120-10
Best manufacturer & supplier of pixel white addressable ucs512b3 white dmx512 led strip light from China hanron lighting. ISO9001:2015, ETL, CE, RoHS, etc. OEM & ODM available.
Delivery
EXW
minimum order
30 meters
Supply Ability
600000meters / Month
Country of Origin
Shenzhen
Stock Time
7-12Day
Quantity:
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.
Feature
ucs512b3 white dmx512 led strip:
1. Unique design of dmx512 led strip to be white color
2. Standard DMX512 signal, more stable signal transmission compare to SPI signal
3. No matter what or how many ic broken, the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage does not affect other parts of the strips and continue work, etc.
4. DC24V design to allow a longer connection, more convenient during installation
5. It can work with Madrix and some DMX controllers to program
Specification
2. Standard DMX512 signal, more stable signal transmission compare to SPI signal
3. No matter what or how many ic broken, the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage does not affect other parts of the strips and continue work, etc.
4. DC24V design to allow a longer connection, more convenient during installation
5. It can work with Madrix and some DMX controllers to program
Specification
Item | Specification | Item | Specification |
Item Name | ucs512b3 white dmx512 led strip | Light Source | 2835 white |
IC Type | ucs521b3 | IC QTY | 8pixels/M |
LED QTY | 120leds/M | IC Location | external IC |
Color | white color | Voltage | DC24V |
Working T | -20 to 45 Degree | Power | 11W/M |
PCB color | Black/White/Yellow | Angle | 120 degrees |
IP Rating | IP20/65/66/68 | Cutting Unit | 125mm |
Package | Anti-Static Bag | OEM&ODM | Available |
Dimension | 5000mm*10mm | Lifetime | 50000hrs |
Certificate | ETL, CE, RoHS, Reach, etc. | Warranty | 3 years |
Dimension(mm)
The waterproof version of ucs512b3 white dmx512 led strip
Application of ucs512b3 white dmx512 led strip
