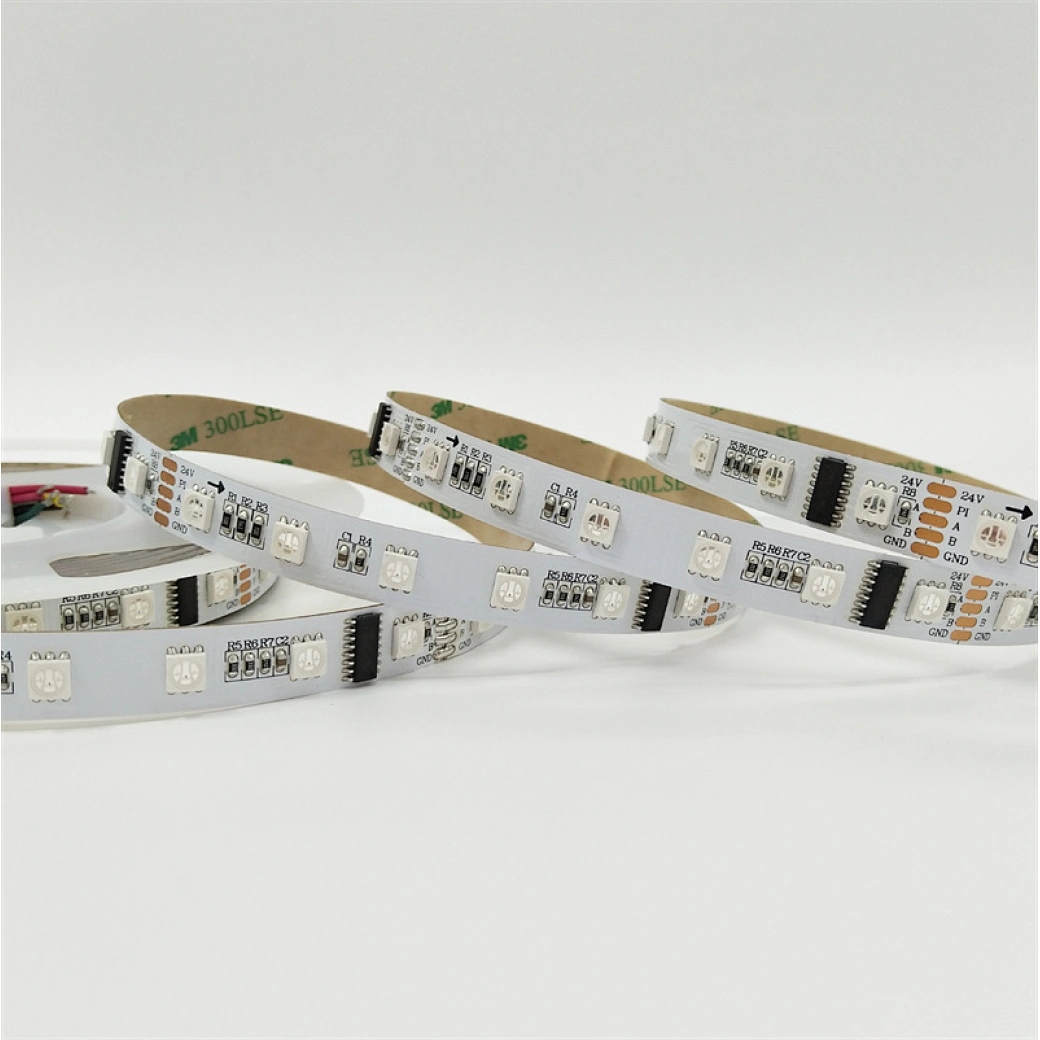

UCS512C4 24V 5050 60leds/M rgb led strip
HR00-UCS512C4-60-rgbP12
The best manufacturer & supplier of pixel addressable 5050 24V rgb led strip light from China. ISO9001:2015, ETL, CE, RoHS, etc. OEM & ODM available.
Delivery
EXW
minimum order
30 meters
Supply Ability
600000meters / Month
Country of Origin
Shenzhen
Stock Time
7-12Day
Quantity:
US $7.10 - US $7.30
/ meters
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.
Feature of 24v rgb strip 5050
For DMX512 led strip:
1.No matter what or how many ic broken, the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage do not affect other parts of the strips and continue work, etc.

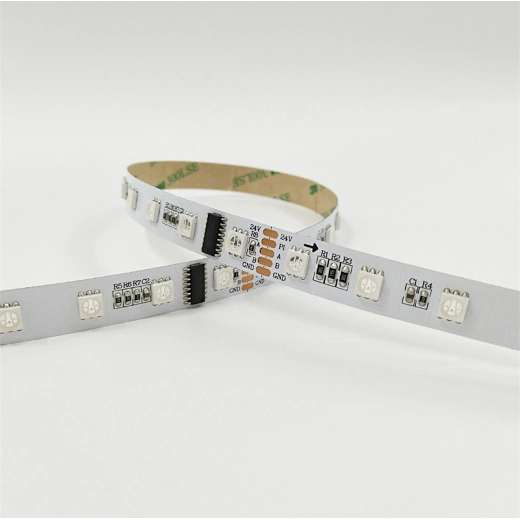

2.24V RGB DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI: Write the address, one address cable
GND: connect to power supply GND & controller GND
3. 60leds/M, DC24V is one IC with 6pcs leds, it can work with Madrix and some DMX controllers to program
Specification
Item | Specification | Item | Specification |
Item Name | 24v rgb strip 5050 | Light Source | 5050 RGB |
IC Type | UCS512C3/UCS512C4 | IC QTY | 10pixels/M |
LED QTY | 60leds/M | IC Location | External IC |
Color | RGB Dream Color | Voltage | DC24V |
Working T | -20 to 45 Degree | Power | 14.4W/M |
PCB color | Black/White | Angle | 120 degrees |
IP Rating | IP20/65/66/68 | Cutting Unit | 10cm |
Package | Anti-Static Bag | OEM&ODM | Available |
Dimension | 5000mm*12mm | Lifetime | 50000hrs |
Certificate | ETL, CE, RoHS, Reach... | Warranty | 3 years |
Dimension (mm)
IP Rating
Application of 24v rgb strip 5050
