160lm/W high efficiency led strip
160lm/W Constant Voltage 2835 Led Strip
Features :
1. TOP SMD2835 chip, high brightness, wide beam angle, low decay.
2. Easy to install for any bending
3. Low power consumption, long life span, free maintenance
4. Working temperature: -40℃-50℃
5. Storage temperature:-50℃-60℃
6. Certification:ETL/CE/RoHS/IEC
Application:
1. Cove lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition
7. Special light effect for art gallery and glass-made items
Parameter
Item NO. | LED | LED QTY | Voltage | Power | Color | Wave Length/C. T. | Luminous Flux/M | Beam | Protect Level |
HR00-B24ACW240P | SMD2835 | 64 | DC24 | 12 | White | 5500-6500K | 1920LM±10% | 120° | IP20/ |
HR00-I24AWW240P | SMD2835 | 64 | DC24 | 12 | Warm White | 2800-3200K | 1920LM±10% | ||
HR00-I24ANW240P | SMD2835 | 64 | DC24 | 12 | Natural White | 4000-4500K | 1920LM±10% |
* White/Black/Yellow Color FPC optional

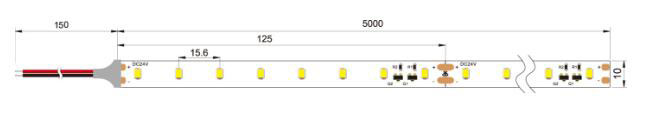

Dimension:
