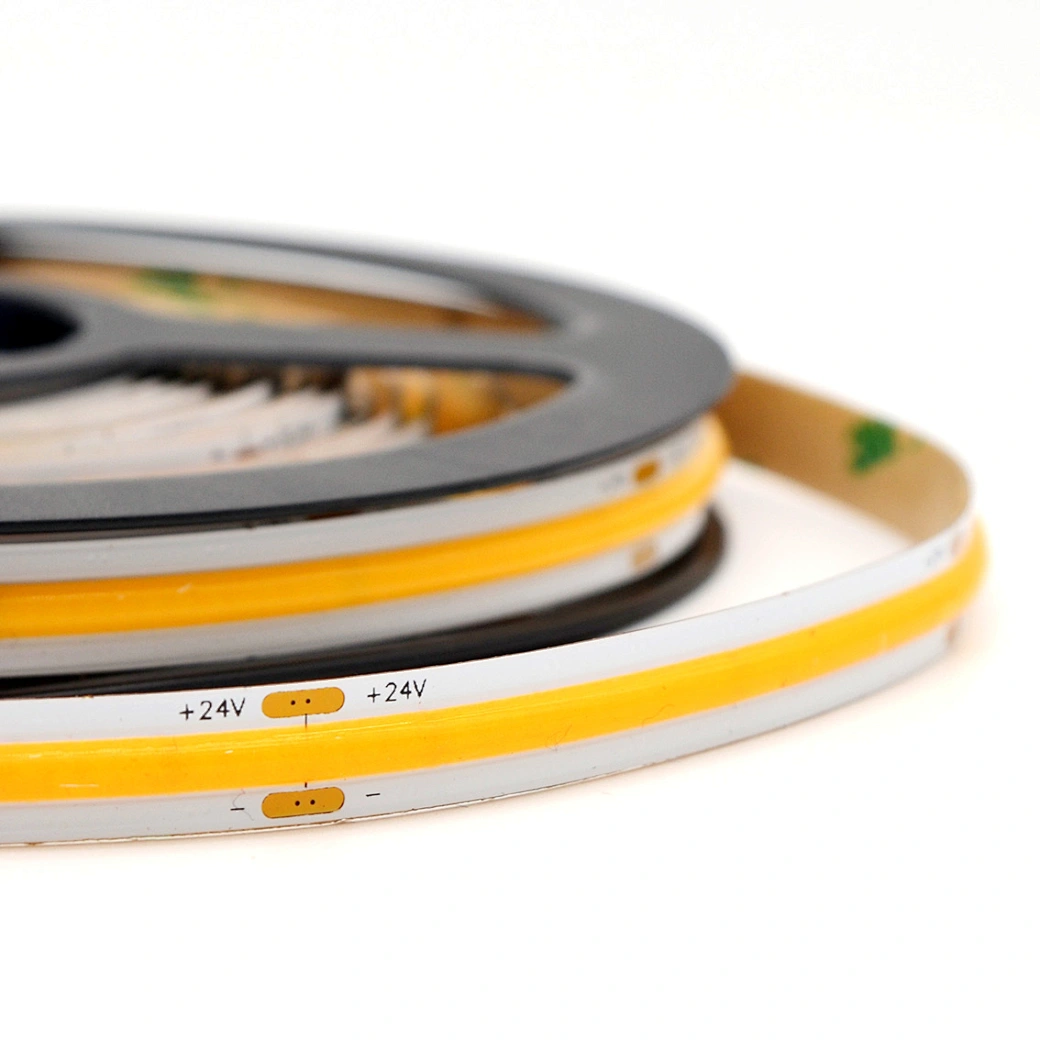

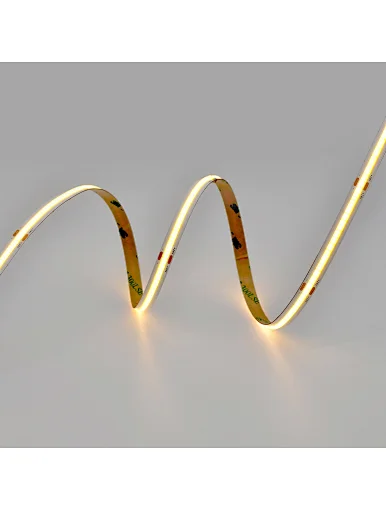

Features

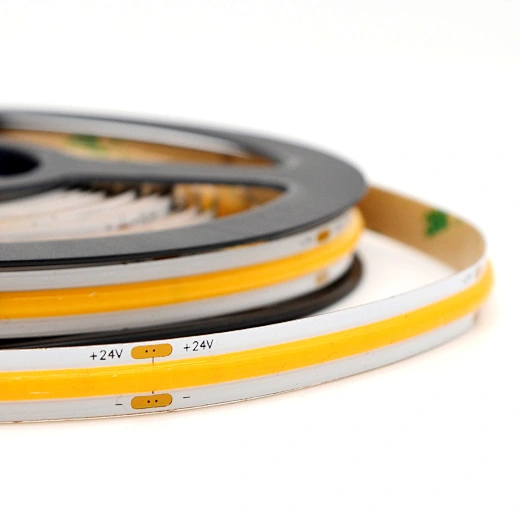

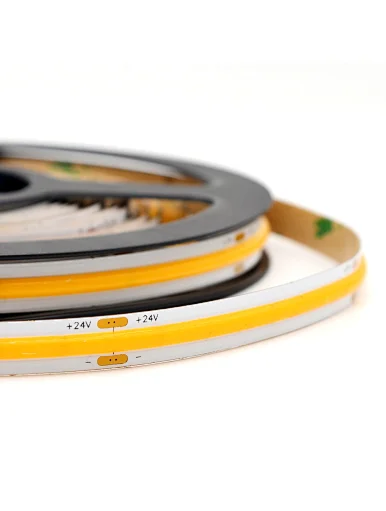

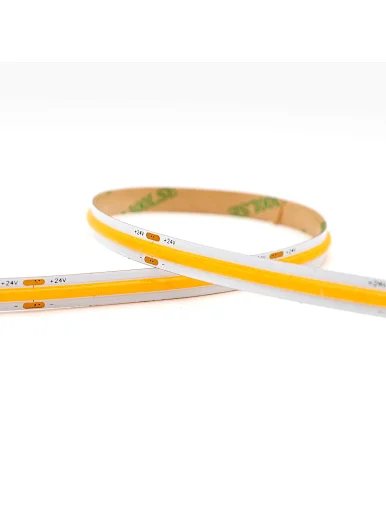

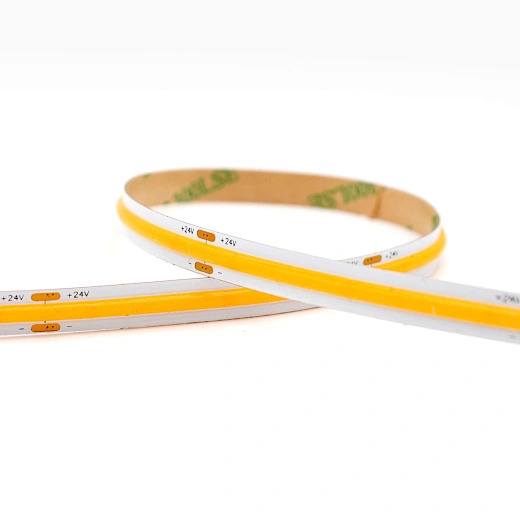

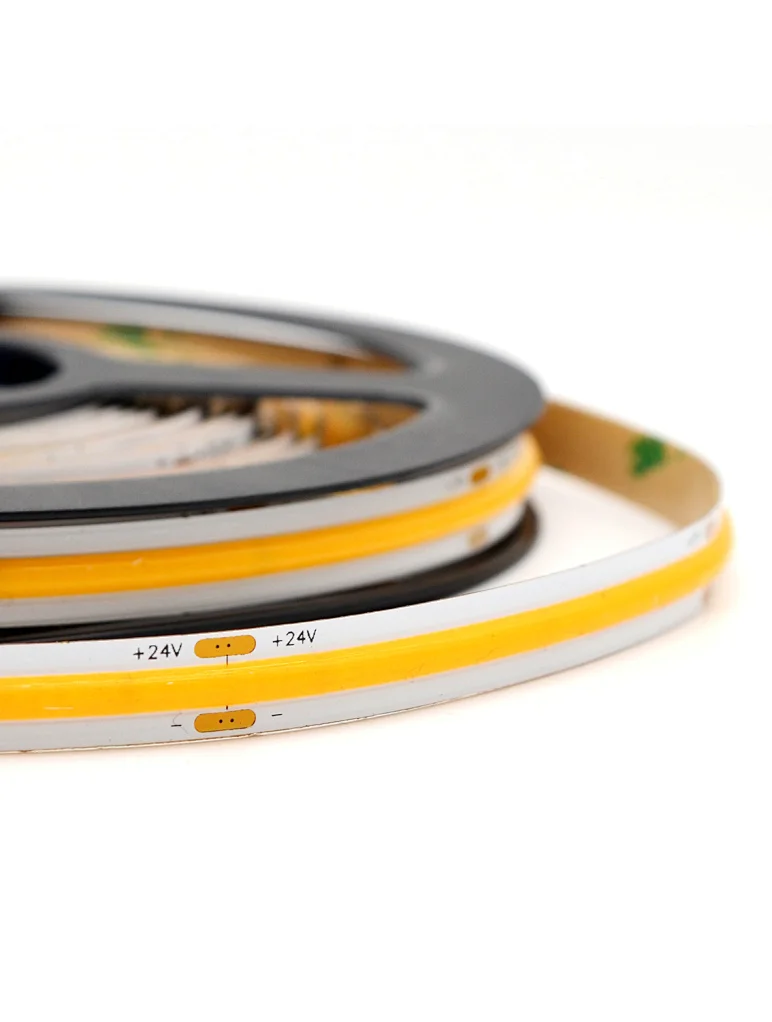

1. QTY Chip on FPCB, linear light, dot free

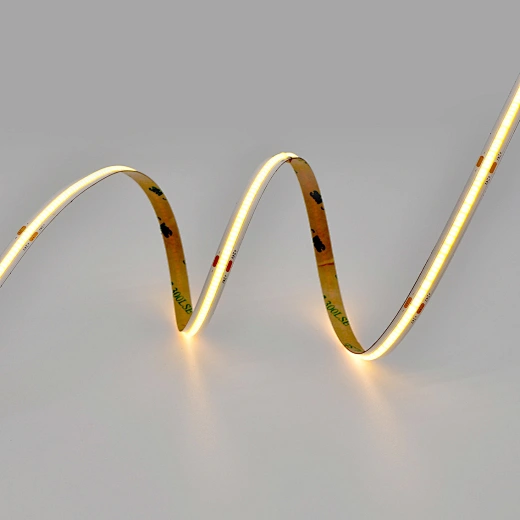

2. Extremely flexible, high reliability
3. High CRI and luminous efficiency
4. Uniform ilumination with sdcm3
5. 3year warranty and 5year warranty version
Parameter
| Item NO. | LED Type | Color | LED QTY (LED/M) | Cutting length (mm/cut) | Voltage (V) | Power (W/M) | Dimension (mm) |
| HR00-COB12AW480P5E | COB | 3000K 4000K 6000K | 480 | 12V: 25 24V: 50 | DC12/24V | 7 | 5000*5 |
| HR00-COB12AW480P8E | COB | 3000K 4000K 6000K | 480 | 12V: 25 24V: 50 | DC12/24V | 9 | 5000*8 |
| HR00-COB12AW480P8E | COB | 3000K 4000K 6000K | 480 | 12V: 25 24V: 50 | DC12/24V | 12 | 5000*10 |
| HR00-COB12AW400P3 | COB | 2700K 3000K 4000K 6000K | 400 | 10mm | DC12V | 4.8 | 5000*3 |
| HR00-COB12AW400P8 | COB | 2700K 3000K 4000K 6000K | 400 | 10mm | DC12/24V | 9.6 | 5000*8 |
| HR00-COB12AW512P10 | COB | 2700K 3000K 4000K 6000K | 512 | 12V: 15.63 24V: 31.25 | DC24V | 14 | 5000*10 |
| HR00-COB12AW640P10 | COB | 2700K 3000K 4000K 6000K | 640 | 50mm | DC24V | 18 | 5000*10 |
Connect Drawing

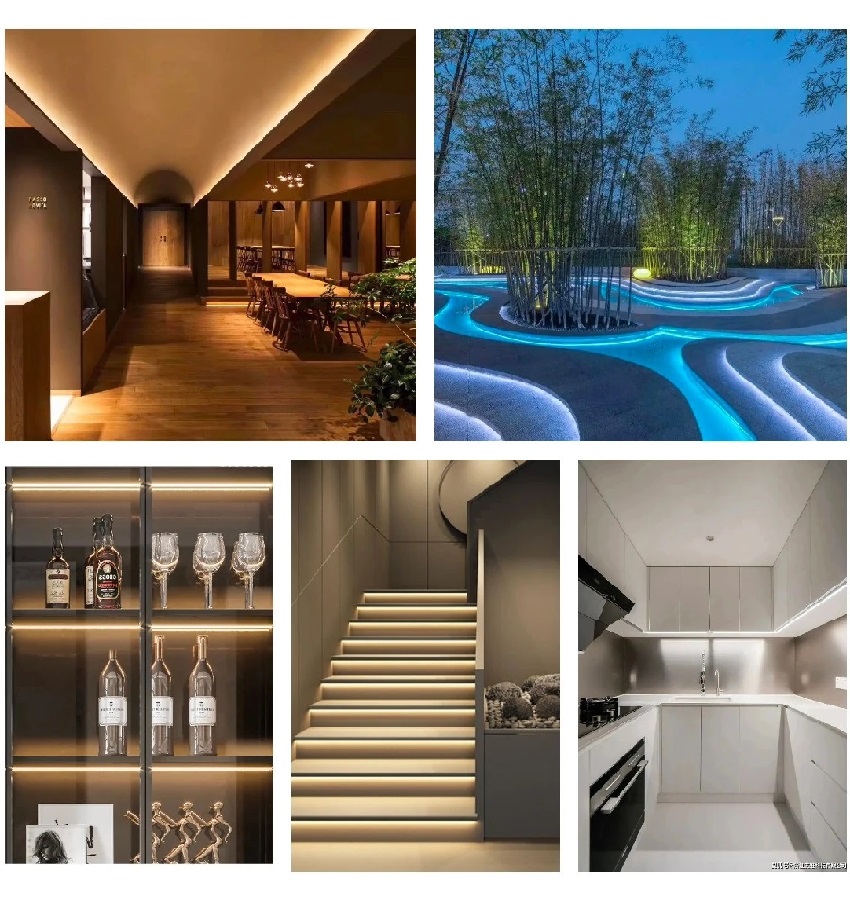

Application
1. Cove lighting or cabinet lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking decoration
6. Decorative lights for holiday, event, show, exhibition
7.Special light effect for art gallery and glass-made items
Installation
