addressable WS2815 led matrix
12V WS2815单点单控像素屏
HR12-ws2815-30084-12
FOB Shenzhen
20 米
600000米 / 月
深圳
7天
10多年灯带生产专家,专门为外贸商和工程师提供12V WS2815单点单控像素屏
数量

Specification

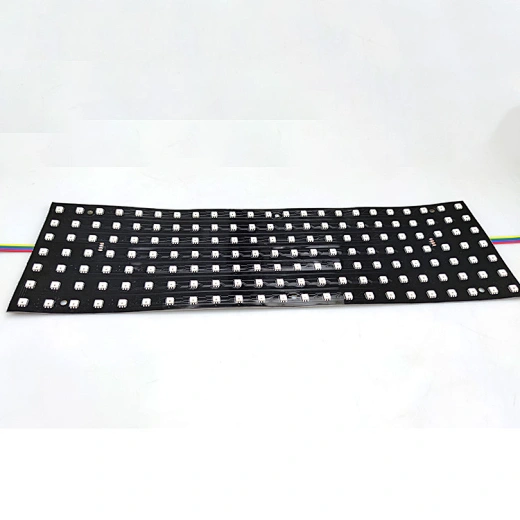

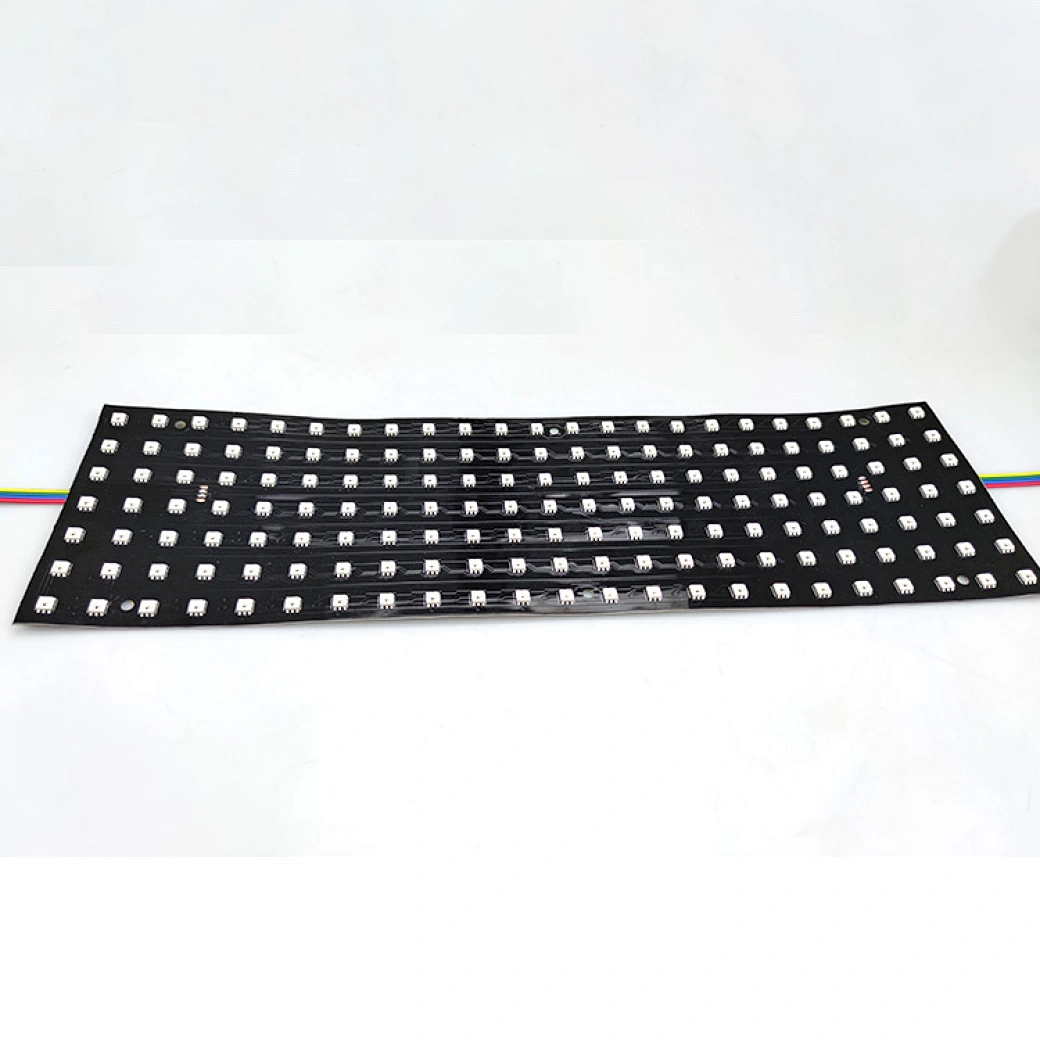

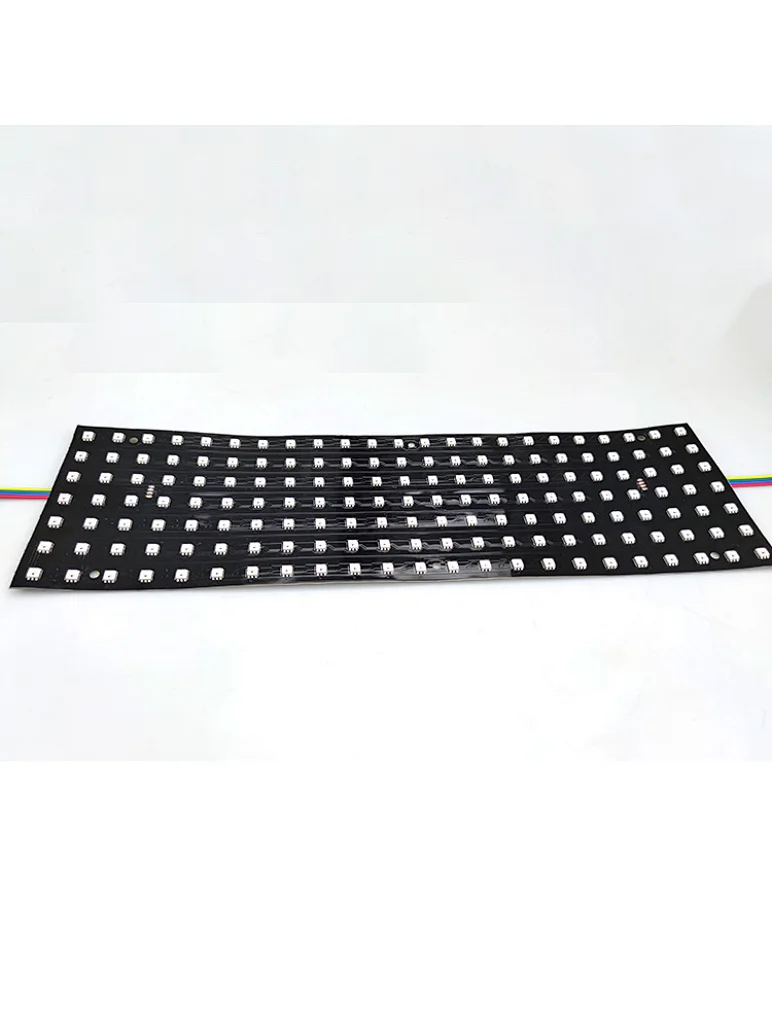

Product Name12V individually addressable led matrix
LED Typesmd 5050 rgb
LED QTY168leds/pcs
IC TypeWS2815
IC QTY168PCS
Voltage12V
Power33.6W/PCS
PCB Colorblack flexible pcb
Dimension300x84mm
AccessoriesMolex connector on the back

Note: This item is customized for one of our customers, it's for your reference only. If you have OEM or ODM request, please feel free to contact us to design for you.
