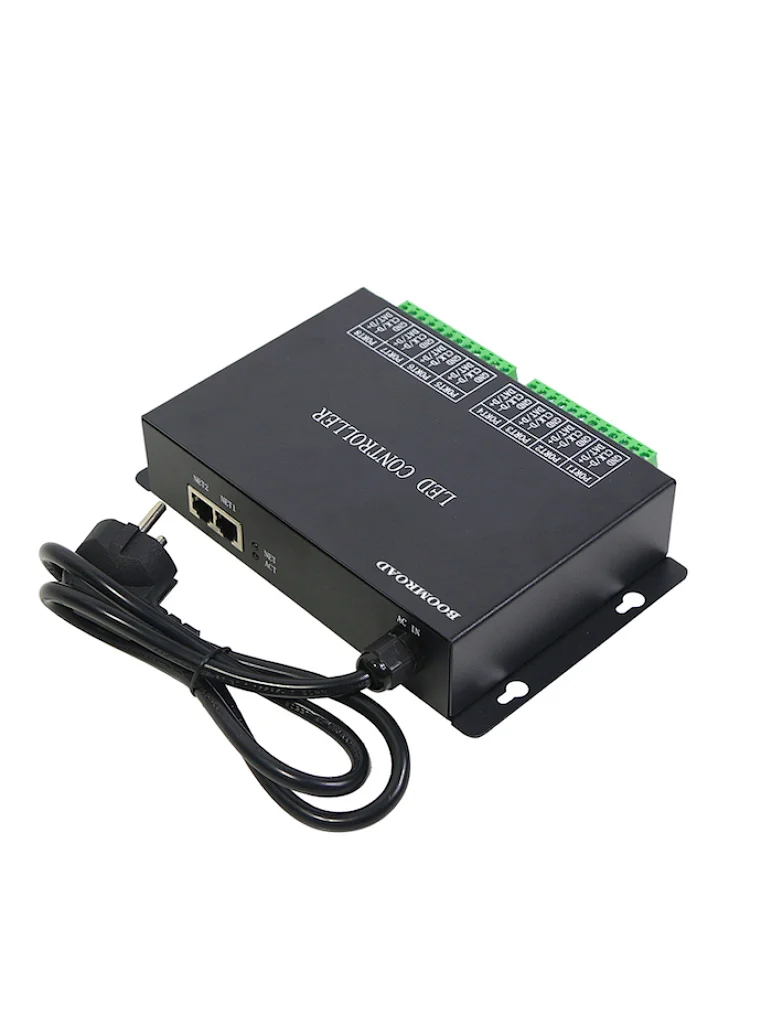

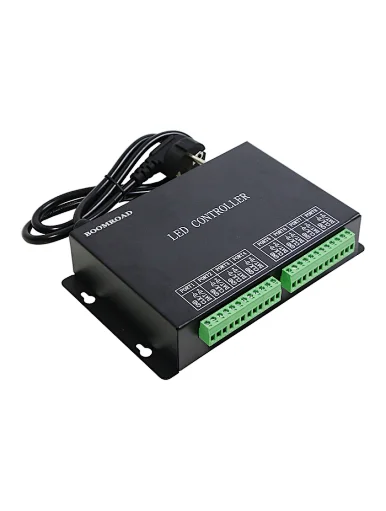

H801RC LED控制器
H801RC LED controller
EXW
5 个
300000个 / 月
深圳
7天
K-8000CLED控制器
数量

Product Detail

Feature:
(1). Eight ports controls maximum 8192 pixels. Each port controls maximum 1024 pixels.

(2). H801RC works online or offline, H801RC can be connected to PC or master controller.

(3). Good control effect, grayscale level is under precisely control.

(4). Far transmission distance. Signal transmitted based on standard Ethernet protocol, nominal transmission distance is 100 meters.

Specific parameter:

Customized Power Consumption: 1 W

Drive Pixels Number: 8192pixels

Weight: 1KG

Dimension: L189 x W123 x H40

Carton Size: L205 x W168 x H69



Supported Chips:

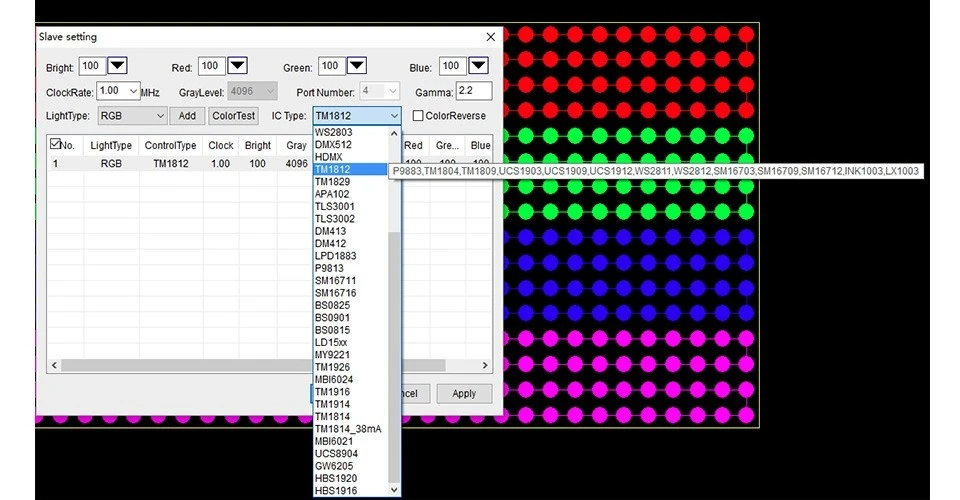

LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

Note:

H801RC can support more than the chips listed above(for example UCS2903 has the same sequence diagram with UCS1903, H801RC supports them all).

Working Mode :

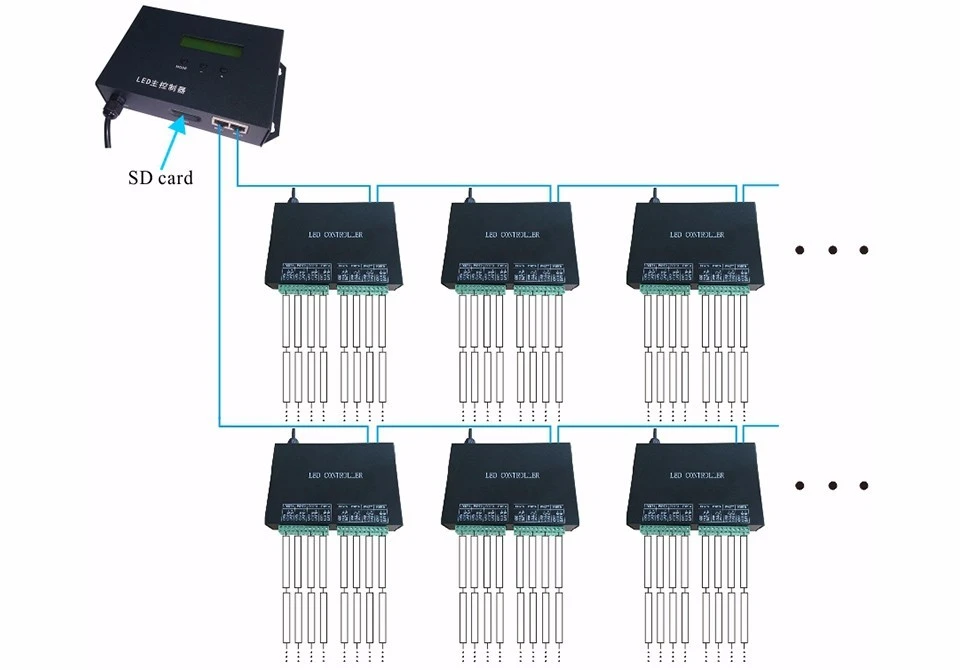

Mode 1: Connected to master controller(offline mode) Software: LED Build LED Build Download: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ LED Build Tutorial Video Download: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA

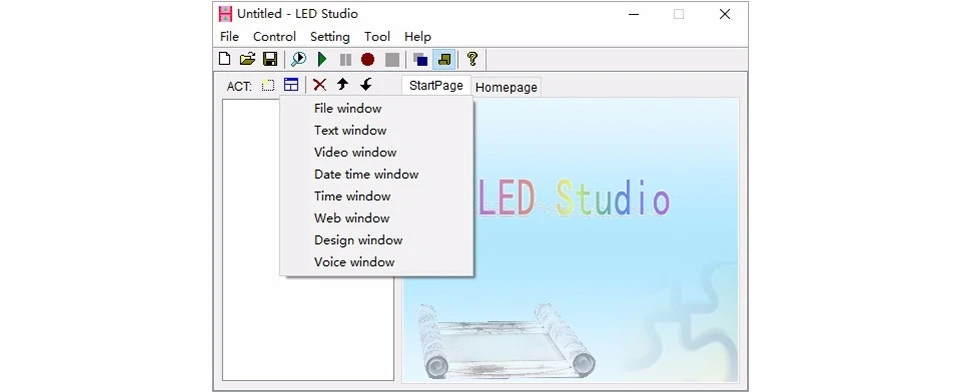

Mode 2: Connected to PC(online mode) Software: LED Studio

LED Studio download: https://drive.google.com/open?id=0B1gzqyV6hfOgWFpuM3BoN1VaTGs

H801RC to PC tutorial document download: https://drive.google.com/open?id=0B1gzqyV6hfOgdDJ0REVLWS1qUEU

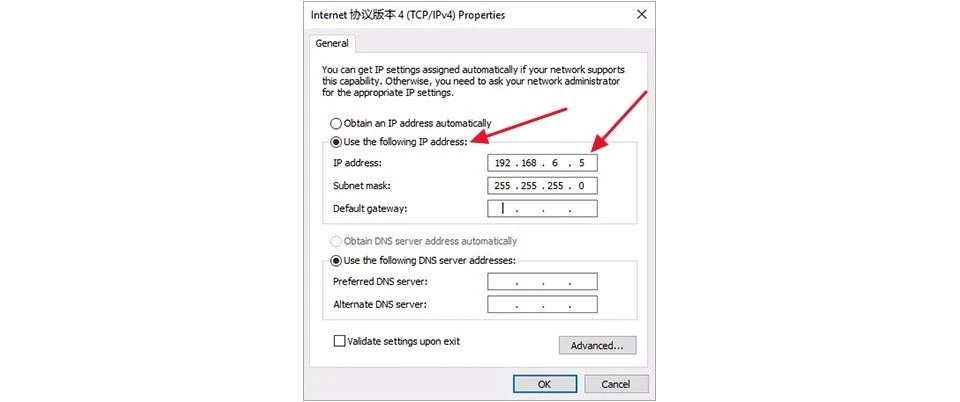

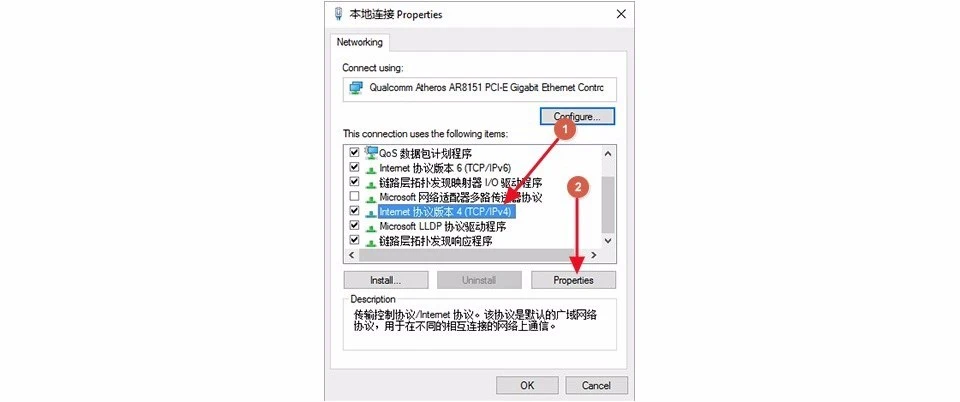

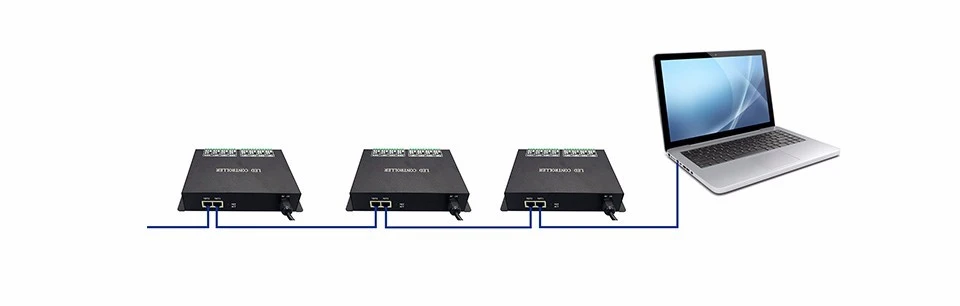

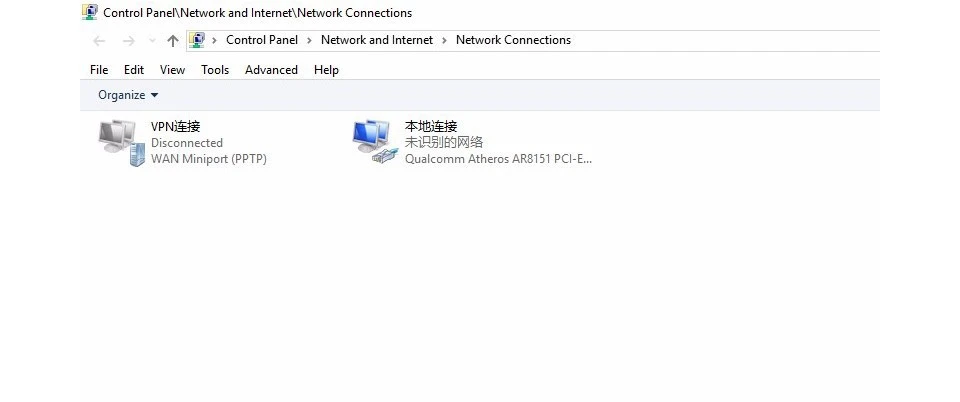

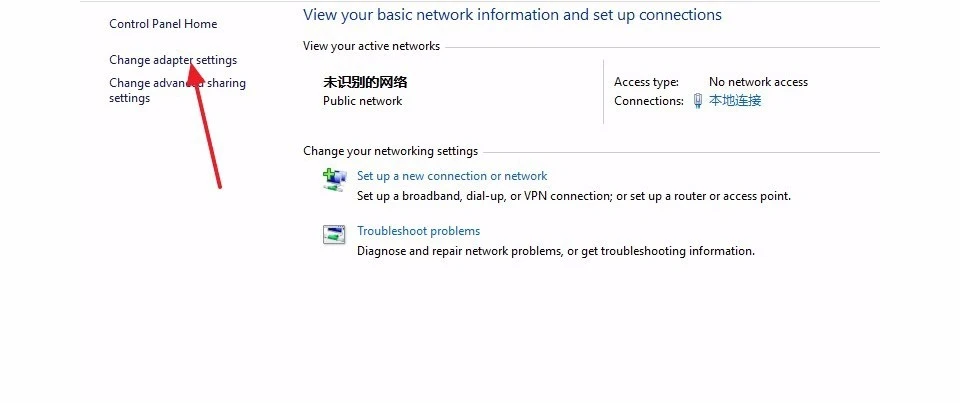

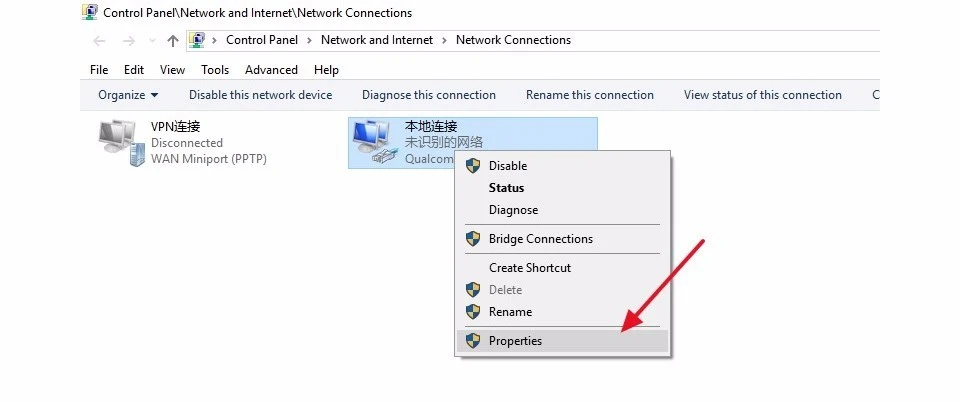

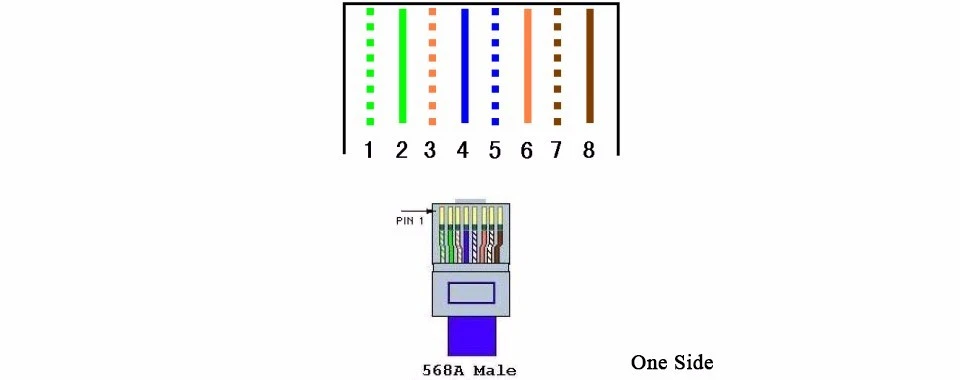

Basic Workflow(online mode) Step 1: connect H801RC to PC with crossover network cable







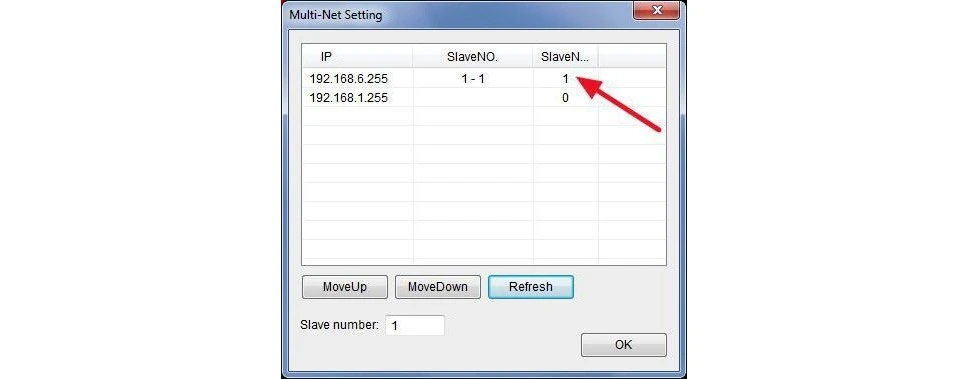

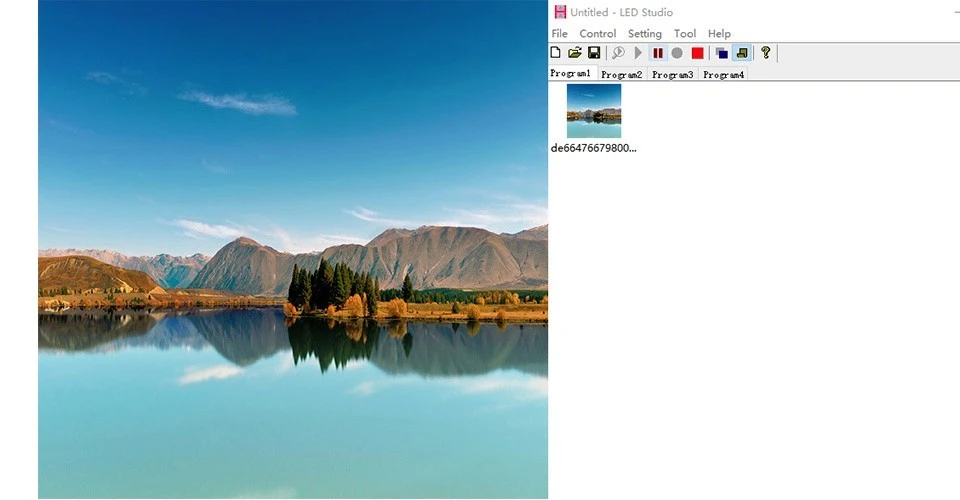

In LED Studio

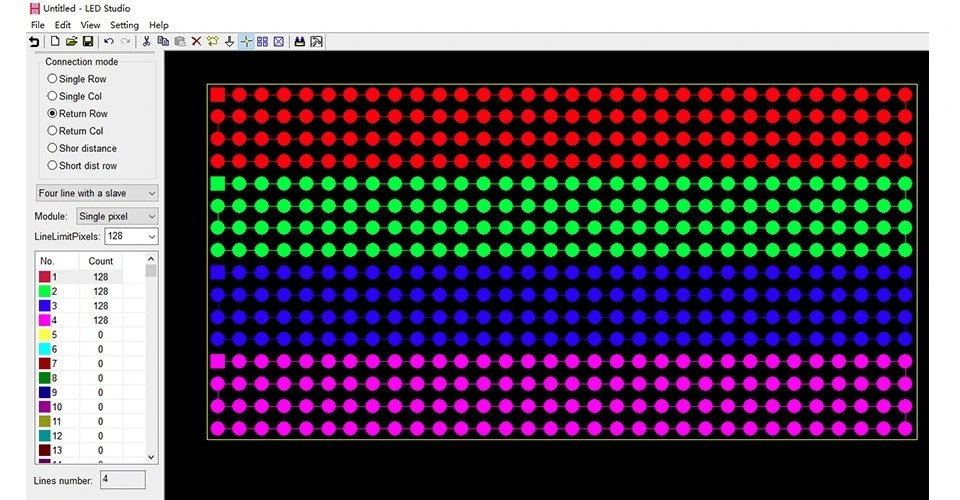

Place Pixels






Questions & Answers ‎

Q:How many LEDs to control with a computer?

A: Drive maximum 8192 pixels with 8 output ports

Q: Which master controller can work with it?

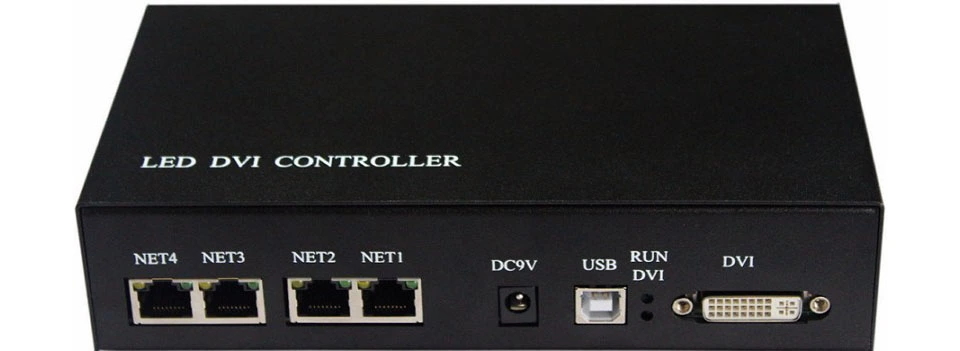

A: Pls click the following LED DVI Controller .
