8x32/16x16/8 x 8 WS2812B LED柔软像素屏

型号
HR00-WS2812rgb-1616
交货:
EXW
最小起订量:
30 个
供货能力:
600000 个 / 月
原出产地:
深圳
备货期:
7-12 天
数量:

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

sk6812 4020 led strip light


Feature

8x32 16x16 8x8 RGB WS2812B SK6812 flexible led matrix


8x32 16x16 8x8 ws2812b rgb pixel led matrix
For led Bendable Pixel Matrix:

1. Each SMD5050 RGB led has an IC inserted in, supporting numerous color-change effects.
2. WS2812B is 3pin wire with DATA, GND, DC5V.
3. We offering 3 different size:8*8cm, 16*16cm, 8*32cm.
4. DC5V; power consumption:8cm*8cm is 19.2W; 16cm*16cm & 8cm*32cm is 76.8W.
5. We also do customized product or OEM service
6. Wide compatibility & application: It works great and compatible with Arduino, Raspberry Pi, FastLED library, Rainbowduino, SP103E, SP105E, K1000C,T1000S, etc.It can be used to make led screen, led wall, advertising board and hotel, KTV, bars, Outdoor advertising signs, Christmas or wedding party decoration, etc.

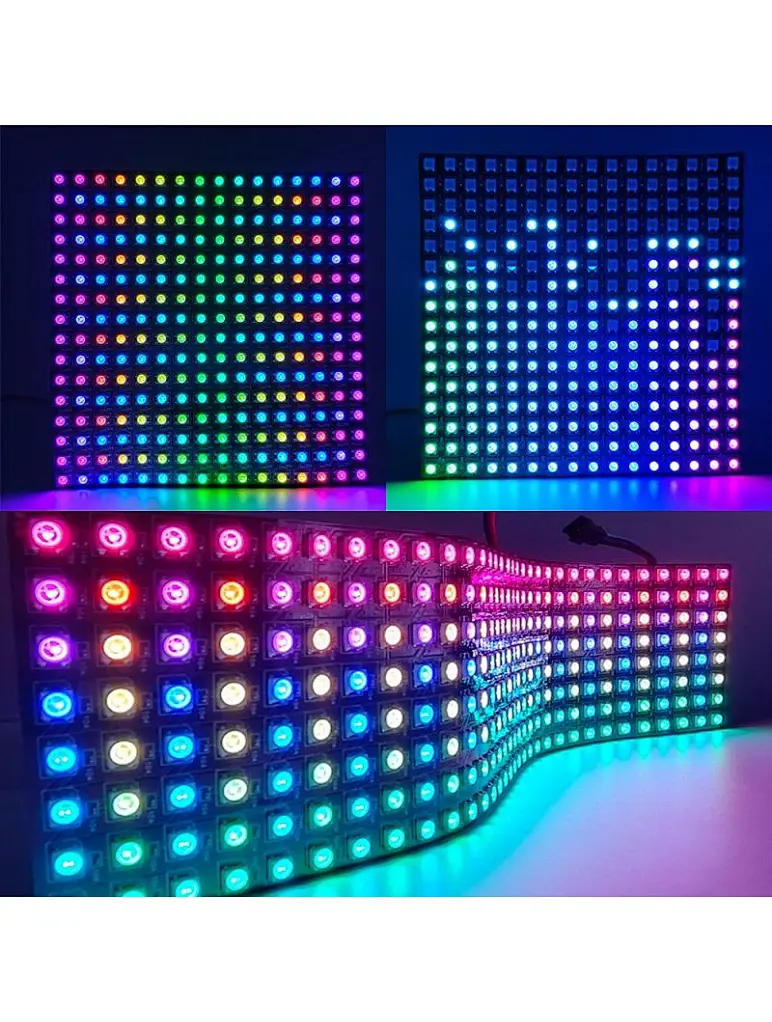

7. Chainable and bendable,You can extend the panel by hooking them up one by one with the 3pin JST connectors. Flexible FPCB can be gently bent and curved around surfaces.


Specification

Itemws2812b flexible led matrixItemSpecification
LED Type5050 RGBCascade connection:≤1024 pixels
IC model:WS2812B / SK6812Light wane:1000h≤1.4%
Working voltage:DC 5VPanel:Electrolytic copper/RA copper
Gray level:256 level can adjust( Full color)Capacitor:104 Capacitance
Board thickness:250μmTypical current:20mA/PCS
Working Temperature:-20℃- 80 ℃Light color:Full color
Pixel Quantity:8*8 / 16*16 / 8*32Power:19.2W/76.8W/76.8W
Board color:White/BlackData transmission rate:800Kbps
Control agreement: Single line NRZ protocol. Application:

decoration and  magic led project, or other LED DIY invention.

Dimension: mm


8x32 16x16 8x8 pixel led matrix dimension and circuit

8x32 16x16 8x8 ws2812 pixel led matrix dimension and circuit8*32 ws2812 pixel led matrix dimension and circuit

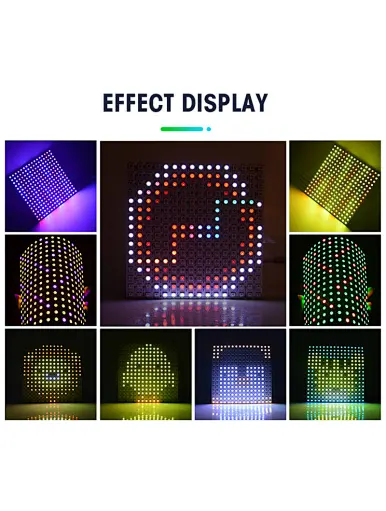

Application

8x32 16x16 8x8 ws2812b rgb pixel led matrix application

Customized Your Specific Pixel Led Light
10 Professional engineers are here to serve you


led Matrix application


Looking to light an irregular space or a super creative projects? As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, be it residential or commercial, or even industrial.

We can easily translate your lighting needs and provide customized lighting solutions. We have the ability to recommend you suitable pixel led strip, controller and software for the whole project, and give you suggestion during your installation.

At the same time, our experts can provide you full PCB design support and create LED strips that are just the right pixel IC, color, size, shape, and brightness.

You only need to share us your creative ideas or design, then the rest leave to us Hanron. We will give you a suprise!
