H802RA 4 ports salve LED pixel controller Support Art-Net protocol for MADRIX,or marster controller(H803TV/ H803TC) 4096 pixels

Product Detail

Features

1. Support ArtNet protocol, 4 universes(each has 512 channels) output.
2. Support allocating address for DMX512 chips (for example UCS512, TM512).
3. Transmission distance between two controllers is up to 100 meters.


Specification

Input Voltage:   Customized

Power Consumption:   1.3W

Drive Pixels Number:   4096

Weight:   1KG

Dimension:   L163 x W155 x H54

Carton Size:   L205 x W47 x H21

Supported Chips

TM1812 includes TM1804, TM1809, UCS1903, UCS1909, UCS1902, WS2811, WS2812, WS2813, SK6812, SM16703, SM16709, SM16712, INK1003
DMX512 includes UCS512, WS2821, TM512
APA102 and SK9822

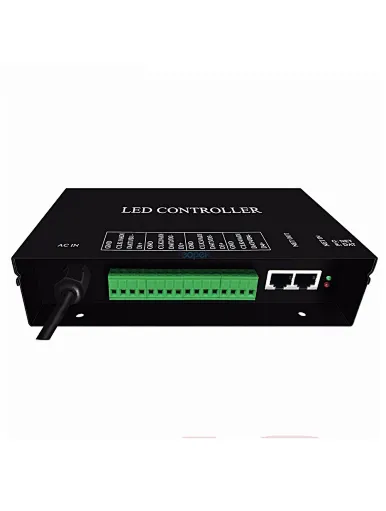

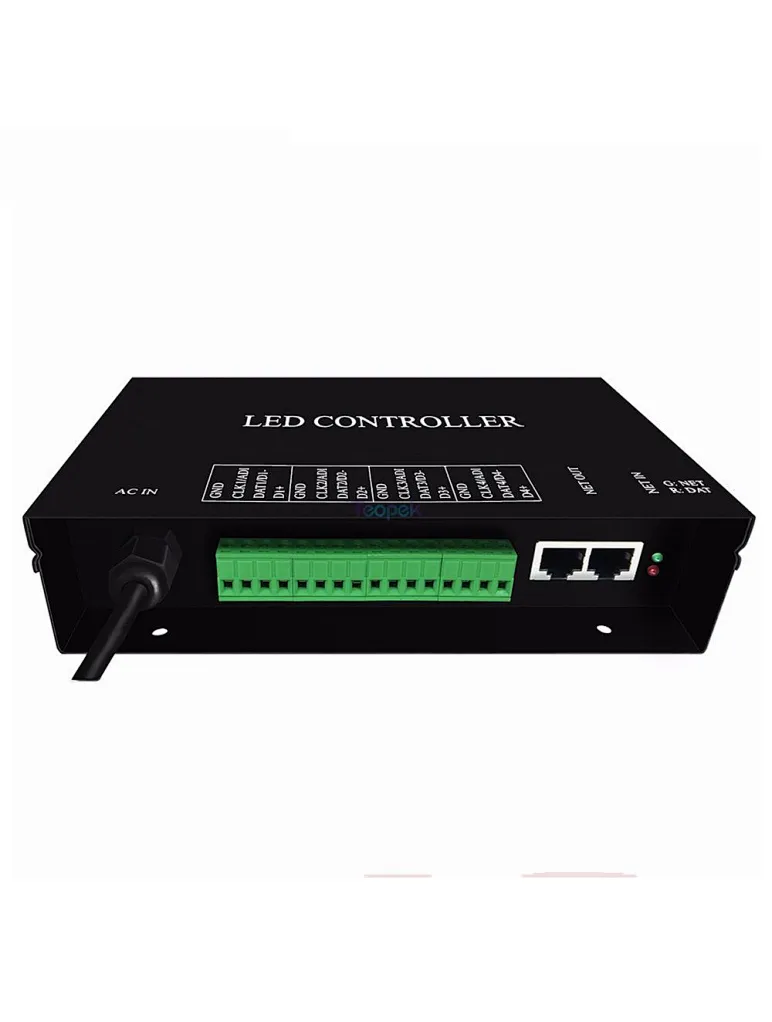

Product Display








Manual

Step1. Connect H802RA to PC and led lights to H802RA like the following image displays (It's online mode)

Step2. Set an IP address for H802RA



Step3. Configure H802RA
Download Led Studio
Led Studio Download Link: https://drive.google.com/open?id=1u5ybMEMNvOgBGsC8ANA2fo-79k7Vv5p0








Then, click"Save to H802RA"and close the window.
.
In the following example, i connect 1 pcs H802RA to PC, H802RA connects to a WS2812 panel (32 pixels by 32 pixels), each port of H802RA supports 680 pixels.
The panel consists of 2 pcs 32*16 panels

MADRIX  Configurations
