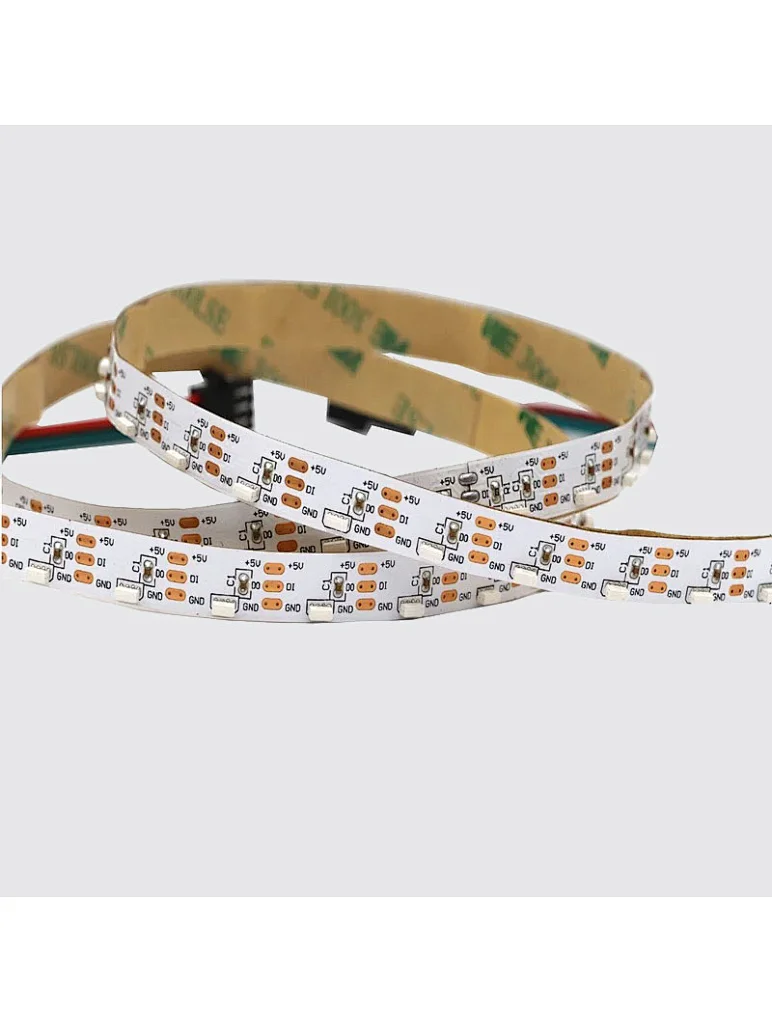

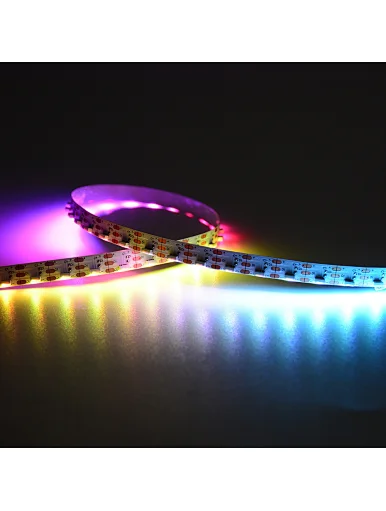

SK6812 4020 侧发光5V 60灯/米 RGB LED灯带

型号
HR00-sk68124020-60-rgbP10
交货:
EXW
最小起订量:
30 米
供货能力:
600000 米 / 月
原出产地:
深圳
备货期:
7-12 天
数量:

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

sk6812 sideview led strip light certificate


Feature


sk6812 sideview led strip light
For SK6812 4040 sideview RGB led strip:


1, Origional SK6812 4020 led, more stable in quality and higher brightness
2. DC5V design with 1led/cut, individually addressable, more flexible in sofeware control
3. Pixel rgb sideview function, can be used in speical application like cars, LED curtain etc.
4. The gray levels of each pixel of 256 levels, and the refresh frequency reaches to 2KHz/s
5. Strong flexible for heat dissipation and real 3M tape for strong installation


Specification

ItemSpecificationItemSpecification
Item NameSK6812 sideview rgb led stripLight Source4020 RGB
IC TypeSK6812IC QTY60pixels/M
LED QTY60leds/MIC LocationInternal IC
ColorRGB Dream ColorVoltageDC5V
Working T-20 to 45 DegreePower14.4W/M
PCB colorBlack/WhiteAngle120 degrees
IP RatingIP20/65/66/68Cutting Unit1.67cm
PackageAnti-Static BagOEM&ODMAvailable
Dimension5000mm*8mmLifetime50000hrs
CertificateETL,CE, RoSH, Reach...Warranty2years

Dimension: mm


IP Rating

waterproof sk6812 sideview led strip light



Application

 sk6812 sideview led strip light application
