mini rgb sk6812 led strip
SK6812 Mini 144灯/米 RGB Led灯带
HR00-sk6812mini-rgb-1144-8
EXW
30 米
600000米 / 月
深圳
7-12天
超窄幻彩灯带,幻彩灯带超窄,迷你幻彩灯带
数量
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

mini addressable led strip light certificate


Feature of mini addressable led strip light


mini addressable led strip light

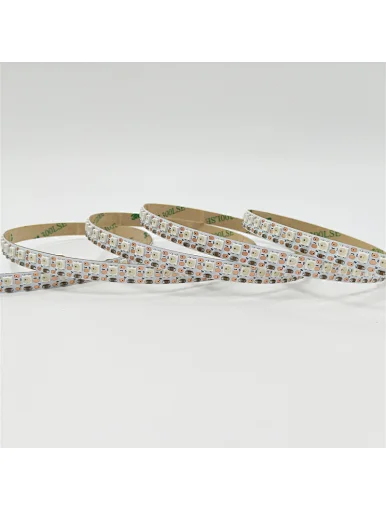

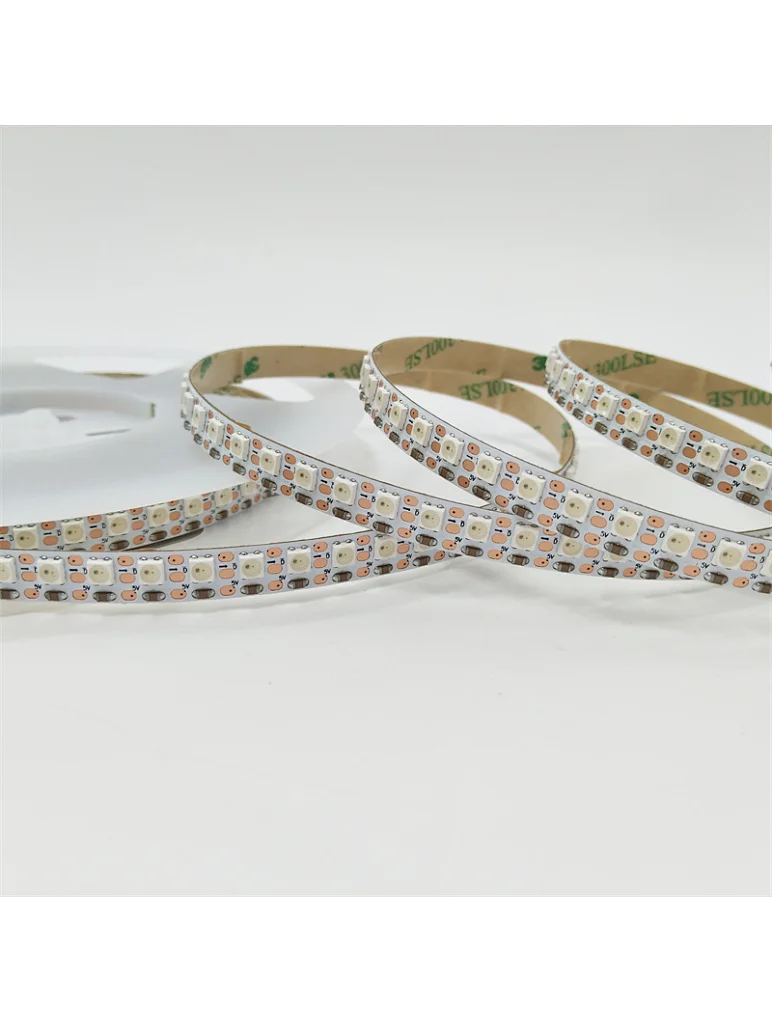

SK6812 144led/M mini addressable led strip

1.  5V, 1 IC / 1 LED chip, individually controlled
2. With the original SK6812 mini led, more stable in quality and more brightness
3. 8mm width with 144leds/M, dotless in many applications
4. 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
5. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
6. Strong flexible for heat dissipation and real 3M tape for a strong installation




Specification


Item
Specification
Item
Specification
Item Name
mini addressable led strip light
Light Source
3535 RGB
IC Type
SK6812 mini rgb
IC QTY
144pixels/M
LED QTY
144leds/M
IC Location
Internal IC
Color
RGB Dream Color
Voltage
DC5V
Working T
-20 to 45 Degree
Power
28.8W/M
PCB color
Black/White/Yellow
Angle
120 degrees
IP Rating
IP20/66
Cutting Unit
6.94mm
Package
Anti-Static Bag
OEM&ODM
Available
Dimension
5000mm*8mm
Lifetime
50000hrs
Certificate
ETL, CE, RoHS, Reach...
Warranty
2years




Dimension: mm



mini addressable led strip light dimension




IP Rating



waterproof mini addressable led strip light




Application of mini addressable led strip light



mini addressable led strip light application
