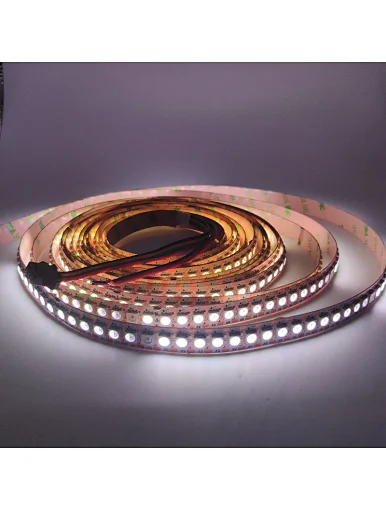

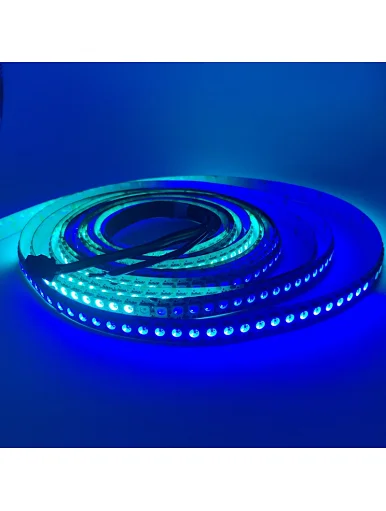

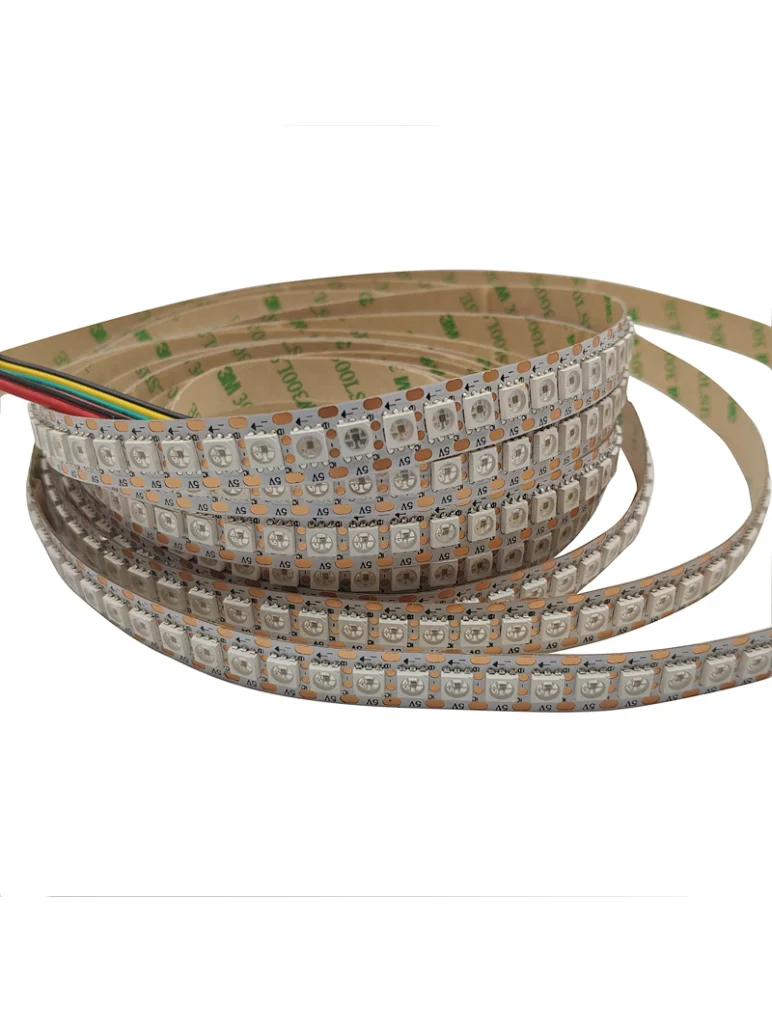

SK9822/APA102/HD107S 144灯/米 RGB Led灯带
HR00-sk9822-rgbw-144-5
EXW
30 米
600000米 / 月
深圳
7-12天
sk9822灯带，apa102灯带，hd107s灯带
数量
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.
Feature
APA102/HD107S/ SK9822 led strip:
2. With signal self-detection function
3. Fast transmission speed, the maximum serial input data frequency is 30MHZ
4. Two-wire data transmission, built-in oscillation supports uninterrupted PWM output, which can keep the picture still
5. DC5V design with 1led/cut, individually controlled
6. Strong flexible for heat dissipation and real 3M tape for strong installation
Specification
| Item | Specification | Item | Specification |
| Item Name | SK9822 led strip | Light Source | 5050 RGB |
| IC Type | SK9822/APA102/HD107S | IC QTY | 144pixels/M |
| LED QTY | 144leds/M | IC Location | Internal IC |
| Color | RGB Dream Color | Voltage | DC5V |
| Working T | -20 to 45 Degree | Power | 34.56W/M |
| PCB color | Black/White/Yellow | Angle | 120 degrees |
| IP Rating | IP20/65/66/68 | Cutting Unit | 6.94mm |
| Package | Anti-Static Bag | OEM&ODM | Available |
| Dimension | 5000mm*12mm | Lifetime | 50000hrs |
| Certificate | ETL,CE, RoSH, Reach... | Warranty | 2years |
Dimension: mm
IP Rating

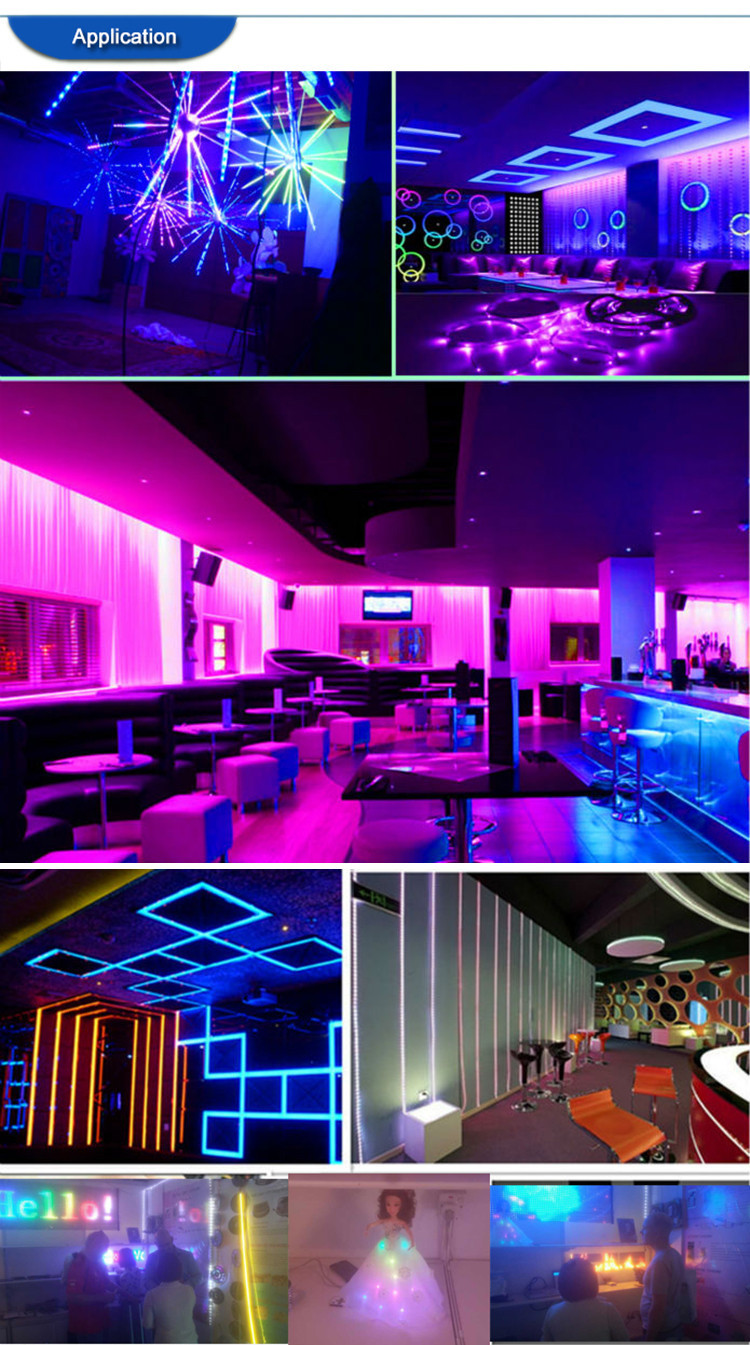

Application
