SK9822/APA102/HD107S 60灯/米 RGB Led灯带

型号
HR00-sk9822-rgb-60-5
交货:
EXW
最小起订量:
30 米
供货能力:
600000 米 / 月
原出产地:
深圳
备货期:
7-12 天
数量:

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

hd107 apa102 apa102c sk9822 led strip light certificate


Feature

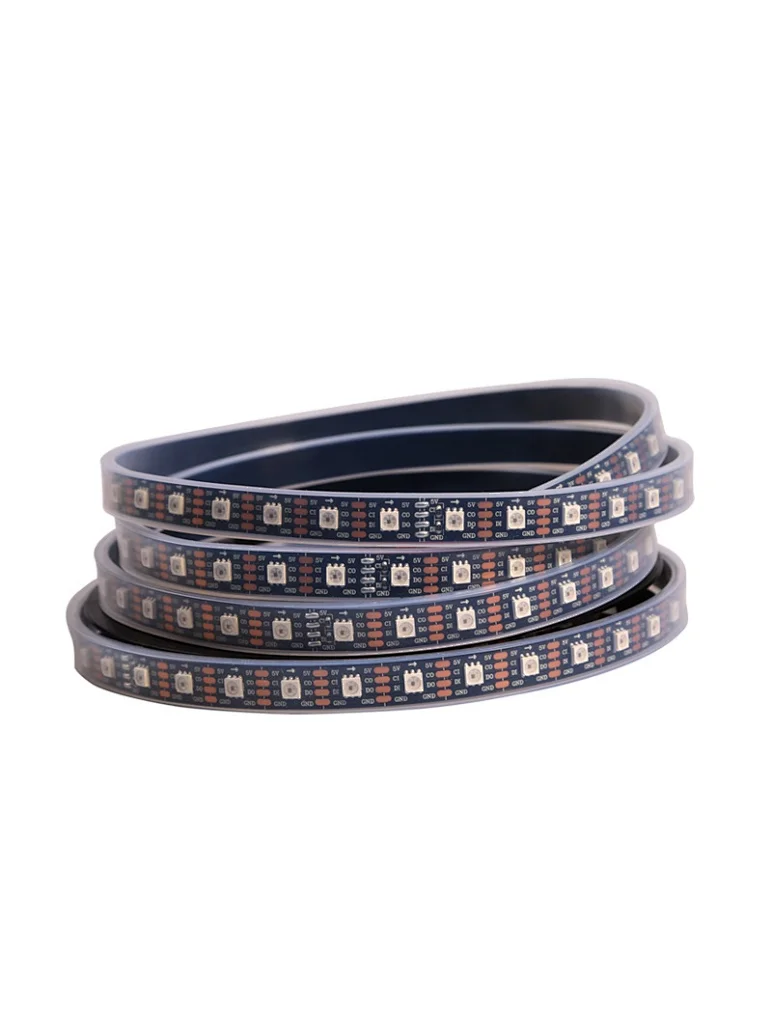

hd107 apa102 apa102c sk9822 led strip light
APA102/HD107S/ SK9822 led strip:

1. Two-wire synchronous control
2. With signal self-detection function
3. Fast transmission speed, the maximum serial input data frequency is 30MHZ
4. Two-wire data transmission, built-in oscillation supports uninterrupted PWM output, which can keep the picture still
5. DC5V design with 1led/cut, individually controlled
6. Strong flexible for heat dissipation and real 3M tape for strong installation

Specification
ItemSpecificationItemSpecification
Item NameSK9822 led stripLight Source5050 RGB
IC TypeSK9822/APA102/HD107SIC QTY60pixels/M
LED QTY60leds/MIC LocationInternal IC
ColorRGB Dream ColorVoltageDC5V
Working T-20 to 45 DegreePower14.4W/M
PCB colorBlack/White/YellowAngle120 degrees
IP RatingIP20/65/66/68Cutting Unit1.67cm
PackageAnti-Static BagOEM&ODMAvailable
Dimension5000mm*10mmLifetime50000hrs
CertificateETL,CE, RoSH, Reach...Warranty2years

Dimension: mm




IP Rating

hd107 apa102 apa102c waterproof sk9822 led strip light

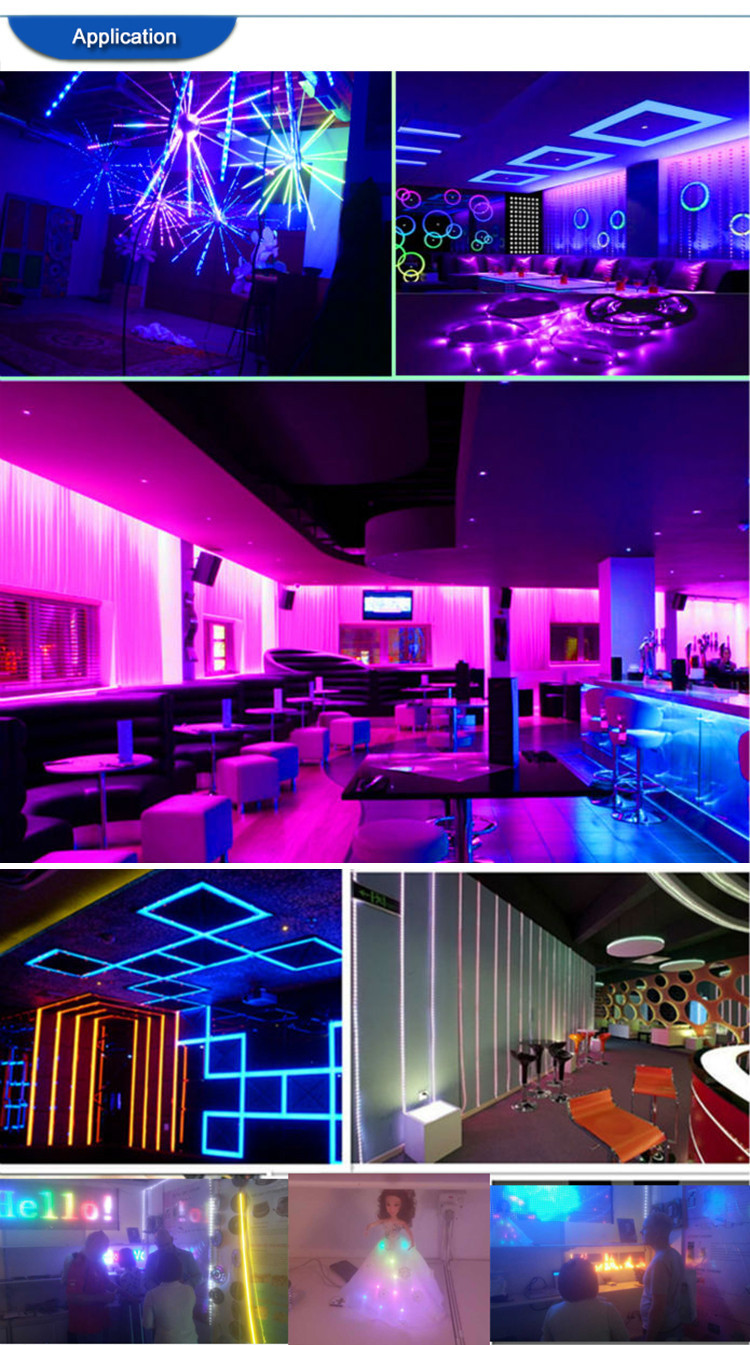

Application

hd107 apa102 apa102c sk9822 led strip light application
