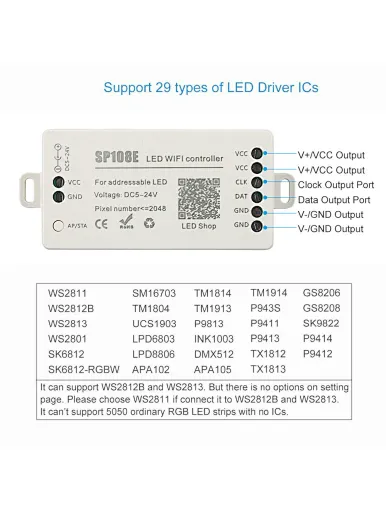

Features: 1) Long distance APP remote control via WIFI; 2) Support routing mode(AP) and LAN connection mode(STA); 3) Support almost every kind of one-wire or two-wire LED driver IC ; 4) Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns; 5) Creatively usingfrom-image-to-effect method for user toDIYany effect; 6) Support setting pixel number and segments number, able to control up to 2048pixels; 7) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply; 8) User setting saving;
App control: Both IOS version and Android OS version are available. (hardware should support WIFI) •Requires IOS version 10.0 or later; •Requires Android OS version 4.4 or later; •Search”LedShop”in App Store or Google pay or scan this QR code to download and install the App:

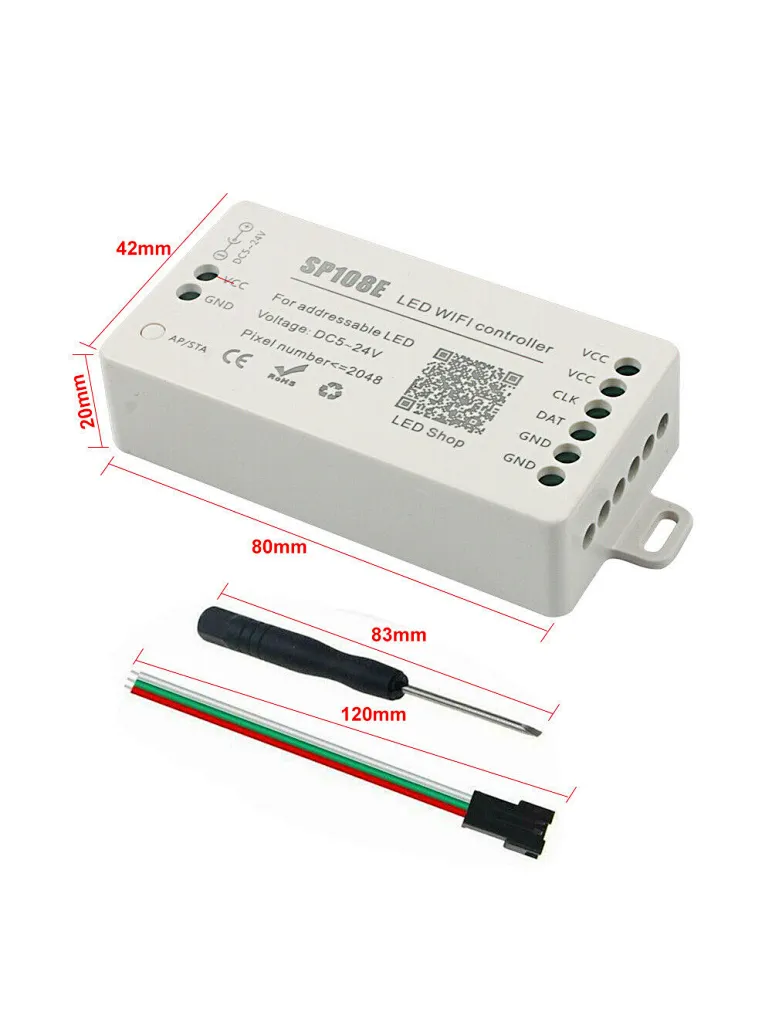

Specifications: Working temperature : -20~60 Degrees Celsius Working Voltage : DC5V~24V; Working Current :20mA~130mA; Remote distance :30 Meters; Product size : 85mm*45mm*22mm; Product weight : 40g ; Certificates : CE, RoHS;
Working Mode and Connecting: AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point. Connect steps: 1) When the device is not connected to any WIFI network, power on the controller and wait for 20s and then controller will switch intoAP mode ; 2) In the WIFI setting page,find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678), 3)Open the LED Shop App ,then the controller will be showed on the device list;
*STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly. Connect steps: 1)When the device is not connected to any WIFI network,power on the controller,controller will be remain inWait-For-Connet mode for 20 seconds; 2) Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish; 3) When controller successfully enter the WIFI network, it will be showed on the device list; 4) User can select the controller and remove it out of the network by pressing theRemove Device button,then the controller will switch into AP mode.

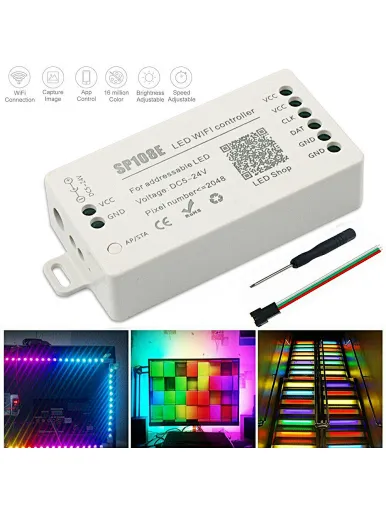

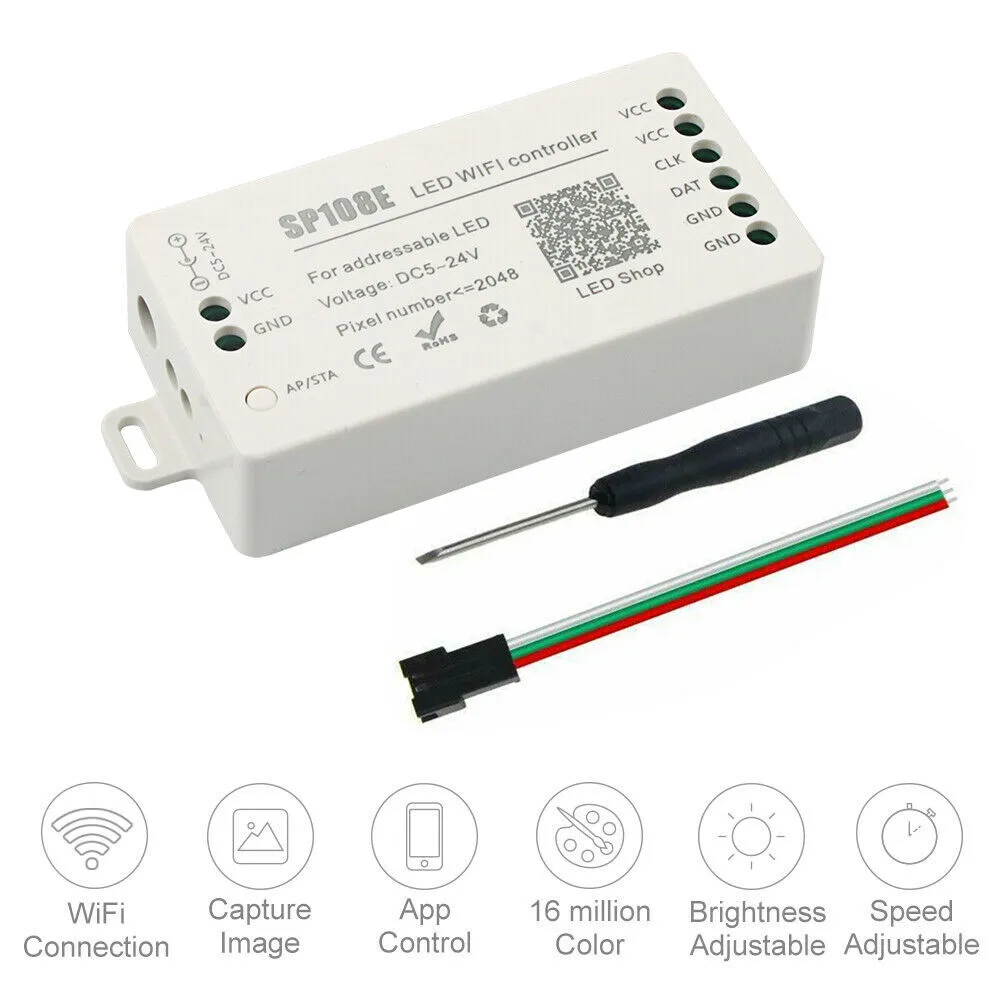

Package includes: 1x SP108E LED controller 1x 3pin female JST connector 1x Mini screwdriver 1x User manual
This device does not work under 5 ghz wifi
