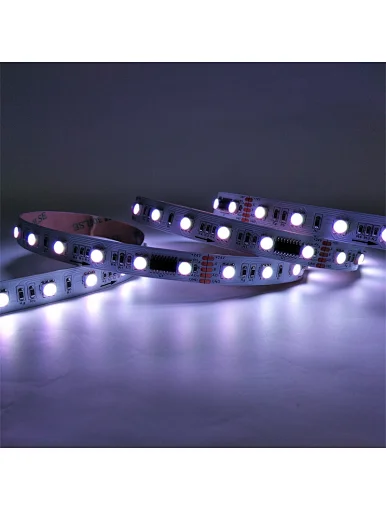

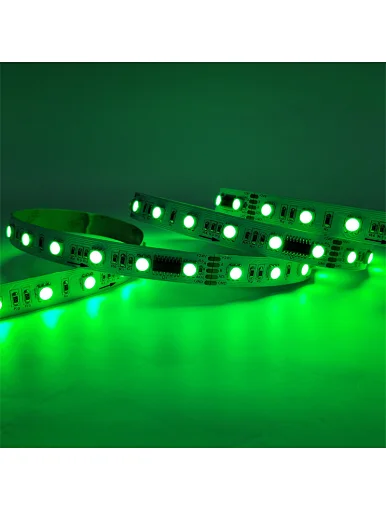

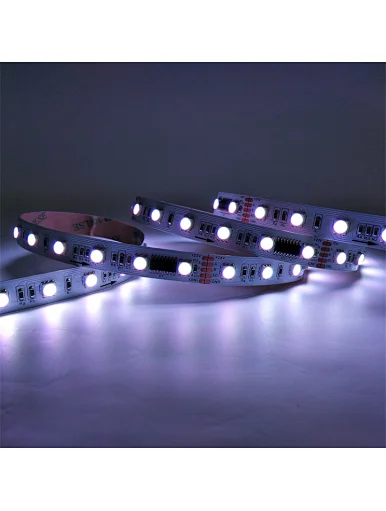

addressable dmx512 tm512ac4 led strip light
tm512ac4 LED灯带
HR00-tm512ac-rgb-60-12
EXW
30 米
600000米 / 月
深圳
7-12天
tm512ac4 LED灯带
数量
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.

tm512ac4 led strip light


Feature


tm512ac4 led strip light
1.No matter what or how many ic is broken, the led strip will work usually.

DMX IC we use the 5 cable dmx512 double signal,256 high grayscale brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage does not affect other parts of the strips and continue work, etc.

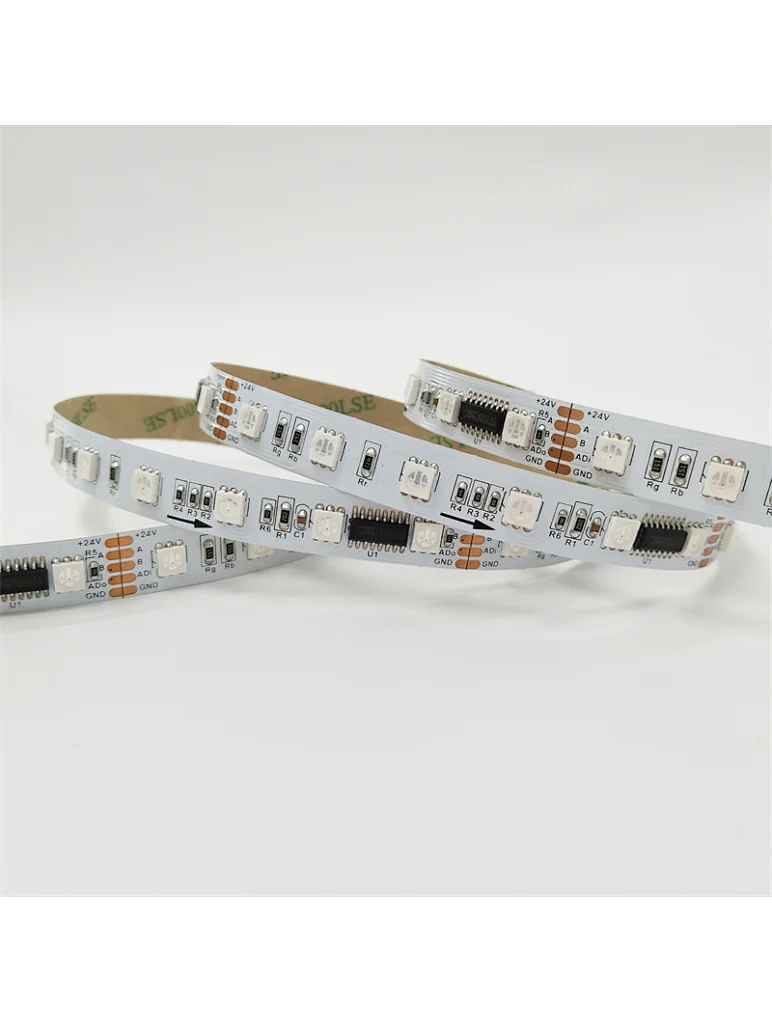

2.24V RGB DMX512 LED strip Connection:

DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX-  (B): connect to controller DMX- (B)
PI: Write the address, one address cable
GND: connect to power supply GND & controller GND


3.60leds/M, DC24V is one IC with 6pcs leds, it can work with Madrix and some DMX controllers to program




Specification


Item
Specification
Item
Specification
Item Name
tm512ac4 led strip light
Light Source
5050 RGB
IC Type
tm512ac4
IC QTY
10pixels/M
LED QTY
60leds/M
IC Location
external IC
Color
RGB
Voltage
DC24V
Working T
-20 to 45 Degree
Power
14.4W/M
PCB color
Black/White/Yellow
Angle
120 degrees
IP Rating
IP20/65/66/68
Cutting Unit
16.7mm
Package
Anti-Static Bag
OEM&ODM
Available
Dimension
5000mm*12mm
Lifetime
50000hrs
Certificate
ETL, CE, RoHS, Reach, etc.
Warranty
2years



Dimension (mm)


dimension of tm512ac4 led strip light




The waterproof version of tm512ac4 led strip light


addressable dmx512 tm512ac4 led strip light




Application of tm512ac4 led strip light

application of addressable dmx512 tm512ac4 led strip light
