双色 DMX512灯带

型号
HR00-ucs512b3-tw-240-12
交货:
EXW
最小起订量:
30 米
供货能力:
600000 米 / 月
原出产地:
深圳
备货期:
7-12 天
数量:

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

DMX512 UCS512C4 UCS512C3 DC 24V 5050 48leds/M DMX rgb UCS512 addressable pixel led strip light for outdoor landscape


Feature

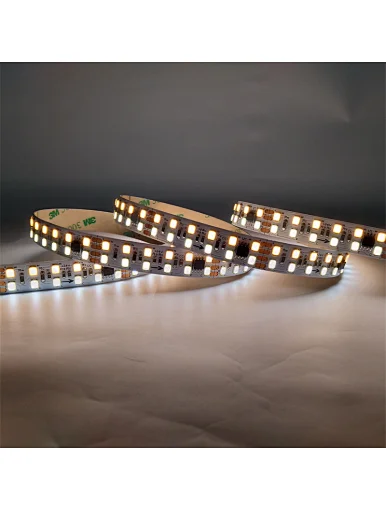

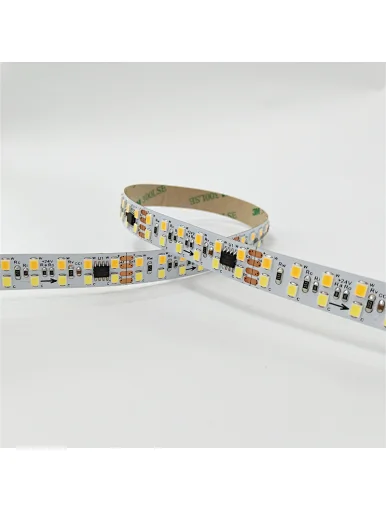

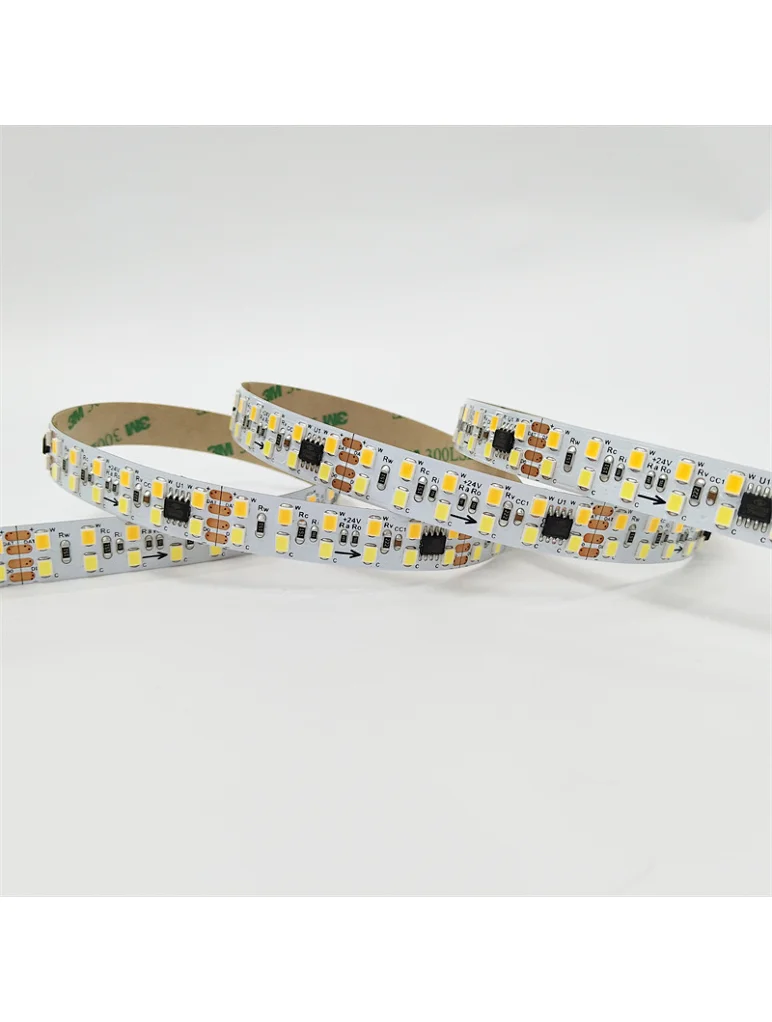

ucs512b3 white dmx512 led strip:

1. Unique design of dmx512 led strip to be dual white, 2700K+6000K
2.  Standard DMX512 signal, more stalbe signal transmission compare to SPI signal

3. No matter what or how many ic broken,the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 gray scale high brightness fast data transfer fast screen refresh etc. Using international standards DMX512 protocol products with one and multi point damage does not affect other parts of the strips and continue work etc.

4. DC24V design to allow longer connection, more convenient during installation
5. It can work with Madrix and some DMX controller to programme

Specification

ItemSpecificationItemSpecification
Item Namedual white dmx512 led stripLight Source2835 white
IC Typeucs521b3IC QTY20pixels/M
LED QTY240leds/MIC Locationexternal IC
Colordual white 2700K+6000KVoltageDC24V
Working T-20 to 45 DegreePower19.2W/M
PCB colorBlack/White/YellowAngle120 degrees
IP RatingIP20/65/66/68Cutting Unit50mm
PackageAnti-Static BagOEM&ODMAvailable

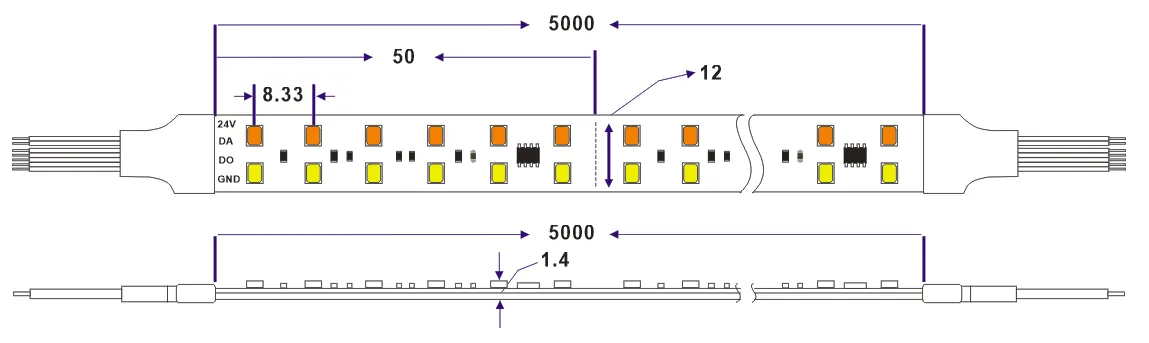

Dimension5000mm*12mmLifetime50000hrs
CertificateETL,CE, RoSH, Reach etc.Warranty2years



IP Rating



ucs512b3 dual white dmx512 led strip


Application


applications of ucs512b3 dual white dmx512 led strip
