24v rgb strip 5050

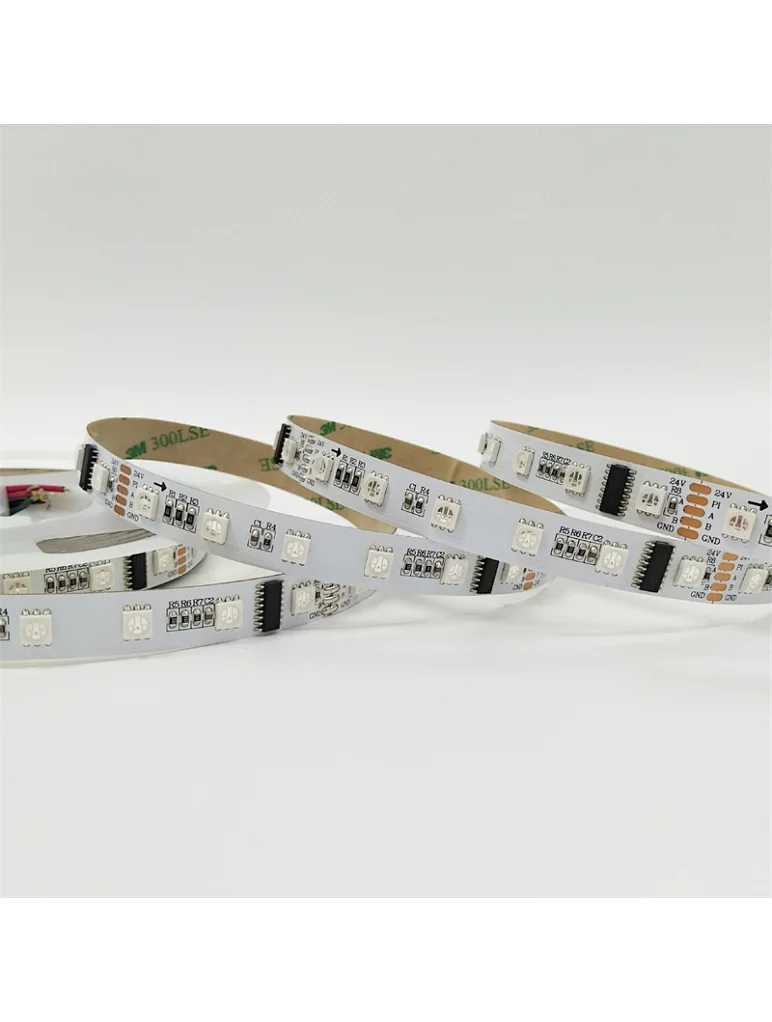

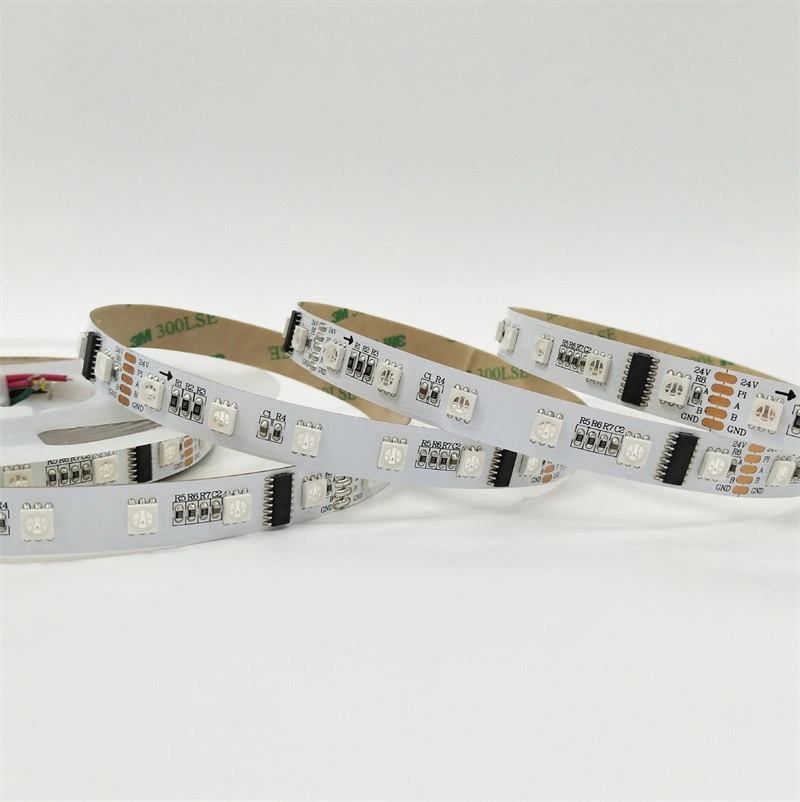

UCS512C4 RGB 24V 5050 60灯/米 LED灯带
价钱

US $7.10 - US $7.30 / 米

HR00-UCS512C4-60-rgbP12
EXW
30 米
600000米 / 月
深圳
7-12天
We are the leader in pixel led strip lights dedicated to provide you with high quality led strip with good price,including: DMX512 UCS512C4 UCS512C3 5050 dmx ic chip rgb pixel led strip manufacturer Hanron
数量
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.

24v rgb strip 5050



Feature of 24v rgb strip 5050




For DMX512 led strip:

1.No matter what or how many ic broken, the led strip will work normally.

DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage do not affect other parts of the strips and continue work, etc.

2.24V RGB DMX512 LED strip Connection:

DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX-  (B): connect to controller DMX- (B)
PI: Write the address, one address cable
GND: connect to power supply GND & controller GND

3. 60leds/M, DC24V is one IC with 6pcs leds, it can work with Madrix and some DMX controllers to program




Specification


Item
Specification
Item
Specification
Item Name
24v rgb strip 5050
Light Source
5050 RGB
IC Type
UCS512C3/UCS512C4
IC QTY
10pixels/M
LED QTY
60leds/M
IC Location
External IC
Color
RGB Dream Color
Voltage
DC24V
Working T
-20 to 45 Degree
Power
14.4W/M
PCB color
Black/White
Angle
120 degrees
IP Rating
IP20/65/66/68
Cutting Unit
10cm
Package
Anti-Static Bag
OEM&ODM
Available
Dimension
5000mm*12mm
Lifetime
50000hrs
Certificate
ETL, CE, RoHS, Reach...
Warranty
2years



Dimension (mm)




24v rgb strip 5050




IP Rating


24v rgb strip 5050



Application of 24v rgb strip 5050


ucs512c4 led strip application
