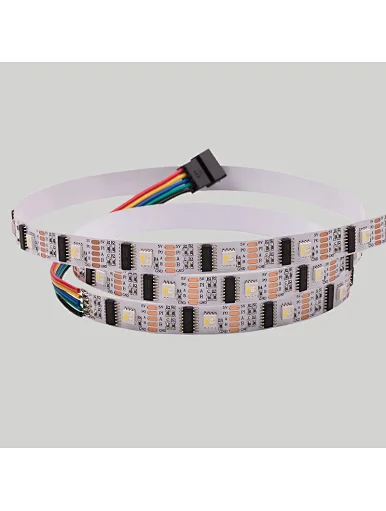

UCS512C4 led tape
UCS512C4 RGB 5V 32灯/米 LED灯带
HR00-ucs512C4-rgb-32-5
EXW
30 米
600000米 / 月
深圳
7-12天
UCS512C4灯带,UCS512灯带,UCS512C4灯条,UCS512灯条
数量

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

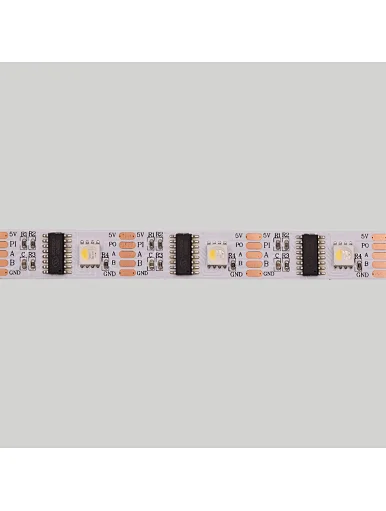

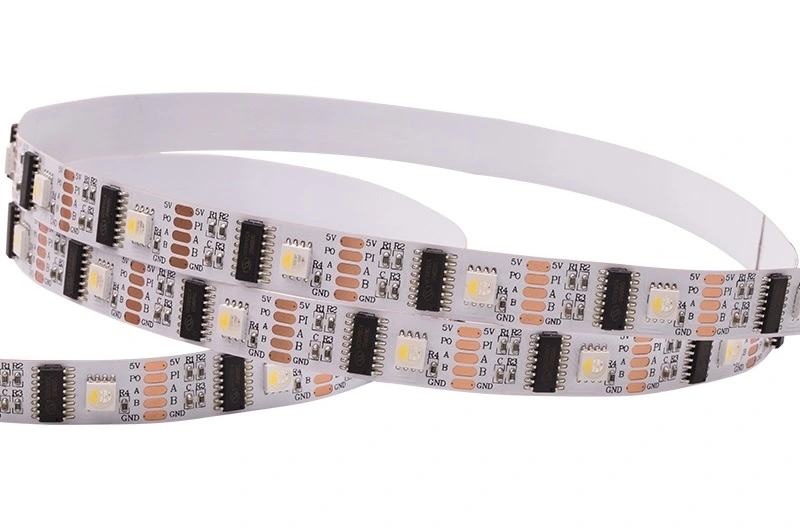

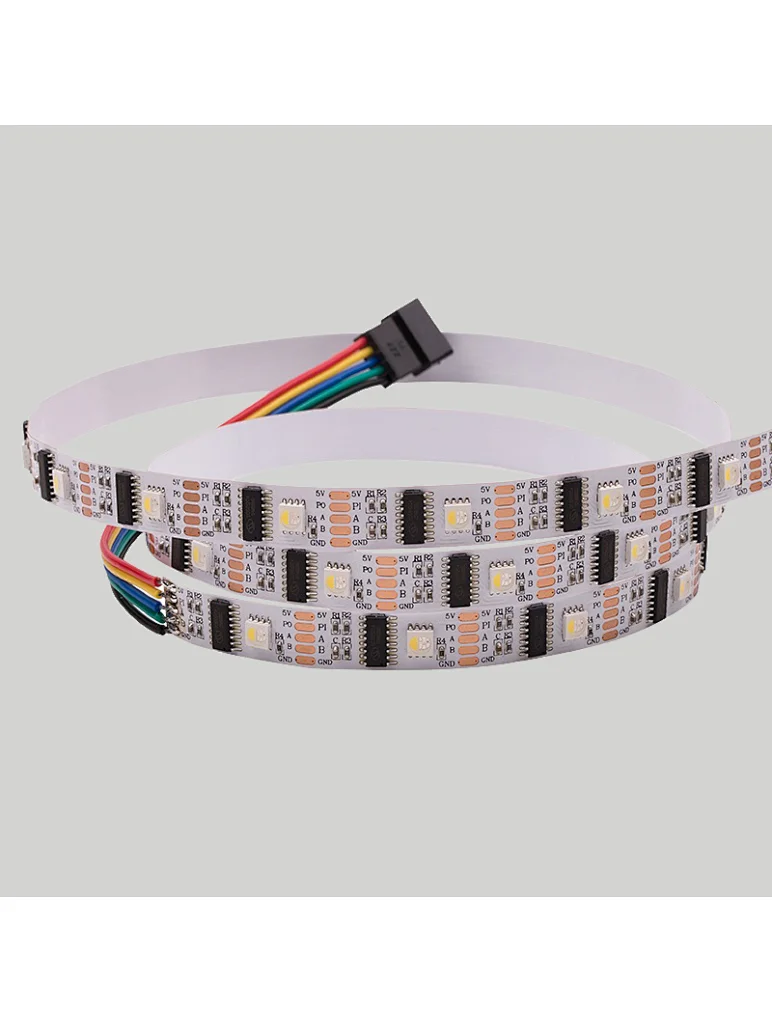

dmx pixel led strip


Feature of dmx pixel led strip


DMX rgb led strip

For DMX512 led strip:

1. Standard DMX512 signal, more stable signal transmission compare to SPI signal
2. No matter what or how many ic broken, the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 grayscale high brightness fast data transfer fast screen refresh, etc. Using international standards DMX512 protocol products with one and multi-point damage do not affect other parts of the strips and continue work, etc.

3. DC5V design to allow mini cut, only 3.1cm/cut
4. It can work with Madrix and some DMX controllers to program



Specification


Item
Specification
Item
Specification
Item Name
 dmx pixel led strip
Light Source
5050 RGB
IC Type
UCS512C4
IC QTY
32pixels/M
LED QTY
32leds/M
IC Location
External IC
Color
RGB Dream Color
Voltage
DC5V
Working T
-20 to 45 Degree
Power
7.2W/M
PCB color
Black/White
Angle
120 degrees
IP Rating
IP20/65/66/68
Cutting Unit
3.12cm
Package
Anti-Static Bag
OEM&ODM
Available
Dimension
5000mm*12mm
Lifetime
50000hrs
Certificate
ETL, CE, RoHS, Reach...
Warranty
2years

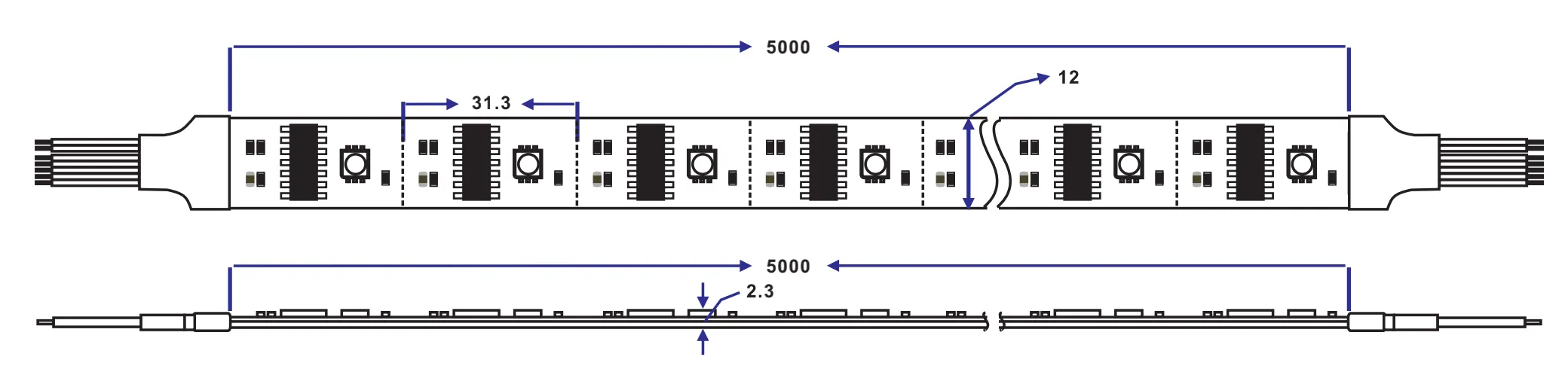

Dimension (mm)

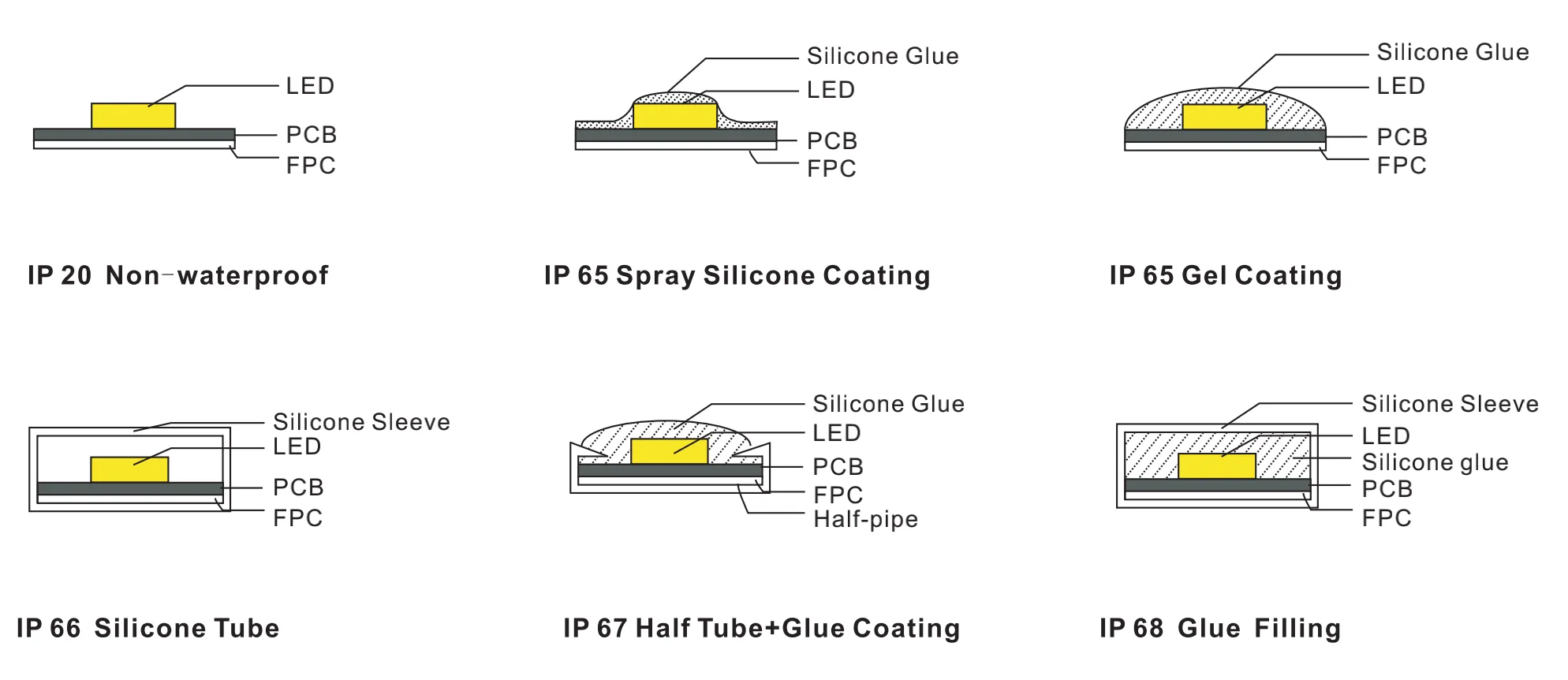

IP Rating



​​​​​


Application of dmx pixel led strip
