WS2811/SM16703/UCS1903 RGB 24V 90灯/米 LED灯带
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.
Feature of ucs1903 led strip light
WS2811/SM16703 UCS1903 led strip:
1. One of the most popular pixel led strip in the market
2. Original WS16703/UCS1903/WS2811 IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC12V design with 3led/cut,allow longer connection
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
Specification
| Item | Specification | Item | Specification |
| Item Name | ucs1903 led strip light | Light Source | 5050 RGB |
| IC Type | SM16703/UCS1903/WS2811 | IC QTY | 15pixels/M |
| LED QTY | 90leds/M | IC Location | External IC |
| Color | RGB Dream Color | Voltage | DC24V |
| Working T | -20 to 45 Degree | Power | 21.6W/M |
| PCB color | Black/White/Yellow | Angle | 120 degrees |
| IP Rating | IP20/65/66/68 | Cutting Unit | 3.33cm |
| Package | Anti-Static Bag | OEM&ODM | Available |
| Dimension | 5000mm*15mm | Lifetime | 50000hrs |
| Certificate | ETL, CE, RoHS, Reach... | Warranty | 3 years |

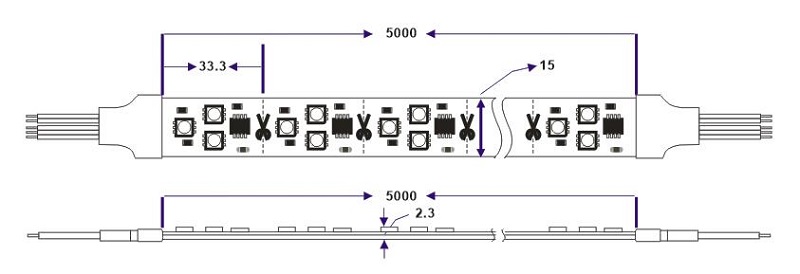

Dimension (mm)

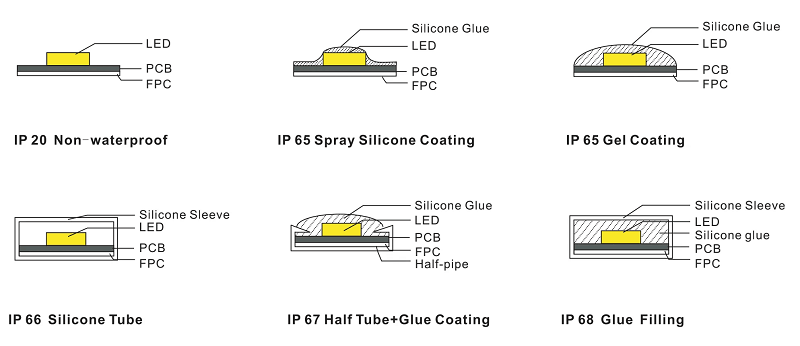

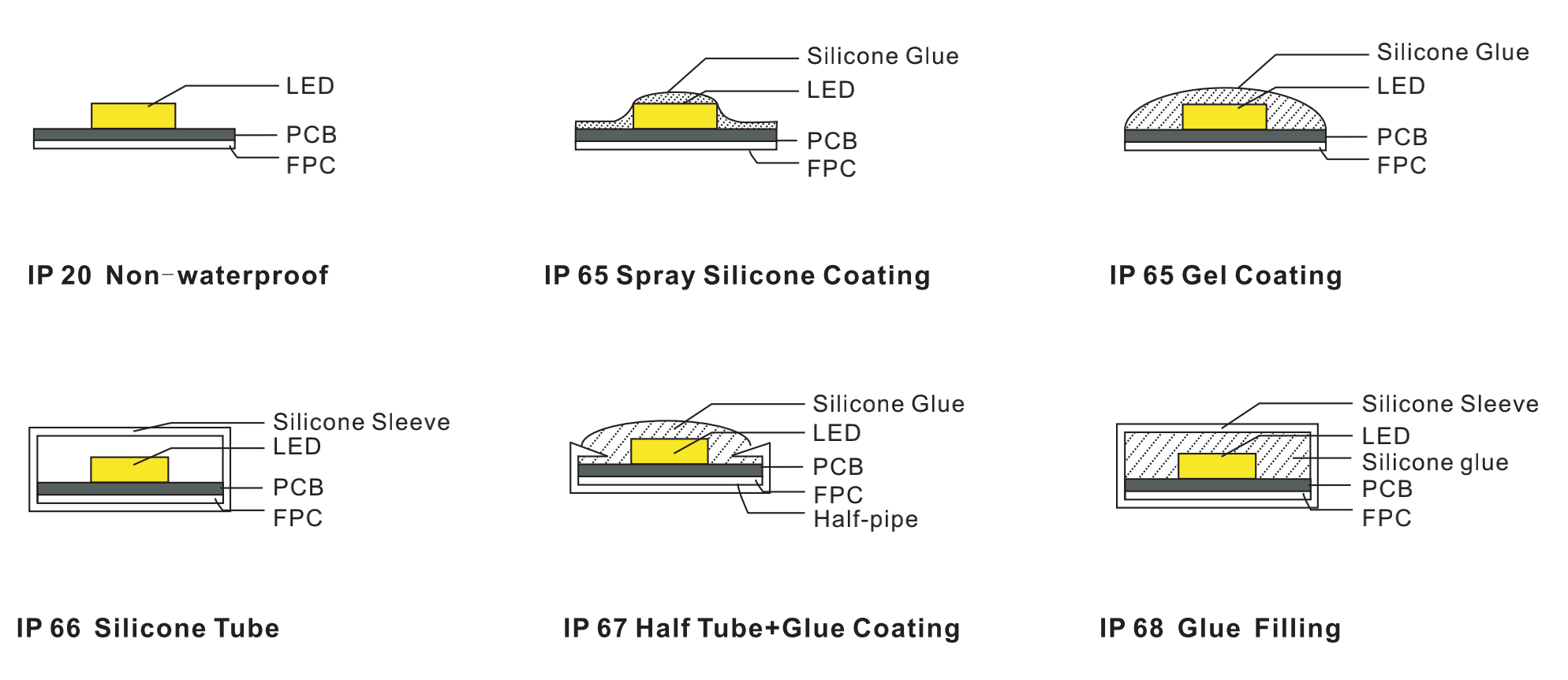

IP Rating
Application of ucs1903 led strip light
Customized Your Specific Pixel Led Light
10 Professional engineers are here to serve you
Looking to light an irregular space or a super creative project? As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, be it residential or commercial, or even industrial.
We can easily translate your lighting needs and provide customized lighting solutions. Our experts can provide you with full PCB design support and create LED strips that are just the right color, size, shape, and brightness.
You only need to share us your creative ideas or design, then the rest leave to us Hanron. We will give you a surprise!
Hanron Company Profile
100+ employees to support your orders
Top Pixel LED Strip Light Manufacturer in China
Hanron is a top developer, designer, supplier and manufacturer of high quality addressable led strip lights and led neon lights.
Founded in 2010, Hanron has cultivated a group of talent of 100+ people, including 10 technical engineers and 20 sales engineers. Our company has passed the ISO9001: 2015 quality management system and most of our products are compliant with certifications like ETL, BIS, CE, RoHS, Reach, TUV CB, LM80, etc.
After years of development, we have 500+ types of addressable led strip light for your reference. According to customers' design documents or application scenarios, we can also provide professional advice and OEM&ODM services.
Why choose Hanron?
Commercial grade products and professional service
