ws2812 sk6812 pixel led ring
SK6812 ws2812 幻彩天使眼圆环
HR12-ws2812-ring-1
FOB Shenzhen
20 米
600000米 / 月
深圳
7天
10多年灯带生产专家,专门为外贸商和工程师提供SK6812 ws2812 幻彩天使眼
数量

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

sk6812 4020 led strip light


Feature

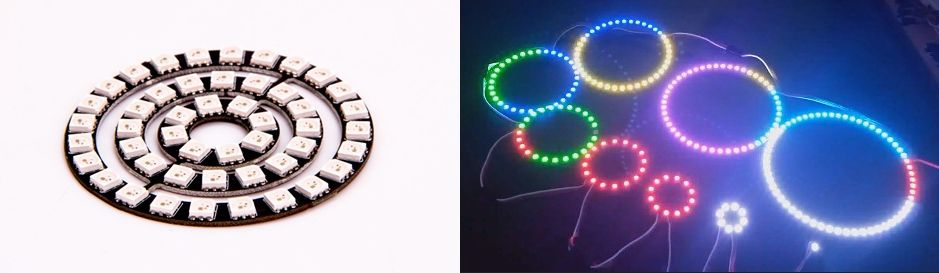

sk6812 led ring

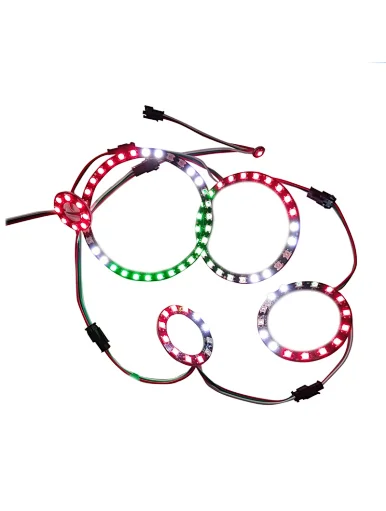

WS2812B/SK6812 Led Ring Light

-Use the WS2812B/SK6812 IC driver,can change many effects through led controller.

-1-32leds is a pack,also can sell only one size.

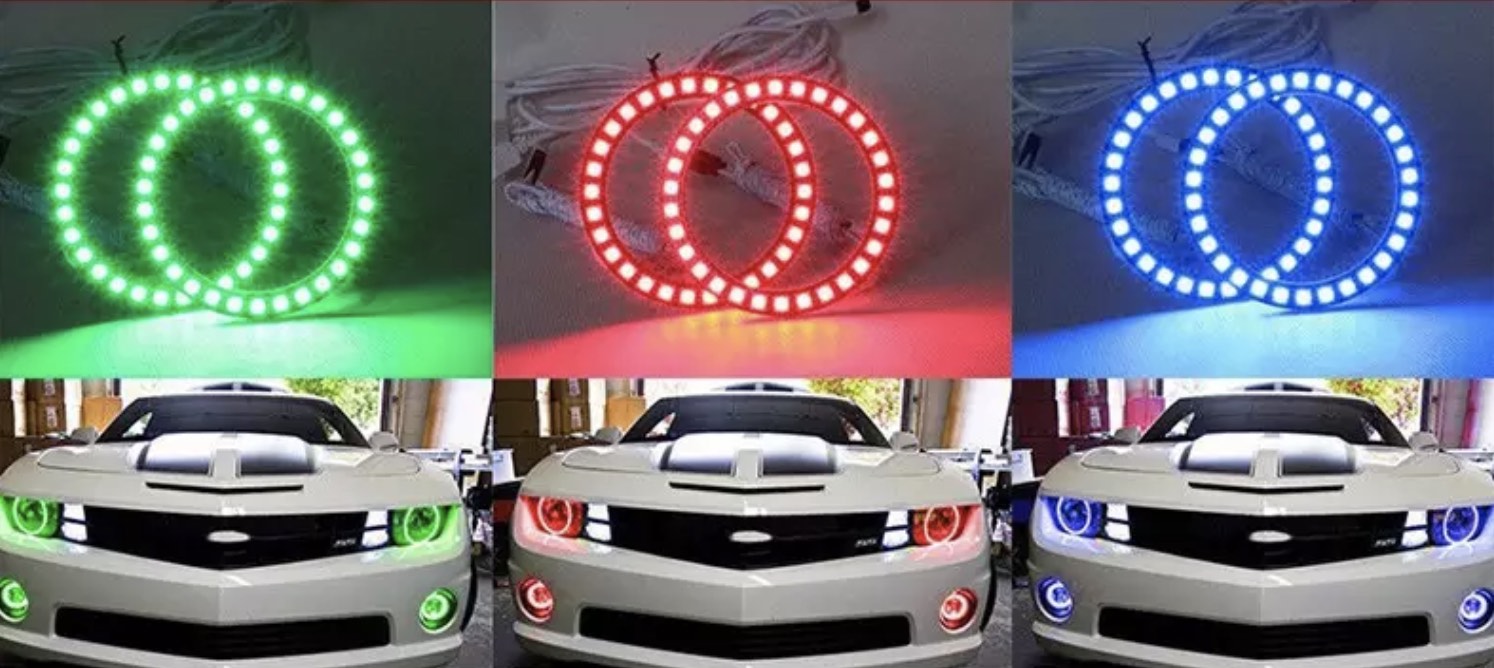

-Led Ring can use in Car led head light,the mirror light,and so on.


Specification
SK6812 WS2812 circle LED Ring
LED QTY1leds8leds12leds16leds24leds32leds
IC TypeSK6812  or WS2812 or HR6812
VoltageDC5V
Power0.2W1.6W2.4W3.2W4.8W6.4W
LED ColorRGB,also can use the controller to reach many knids of effect
PCB ColorBlack/White
Inner Diameter/16mm36mm56mm76mm96mm
Outer Diameter12mm32mm52mm72mm92mm112mm
IP RatingIP20 Non-waterproof
InstallationDouble outlet-100mm,use the screw to installation.

Note:
1. The circle ws2812 led ring can be buy as 1set or seperate 1PCS
2. For standard pixel led ring, the IC is WS2812, you can also choose sk6812 led ring or HR6812 led ring instead

Dimension: mm

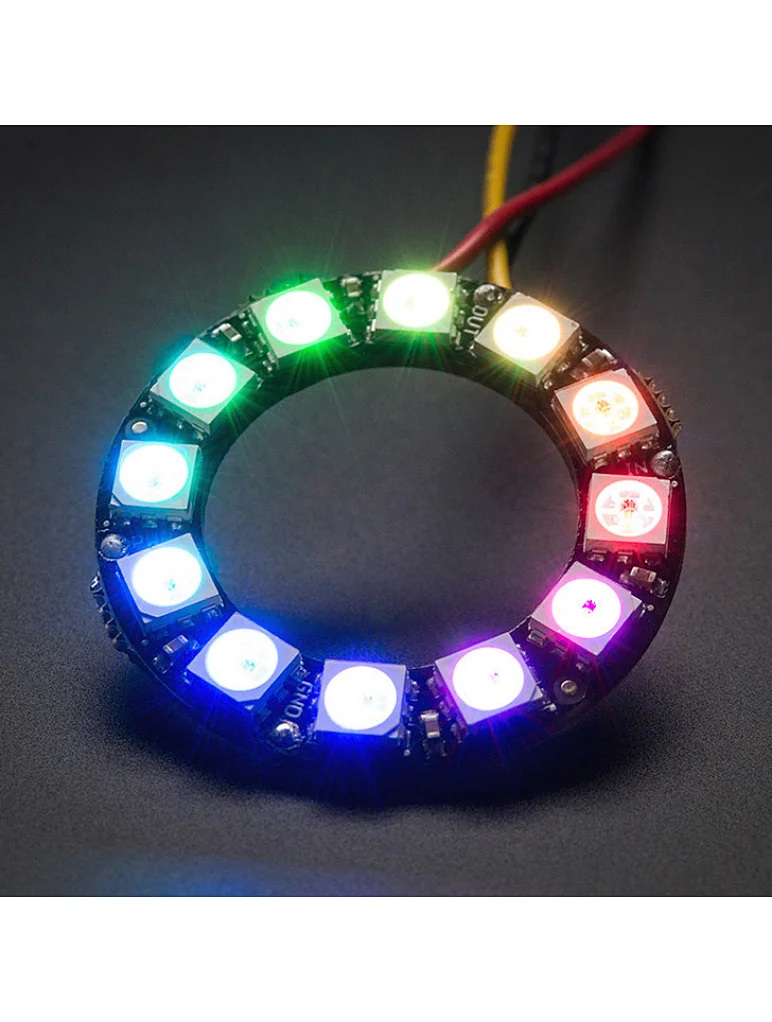

pixel rgbic circle led ring

Application

led ringws2812 pixel led ringws2812 sk6812 pixel led ring
