Feature

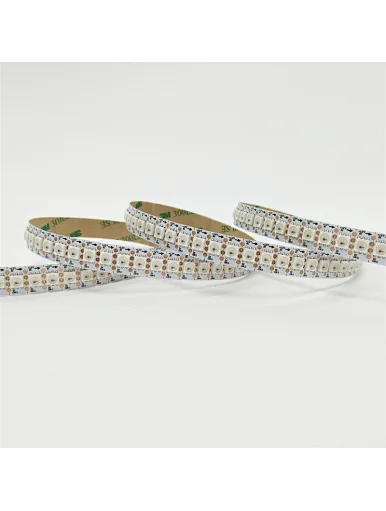

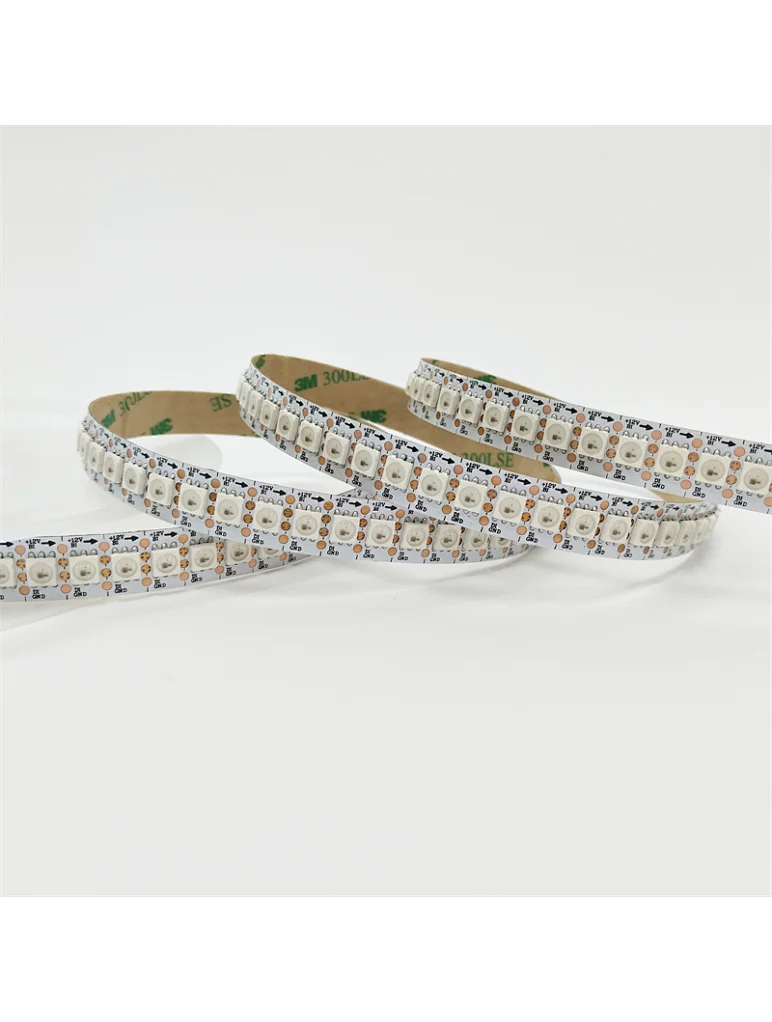

WS2815/SK6813-12V led strip SK6813:

1. 12V individually addressable, breakpoint continuous transmission, more and more popular in the market
2. Original WS2815 or SK6813-12V IC, 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
3. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
4. DC12V design with 1led/cut, allow longer connection
5. Strong flexible for heat dissipation and real 3M tape for a strong installation



Specification

---



Item	Specification	Item	Specification
Item Name	12v ws2815 led strip	Light Source	5050 RGB
IC Type	WS2815/SK6813-12V	IC QTY	144pixels/M
LED QTY	144leds/M	IC Location	Internal IC
Color	RGB Dream Color	Voltage	DC12V
Working T	-20 to 45 Degree	Power	34.56W/M
PCB color	Black/White/Yellow	Angle	120 degrees
IP Rating	IP20/65/66/68	Cutting Unit	6.94mm
Package	Anti-Static Bag	OEM&ODM	Available
Dimension	5000mm*12mm	Lifetime	50000hrs
Certificate	ETL,CE, RoHS, Reach...	Warranty	2years



Dimension: mm

---



IP Rating

---



Application of 12v ws2815 led strip

---
