H803TV controller
H803TV

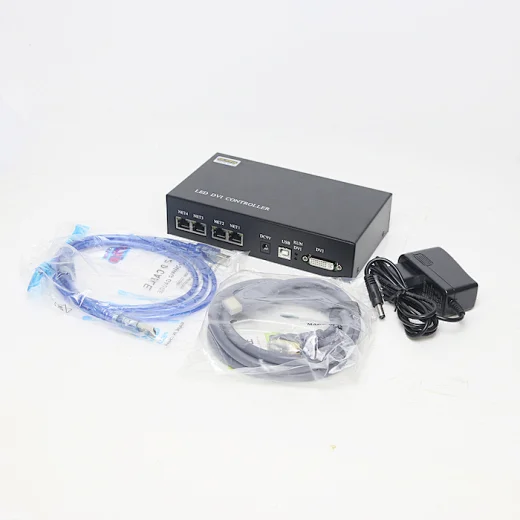

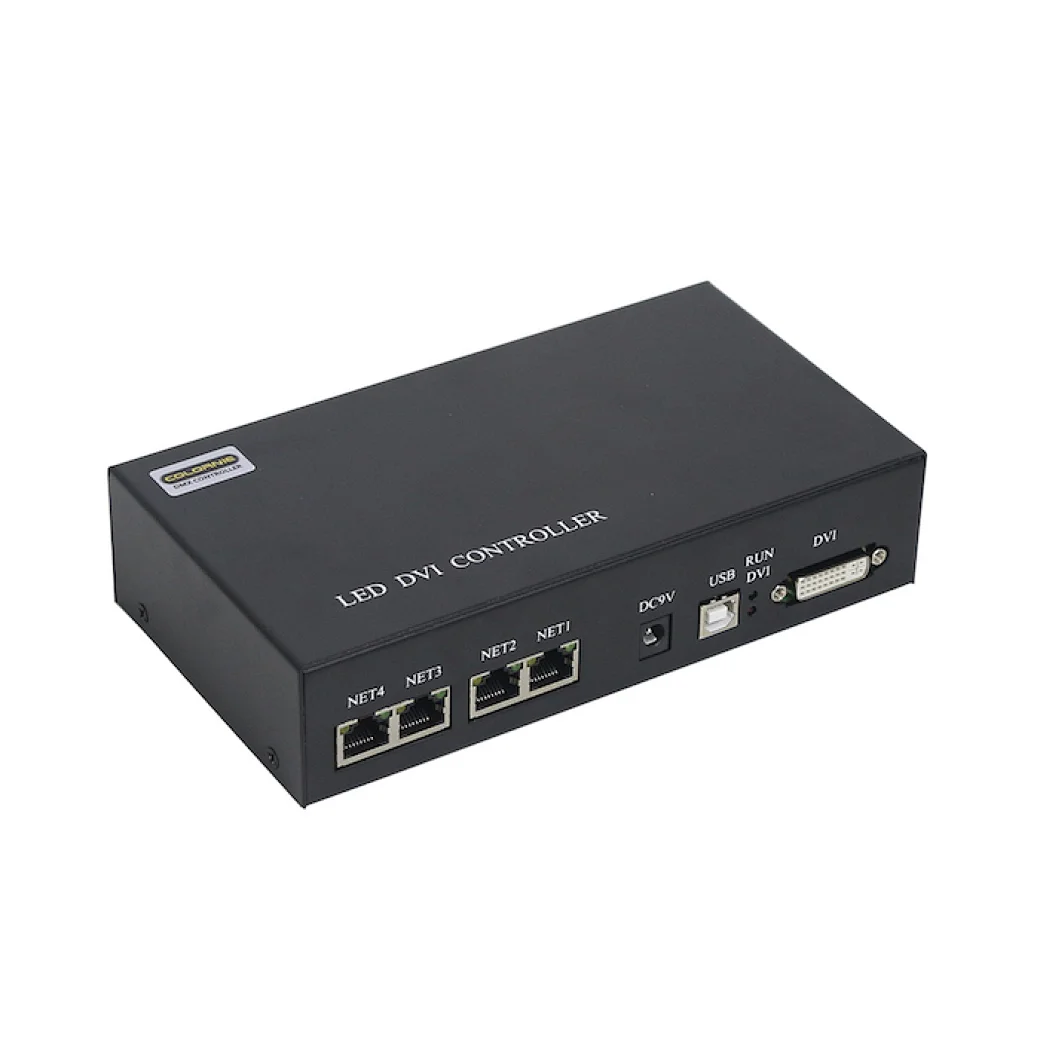

H803TV Led DVI Controller
H803TV controller
H803TV Led DVI Controller
Model No: H803TV LED controller

H803TV Max 400000 Pixels Led DVI Controller Support MADRIX Jinx!

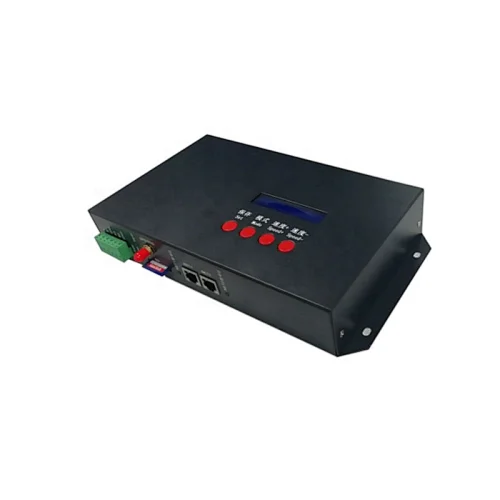

H801RC 8 Ports Salve LED Pixel Controller Computer Network LED Controller RJ45 Port Programmable DMX Master-slave Controller
Delivery :
EXW
minimum order :
5 pieces
Supply Ability :
300000pieces / Month
Stock Time :
7Day
Country of Origin :
shenzhen
Quantity :
Download:
H803TV User Manual specification datasheet.pdf
Contact Now

H803TV Max 400000 Pixels Led DVI Controller Support MADRIX Jinx!


Features of H803TV Led DVI Controller

(1). H803TV is an online master controller that transmits data over DVI/HDMI interface.
(2). Four network interfaces drive maximum 400000 pixels.
(3). It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
(4). Support the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
(5). Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.



Specification

Input Voltage: DC9V
Power Consumption: 1W
Drive Pixels Number: 400000
Weight: 1.3KG
Dimension: L183 x W139 x H40
Carton Size: L205 x W168 x H69



Supported Chips

LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716, SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, INK1003, TM1812, TM1809, TM1804, TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814, BS0901, BS0902, BS0825, BS0815, LY6620, BS0825, LD1510, LD1512, LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012, etc. Note: H803TV supports more than the chips listed above(some chips have the same sequence diagram, such as UCS2903 has the same sequence diagram with UCS1903, so H803TV supports them all).



Advantage Function

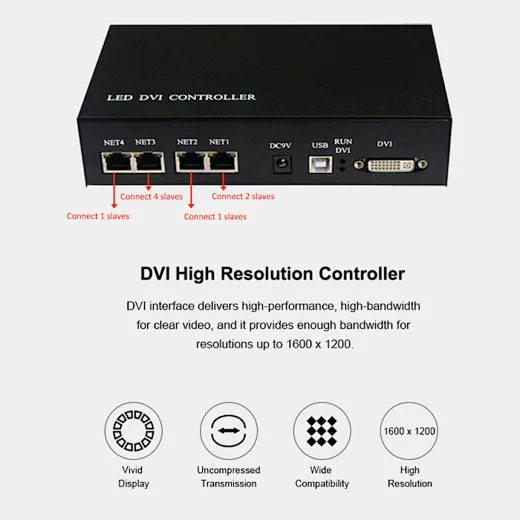

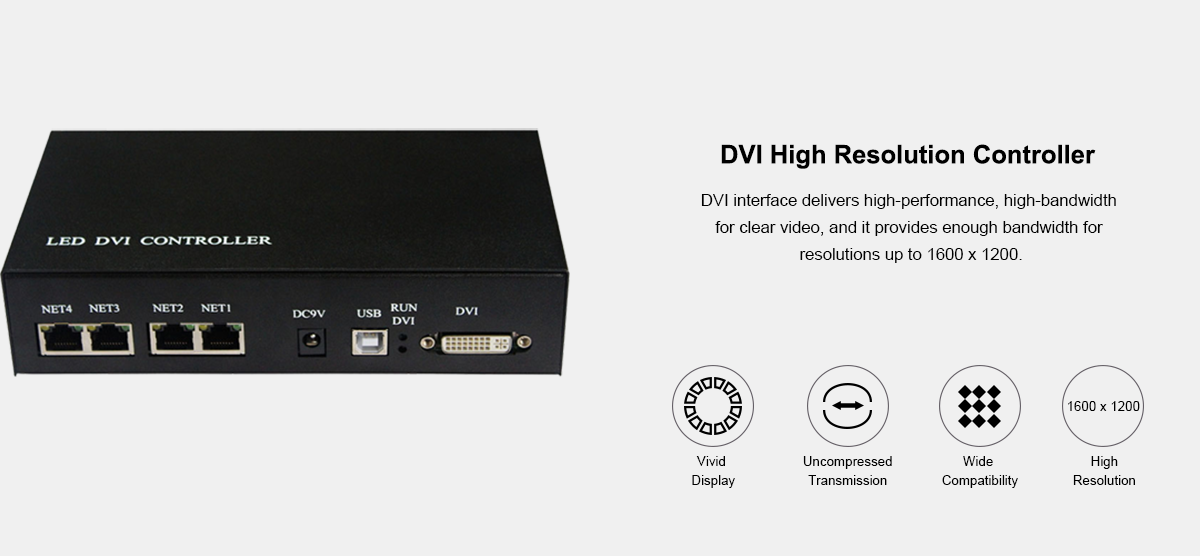

advantage function of H803TV Led DVI Controller

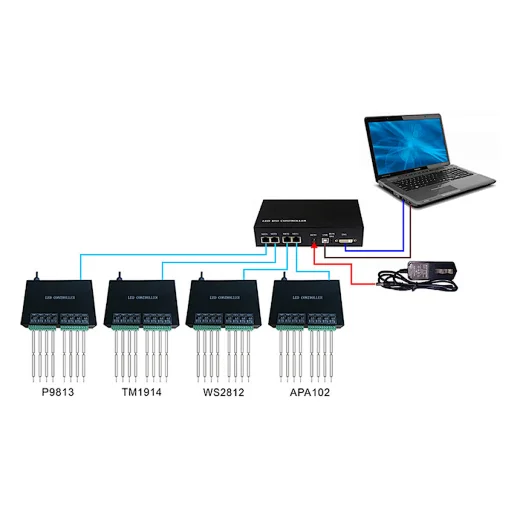

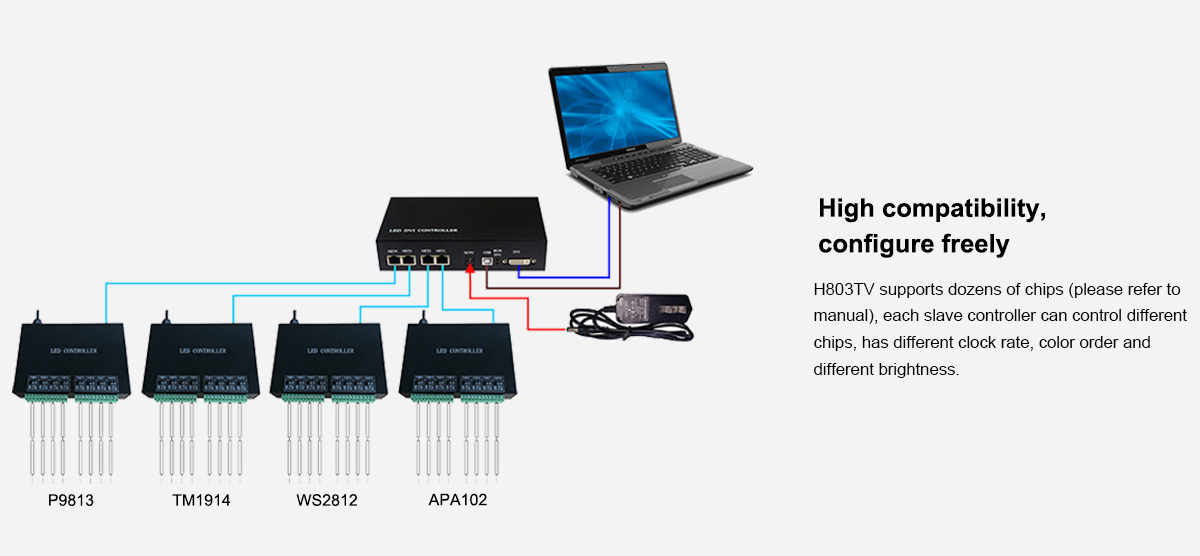

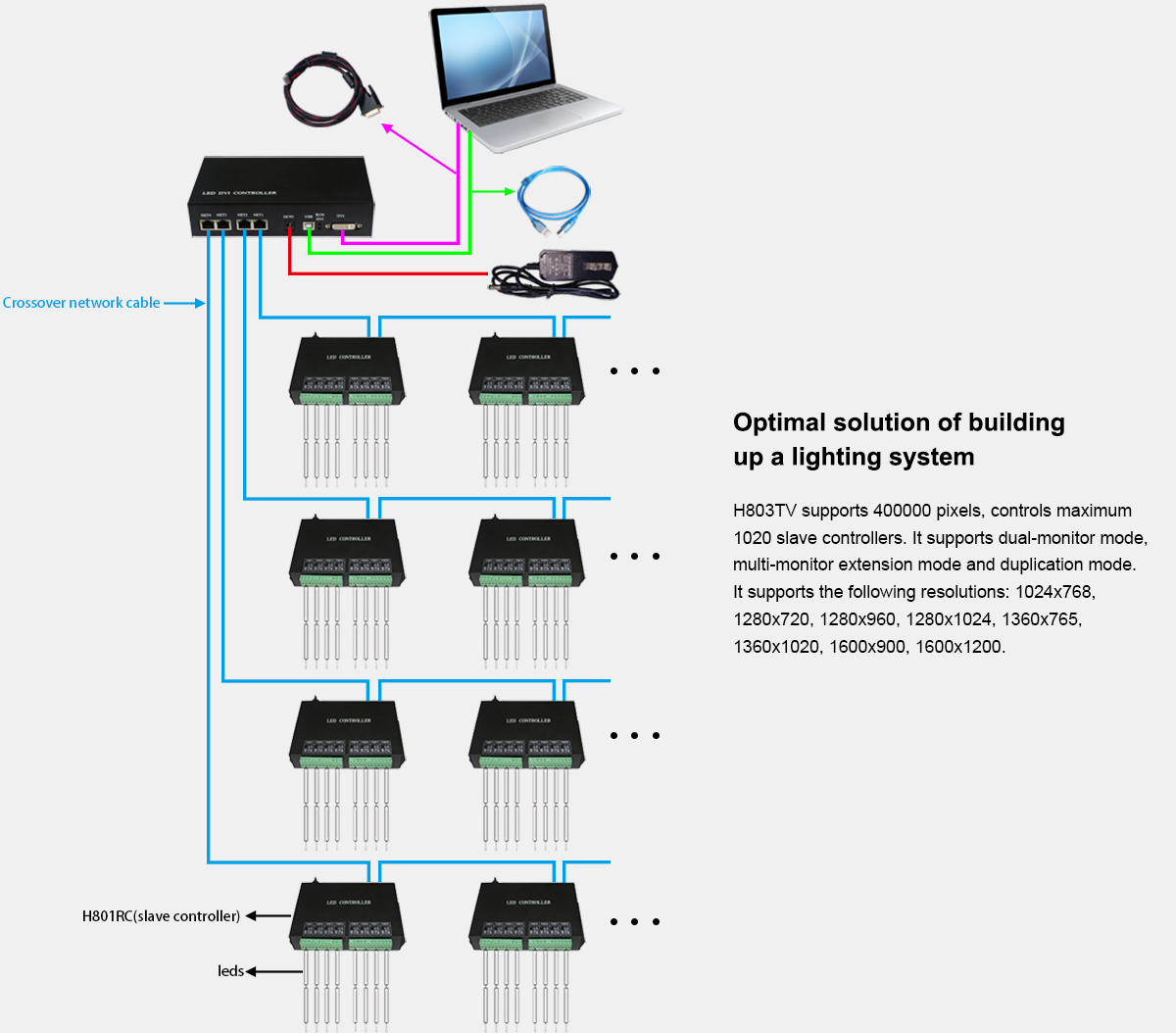

connection of H803TV Led DVI Controller
connection of H803TV Led DVI Controller


Basic Workflow
Step 1. Set them up

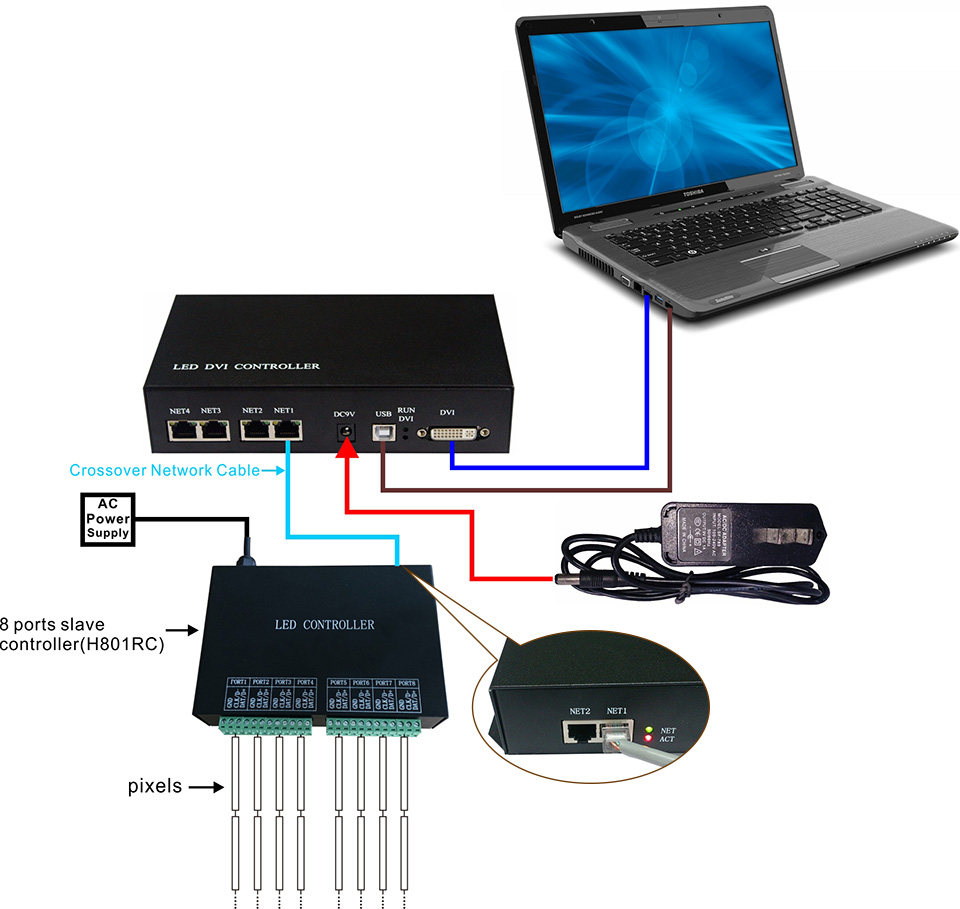

connect H803TV Led DVI Controller with computer


Step 2. Change the appearance of display

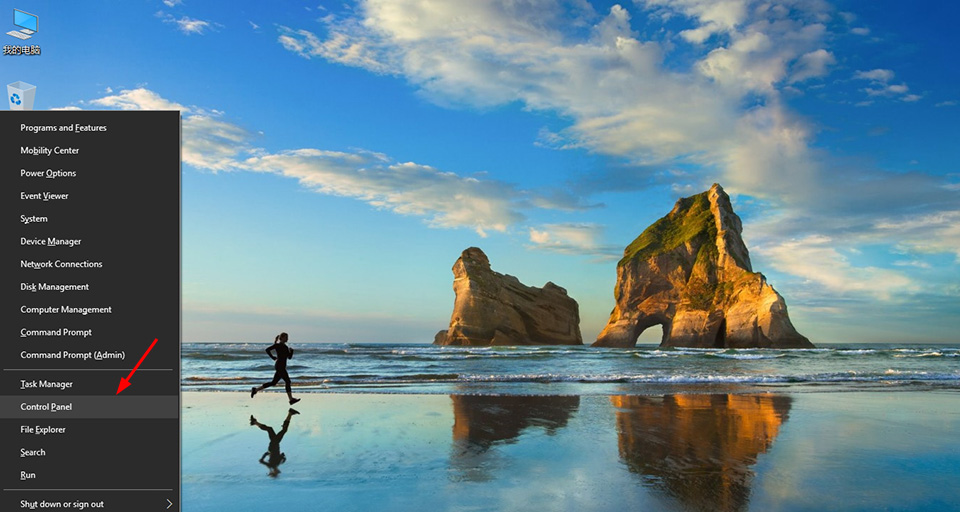

Press WIN+X on keyboard

Press WIN+X on keyboard

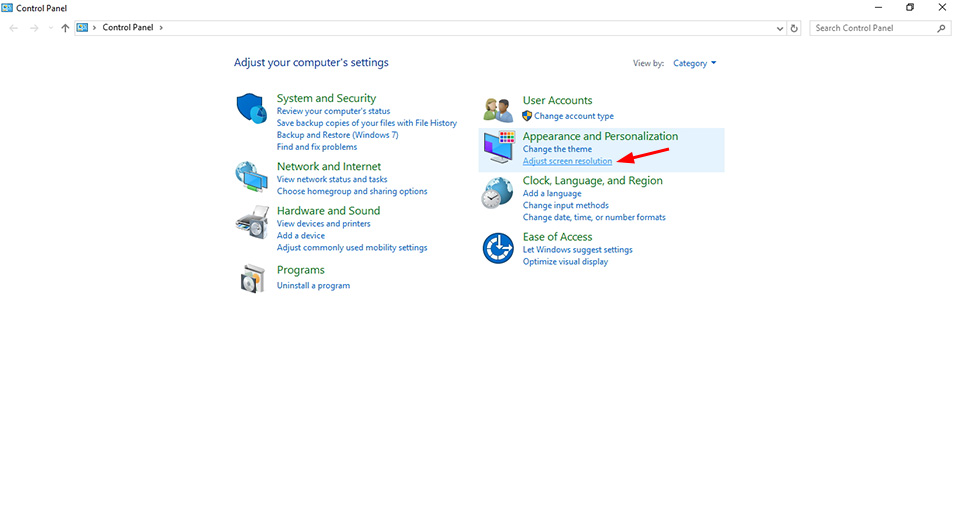

Change the appearance of display

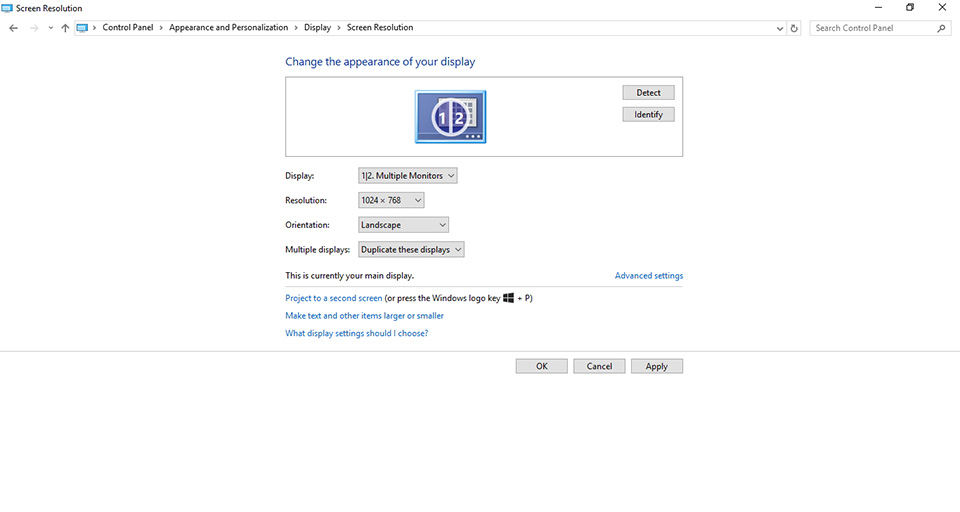

Please refer to the following settings

Please refer to the following settings

Note:
1). H803TV LED controller supports the following resolutions: 1024x768, 1280x720, 1280x960, 1280x1024, 1360x765, 1360x1020, 1600x900, 1600x1200.
2). It supports dual-monitor mode, multi-monitor extension mode and duplication mode. In this manual, i just choose 1024x768 and duplication mode for example. Then, click"Apply","OK".n, click"Apply","OK".

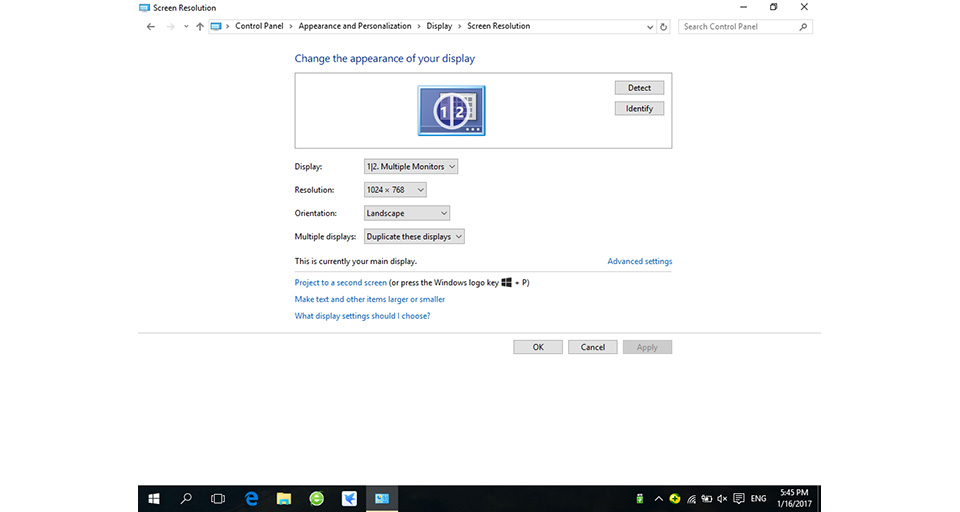

The visible area of your screen should be 1024x768 now.
The visible area of your screen should be 1024x768 now.

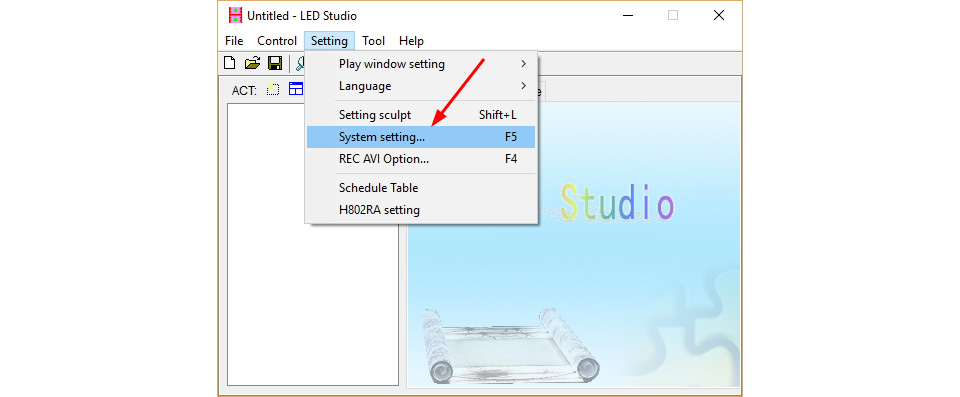

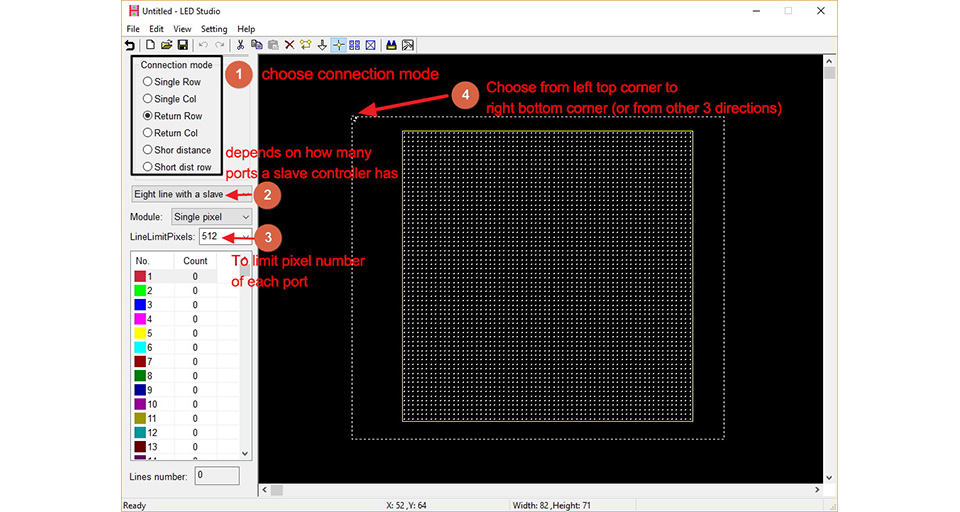

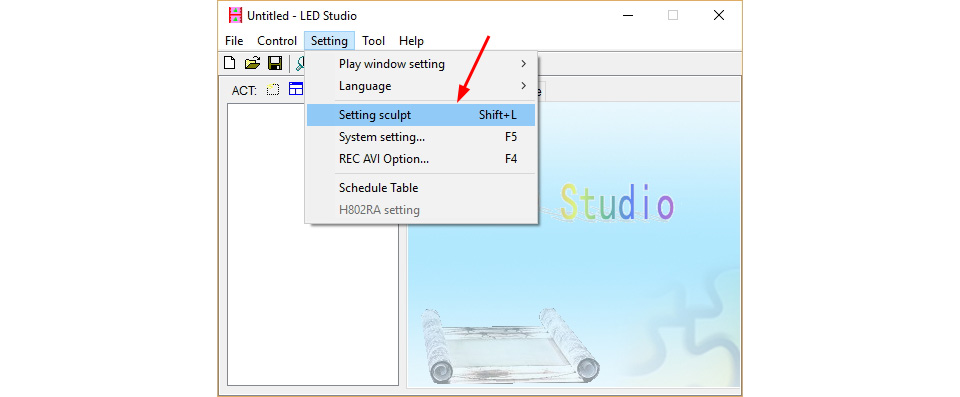

Step 3. Configure Led Studio for H803TV led controller
LED Studio Dwonload: https://drive.google.com/open?id=0B1gzqyV6hfOgbFZrMHdwVzU1X0E Open It

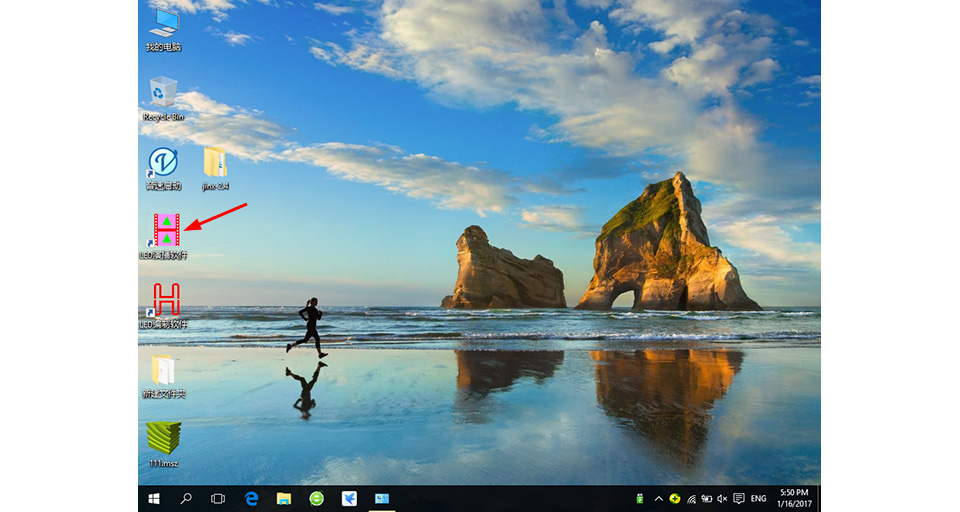

Configure Led Studio for H803TV led controller

Configure Led Studio for H803TV led controller

Configure Led Studio for H803TV led controller

Configure Led Studio for H803TV led controller

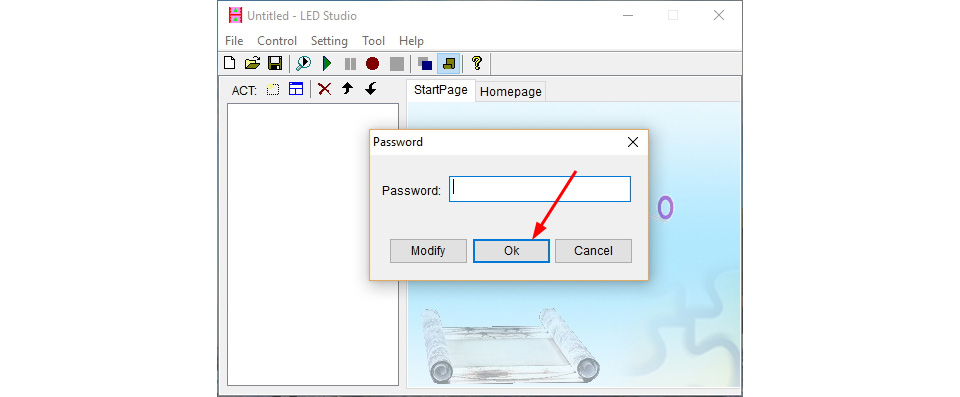

Password is not needed


Password is not needed

Configure Led Studio for H803TV led controller

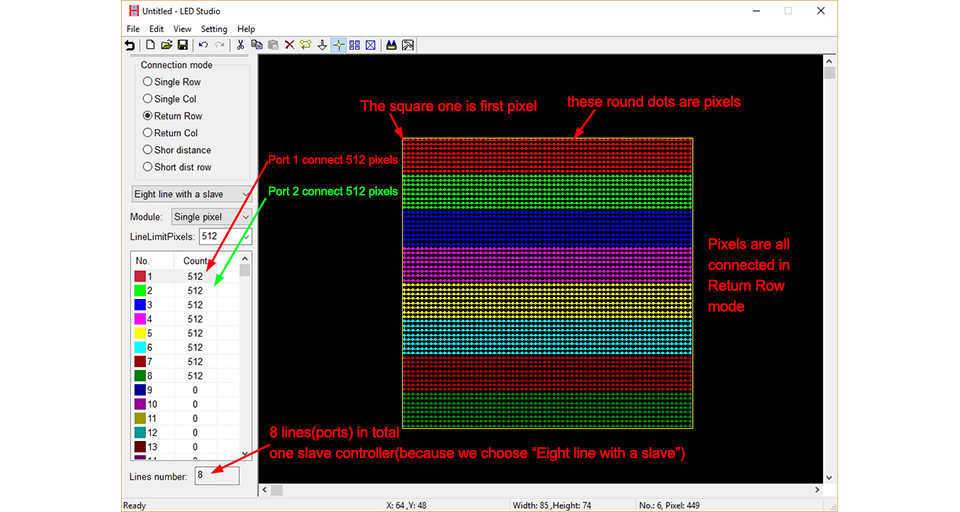

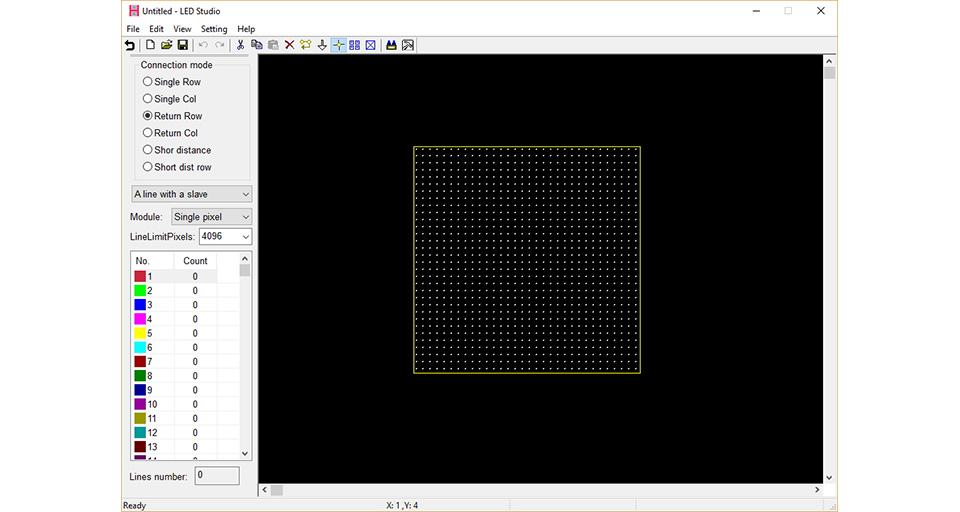

For example if you have a 64(pixels) by 64(pixels) screen. Click the following icon or"File"--"New".
Click the following icon or


Configure Led Studio for H803TV led controller

Configure Led Studio for H803TV led controller

Configure Led Studio for H803TV led controller

Configure Led Studio for H803TV led controller

Configure Led Studio for H803TV led controller

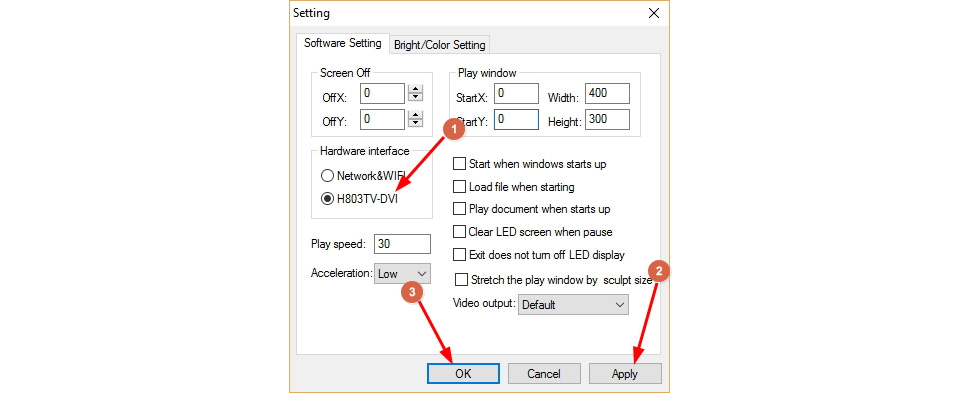

Then, click"Apply", pops up the following window.

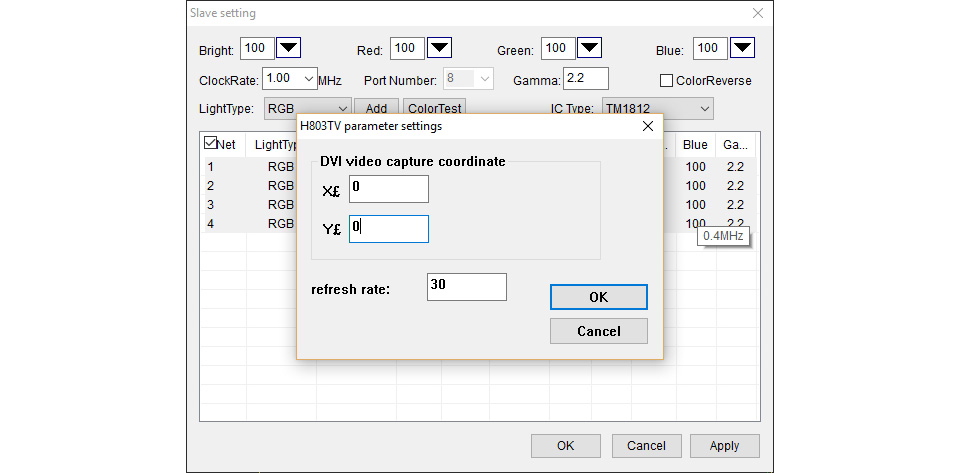

Origin position: the top left corner of your screen, normally, i set X, Y both to 0

Origin position: the top left corner of your screen, normally, i set X, Y both to 0

the top left corner of your screen, normally, i set X, Y both to 0

the top left corner of your screen, normally, i set X, Y both to 0



Note:

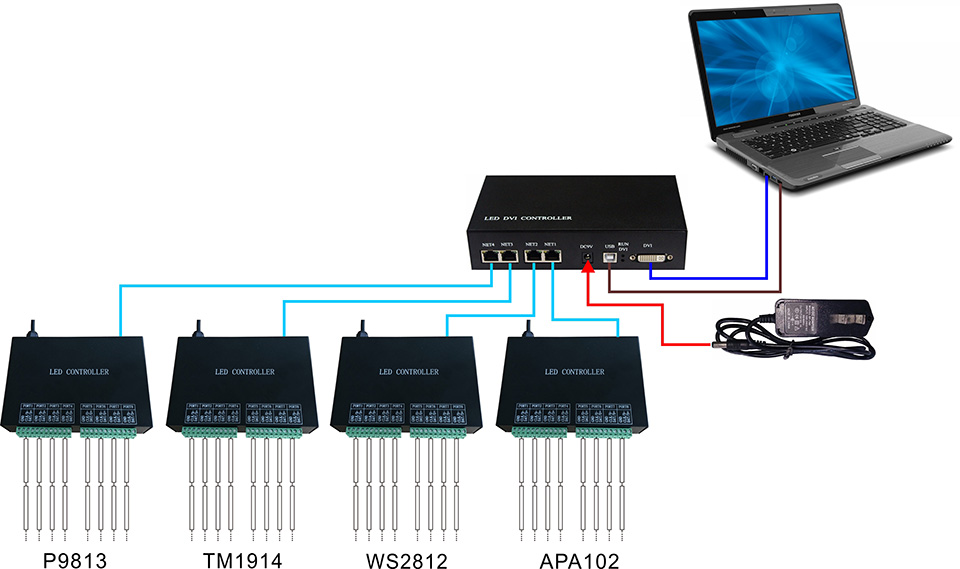

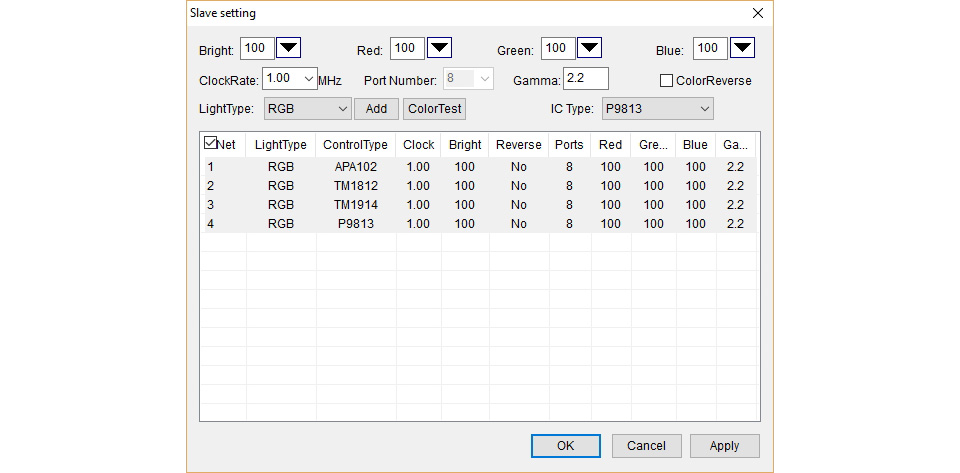

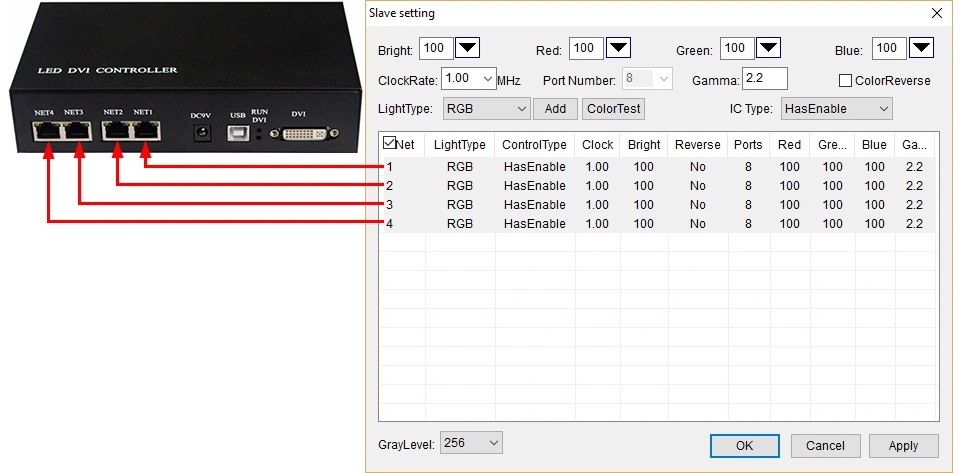

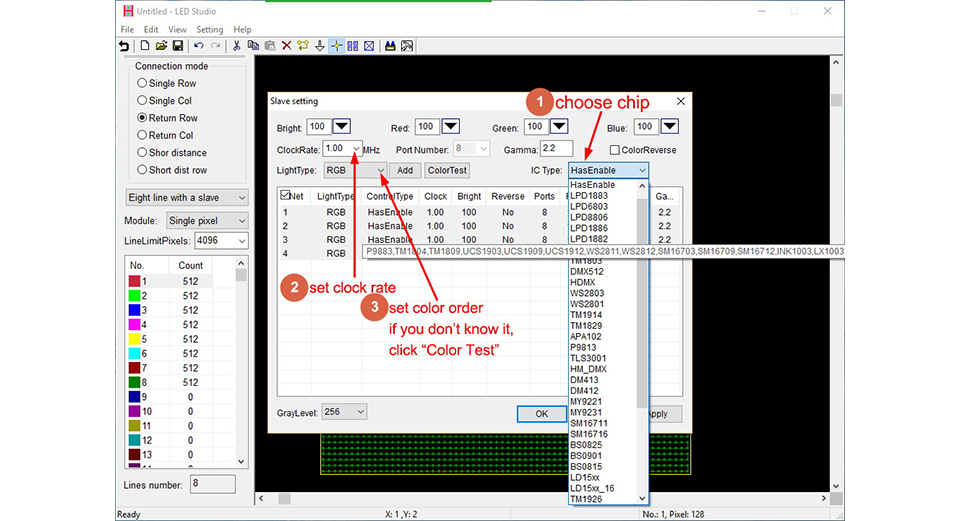

Four ports of H803TV can drive different chips, each port can be configured individually.
Four ports of H803TV can drive different chips, each port can be configured individually.

Four ports of H803TV can drive different chips, each port can be configured individually.




Click menu"Setting"--"Multi-Net Setting"

Click menu

Click menu

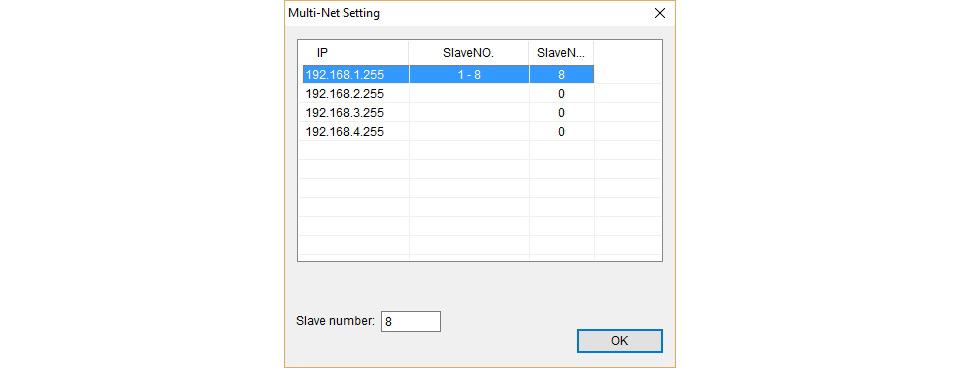

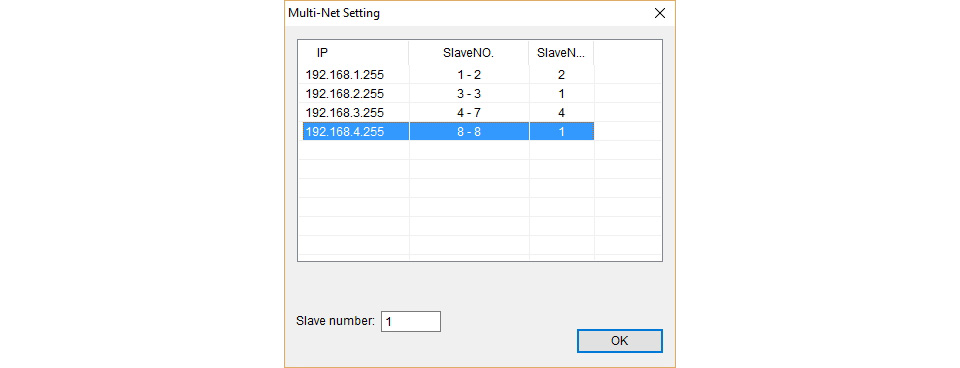

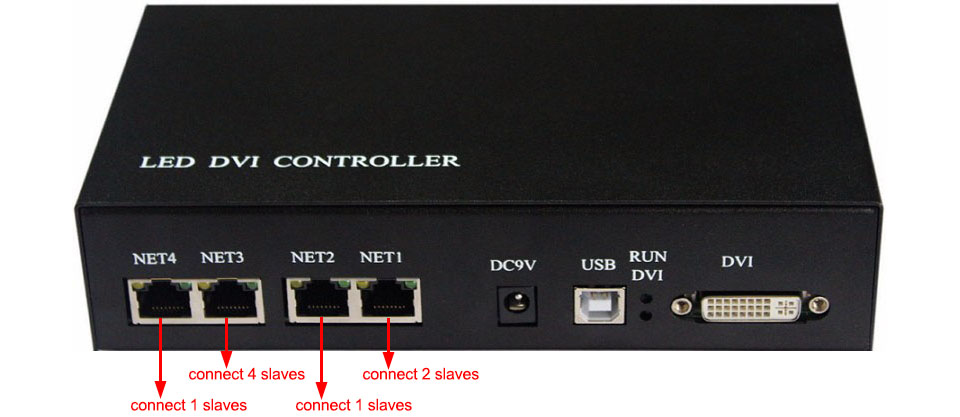

For example, if there are 8 slave controllers.
You can distribute slave controllers to each Net of H803TV

You can distribute slave controllers to each Net of H803TV

You can distribute slave controllers to each Net of H803TV

You can distribute slave controllers to each Net of H803TV

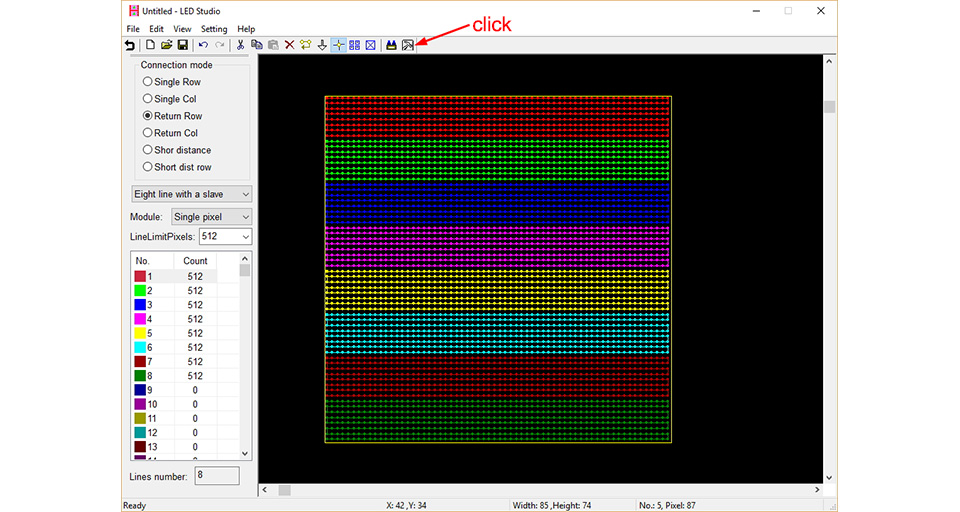

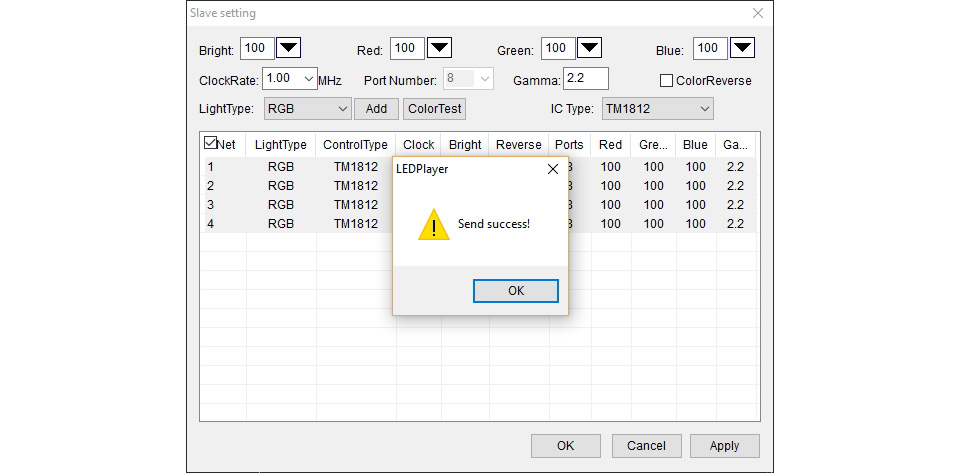

Then, click"File"--"Send to H803TV"
Software will remind you again, just enter coordinate and click"OK".

Software will remind you again, just enter coordinate and click

Software will remind you again, just enter coordinate and click

Software will remind you again, just enter coordinate and click

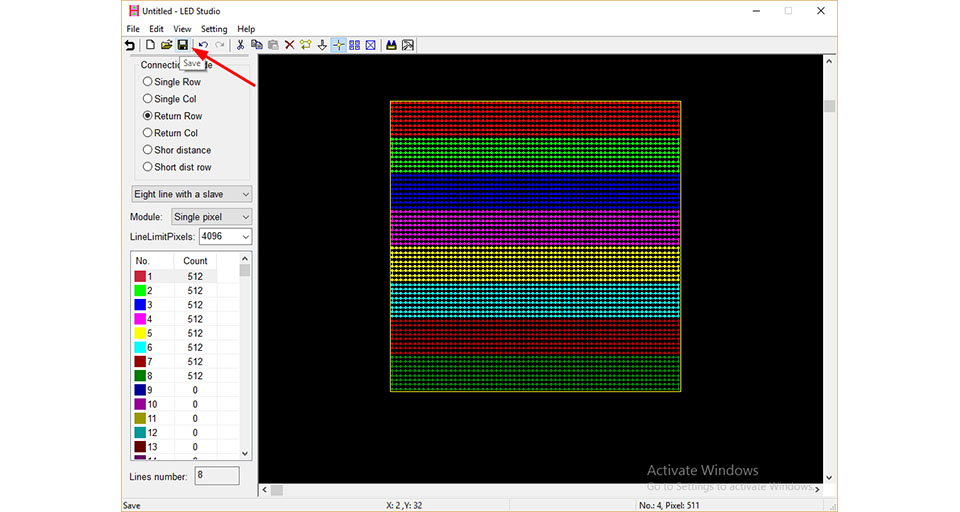

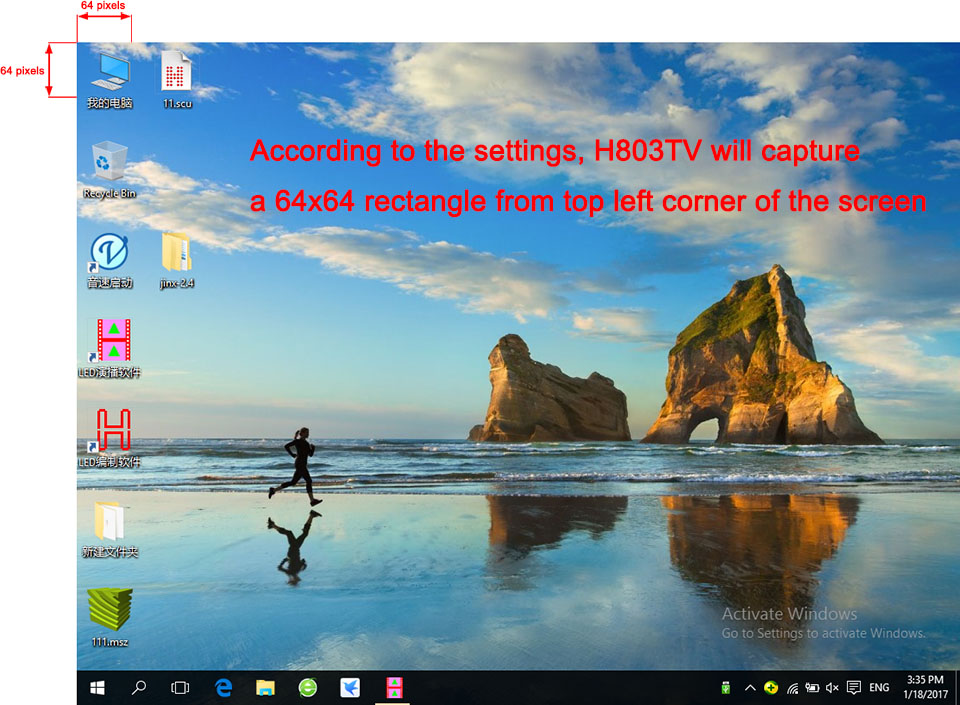

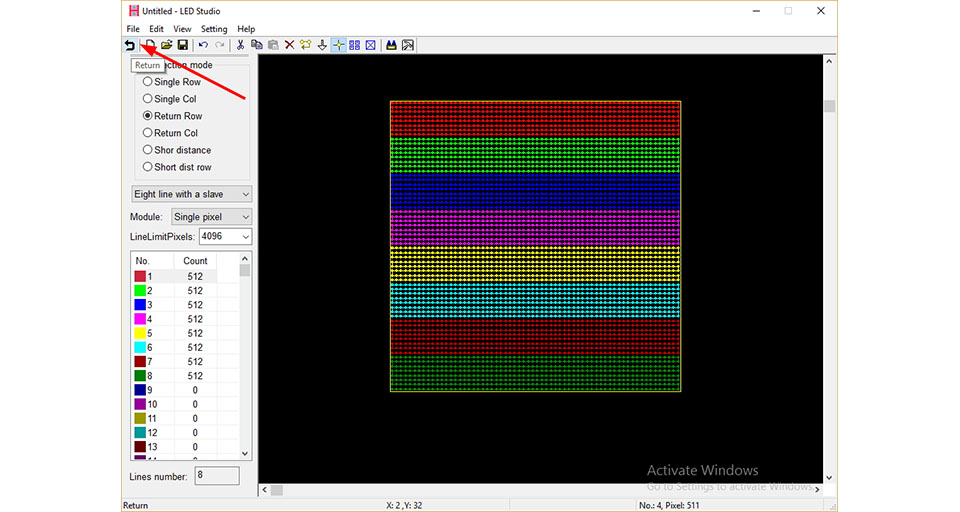

Then, save all these settings and go back to main window.

Then, save all these settings and go back to main window.

Then, save all these settings and go back to main window.

Then, save all these settings and go back to main window.

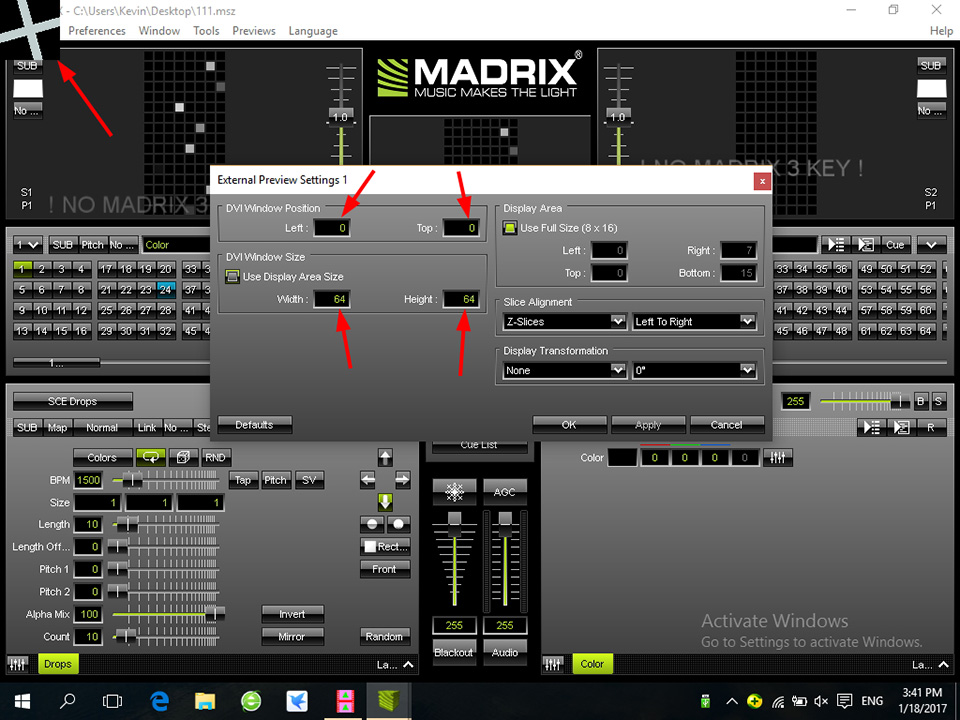

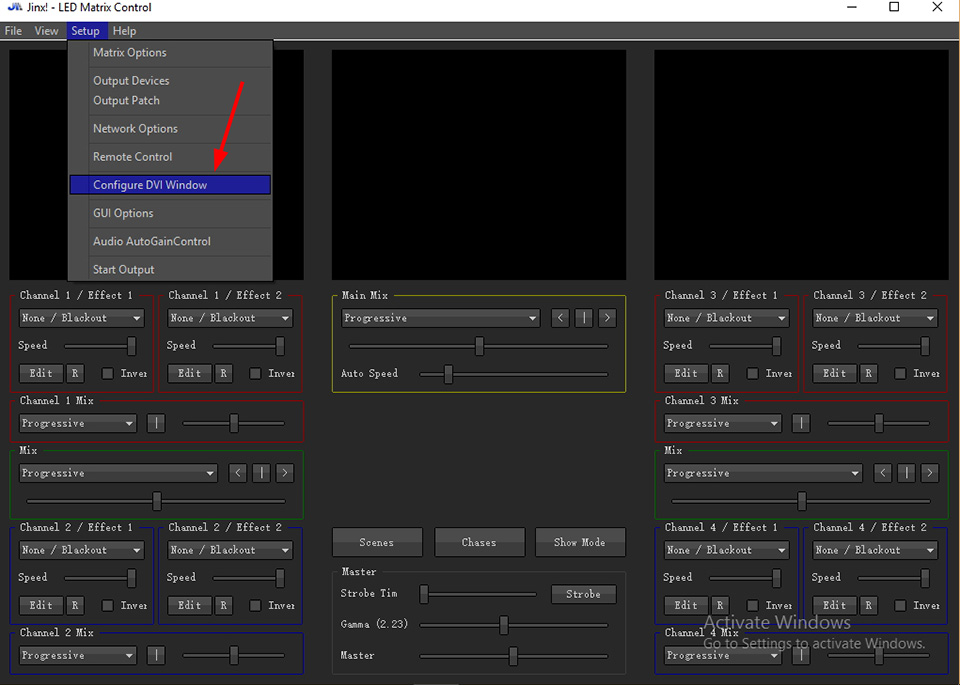

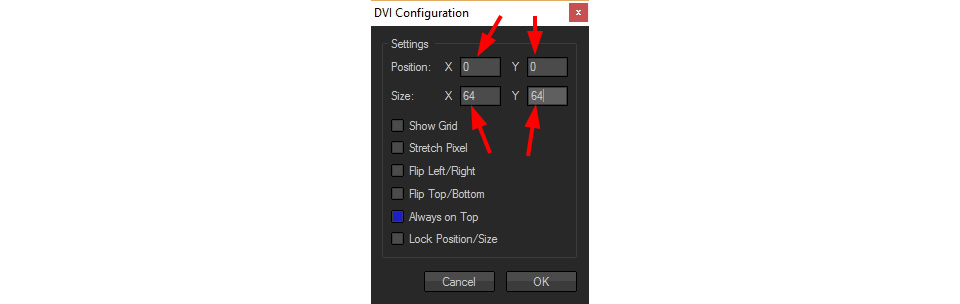

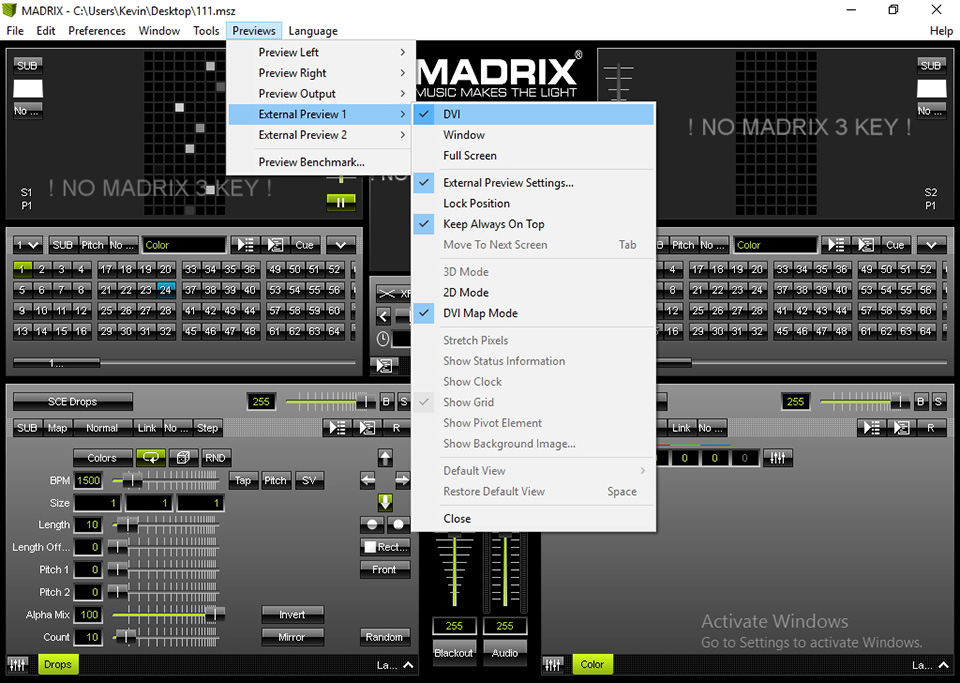

H803TV led controller In MADRIX and In Jinx!

H803TV led controller In MADRIX and In Jinx!

H803TV led controller In MADRIX and In Jinx!

H803TV led controller In MADRIX and In Jinx!

H803TV led controller In MADRIX and In Jinx!
