Hippo-M LED Connector
Most convenient LED Strip connector ever
Hippo-M LED strip connector will bring maximun convenience to your connection work. It supports most led strip types with different diodes, width, fpc thickness and waterproof method even there is no any visible soldering pad on strip light. Further more user can attach different wires easily to Hippo-M connector on site according to project requirement. Your lighting work or business will be more flexible with Hippo-M led connector.
Product Name: Hippo-M 2 Pin led strip connector
Item NO.: HR-N5XB2 HR-N5BB2
Type: strip to wire strip to strip joint
Dimension: 24.3*9.6*7.7mm 19.6*9.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 5mm single color IP20, less than 121LEDs/M

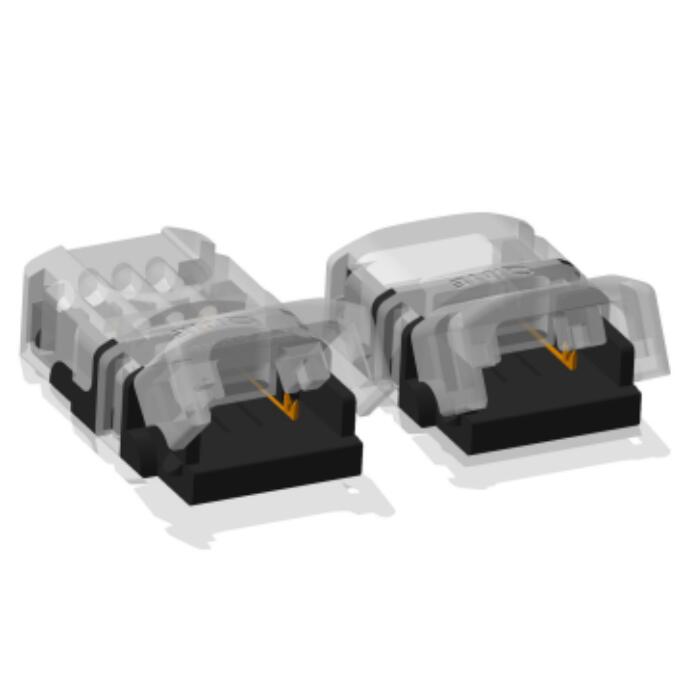

Product Name: Hippo-M 2 Pin led strip connector
Item NO.: HR-N8XB2 HR-N8BB2
Type: strip to wire strip to strip joint
Dimension: 24.3*12.6*7.7mm 19.6*12.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃Wire
Gauge: 22-18AWG/0.32-0.78mm2
Workable Strip: 8mm single color IP20, less than 120LEDs/M

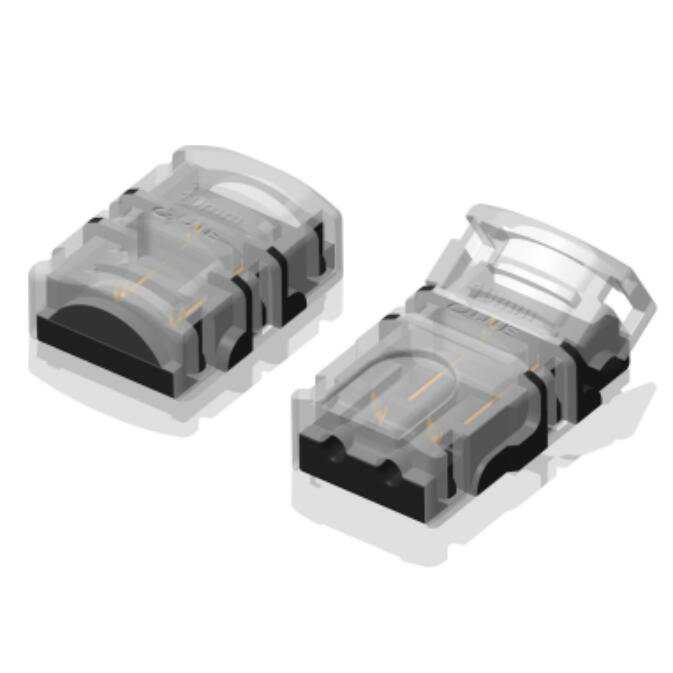

Product Name: Hippo-M 2 Pin led strip connector
Item NO.: HR-N8XB21 HR-N8BB21
Type: strip to wire strip to strip joint
Dimension: 24.3*12.6*7.7mm 19.6*12.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-18AWG/0.32-0.78mm2
Workable Strip: 8mm single color IP65, less than 121LEDs/M
Product Name: Hippo-M 2 Pin led strip connector
Item NO.: HR-N10XB2 HR-N10BB2
Type: strip to wire strip to strip joint
Dimension: 24.3*14.6*7.7mm 19.6*14.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃Wire
Gauge: 22-18AWG/0.32-0.78mm2
Workable Strip: 10mm single color IP20, less than 120LEDs/M
Product Name: Hippo-M 2 Pin led strip connector
Item NO.: HR-N10XB21 HR-N10BB21
Type: strip to wire strip to strip joint
Dimension: 24.3*14.6*7.7mm 19.6*14.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-18AWG/0.32-0.78mm2
Workable Strip: 10mm single color IP65, less than 121LEDs/M
Product Name: Hippo-M 2 Pin led strip connector
Item NO.: HR-N10XB2G HR-N10BB2G
Type: strip to wire strip to strip joint
Dimension: 24.3*14.6*7.7mm 19.6*14.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃Wire
Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 10mm single color IP20, less than 301LEDs/M

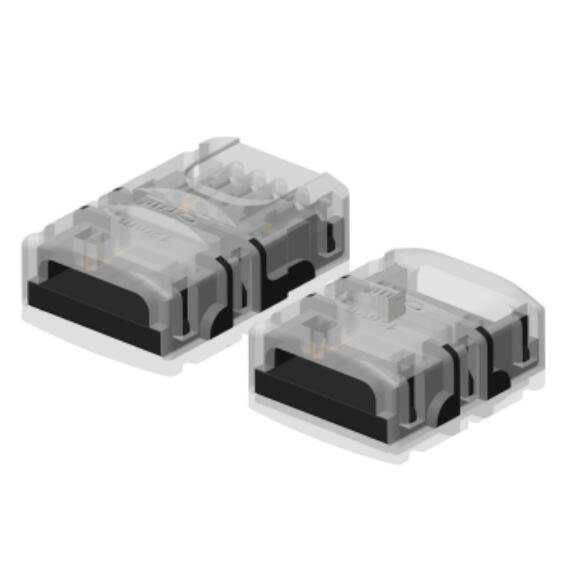

Product Name: Hippo-M 2 Pin led strip connector
Item NO.: HR-N12XB2 HR-N12BB2
Type: strip to wire strip to strip joint
Dimension: 24.3*17*7.8mm 19.6*17*7.8mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 12mm single color IP20, less than 301LEDs/M

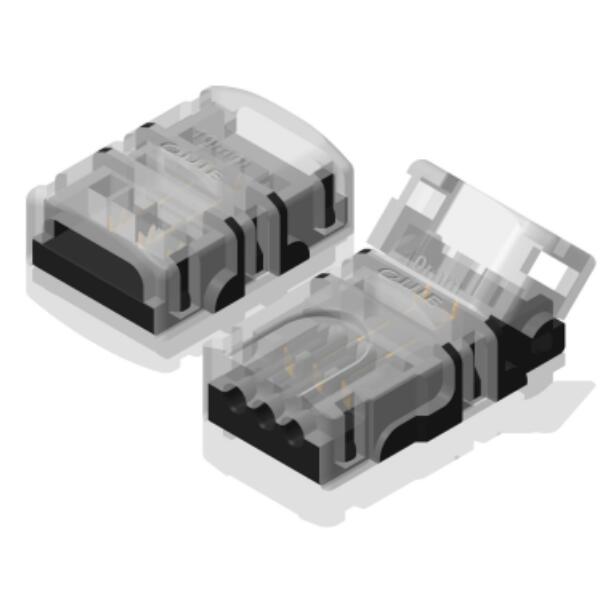

Product Name: Hippo-M 3 Pin led strip connector
Item NO.: HR-N10XB3 HR-N10BB3
Type: strip to wire strip to strip joint
Dimension: 24.3*14.6*7.7mm 19.6*14.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃Wire
Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 10mm dual color IP20, less than 121LEDs/M

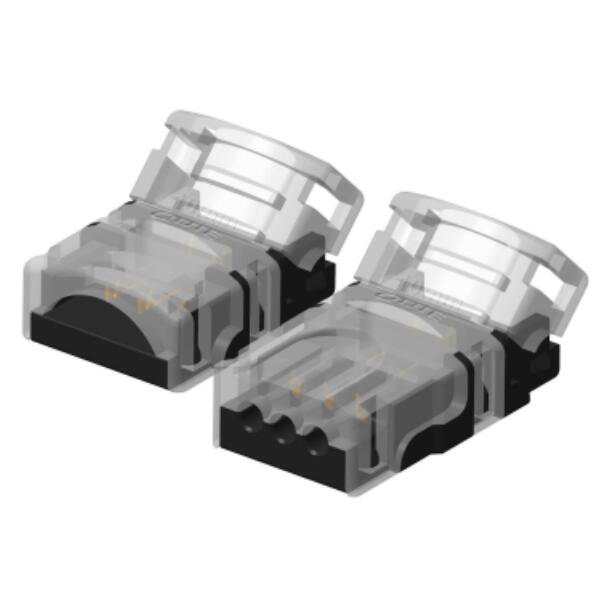

Product Name: Hippo-M 3 Pin led strip connector
Item NO.: HR-N10XB3 HR-N10BB3
Type: strip to wire strip to strip joint
Dimension: 24.3*14.6*7.7mm 19.6*14.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 10mm dual color IP65, less than 121LEDs/M

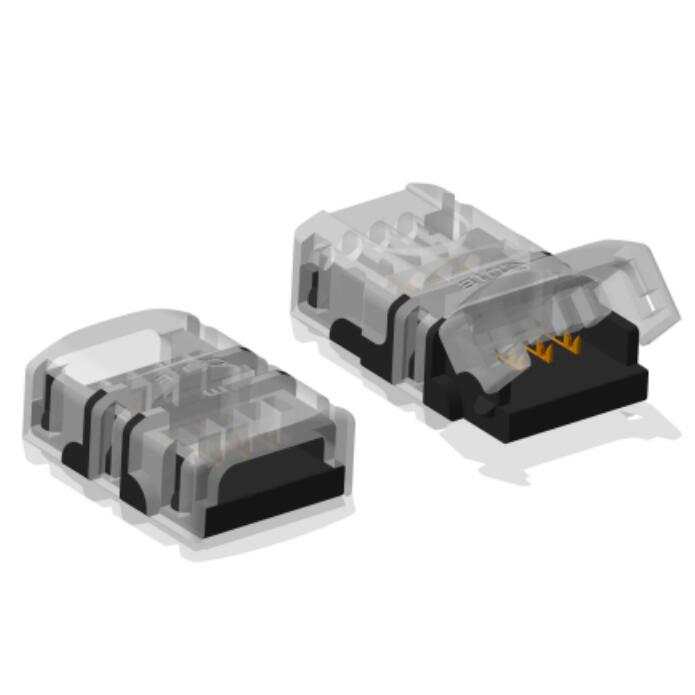

Product Name: Hippo-M 4 Pin led strip connector
Item NO.: HR-N10XB4 HR-N10BB4
Type: strip to wire strip to strip joint
Dimension: 24.3*14.6*7.7mm 19.6*14.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃Wire
Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 10mm RGB IP20, less than 121LEDs/M

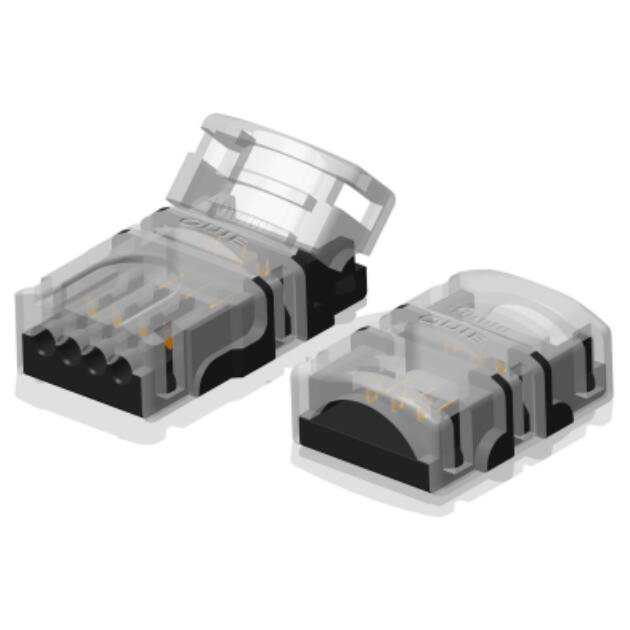

Product Name: Hippo-M 4 Pin led strip connector
Item NO.: HR-N10XB41 HR-N10BB41
Type: strip to wire strip to strip joint
Dimension: 24.3*14.6*7.7mm 19.6*14.6*7.7mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 10mm RGB IP54/IP65, less than 121LEDs/M

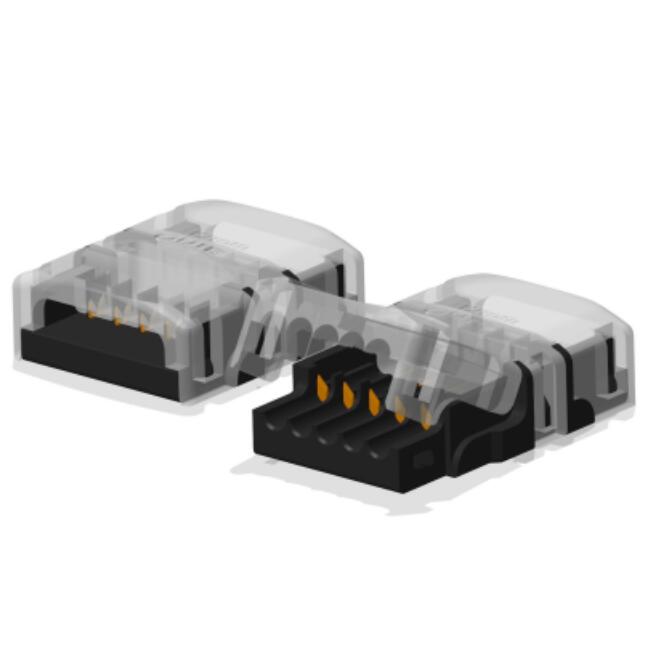

Product Name: Hippo-M 5 Pin led strip connector
Item NO.: HR-N12XB5 HR-N12BB5
Type: strip to wire strip to strip joint
Dimension: 24.3*17*7.8mm 19.6*17*7.8mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃Wire
Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 12mm RGBW IP20, less than 91LEDs/M

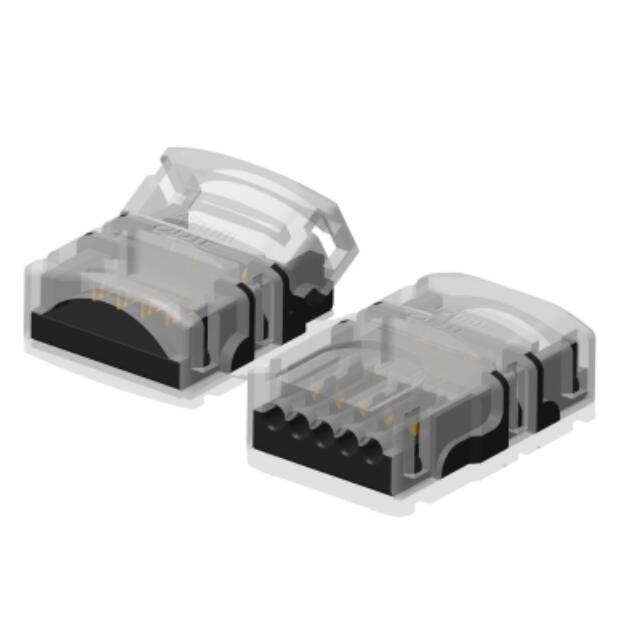

Product Name: Hippo-M 5 Pin led strip connector
Item NO.: HR-N12XB5 HR-N12BB5
Type: strip to wire strip to strip joint
Dimension: 24.3*17*7.8mm 19.6*17*7.8mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 12mm RGBW IP54/IP65, less than 91LEDs/M

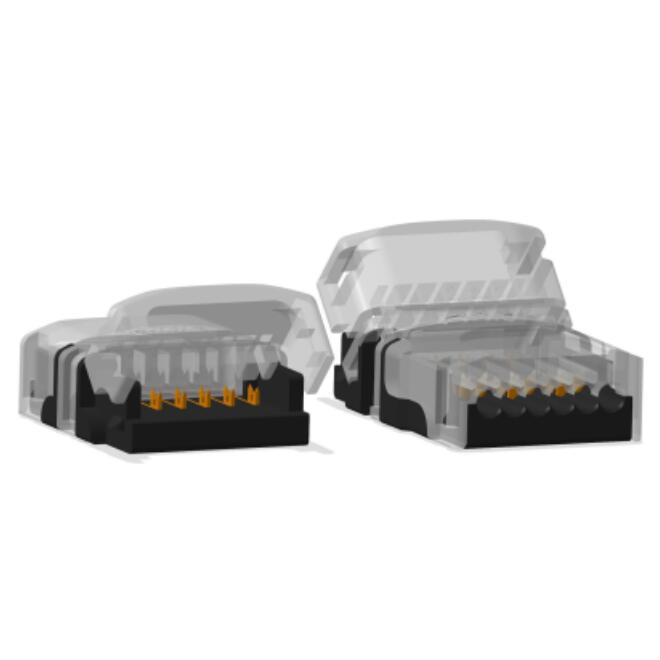

Product Name: Hippo-M 6 Pin led strip connector
Item NO.: HR-N12XB6 HR-N12BB6
Type: strip to wire strip to strip joint
Dimension: 24.3*17*7.8mm 19.6*17*7.8mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃Wire
Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 12mm RGB CCT IP20, less than 91LEDs/M

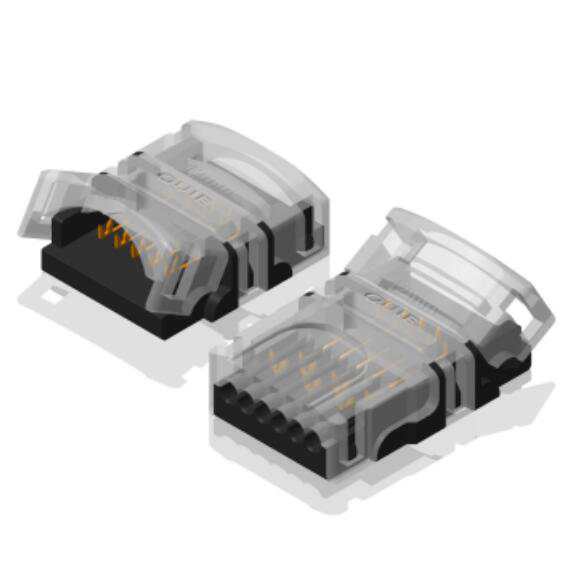

Product Name: Hippo-M 6 Pin led strip connector
Item NO.: HR-N12XB6 HR-N12BB6
Type: strip to wire strip to strip joint
Dimension: 24.3*17*7.8mm 19.6*17*7.8mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 12mm RGB CCT IP54/IP65, less than 91LEDs/M
FAQS
Yes, Hippo-M LED Connectors are available in configurations that support RGB (3-channel) and RGBW (4-channel) LED strips, allowing you to connect multiple channels securely.
Yes, Hippo-M LED Connectors are reusable. You can open the connector to remove the LED strip or wire and use it again for another installation.
Hippo-M connectors are compatible with a variety of LED strip types, including single-color, RGB, and RGBW strips. However, you need to choose the right connector size (e.g., 8mm, 10mm, 12mm) based on your LED strip width.
To ensure a secure connection, make sure that the copper pads on the LED strip are aligned with the connector’s metal contacts before snapping the connector shut. This ensures proper electrical contact.
Yes, Hippo-M Connectors can be used to extend LED strips by joining two sections together seamlessly, creating a continuous lighting run.
Hippo-M LED Connectors come in various sizes to fit different strip widths, including 5mm, 8mm, 10mm, and 12mm. Choose the appropriate size based on the width of your LED strip.
Ensure that the LED strip’s copper pads are correctly aligned with the connector’s metal contacts. If the connection is loose or misaligned, the strip may flicker. Reposition the strip and re-secure the connector if necessary.
No, the Hippo-M Connector should only be used to connect compatible LED strips (e.g., single-color to single-color, RGB to RGB). Connecting incompatible types can lead to malfunction.
Ensure that the connector size matches the width and type of your LED strip. If the connector doesn’t fit, you may need to switch to a different size or type of connector that is compatible.
Yes, Hippo-M LED Connectors can be used to connect LED strips to power supplies, providing a quick and reliable connection without the need for soldering.
