SK6812 mini 3535 LED strip light

Yes, you can address individual LEDs on the SK6812 mini LED strip using an XB-C100 encoder or other LED controller. This allows you to create custom lighting effects and patterns that can be synchronized with other elements of your project.

Yes, you can use the SK6812 mini LED strip with a sound-activated controller, which will synchronize the lighting effects with the music or sound levels. Make sure to choose a controller that is compatible with the SK6812 mini LED strip and follow the manufacturer’s instructions for wiring and programming.

Yes, you can use the SK6812 mini LED strip with a DMX controller, as long as the controller is compatible with the 24-bit RGBW protocol used by the LED strip. Make sure to follow the manufacturer’s instructions and wiring diagrams when connecting the LED strip to the DMX controller.

Yes, Hanron lighting provides the SK6812 mini LED strip in IP20, IP65, AND IP67.  The IP65 and IP67 models can be used outdoors, as long as it is installed correctly. If you want to use it underwater, we can customize the IP68 strip for you.

Here are the key differences between the SK6812 and SK6812 mini LED strips:

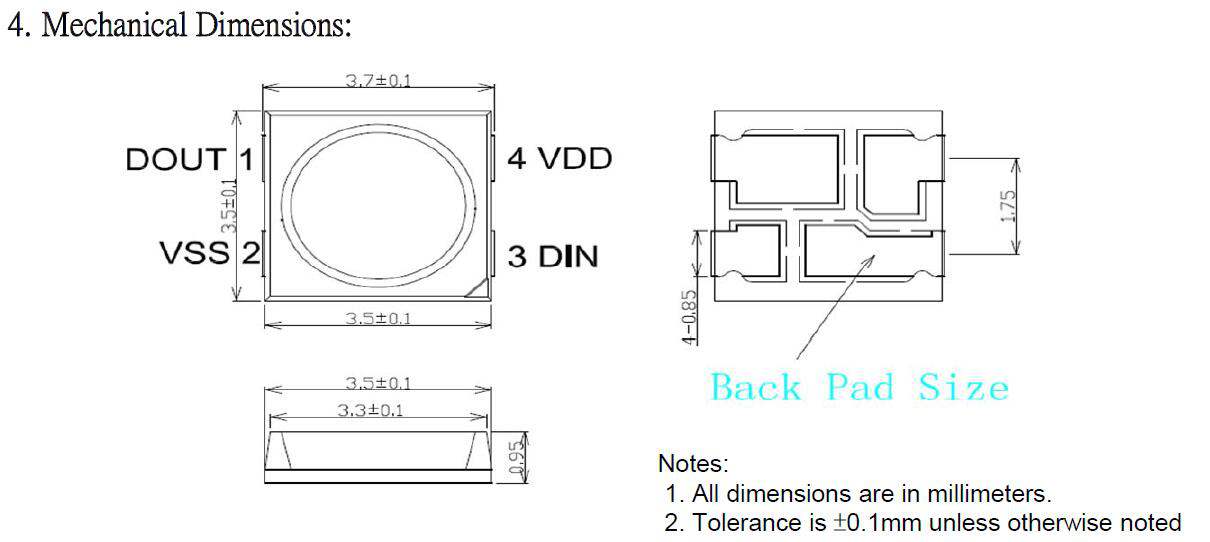

Size: The SK6812 mini is smaller than the SK6812 5050 LED, with each LED measuring 3.5mm x 3.5mm, making it ideal for smaller projects.

Density: The mini SK6812 has a higher density of LEDs, with up to 120 LEDs per meter, while the regular SK6812 5050 LED is 60 LEDs per meter, making the SK6812 mini better suited for more intricate lighting effects.

Overall, the SK6812 mini is better suited for smaller, more intricate projects where space is limited and a higher density of LEDs is required. Meanwhile, the SK6812 is a more versatile option for a range of lighting applications. It’s important to consider the specific requirements of your project when choosing between the two LED strips.

Programming the SK6812 mini LED strip may seem intimidating, but with a few simple steps, you can easily get started:

1. Choose your programming platform: Decide which programming platform you want to use, such as Arduino or Raspberry Pi.

2. Install the necessary software: Install any required software, including IDEs and libraries.

3. Connect the LED strip: Connect the 5mm SK6812 RGBW LED strip to your programming platform using the appropriate cables.

4. Write your code: Write the code for controlling the LEDs, including their color, brightness, and pattern.

5. Test and debug: Test your code and look for any errors or issues.

6. Upload your code: Finally, upload your code to your programming platform and enjoy the stunning LED light display!

Remember to experiment and have fun with the programming process. With a little patience and creativity, you can create amazing LED pixel lighting displays that will impress your audience.

Pros

• Precise control: The individually addressable LEDs on the 5mm mini SK6812 RGBW LED strip allow for precise control over each LED’s color and brightness, which can create stunning visual effects and animations.

• Customizability: The individually addressable LEDs allow for a high level of customization, making it easy to create unique lighting effects.

• Compact design: The SK6812 Mini LED strip uses SMD 3535 small LEDs, and has a smaller form factor than other LED strips, which makes it easier to install in tight spaces or projects that require a smaller footprint.

• Energy-efficient: The SK6812 Mini LED strip has a low power consumption, which makes it ideal for projects that require long hours of operation.

• Easy installation: The SK6812 mini LED strip is easy to install with a few basic tools and some careful planning.

Cons

• This SK6812 LED strip can be more expensive than traditional LED strips, due to its higher resolution and improved color accuracy.

• Because the LEDs on the SK6812 LED strip are individually addressable, it can be more complex to program and control than traditional LED strips.

• The SK6812 LED strip requires a compatible LED controller and software to program and control, which can be an additional expense for some users.

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino.

(offline / PC online)

LED power suppply: power supply, T- series, A- series power supply…(waterproof / non-waterproof)

The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted

from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an

internal data latch, the remaining data is passed through the internal amplification circuit and sent out

on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic

shaping forwarding technology makes the number of cascaded pixels without signal transmission only

limited by signal transmission speed.

The LED has a low driving voltage (which allows for environmental protection and energy saving),

high brightness, scattering angle, good consistency, low power, and long life. The control circuit is

integrated in the LED above.

The SK6812 Mini 3535 has smaller LEDs (3.5mm x 3.5mm), allowing for higher density and smoother lighting effects. It is designed for applications requiring compact, precise lighting in tight spaces.

Yes, the strip can be cut at designated points, usually every 1 LED, allowing for easy customization to fit specific project dimensions.

You can create a wide range of effects, including color transitions, dynamic animations, pixel art, gradients, and custom lighting patterns, thanks to the individually addressable LEDs.

The strip operates on a 5V power supply. Ensure that your power supply can provide sufficient current for the number of LEDs in use, as each LED consumes power based on its brightness level.

Waterproof versions are available with IP65 or higher ratings, making them suitable for outdoor applications or environments where moisture and dust protection are necessary.

Yes, custom lighting effects can be programmed using microcontrollers and libraries such as FastLED or Adafruit NeoPixel. These libraries simplify creating animations, transitions, and other effects.
