Wire Joint LED Connector
Better organized & more efficient wiring solution
Connect wires without stripping insulation, twisting conductor or tapping around. Applicable to both strand and solid wires of single pole or multiple poles. With wire joint, connection become much easier.

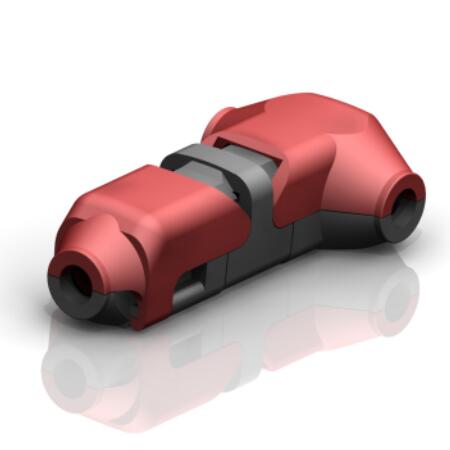

Product Name: Wire Joint 1pin
Item NO.: HR-JXD-T1
Type: T Shape
Dimension: 25*12.8*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2

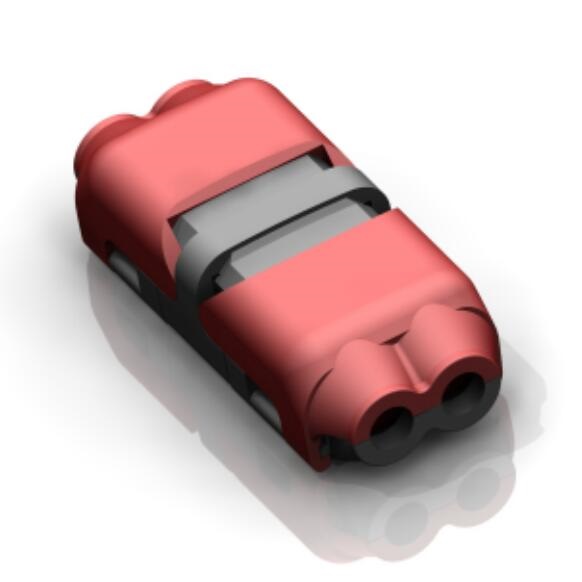

Product Name: Wire Joint 2pin
Item NO.: HR-JXD-T2
Type: T Shape
Dimension: 28.6*16.6*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2
Product Name: Wire Joint 1pin
Item NO.: HR-JXD-D1
Type: I Shape
Dimension: 25*6.6*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2
Product Name: Wire Joint 1pin
Item NO.: HR-JXD-Y3
Type: T Shape
Dimension: 16.6*14.4*7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2
Product Name: Wire Joint 2pin
Item NO.: HR-JXD-H1
Type: I Shape
Dimension: 25*10.4*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2
Product Name: Wire Joint 1pin A
Item NO.: HR-JXD-T1A
Type: T Shape
Dimension: 33.5*17*9mm
Max V/C: 300V/15A
Working Temp.: -10-45℃
Wire Gauge: G:20-18AWG/0.52-0.78mm2
D: 18-16AWG/0.78-1.32mm2
FAQS
Wire Joint LED Connector is a device used to connect two wires securely without soldering. It’s typically used in LED lighting systems to join wires between power supplies, controllers, and LED strips.
No, Wire Joint LED Connectors are designed for wire-to-wire connections, not directly for LED strip-to-strip connections. You would need other types of connectors for connecting LED strips.
Wire Joint LED Connectors come in different sizes to support a range of wire gauges, typically from 18 AWG to 22 AWG, depending on the specific connector model.
Yes, most Wire Joint LED Connectors can be reused. You can open them, remove the wires, and use them again for different installations.
Yes, when used properly, Wire Joint LED Connectors provide a safe and secure way to join wires in low-voltage LED systems. Always follow the manufacturer’s guidelines for correct installation.
No, Wire Joint LED Connectors are designed to maintain the electrical continuity between wires without affecting the current or voltage.
Yes, some Wire Joint Connectors are designed for joining multiple wires together, such as 2-way, 3-way, or 4-way connectors.
Make sure you are using a connector that is compatible with the wire gauge you are working with. If the wire doesn’t fit, you may need a connector that supports larger or smaller wire sizes.
Yes, Wire Joint LED Connectors are ideal for extending the wiring between power supplies, controllers, or different sections of your LED strip system.
No special maintenance is needed, but you should periodically check the connections to ensure they remain tight, especially in high-vibration environments.
If the connection becomes loose, you can reopen the connector, reposition the wires, and snap it back into place. If the connector no longer holds the wires securely, it may need to be replaced.
To disconnect wires, simply open the connector (if it has a snap or clamp mechanism) and pull the wires out gently. This allows for quick modifications or rewiring.
Yes, Wire Joint Connectors can be used in dimming systems as long as they are connected to the dimmable LED strip’s wiring and compatible with the dimmer control.
Some connectors require you to strip a small portion of the wire insulation, while others are insulation-displacement connectors (IDC) that can pierce the wire’s insulation to make contact with the conductor.
