• 功能性白光照明
• 色温可调照明
• RGB 彩色照明
• 像素级控制动态照明
• 特殊应用 COB LED 灯带

1. 根据照明用途选择合适的 COB LED 灯条类型

选择 COB LED 灯条的第一步是了解不同的产品类别。
不同类型的灯条专为不同的照明效果和应用而设计。
主要的 COB LED 灯条类别包括：

• 白光 COB LED 灯条
• 色温可调 COB LED 灯条
• 彩色 COB LED 灯条
• 像素 COB LED 灯条
• 特殊 COB LED 灯条

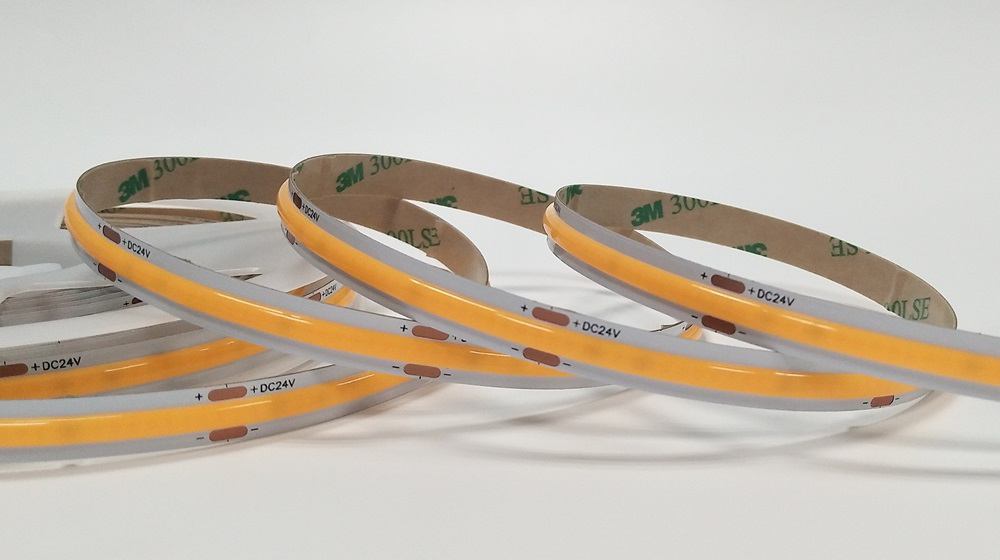

1.1 白色 COB LED 灯条：功能性照明的理想之选

• 高亮度
• 均匀照明
• 良好的显色性
• 稳定的长期运行

• 橱柜照明
• 家具照明
• 商业照明
• 建筑照明

标准白色 COB LED 灯条

不同的芯片密度提供不同的亮度级别和价格选择。
常用选项包括：
320 片/米
480 片/米
528 片/米


更高的芯片密度通常意味着：

• 更多的LED光源
• 更好的均匀性
• 更高的亮度

然而，更高的密度并不总是意味着最佳选择。

合适的产品取决于：

• 所需亮度
• 安装环境
• 项目预算

相关文章：
320 片/米 vs 480 片/米 vs 528 片/米 白色 COB LED 灯条对比指南

高光效白色 COB LED 灯条

对于需要更高亮度和更低能耗的项目，我们提供高效 COB LED 灯条。
典型优势：
更高的发光效率
更佳的能源性能
与低效解决方案相比，发热量更低


例如：
480 芯片/米 高效 COB LED 灯带：
10.5W/m
高达 135lm/W
480 芯片/米 高效 COB LED 灯带：
14.5W/m
高达 140lm/W


这些产品适用于：

• 商业照明
• 零售项目
• 节能照明解决方案

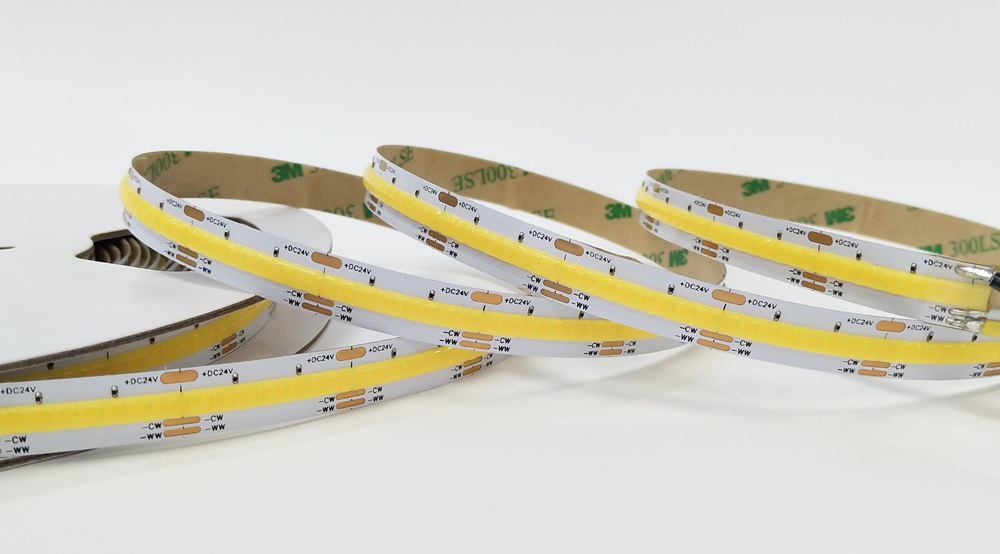

1.2 可调色温 COB LED 灯带：灵活的白光照明

• 暖白光，营造轻松氛围
• 中性白光，用于日常照明
• 冷白光，用于工作环境

• 住宅照明
• 酒店
• 办公室
• 智能照明项目

1.3 彩色COB LED灯带：RGB、RGBW和RGB CCT解决方案

彩色COB LED灯带专注于装饰照明和氛围营造。
此类别包括：
RGB COB LED灯带
RGBW COB LED灯带
RGB CCT COB LED灯带

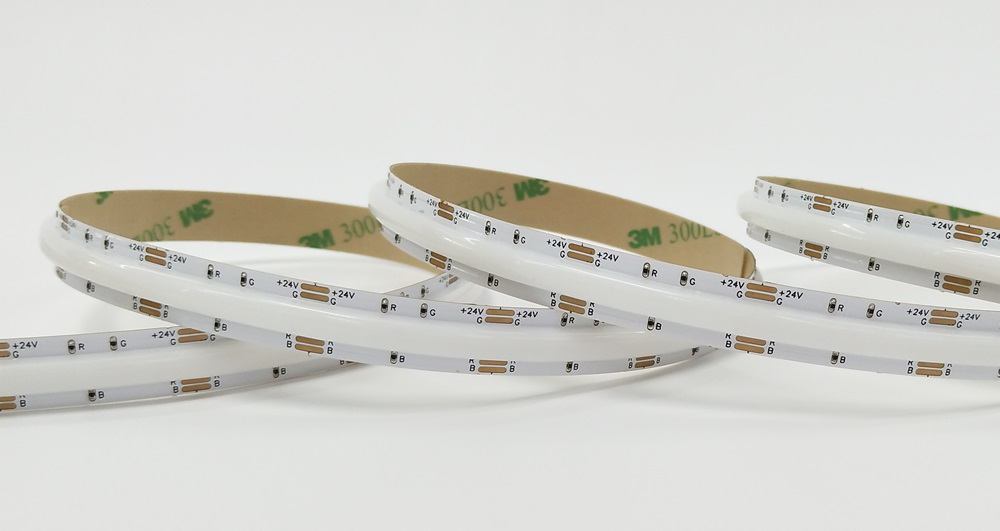

RGB COB LED灯带

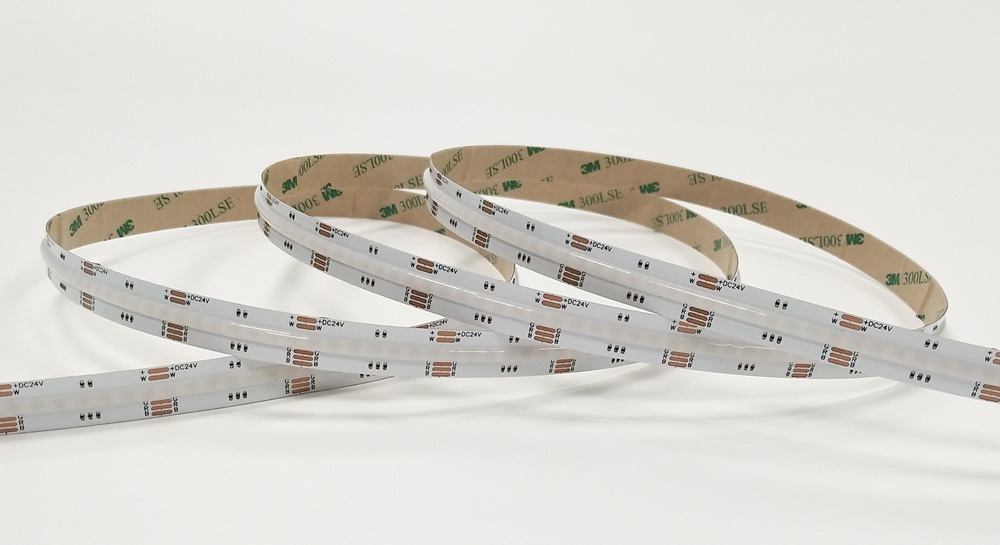

RGBW COB LED灯带

RGBW COB LED灯带结合了RGB三色通道和一个额外的白色通道。


与纯RGB产品相比，RGBW产品具有以下优势：
更优质的白光照明
更实用的日常照明
更多照明可能性


应用领域：
酒店
商业空间
智能家居项目

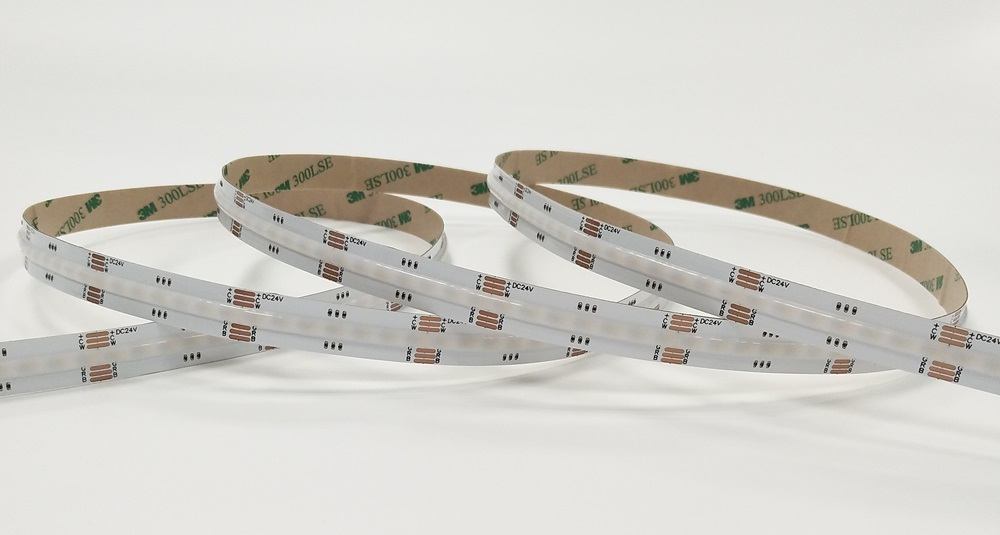

RGB CCT COB LED灯带

RGB CCT COB LED灯带结合了RGB色彩效果和可调节的白光色温，既可提供装饰照明，也可提供功能性白光照明。

应用领域：
高端住宅项目
酒店照明
智能照明系统

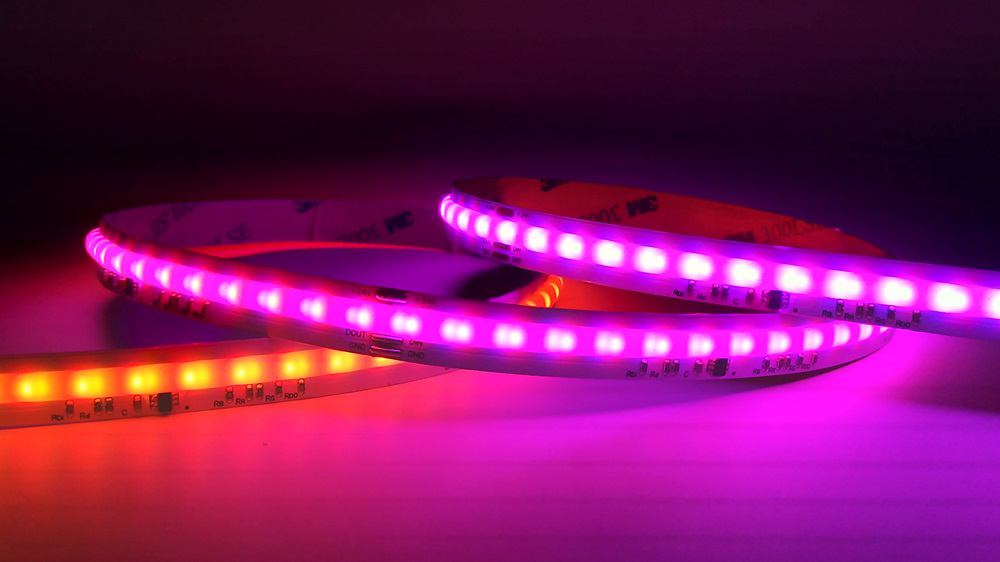

1.4像素COB LED灯带：动态照明，独立控制

像素COB LED灯带专为需要动态照明效果的应用而设计。
与传统的COB LED灯带（整条灯带显示相同颜色）不同，像素COB LED灯带允许独立控制不同的区域。


优势：
动态效果
动画照明
像素级控制
平滑的颜色过渡


常见的像素 COB 解决方案包括：
像素白光 COB LED 灯条
像素色温可调 COB LED 灯条
像素 RGB COB LED 灯条
像素 RGBW COB LED 灯条
像素 RGB 色温可调 COB LED 灯条

1.5 特殊 COB LED 灯带：针对特殊应用场景的解决方案

超窄型 COB LED 灯带

Ultra Length COB LED Strip

For large projects, reducing connection points can improve installation efficiency.

Ultra Length COB LED Strip provides longer reel options, such as:

• 10m/reel COB LED Strip
• 20m/reelCOB LED Strip

Advantages:

• Fewer connection points
• Easier installation
• Better consistency for long runs

Applications:

• Hotels
• Commercial spaces
• Architectural lighting

Free Cut COB LED Strip

Traditional LED Strip usually has fixed cutting units.

Free Cut COB LED Strip provides greater flexibility for customized installation.

Advantages:

• Less material waste
• Easier adjustment
• Suitable for complex dimensions

Applications:

• Customized furniture
• Display lighting
• Special projects

Sideview COB LED Strip

Sideview COB LED Strip uses a side-emitting design.

Compared with standard top-emitting COB LED Strip, sideview products are suitable for applications where light direction is important.

Advantages:

• Edge lighting effect
• Suitable for narrow spaces
• Better integration with special profiles

Applications:

• Signage
• Decorative edge lighting
• Special linear lighting designs

High Power High Efficiency COB LED Strip

Some professional lighting projects require much higher brightness than standard COB LED Strip.

High Power High Efficiency COB LED Strip is designed for applications requiring:

• High power output
• High luminous efficacy
• Large-area illumination
• Stable performance

Compared with standard COB LED Strip, high power models use multi-row COB chip designs to increase light output while maintaining smooth illumination.

Typical products include:

Model	Structure	Power	Voltage	Luminous Efficiency
600D Dual Row COB	Double row	24W/m	24V	80-90lm/W
960D COB	Double row	28W/m	24V	100-110lm/W
960D Triple Row COB	Triple row	25W/m	24V	110-120lm/W
1600D COB	Five row	40W/m	24V	110-120lm/W

Applications:

• Commercial display lighting
• Architectural lighting
• Large indirect lighting
• Professional high brightness projects

2. Select the Right Brightness and Chip Density

Brightness is one of the most important factors when selecting COB LED Strip.

However, higher brightness is not always better.

The correct brightness depends on:

• Application
• Installation distance
• Lighting purpose

Chip density affects:

• Light uniformity
• Brightness capability
• Product cost

Common White COB options:

• 320 Chips/m
• 480 Chips/m
• 528 Chips/m

Related article:

COB LED Strip Brightness Guide: How to Choose the Right Lumens for Different Applications

3. Choose the Correct Voltage: 12V or 24V COB LED Strip

Voltage selection affects:

• Current
• Voltage drop
• Installation length
• Cutting flexibility

12V COB LED Strip:

Suitable for:

• Cabinet lighting
• Furniture lighting
• Small projects

24V COB LED Strip:

Suitable for:

• Commercial projects
• Architectural lighting
• Long installations

It is important to note that COB LED Strip cutting length is not always determined only by voltage.

Unlike traditional SMD LED Strip, some COB products may have the same cutting length in both 12V and 24V versions.

Related article:

12V vs 24V COB LED Strip: How to Choose the Right Voltage for Your Project

4. Consider Installation Requirements

Different installation environments require different COB LED Strip designs.

Consider:

• Available space
• Installation length
• Heat dissipation
• Aluminum profile requirements

Related article:

COB LED Strip Installation Guide: Aluminum Profile, Heat Dissipation and Power Supply Selection

5. Custom COB LED Strip Solutions

Professional projects often require customized solutions.

COB LED Strip can be customized according to:

• Power consumption
• Brightness
• Color temperature
• CRI
• Length
• PCB design
• Control system

Customization options include:

• White COB
• CCT COB
• RGB COB
• RGBW COB
• RGB CCT COB
• Pixel COB

This allows customers to achieve the best balance between performance, cost, and application requirements.

COB LED Strip Selection Guide by Application

Application	Recommended COB Solution
Cabinet lighting	White COB / CCT COB
Wardrobe lighting	White COB / Ultra Thin COB
Commercial display lighting	High Brightness White COB / RGBW COB
Hotel lighting	CCT COB / RGB CCT COB
Smart home	CCT COB / Pixel RGB CCT COB
Entertainment lighting	Pixel RGB COB
Special profile lighting	Sideview COB
Large architectural projects	High Power High Efficiency COB

Conclusion

COB LED Strip has developed from a simple white lighting product into a complete lighting solution covering:

• Functional illumination
• Tunable white lighting
• Color lighting
• Pixel-controlled effects
• Special performance applications

Choosing the right COB LED Strip requires considering:

• Lighting purpose
• Brightness requirements
• Color effects
• Installation environment
• Control system
• Project requirements

A professional COB LED Strip supplier should provide not only products but complete solutions for different lighting applications.
