China sk6812 rgbw LED Strip Supplier & Manufacturer
Hanron Lighting is one of the leading professional sk6812 rgbw LED strip light manufacturer & supplier in China. We offers a complete series of high quality sk6812 rgbw led strip for years, including RGB & WWA colors in LED QTY like 30led/m, 48led/m, 60led/m, 96led/m, 144led/m, etc. All our sk6812 rgbw led strip lights are CE, RoHS certificated, ensuring high performance and a long lifetime. Wholesalers, distributors, dealers, traders, agents are welcome to purchase in bulk with us.
Detail Types of sk6812 rgbw led strip
- 1
What's sk6812 rgbw LED chip?
SK6812RGBW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.

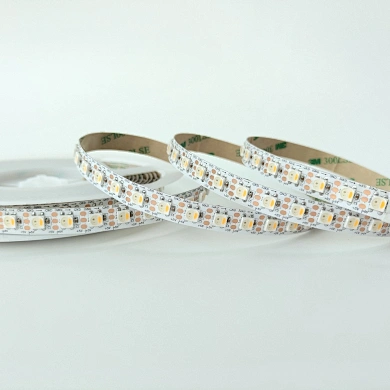

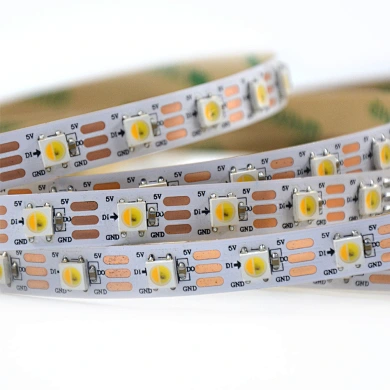

What's sk6812 rgbw led strip light?
sk6812 rgbw led strip is an intelligent control LED light source that the control circuit and RGBW chip are integrated in a package of5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 5V voltage programmable constant current control part, which achieves highly consistent color effect.

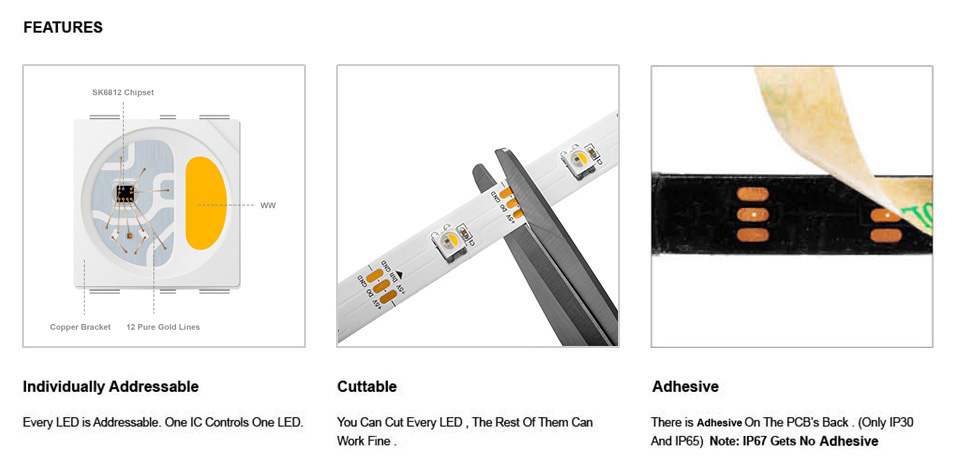

The feature and advantage of sk6812 rgbw led strip
Individually addressable
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
RGB+whie colors
Compare to ws2811, ws2812, ws2815 led strip, sk6812 rgbw led strip light choose a rgbw 4in1 led chip, that means this light can enjoy pure white color, and the CCT of the white color can be choosed based on your request.
DC12V with lower voltage drop
DC12V input, Comes with backup data. Maximum white brightness , 16.4ft no voltage drops.Ultra bright. Only support 12V power supply.Do not try DC5V or DC24V power supply.
Wide Compatibility
Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E, etc.
Specification
Model: sk6812 rgbw LED Strip
Feature: Individually Addressable
View Angle: 120°
PCB Width: 10mm/12mm
Lifespan: 50,000 Hours
Operating Temperature: -20 ~ +65°C
IC Type :sk6812 rgbw IC
Working Voltage: DC5V
LED QTY: 30LEDs/M, 60LEDs/M, 144LEDs/M
IC QTY: 30PCS/M, 60PCS/M, 144PCS/M
Power: 7.2W/M, 14.4W/M, 34.56W/M
Wavelength(nm): Red,650nm ; Green,520nm; Blue,460nm; White
Gray Level: 256
Color: Full Color 24-bit
PCB Board Color: White/Black/Yellow

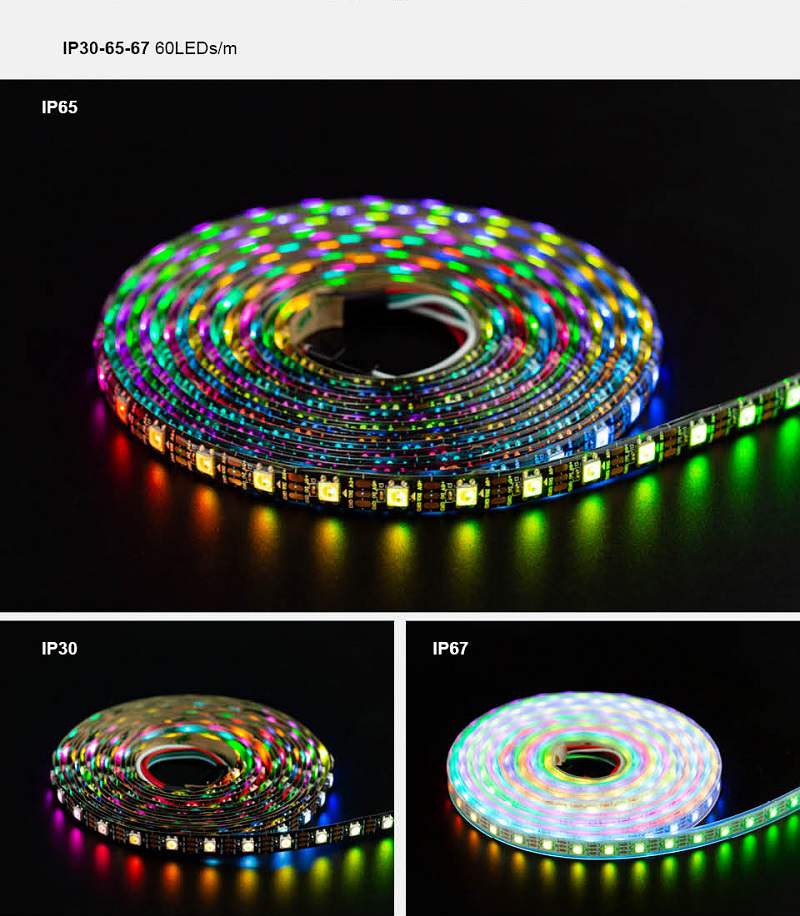

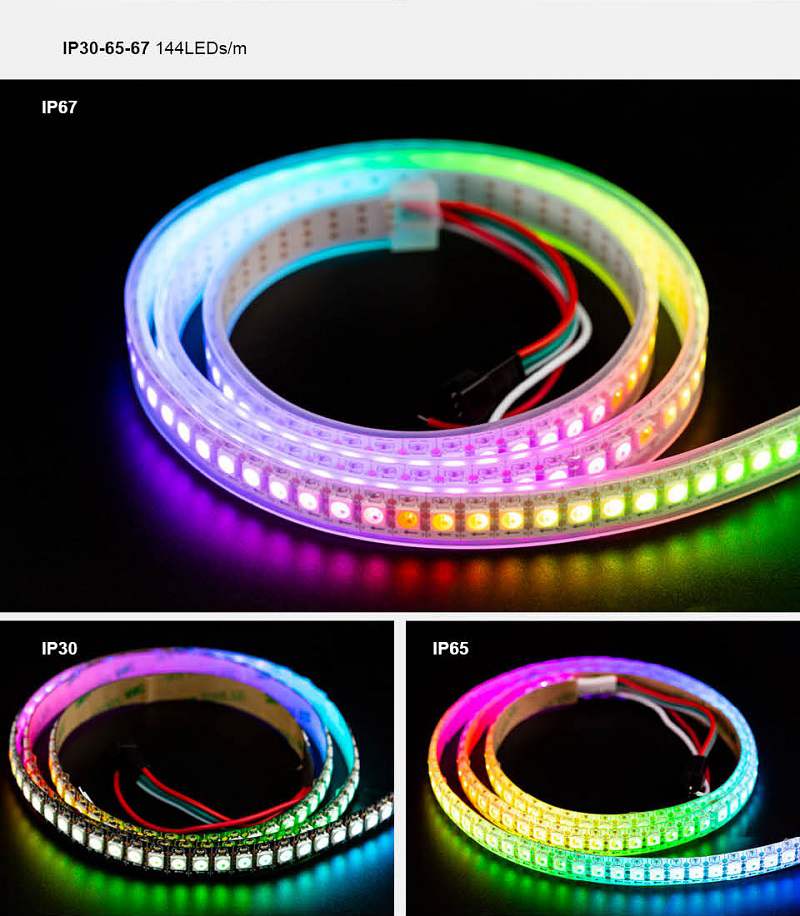

Waterproof level: IP20/IP65/IP66/IP68
Warranty: 3 Years
Package: 5Meter/roll with 1PCS 3pin connector
Customized Your sk6812 rgbw LED Strip is Easy
10 Professional engineers are here to serve you
As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, whether residential, commercial, or even industrial.
Here are what can be customized:
1. LED QTY
2. PCB color and Shape
3. Colors, can be white, RGB and RGBW
4. Waterproof function
5. Adhesive 3M tape
6. Logo on the PCB and package
You only need to share with us your creative ideas or design, then the rest leave to us Hanron. We will give you a surprise!

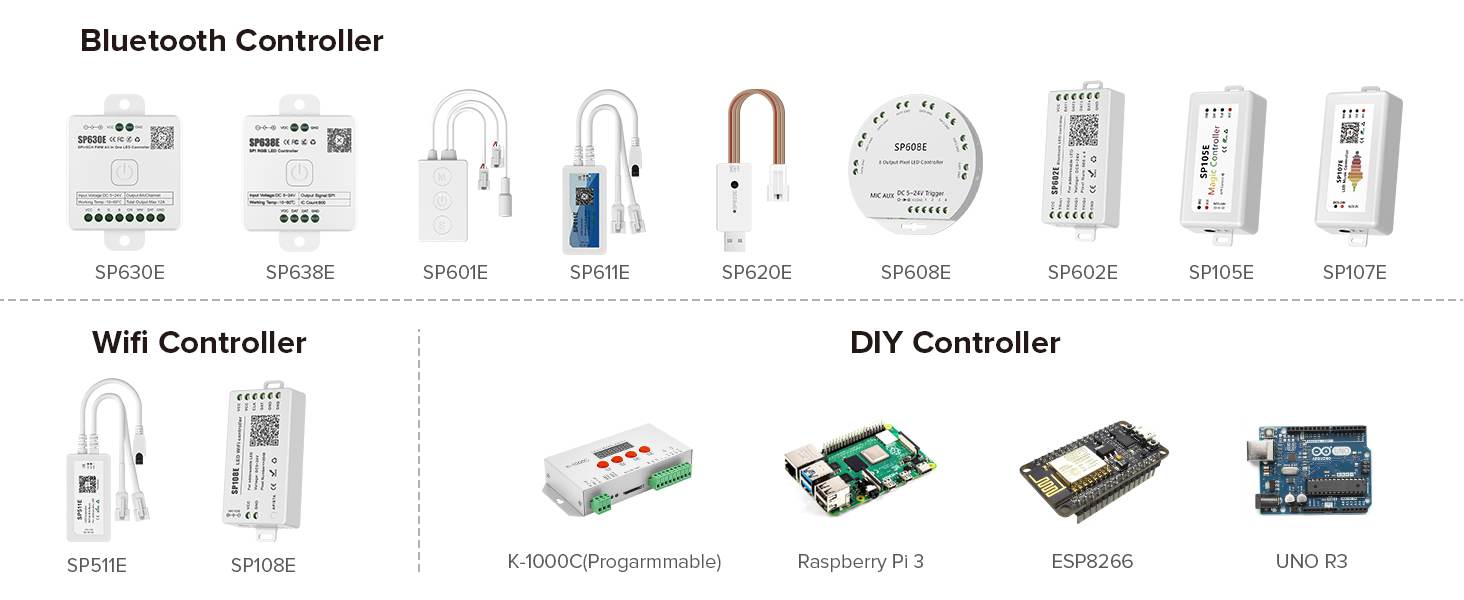

LED Controllers for sk6812 rgbw LED Strip Light

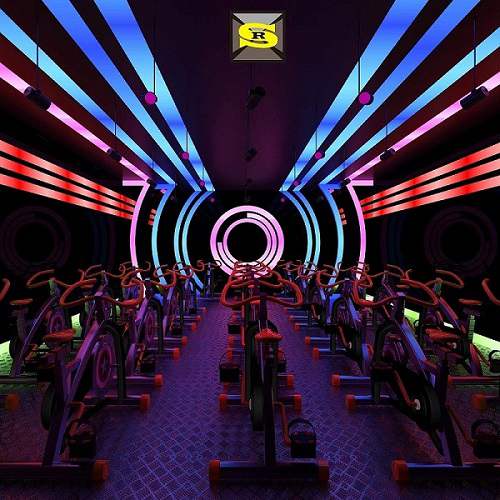

Application of sk3812 rgbw LED Strip
Bar/club decorative lighting

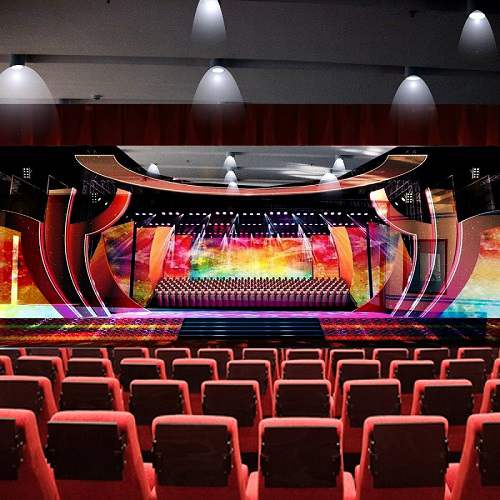

Stage decoration lighting
Electric bicycle ambient lighting

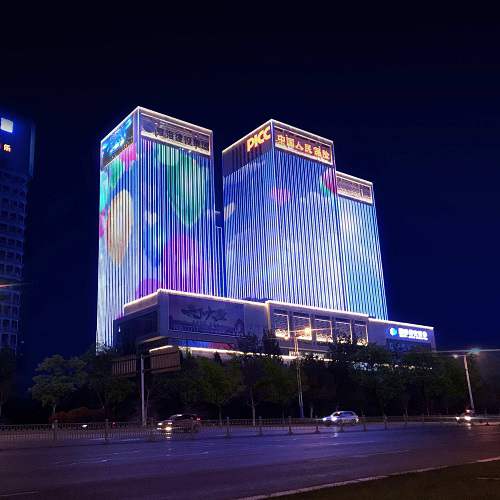

Outdoor architectural lighting

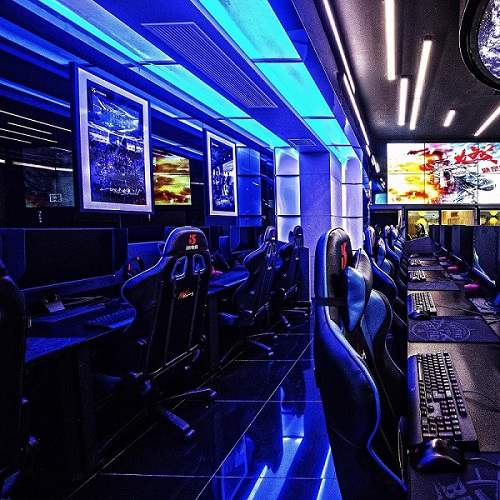

E-sports venues

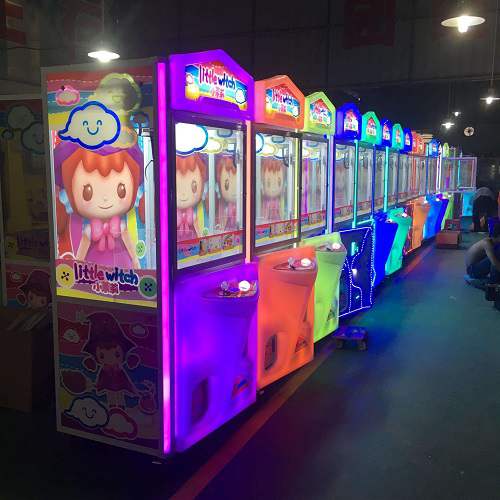

Electronic game consoles
Esports chairs

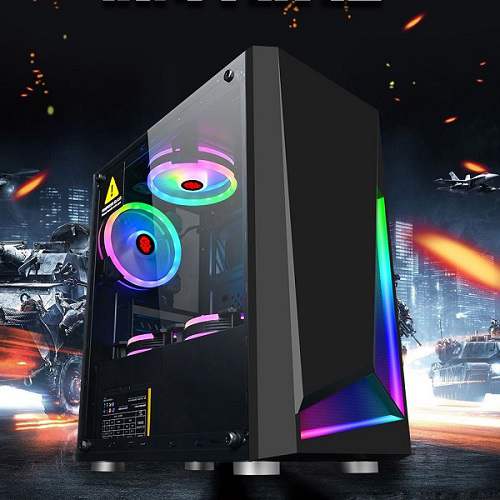

Computer case lighting
Why Wholesale sk6812 rgbw LED Strip From us
Hanron offers the best sk6812 rgbw led strip in the market
Certified Quality
All Hanron led strips pass at least 3-4 test in 100% during production base on ISO9001:2015 standard. And they enjoy 3-5year warranty after delivery time.
Competitive Price
As a 13year cob led strip manufacturer, we have gain good reputation and support from our suppliers, that's why our price is always competitive.
Fast Delivery
100+ Employees and auto automated production lines to support your orders. That's why we can always offer fast delivery time for our customers.
NO minimum MOQ
You can order as much LED strips as you want from Hanron Lighting. There is absolutely no minimum order quantity and the order is customized according to your wish.

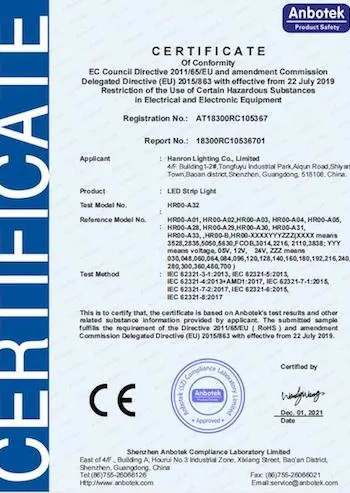

Hanron Brand Certificate
ETL/CE/RoHS/Reach/CB/BIS/LM80
ISO9001:2015
ETL
CB
BIS
TER
LM80 Test
CE EMC
CE LVD
CE RoHS
CE Reach
IP66 Report
IP68 Report

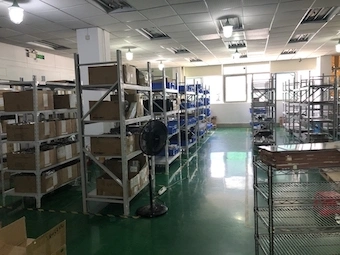

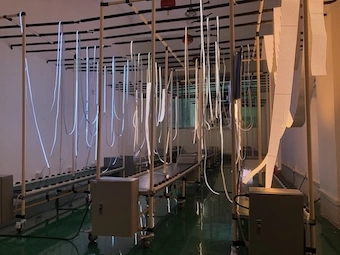

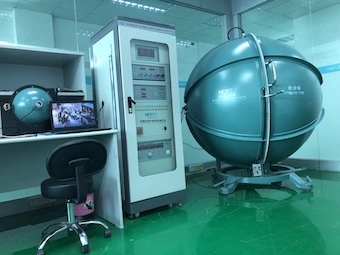

Factory Tour
100+ Employees to support your orders
FAQS
Description of sk6812 rgbw led chip:
● Top SMD internal integrated high quality external control line serial cascade constant current IC;
● control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color
mixing uniformity and consistency;
●built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform
distortion will not guarantee a line;
●The built-in power on reset and reset circuit, the power does not work;
●gray level adjusting circuit (256 level gray scale adjustable);
● red drive special treatment, color balance;
● line data transmission;
● plastic forward strengthening technology, the transmission distance between two points over 10M;
●Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted
from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an
internal data latch, the remaining data is passed through the internal amplification circuit and sent out
on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic
shaping forwarding technology makes the number of cascaded pixels without signal transmission only
limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving),
high brightness, scattering angle, good consistency, low power, and long life. The control circuit is
integrated in the LED above.
No. There is only DC5V sk6812 rgbw led strip in the market.
If you want to make it DC12V with lower voltage drop, please choose ws2815 rgbw led strip light instead.
