Wire Joint LED Connector
Better organized & more efficient wiring solution
Connect wires without stripping insulation, twisting conductor or tapping around. Applicable to both strand and solid wires of single pole or multiple poles. With wire joint, connection become much easier.
Product Name: Wire Joint 1pin
Item NO.: HR-JXD-T1
Type: T Shape
Dimension: 25*12.8*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2

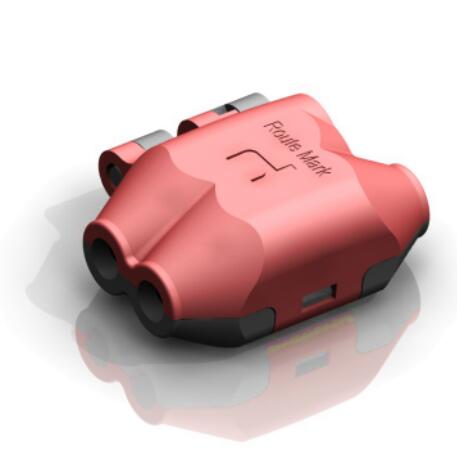

Product Name: Wire Joint 2pin
Item NO.: HR-JXD-T2
Type: T Shape
Dimension: 28.6*16.6*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2

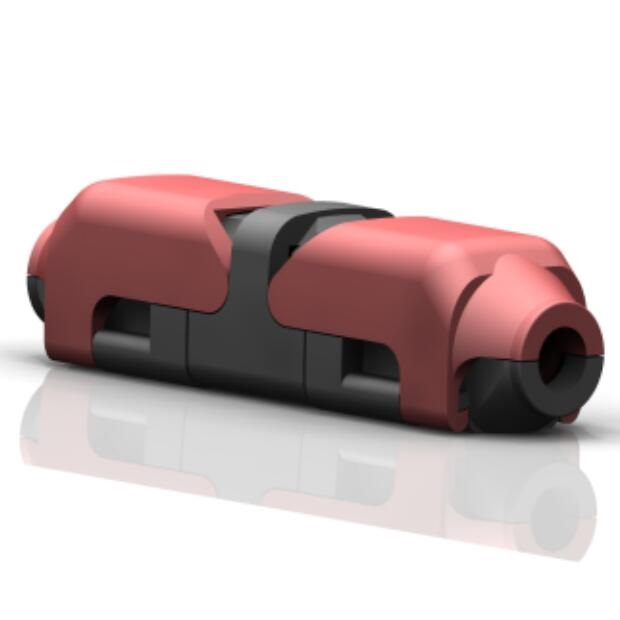

Product Name: Wire Joint 1pin
Item NO.: HR-JXD-D1
Type: I Shape
Dimension: 25*6.6*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2

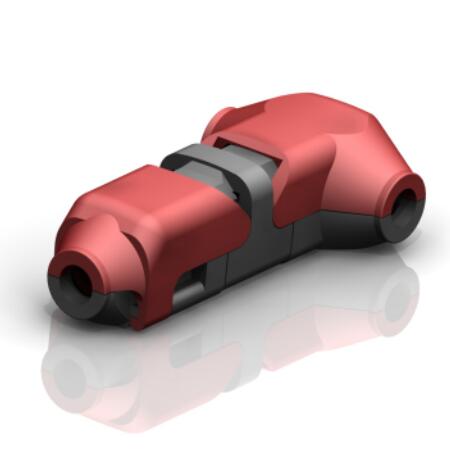

Product Name: Wire Joint 1pin
Item NO.: HR-JXD-Y3
Type: T Shape
Dimension: 16.6*14.4*7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2

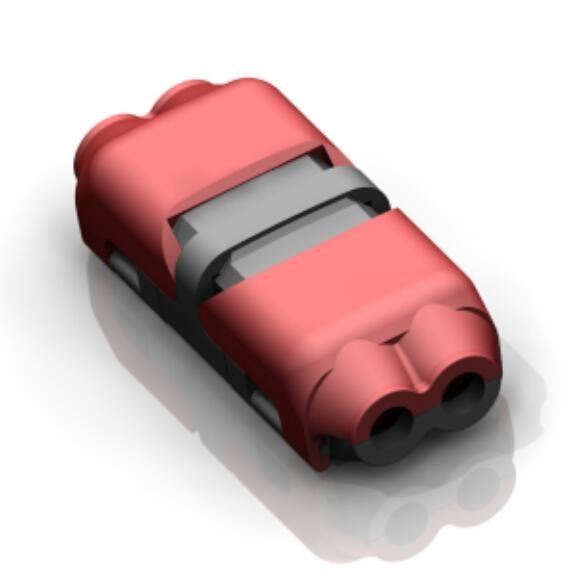

Product Name: Wire Joint 2pin
Item NO.: HR-JXD-H1
Type: I Shape
Dimension: 25*10.4*6.7mm
Max V/C: 300V/10A
Working Temp.: -10-45℃
Wire Gauge: G:22-20AWG/0.32-0.52mm2
D：20-18AWG/0.52-0.78mm2

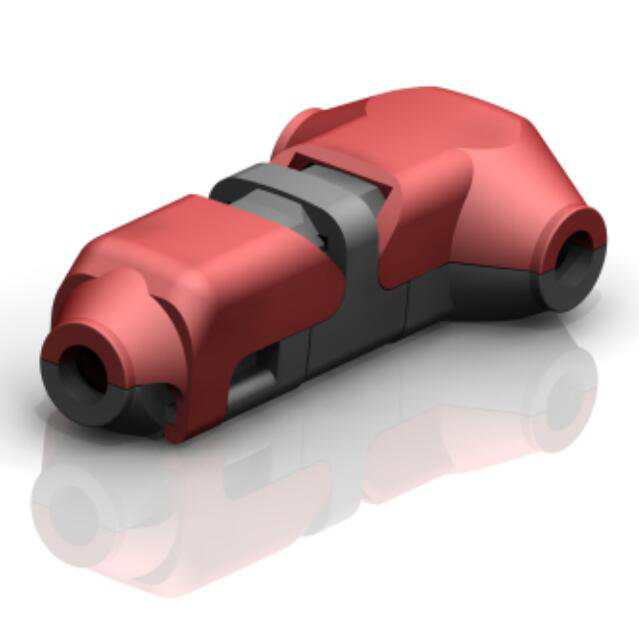

Product Name: Wire Joint 1pin A
Item NO.: HR-JXD-T1A
Type: T Shape
Dimension: 33.5*17*9mm
Max V/C: 300V/15A
Working Temp.: -10-45℃
Wire Gauge: G:20-18AWG/0.52-0.78mm2
D: 18-16AWG/0.78-1.32mm2
