Features

1. R/G/B output port voltage 12V, DIN Port withstand voltage 9V.

2. Built-in VR-tube, only add a resistance to IC VDD-pin if under 12V, no external VR-tube needed.

3. Adopts the built-in signal reshaping circuit to achieve the signal waveform shaping, and thus no signal waveform

distortion takes place.

4. Built-in power-on reset and brown-out reset circuits.

5. The gray levels of each pixel of 256 levels, and the refresh frequency reaches to 2KHz.

6. Serial cascading interface, data receiving and decoding are all achieved by one signal line.

7. Signal Break-point Continuous Transmission, any pixel’s failure, it won’t affect the whole display effect.

8. The distance of any two signal transmission points is less than 5 meters, there’s no extra circuits needed.

9. When the refresh rate of 30fps, the cascade number are not less than 1024 pixels.

10. Send data at speeds of 800Kbps.

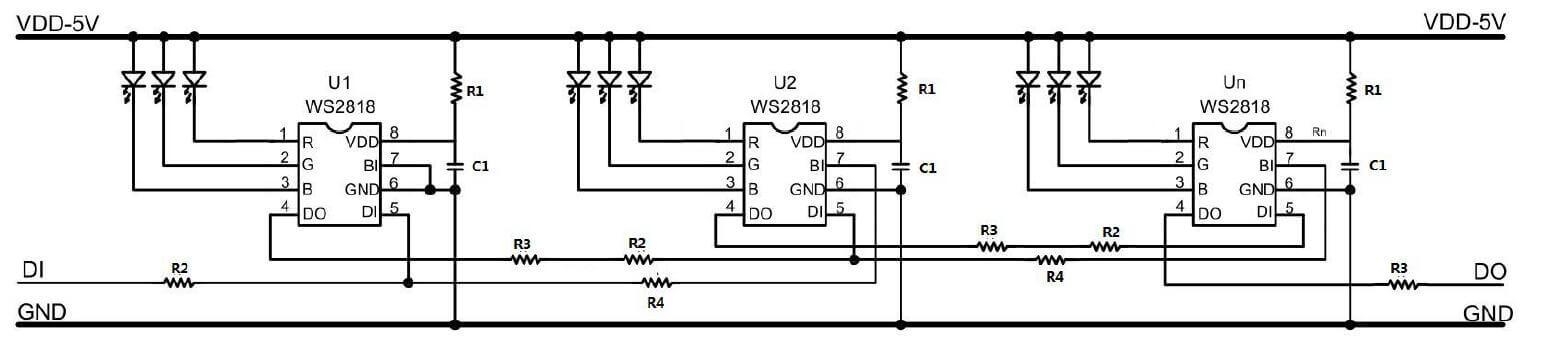

WS2818B has strong features in Signal Break-point Continuous Transmission, it adopts dual signal transmission,

these signals are able to work together without interaction. The user can select the first chip DIN/BIN as the control

signal input pin, and the follow-up cascade chips will automatically identify the output signal released by the first chip

which not to affect the whole display effect.

WS2818B adopts Single-line Return-to-Zero communication protocol. After the chip gets power-on reset, the DIN

port receive data from controller, the first chip collects initial 24bit data then sent to the internal data latch, the other data

which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port.

The data reduced 24bit after transmitted through every pixel. Since WS2818B adopts auto-reshaping transmit technology,

making the pixel cascade numbers are not limited to the signal transmission, but to signal transmission speed. When BIN

works as control signal receiving interface, its control data is 24bit more than the DIN interface, so as to ensure that the

two ways to control the number of pixels is the same

Based on the received 24bit data, the internal data latch generates different duty cycle control signals in the OUTR,

OUTG, OUTB port. All chips synchronous send the received data to each segment when the DIN port input a reset signal.

It will receive new data again After the reset signal finished. Before a new reset signal received, the control signal of

OUTR, OUTG, OUTB pin unchanged. The chip exports PWM data to OUTR, OUTG, OUTB pins, after receive a low

voltage reset signal the time retain over 280µs.

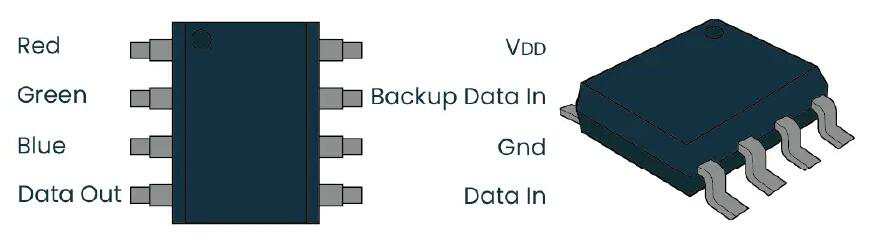

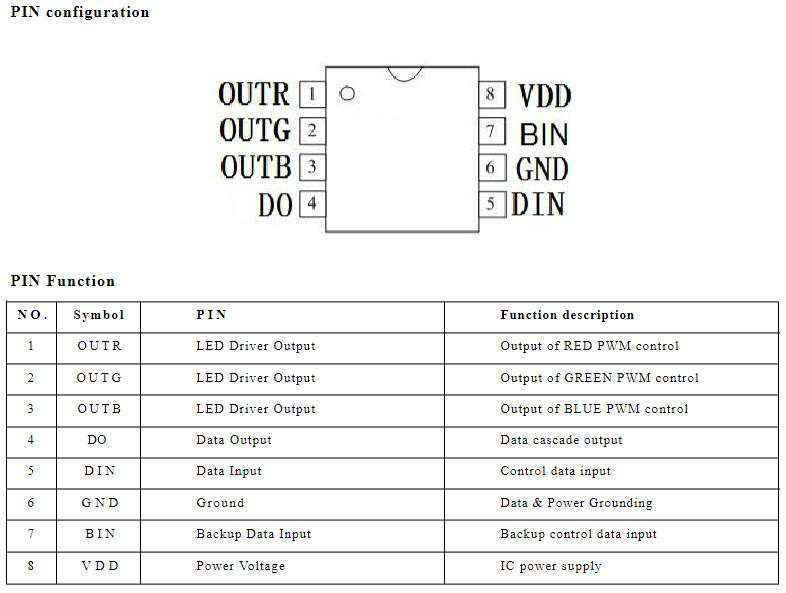

SOP8 and CPC8 packaging available for sale.

This article is regarding the LED strip WS2818, which is an RGB LED strip customizable.

This post also fits for many related LED strips, including WS28XX family strips.

It’s the coolest LED strip kind.

You can independently monitor the light and color of each LED, such that amazing and complicated results are created in a simple way.

WS2818 LEDs wired in series are made with a LED row.

The IC is installed into the Lead.

These LEDs provide one-wire device connectivity.

This means you can power multiple LEDs with just one Arduino digital screw.

Assume that you need LED 1 to run, you can then compose a lone line of code and make the LEDs glow.

To run the LEDs, you can make the library bodes well with simple ‘for circles.’

In primary cases, the LEDs used are ws2812 LEDs, with these LEDs you can make an unbelievable show.

These LEDs have a high thickness which means that the produced show will be much larger than the LEDs ws2818.

You’ll need an LED driver to make the photograph as there are so many LEDs that you can’t show all of them with one Arduino.

It’s definitely possible but one the same hand it is incredibly difficult to run a video document with Arduino.

So people are basically using a legitimate t300k controller to control those LEDs and also for making it simple.

You’ll need an Ethernet link for that.

Attach the controller to your PC and open the referenced program afterward.

Run any video record at that point and it will run your video document in the browser.

It is very simple.

To run the atmega328P chip right now we will require a controller and some other complementary segments.

Coincidentally, if you have a lower spending plan, you can also use the atmega8 chip.

Additionally, the atmega8 chip has a similar assistant segment.

Ensure that the interface is as prudent near the LEDs as it would be.

This LED spikes suddenly in demand for PWM beats.

The beats will diminish towards the finish of the stripes.

In this way, the information wire should be used as short as is reasonably required.

Check to have an appended valid 12V power supply.

If Amps higher than Measured by Amps then lights would have a long life.

In the wake of associating ws2818-addressable RGB LEDs, you can check the informal stress at very hubs.

When you notice your power supply is about 12.2v and every casual breakfast has 11.5v above, the link is good. Just take a steering wheel to interface the entire design of U LEDs does not use z design.

Since the Z layout is not experiencing kidding information issues.

In case you’re using flimsy wires, you’ll notice that a portion of the main LEDs is working easily.

Despite the fact, it will last any flashing in the LEDs.

These LEDs are surely not fruitful.

Despite all the other instructions, we only need to worry about one thing by providing power that needs to be sending zeros(1s).

We need to break down the numbers into 1s and 0s using binary representation.

Each position in the binary representation has a weight that increases gradually from right to left, with power 2.

In a bundle of 5050 parts, the control circuit and RGB chip are combined and are a total pixel power.

The built-in signal reshaping circuit guarantees that the waveform is not skewed until the next driver has been reshaped Put up.

Electric reset circuit built-in and reset circuit control failure.

These kinds of strips are very flexible and can be cut to any length you want. LEDs with low voltage, the safety of the atmosphere and energy conservation, high gloss, spreading rays.

It is broad, good durability, low power, long life, and other benefits.

The embedded LED control module.

Useful integration above being simplified link, they are in low numbers.

Make your own pretty LEDs with a chip similar to that used in our NeoPixel strip and pixels.

This small SOIC-8 is really easy to bind and can drive a solitary normal RGB LED anode or three single-shading LEDs of your choice. (The yields are NPN transistors so they won’t operate with simple cathode!) The yields are stable every ~18mA so the shading would be accurate regardless of whether the voltage fluctuates.

There is no need for gag resistors which makes your structure insignificant.

The pixels are ‘chainable’ by interfacing one chip’s yield into another’s contribution-see the outlines and pinout datasheet.

There is a solitary line of information for keeping the chip small.

An AVR, Arduino, PIC, insert etc. cannot be used with a Linux-based microcomputer or microcontroller that has been deciphered.

The netduino, or Basic Stamp, for example.

The chip is bolstered by two velocities, one 400KHz, and one 800KHz.

Our superbly composed Arduino Neopixel library underpins all of these.

As it requires getting together in a hand-tuned way.

It’s only for AVR centers.

The chip driver code may have been ported by others, though. 4MHz or faster processor is required when using the moderate planning rate.

It arrives in a package of 10 single chips.

For this purpose, we have an all set segment in the Adafruit EAGLE library.

In order to operate properly, WS2818 needs a data signal with very precise timing.

Since the Raspberry Pi runs a Linux multitasking operating system, it cannot monitor the GPIO pins in real-time, so it cannot push NeoPixels quickly.

A tiny microcontroller such as a Drinker or Teensy may produce the data signal and interact with the Raspberry Pi.

Yet you are lucky! You can now directly power NeoPixels or WS2818 LEDs from your Raspberry Pi with the Adafruit CircuitPython NeoPixel Software.

With the PWM and DMA hardware in Raspberry Pi’s cup, the Adafruit Circuits Python NeoPixel library addresses the Real-time control issue.

The PWM module may provide a signal for a duty period, e.g. to power a servo or an LED. The DMA direct memory access module enables memory bytes between sections of the processor to be moved without using the CPU.

The NeoPixel data signal can be produced without interruption from the Raspberry Pi operating system by using DMA to submit a certain sequence of Bytes to the PWM module.

What’s unique about this software is that it does whatever it takes to set up PWM and DMA to power NeoPixels. Via Adafruit Blinka, our Circuit Python-for-Python compatibility package, you can use these LEDs on a single board device like Raspberry Pi.

You will use GPIO and Python.
