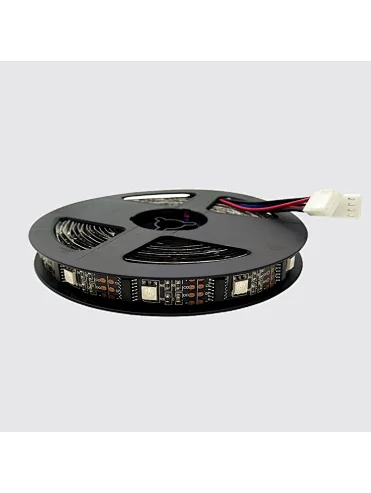

China ws2801 LED Strip Manufacturer

Hanron Lighting is one of the leading professional addressable LED strip light manufacturer & supplier in China. We offers high quality addressable led strip for more than 10years, which include ws2801 led strip.


All our led strip lights are ETL, CE, RoHS certificated, ensuring high performance and a long lifetime. We can also custommized solutions, OEM & ODM service.


Wholesalers, distributors, dealers, traders, agents are welcome to purchase in bulk with us.

What's ws2801?

The WS2801 is a constant current LED driver. It is designed for indoor/ outdoor LED displays and decorative LED lighting system. It is suitable for LED cascading applications. The WS2801 ownes 3 output channels, each channel can drive a constant current up to 30mA. WS2081 contains serial shift registers, data latches, output registers, band gap reference voltage generator, internal oscillator, and programmable constant output current drivers.

pin configurations of ws2801 led strip light

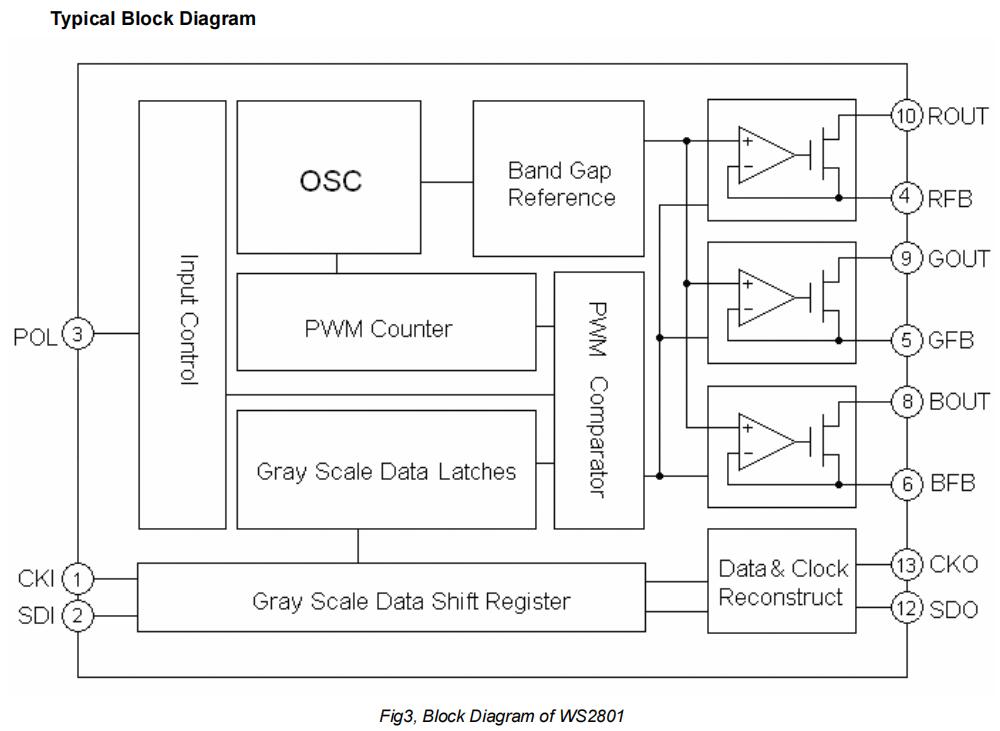

typical block diagram of ws2801 led strip light

What's ws2801 LED strip light?

ws2801 led strip light is an addressable rgb led strip light which is equipped with brand ws2801 IC, which is with build in buffers to cascading data and clock to the next driver, the maximum input clock frequency reaches 25MHz. They support hot swap.

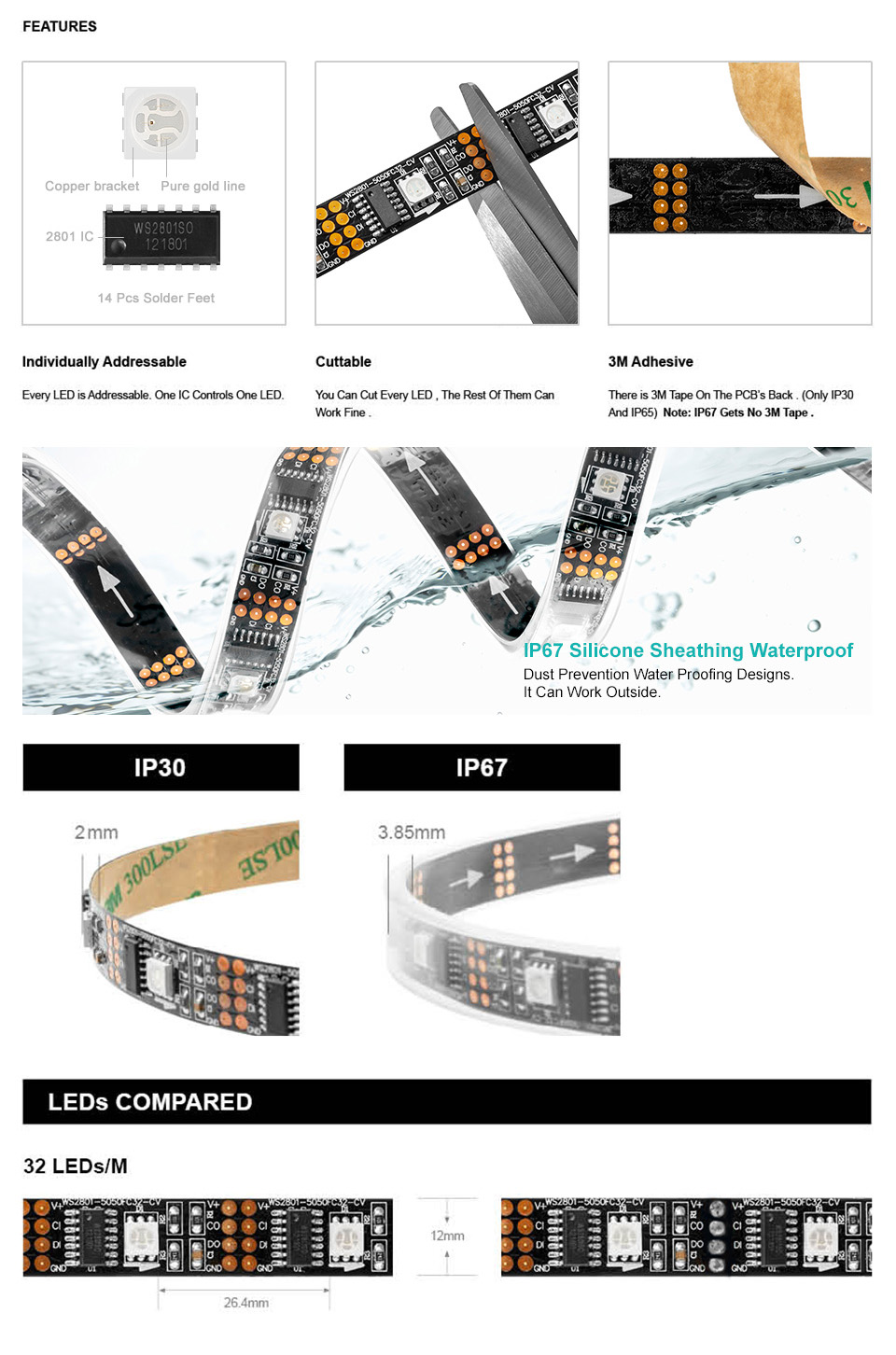

features of ws2801 led strip light
more light effect of ws2801 led strip light

Specification

Model: WS2801 LED Strip

Refresh Rate: 2.5KHz

View Angle: 120°

PCB Width: 12mm

Lifespan: 50,000 Hours

Operating Temperature: -20 ~ +65°C

IC Type :WS2801 IC

Working Voltage: DC5V

LED QTY: 32LEDs per meter

IC QTY: 32 PCS per meter

Power: 7.68W per meter

Wavelength(nm): Red,650nm ; Green,520nm; Blue,460nm

Clock frequency: 25MHz

Color: Full Color

PCB Board Color: White/Black/Yellow

Waterproof level: IP20/IP65/IP66/IP68

Warranty: 3 Years

Package: 5Meter/roll with 1PCS 4pin connector
