Solid lock led connector
Slim but powerful
An innovative solution to connect non-waterproof led strip. Stable under high current and slim enough to work inside narrow space like led aluminum profile, groove and furniture, etc. With notch on structure, solid lock series is possible to work with 120leds/m directly, allow user to attach both tinned strand or solid wire as they want easily.

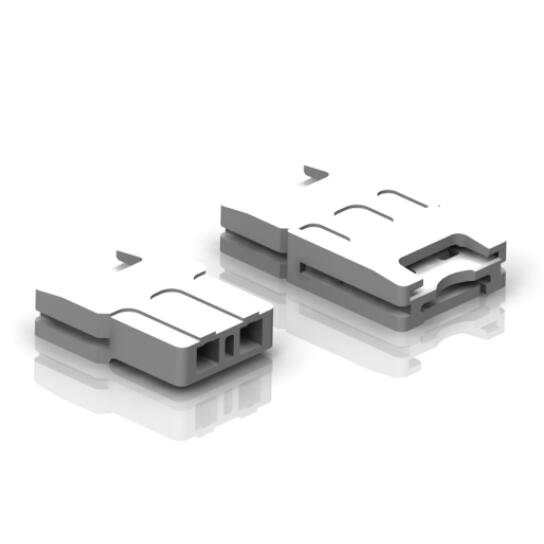

Product Name: Solid lock 2pin led connector
Item NO.: HR-S8XB2 HR-S8BB2
Type: strip to wire strip to strip
Dimension: 16*10.4*4.5mm 20.6*11*4.5mm
Max V/C: DC24V/6A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 8mm single color IP20,

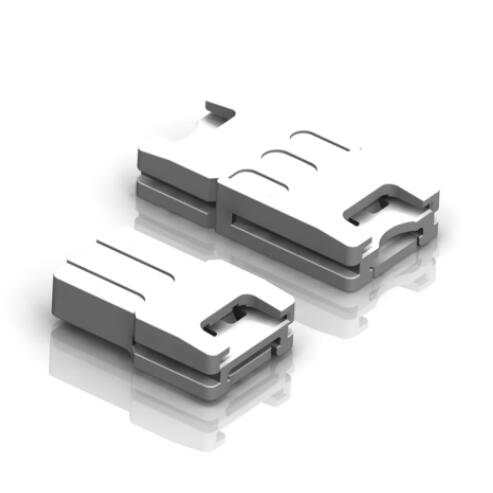

Product Name: Solid lock 2pin led connector
Item NO.: HR-S10XB2 HR-S10BB2
Type: strip to wire strip to strip
Dimension: 16*12.4*4.5mm 20.6*13*4.5mm
Max V/C: DC24V/6A
Working Temp.: -10-45℃Wire
Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 10mm single color IP20,

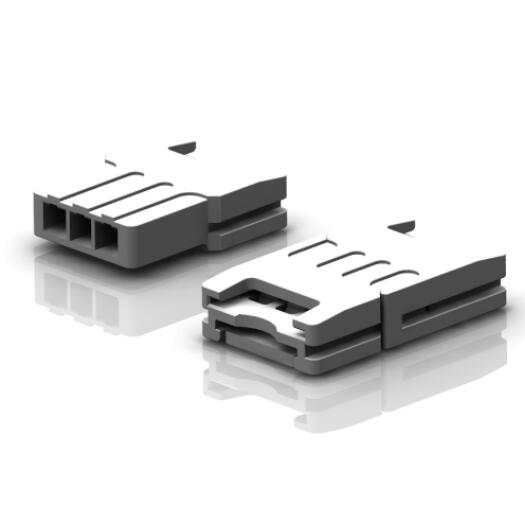

Product Name: Solid lock 3pin led connector
Item NO.: HR-S10XB3 HR-S10BB3
Type: strip to wire strip to strip
Dimension: 16*12.4*4.5mm 20.6*13*4.5mm
Max V/C: DC24V/6A
Working Temp.: -10-45℃
Wire Gauge: 22-20AWG/0.32-0.52mm2
Workable Strip: 10mm dual color IP20,

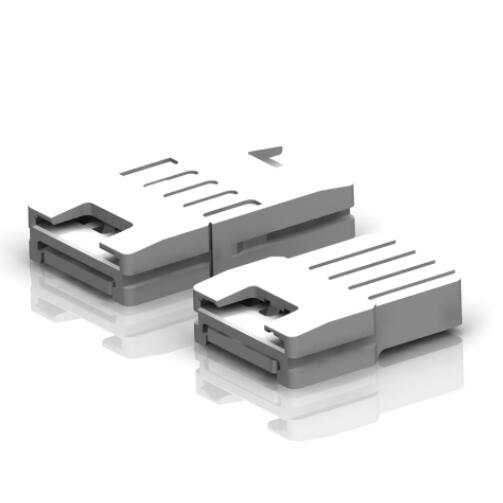

Product Name: Solid lock 4pin led connector
Item NO.: HR-S10XB4 HR-S10BB4
Type: strip to wire strip to strip
Dimension: 16*12.4*4.5mm 20.6*13*4.5mm
Max V/C: DC24V/6A
Working Temp.: -10-45℃Wire
Gauge: 22AWG/0.32mm2
Workable Strip: 10mm single color IP20,
