Beetle Clip LED 连接器
有史以来最薄的 LED 灯带连接器
Beetle Clips LED 连接器是迄今为止最薄的 LED 灯带连接器，其外部宽度仅比灯条宽 1.5 毫米，而高度仅为 4.3 毫米。 刺穿接触技术使连接非常牢固。 更不用说用户可以根据项目要求在现场轻松地将不同的电线连接到连接器上。 透明外壳不会遮挡 LED 灯条发出的任何光线。

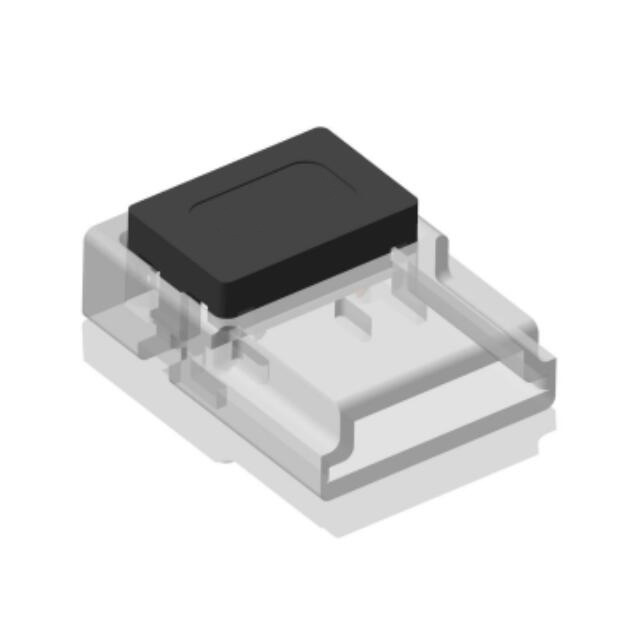

Product Name: Beetle clip 2 pin led connector
Item NO.: HR-N8XB2C
Type: strip to wire
Dimension: 15.4*9.5*4.3mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 20AWG/0.52mm2
Workable Strip: 8mm single color IP20, less than 121LEDs/M

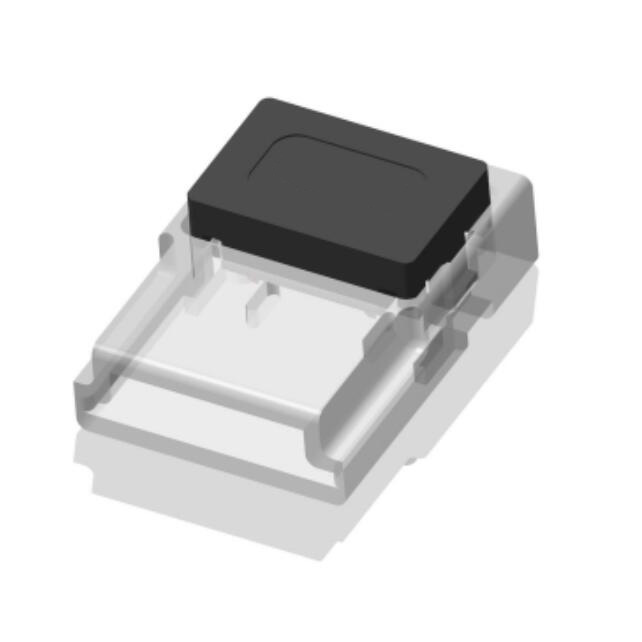

Product Name: Beetle clip 2 pin led connector
Item NO.: HR-N10XB2C
Type: strip to wire
Dimension: 15.4*11.5*4.3mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Wire Gauge: 20AWG/0.52mm2
Workable Strip: 10mm single color IP20, less then 121LEDs/M

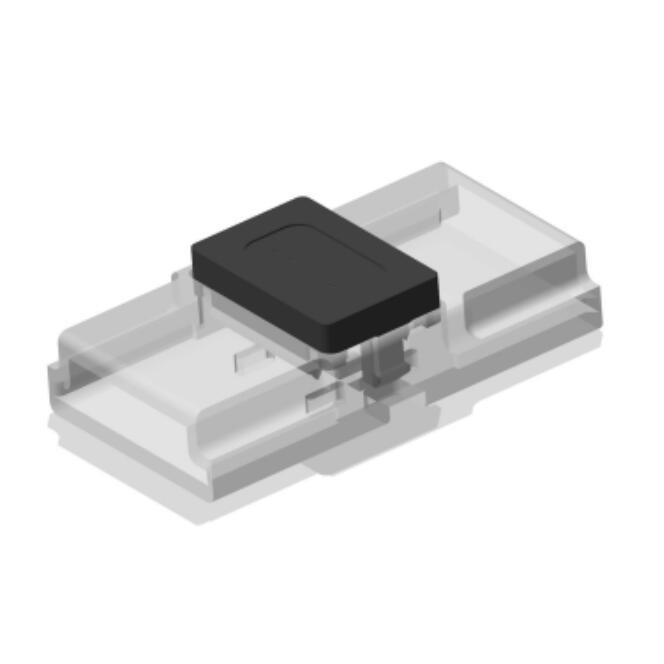

Product Name: Beetle clip 2 pin led connector
Item NO.: HR-N8BB2C
Type: strip to strip joint
Dimension: 21.6*9.5*4.3mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Workable Strip: 8mm single color IP20, less than 121LEDs/M

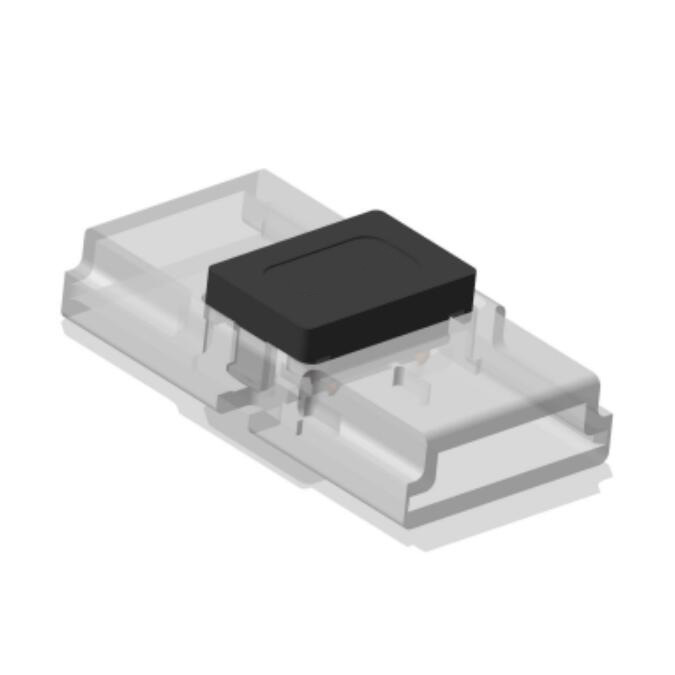

Product Name: Beetle clip 2 pin led connector
Item NO.: HR-N10BB2C
Type: strip to strip joint
Dimension: 21.6*11.5*4.3mm
Max V/C: DC36V/5A
Working Temp.: -10-45℃
Workable Strip: 10mm single color IP20, less then 121LEDs/M
