SR 卡扣LED 连接器
非常容易使用
设计用于快速连接 IP20 LED 灯条，无需工具。 无需烙铁。 只需插入并锁定即可。 连接将立即建立。

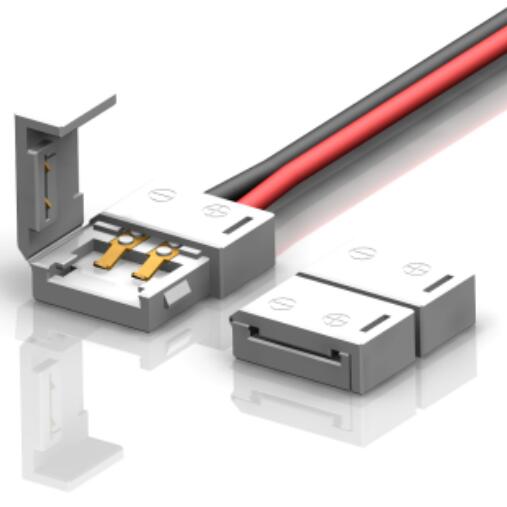

Product Name: Snap SR 2 pin led strip connector
Item NO.: HR-8XB2SR HR-8BB2SR HR-8BXB2SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm single color IP20, less than 61LEDs/M

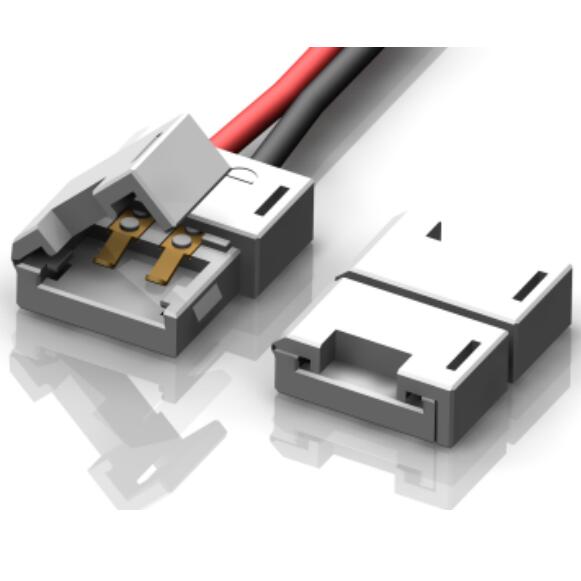

Product Name: Snap SR 2 pin led strip connector with Notch
Item NO.: HR-8XB2QSR HR-8BB2QSR HR-8BXB2QSR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm single color IP20, less than 61LEDs/M

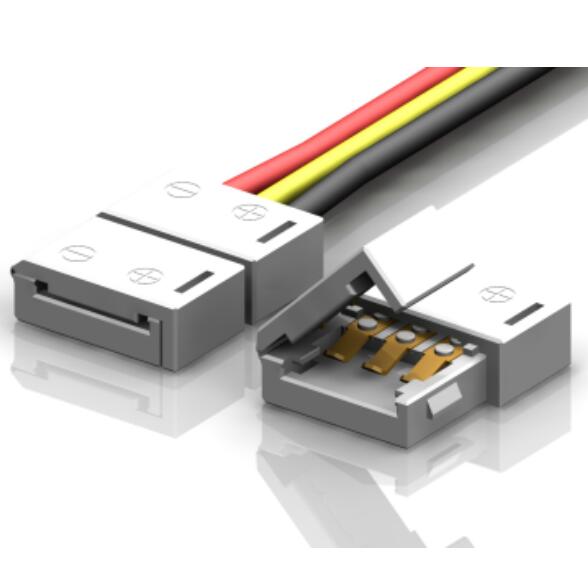

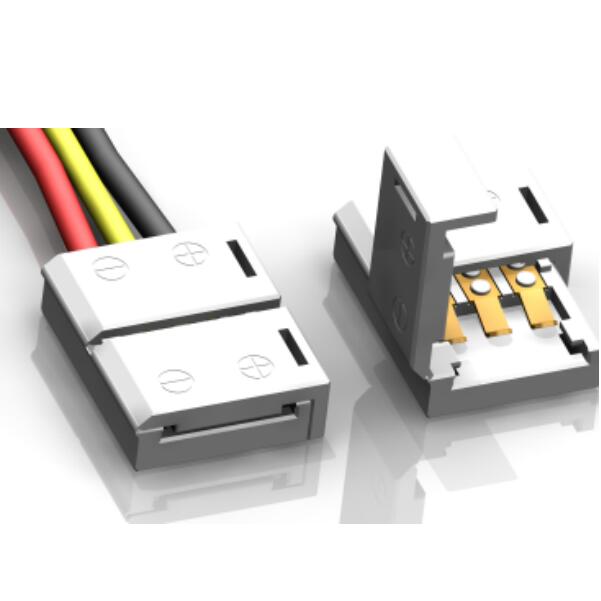

Product Name: Snap SR 3 pin led strip connector
Item NO.: HR-8XB3SR HR-8BB3SR HR-8BXB3SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm dual color IP20, less than 61LEDs/M

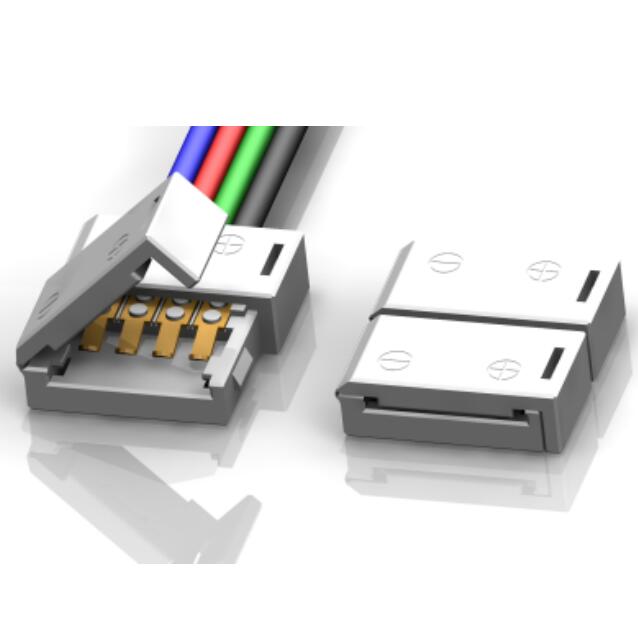

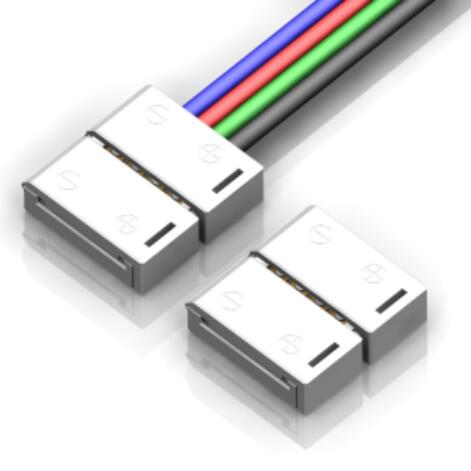

Product Name: Snap SR 4 pin led strip connector with Notch
Item NO.: HR-8XB4SR HR-8BB4SR HR-8BXB4SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm RGB IP20, less than 61LEDs/M

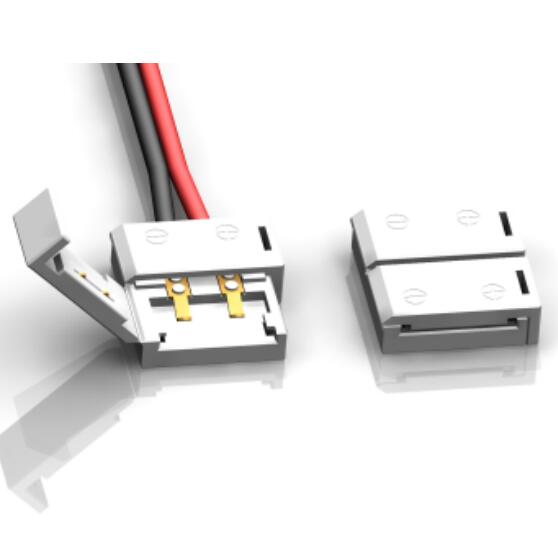

Product Name: Snap SR 2 pin led strip connector
Item NO.: HR-10XB2SR HR-10BB2SR HR-10BXB2SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm single color IP20, less than 61LEDs/M

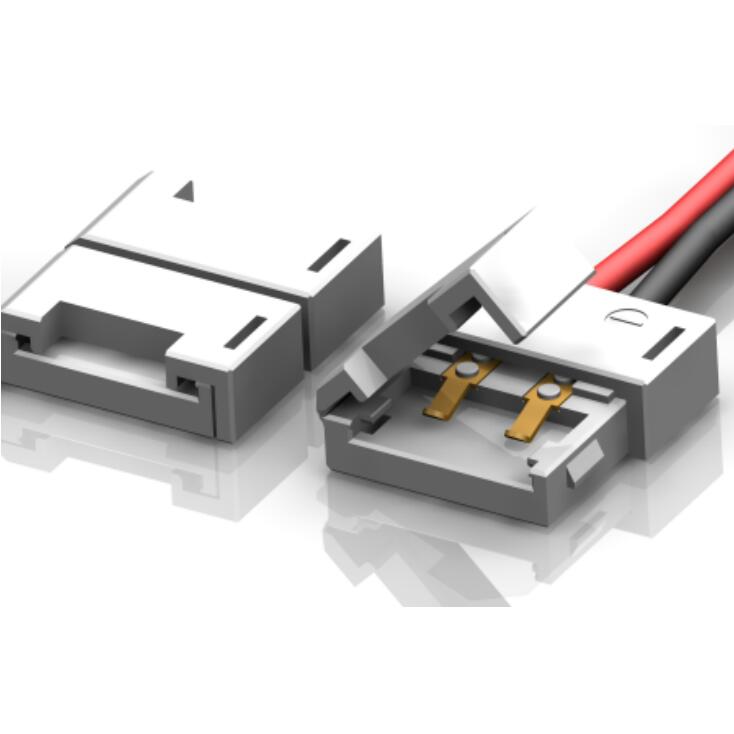

Product Name: Snap SR 2 pin led strip connector with Notch
Item NO.: HR-10XB2QSR HR-10BB2QSR HR-10BXB2QSR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm single color IP20, less than 121LEDs/M
Product Name: Snap SR 3 pin led strip connector
Item NO.: HR-10XB3SR HR-10BB3SR HR-10BXB3SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm dual color IP20, less than 61LEDs/M
Product Name: Snap SR 4 pin led strip connector with Notch
Item NO.: HR-10XB4SR HR-10BB4SR HR-10BXB4SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm RGB IP20, less than 61LEDs/M

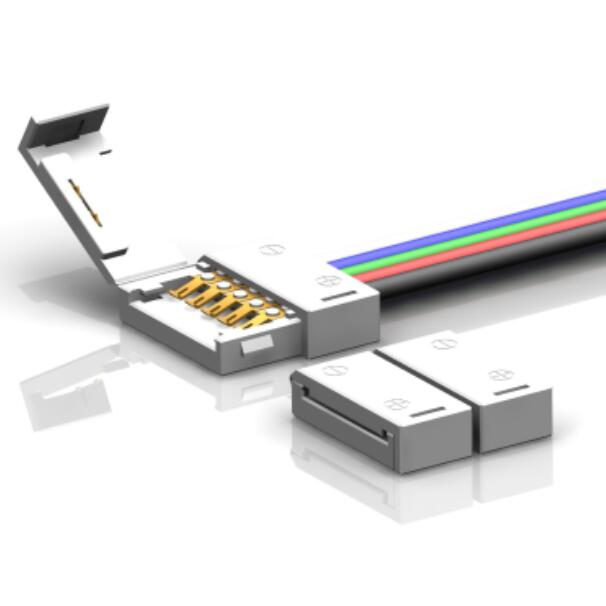

Product Name: Snap SR 5 pin led strip connector
Item NO.: HR-10XB5SR HR-10BB5SR HR-10BXB5SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm RGBW IP20, less than 61LEDs/M
Product Name: Snap SR 5 pin led strip connector with Notch
Item NO.: HR-12XB5SR HR-12BB5SR HR-12BXB5SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*16.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 12mm RGBW IP20, less than 121LEDs/M

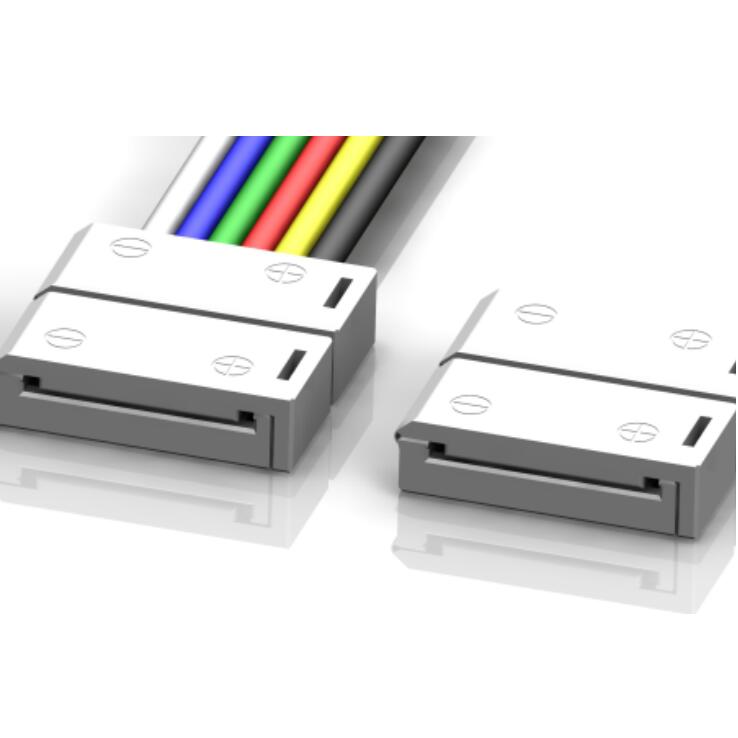

Product Name: Snap SR 6 pin led strip connector
Item NO.: HR-12XB6SR HR-12BB6SR HR-12BXB6SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*16.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 12mm RGB CCT IP20, less than 61LEDs/M
