LED 灯带 FPC 形状
在拐角处建立连接
LED灯条角连接器（也称为LED条形连接器）是一种PCB角连接器，用于在拐角处进行条形连接。 有L型、T型、十字型可供选择。

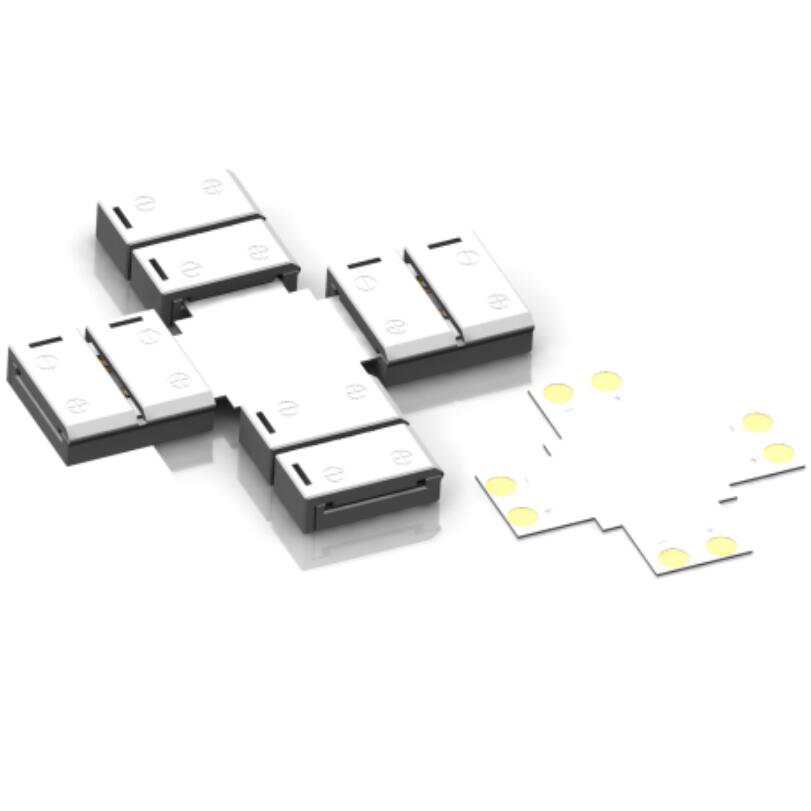

Product Name: FPC Shape 2 solder pad
Item NO.: HR-C2FPC8
Type: Cross Shape
Dimension: 24.1*24.1*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 8mm single color IP20

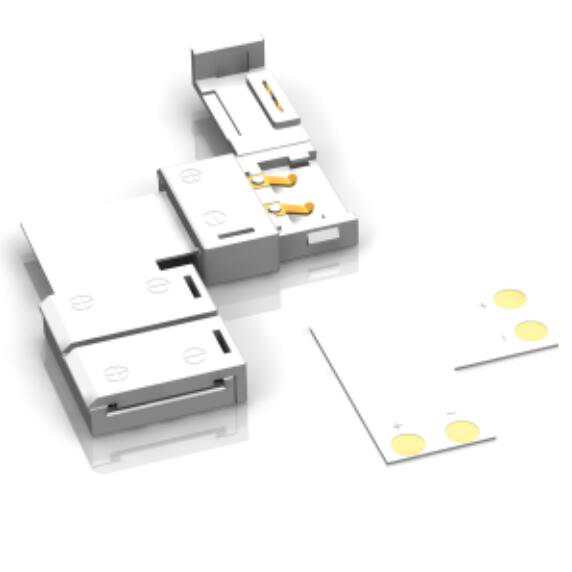

Product Name: FPC Shape 2 solder pad
Item NO.: HR-L2FPC8
Type: L Shape
Dimension: 16.1*16.1*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 8mm single color IP20

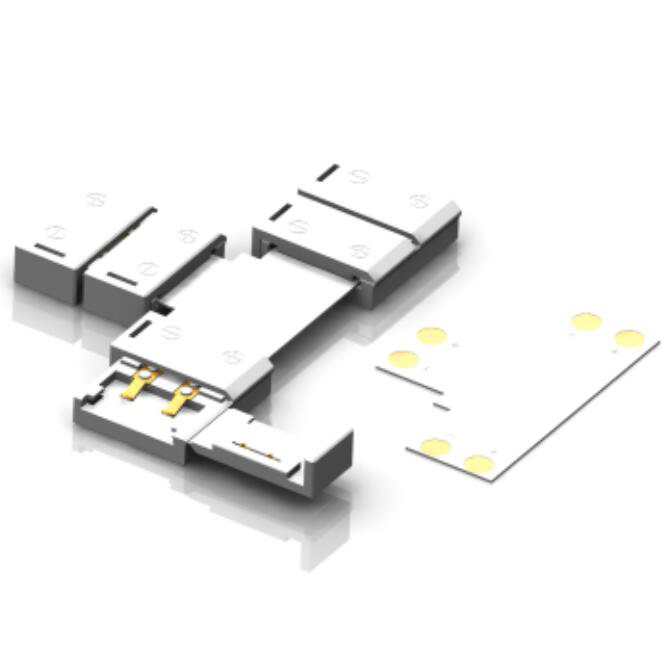

Product Name: FPC Shape 2 solder pad
Item NO.: HR-T2FPC8
Type: T Shape
Dimension: 24.1*16.1*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 8mm single color IP20

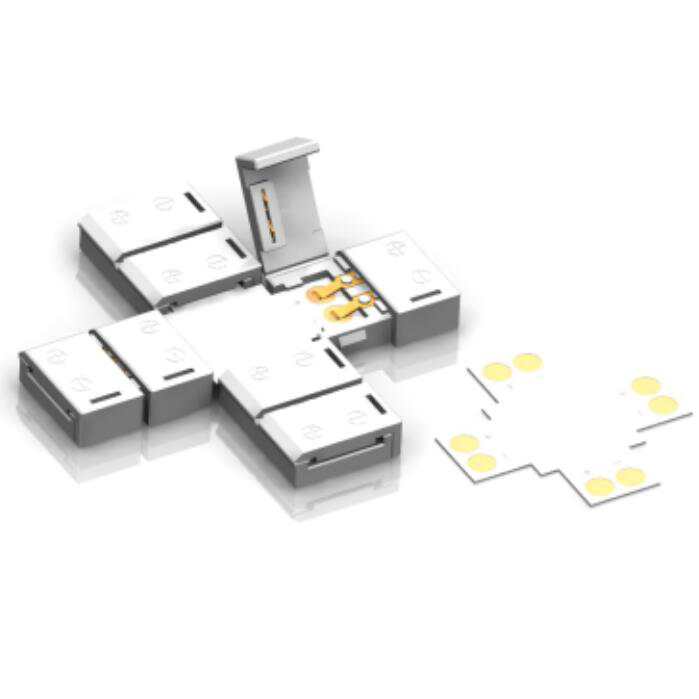

Product Name: FPC Shape 2 solder pad
Item NO.: HR-L2FPC10
Type: Cross Shape
Dimension: 30.8*30.8*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 10mm single color IP20

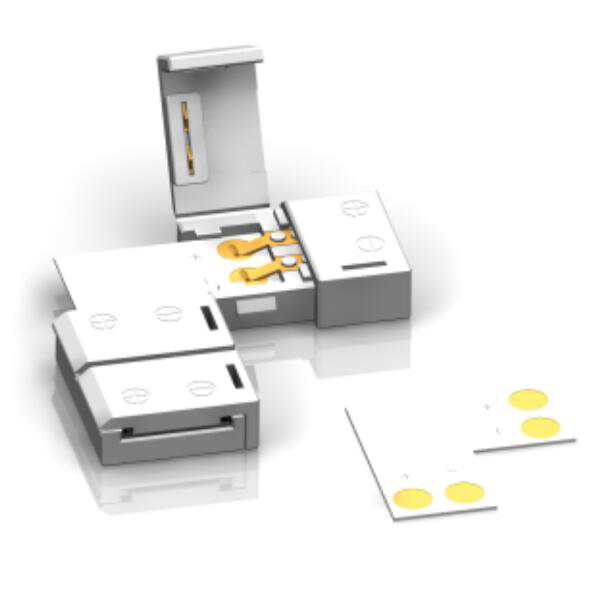

Product Name: FPC Shape 2 solder pad
Item NO.: HR-L2FPC10
Type: L Shape
Dimension: 21.1*21.1*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 10mm single color IP20
Product Name: FPC Shape 2 solder pad
Item NO.: HR-T2FPC8
Type: T Shape
Dimension: 30.3*21.1*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 10mm single color IP20

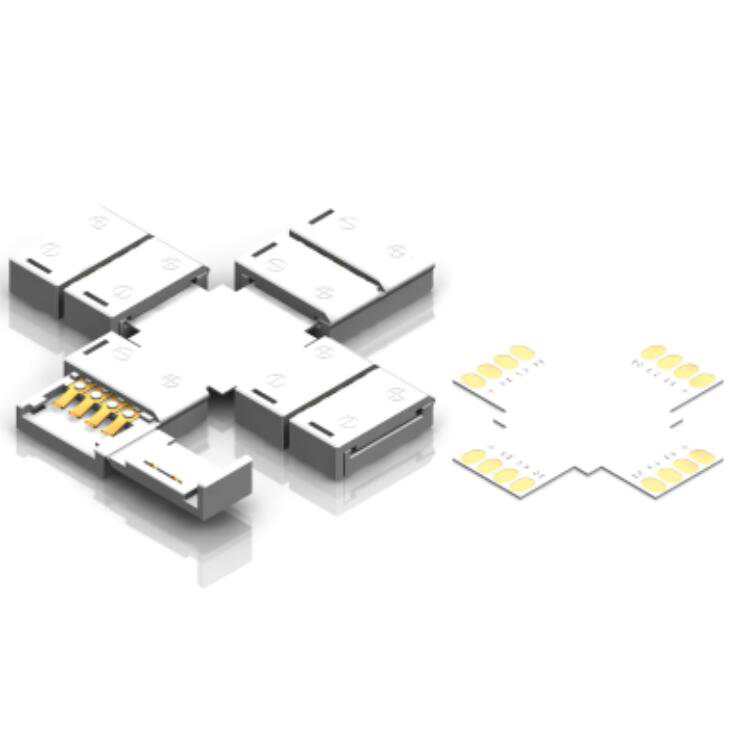

Product Name: FPC Shape 4 solder pad
Item NO.: HR-C2FPC10
Type: Cross Shape
Dimension: 30.8*30.8*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 10mm RGB IP20

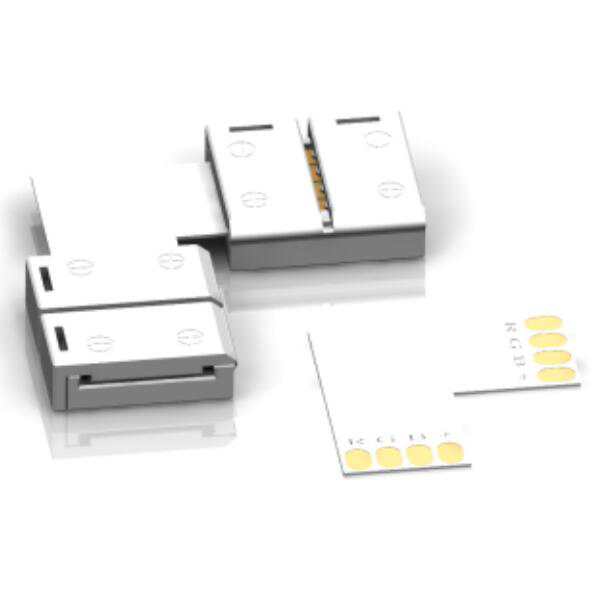

Product Name: FPC Shape 4 solder pad
Item NO.: HR-L2FPC10
Type: L Shape
Dimension: 21.1*21.1*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 10mm RGB IP20

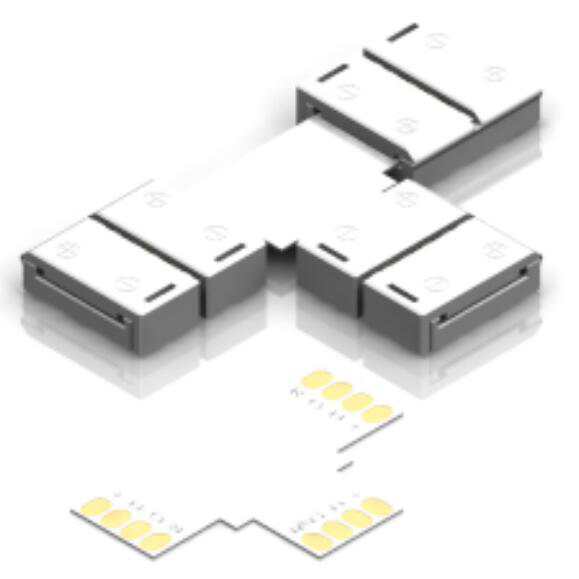

Product Name: FPC Shape 4solder pad
Item NO.: HR-T2FPC10
Type: T Shape
Dimension: 30.3*21.1*0.3mm
Max V/C: DC36V/3.5A
Working Temp.: -10-45℃
Workable Strip: 10mm RGB IP20
