滴胶防水灯带LED连接器
IP54/IP65滴胶防水灯条专用版本

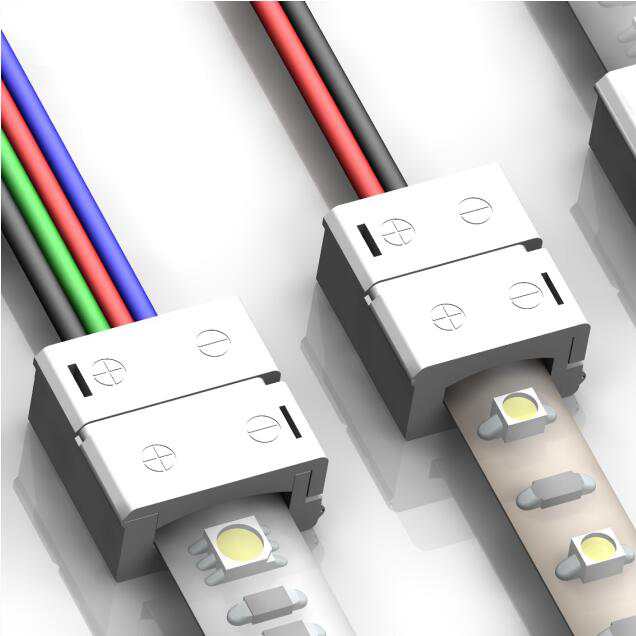

专为IP54/IP65 LED灯带设计。 连接是通过内置的尖针从背面刺穿 LED 条 FPC 来接触内部电路。 防水灯带连接器真正可以让用户在不剥去表面涂层胶的情况下直接连接防水灯带。

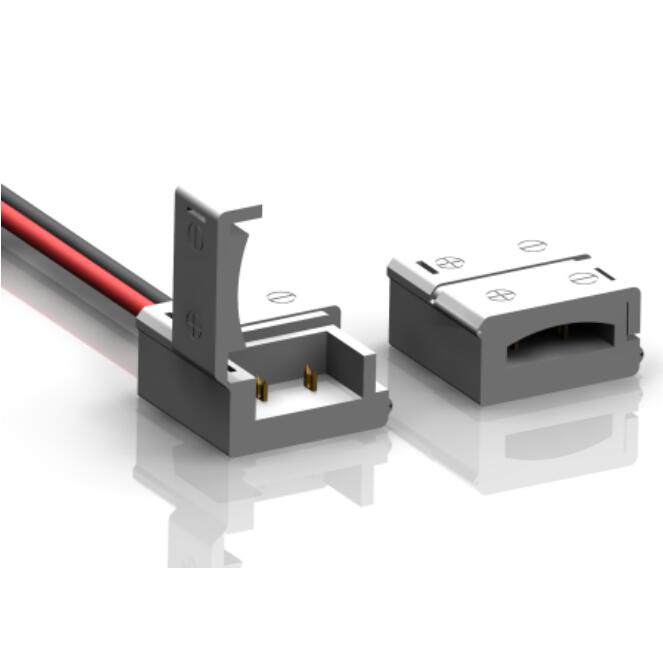

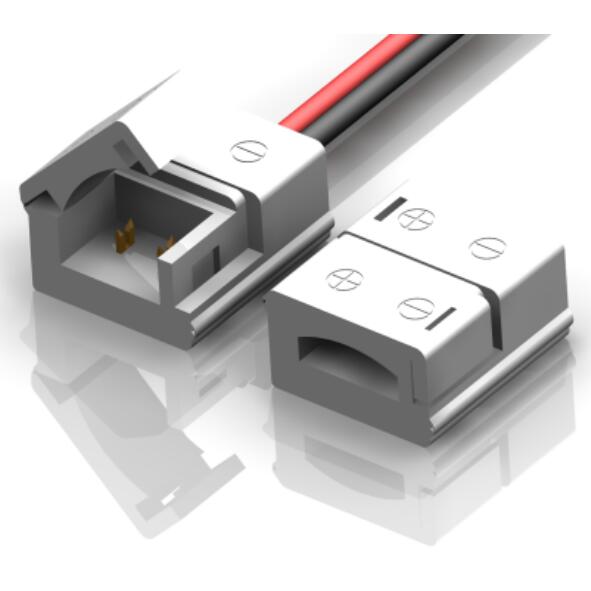

Product Name: Glue Coating 2 pin led strip connector
Item NO.: HR-D8XB2 HR-D8BB2 HR-D8BXB2
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*13.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm single color IP54/IP65, less than 61LEDs/M
Product Name: Glue Coating 2 pin led strip connector
Item NO.: HR-D10XB2 HR-D10BB2 HR-D10BXB2
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*15.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm single color IP54/IP65, less than 61LEDs/M

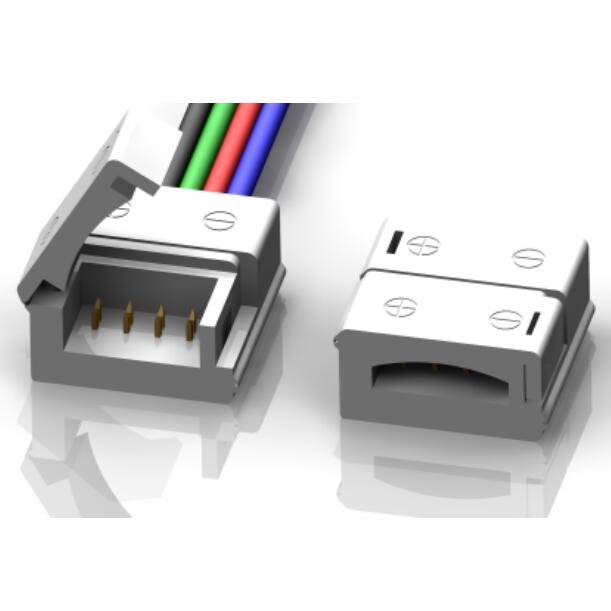

Product Name: Glue Coating 4 pin led strip connector
Item NO.: HR-D10XB4 HR-D10BB4 HR-D10BXB4
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*15.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm RGB IP54/IP65, less than 91LEDs/M
Product Name: Glue Coating 2 pin led strip connector
Item NO.: HR-D12XB4 HR-D12BB4 HR-D12BXB4
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*17.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 12mm RGBW IP54/IP65, less than 91LEDs/M
