Glue coating led connector
Specific version for IP54/IP65 strip light
Specially designed for IP54/IP65 led strip light. The connection is made by the sharp pin inbuilt which pierces the led strip FPC from the back to contact circuit inside. The waterproof led strip connector can really allow users to connect a waterproof led strip directly without stripping the surface coating glue.

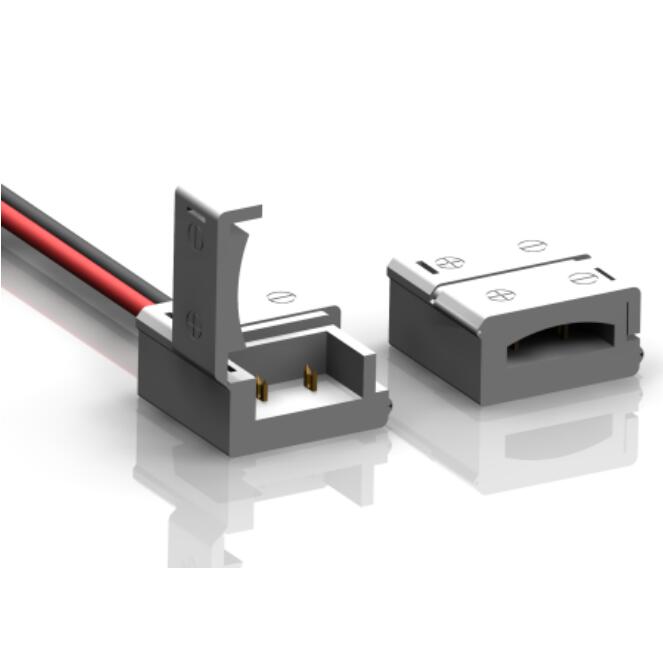

Product Name: Glue Coating 2 pin led strip connector
Item NO.: HR-D8XB2 HR-D8BB2 HR-D8BXB2
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*13.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm single color IP54/IP65, less than 61LEDs/M

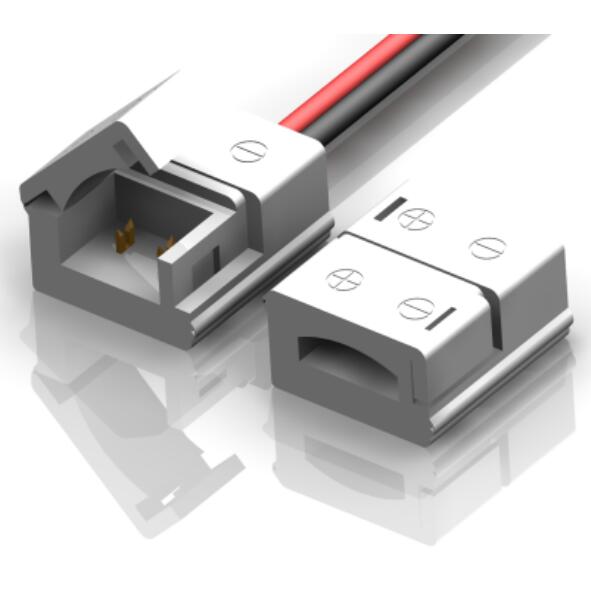

Product Name: Glue Coating 2 pin led strip connector
Item NO.: HR-D10XB2 HR-D10BB2 HR-D10BXB2
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*15.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm single color IP54/IP65, less than 61LEDs/M

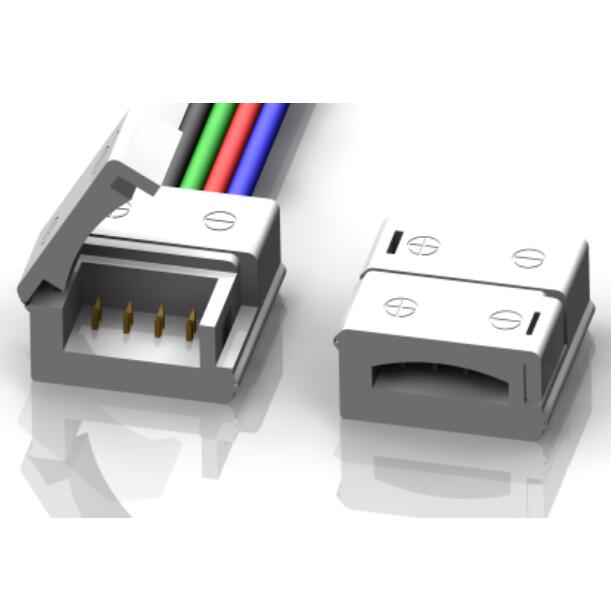

Product Name: Glue Coating 4 pin led strip connector
Item NO.: HR-D10XB4 HR-D10BB4 HR-D10BXB4
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*15.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm RGB IP54/IP65, less than 91LEDs/M
Product Name: Glue Coating 2 pin led strip connector
Item NO.: HR-D12XB4 HR-D12BB4 HR-D12BXB4
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*17.4*8.1mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 12mm RGBW IP54/IP65, less than 91LEDs/M
