Snap SR LED Connector
Very easy to use
Designed to connect IP20 led strip quickly without tools. No soldering iron needed. Just insert and lock. The connection will be made instantly.

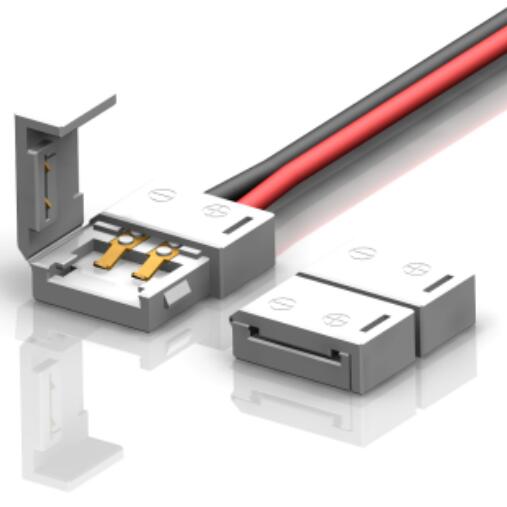

Product Name: Snap SR 2 pin led strip connector
Item NO.: HR-8XB2SR HR-8BB2SR HR-8BXB2SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm single color IP20, less than 61LEDs/M

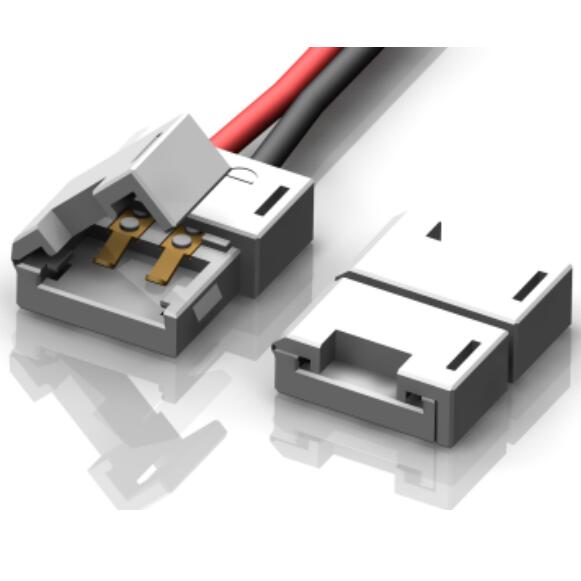

Product Name: Snap SR 2 pin led strip connector with Notch
Item NO.: HR-8XB2QSR HR-8BB2QSR HR-8BXB2QSR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm single color IP20, less than 61LEDs/M

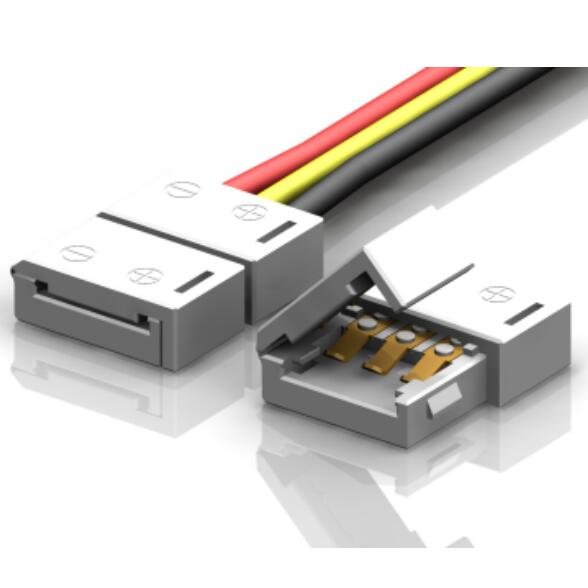

Product Name: Snap SR 3 pin led strip connector
Item NO.: HR-8XB3SR HR-8BB3SR HR-8BXB3SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm dual color IP20, less than 61LEDs/M

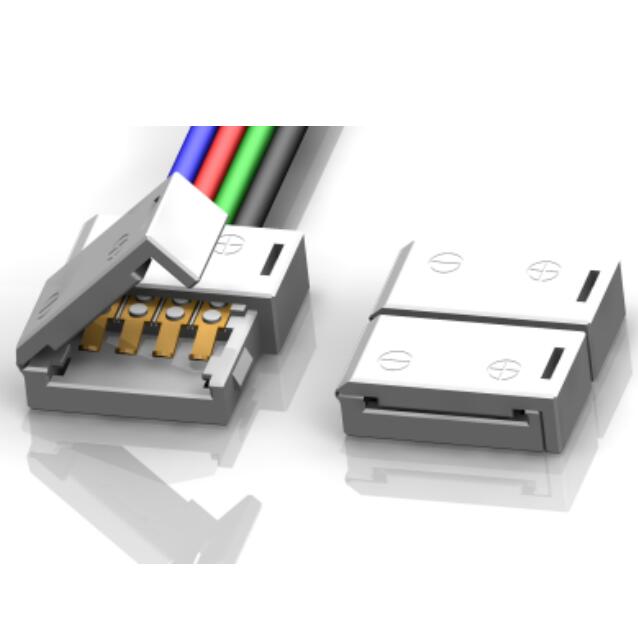

Product Name: Snap SR 4 pin led strip connector with Notch
Item NO.: HR-8XB4SR HR-8BB4SR HR-8BXB4SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*12.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm RGB IP20, less than 61LEDs/M
Product Name: Snap SR 2 pin led strip connector
Item NO.: HR-10XB2SR HR-10BB2SR HR-10BXB2SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm single color IP20, less than 61LEDs/M
Product Name: Snap SR 2 pin led strip connector with Notch
Item NO.: HR-10XB2QSR HR-10BB2QSR HR-10BXB2QSR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm single color IP20, less than 121LEDs/M
Product Name: Snap SR 3 pin led strip connector
Item NO.: HR-10XB3SR HR-10BB3SR HR-10BXB3SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm dual color IP20, less than 61LEDs/M
Product Name: Snap SR 4 pin led strip connector with Notch
Item NO.: HR-10XB4SR HR-10BB4SR HR-10BXB4SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 10mm RGB IP20, less than 61LEDs/M
Product Name: Snap SR 5 pin led strip connector
Item NO.: HR-10XB5SR HR-10BB5SR HR-10BXB5SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*14.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 8mm RGBW IP20, less than 61LEDs/M
Product Name: Snap SR 5 pin led strip connector with Notch
Item NO.: HR-12XB5SR HR-12BB5SR HR-12BXB5SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*16.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 12mm RGBW IP20, less than 121LEDs/M
Product Name: Snap SR 6 pin led strip connector
Item NO.: HR-12XB6SR HR-12BB6SR HR-12BXB6SR
Type: strip to power strip to strip joint strip to strip bridge
Dimension: 15.3*16.5*4.6mm
Max V/C: DC24V/3.5A
Working Temp.: -10-45℃
Wire Gauge: 22AWG/0.32mm2
Workable Strip: 12mm RGB CCT IP20, less than 61LEDs/M
