Model No: HR00-COB24ATW608P10

10mm 608Chips/M CCT Adjustable COB led strip

12V/24V, 14W/M, 1400lm/M
Delivery :
FOB
minimum order :
200 meters
Supply Ability :
300000meters / Month
Stock Time :
7Day
Country of Origin :
Shenzhen, China
Quantity :
Download:
COB CCT Adjustable 608LED 14W LED strip specification.pdf
Contact Now


Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.


certificate of 608Chips/M CCT Adjustable COB led strip


Product Features











Specification of 608Chips/M CCT Adjustable COB led strip



Specification of 608Chips/M CCT Adjustable COB led strip

Strip Type608Chips/M CCT Adjustable COB led strip
LED TypeCOB
LED QTY608LED/M
VoltageDC12V & DC24V
Cutting Length2.63cm
CRI90
CCT3000K-6000K
Brightness1400lm/M
Dimension5000*10mm
IP RatingIP20/IP65/IP66/IP67/IP68
Power14W/M
Lifespan30000hrs
Warranty3year

SMD VS COB LED Strip


CCT of CCT Adjustable COB LED Strip






Easy Connection

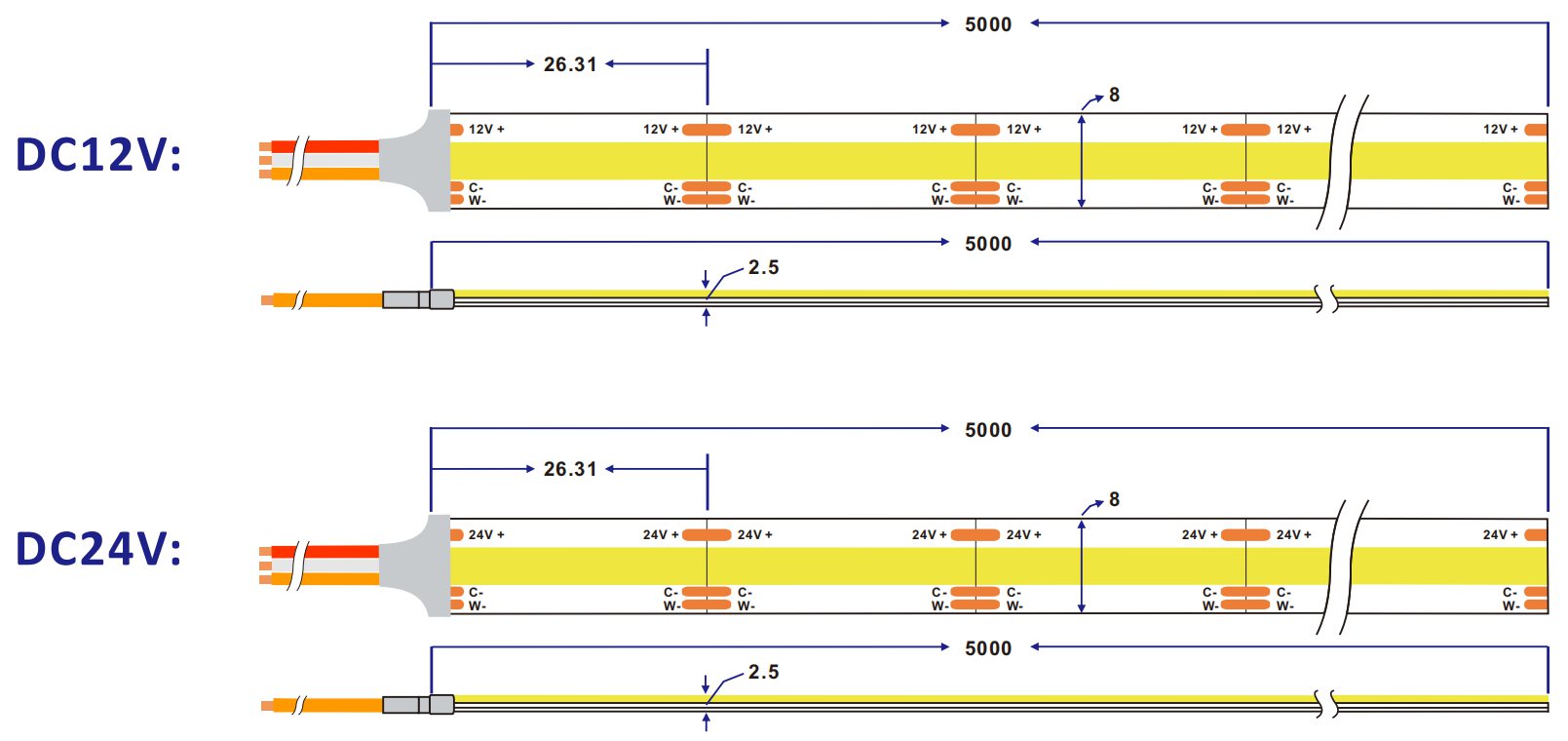

Dimension(mm)




dimension of 608Chips/M CCT Adjustable COB led strip


Installation of 608Chips/M CCT Adjustable COB led strip



1) Standard Connection
Standard Connection of 608Chips/M CCT Adjustable COB led strip

2)Long Connection

Long Connection of 608Chips/M CCT Adjustable COB led strip

3)DMX Connection


DMX Connection of 608Chips/M CCT Adjustable COB led strip

Application of 608Chips/M CCT Adjustable COB led strip



Application of 608Chips/M CCT Adjustable COB led strip

How to customized LED strip light?

10 Professional engineers are here to serve you

LED Brand & Brightness

Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.

CRI & CCT & Color

CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.

LED QTY & Rows

The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.

Print Logo

It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.

IP Rating

Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.

Voltage & Power

Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.

LED Strip & Cable Length

It''s OK to customized the length of the led strip, also the length of the cable for the led strip.

PCB Color

Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.

Hanron Brand Certificate

ETL/CE/RoHS/Reach/CB/BIS/LM80/RCM

ISO9001:2015

ISO9001:2015

ETL

TUV CB

ETL

ETL

ETL

BIS

TER

RCM

LM80 Test

LM80 Test

LM80 Test

CE EMC

CE LVD

CE LVD

CE LVD

CE RoHS

CE Reach

CE Reach

IP66 Report

UKCA

IP68 Report

IP68 Report

Factory Tour

100+ Employees to support your orders
