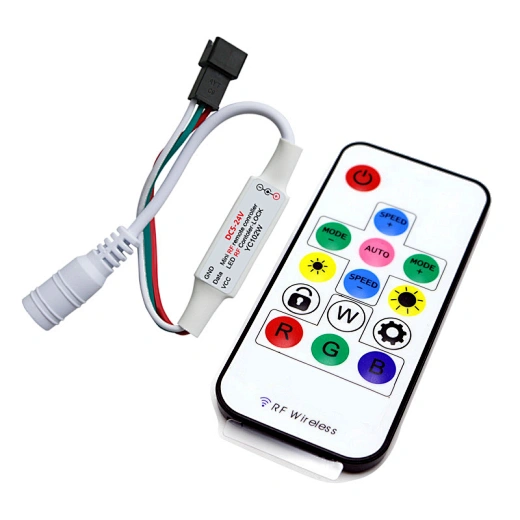

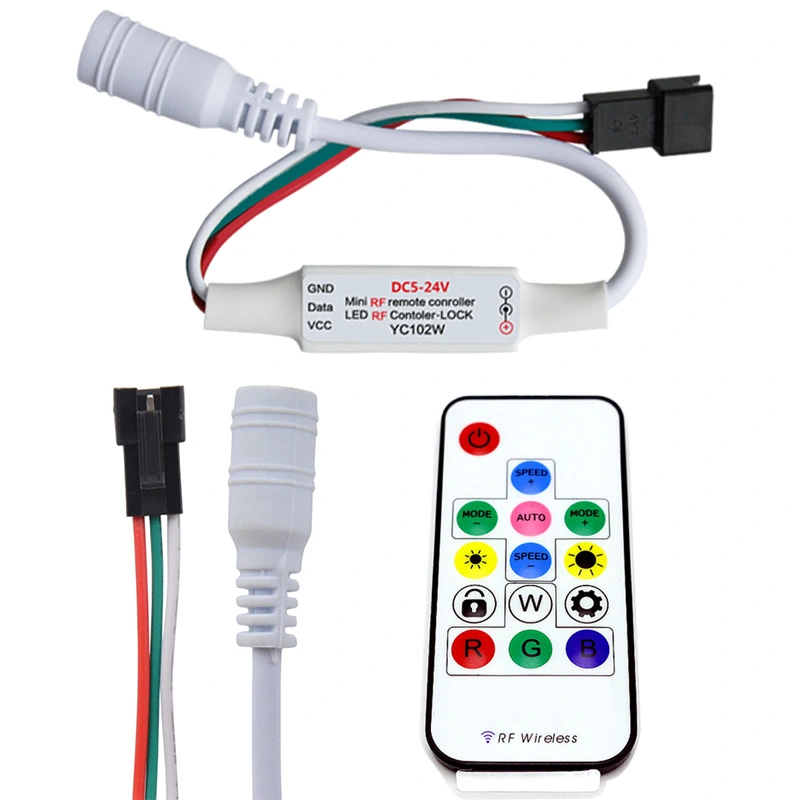

RF 14Keys Remote Mini Controller
Full Color Dream color RF 14Keys Remote Mini led Controller
Technical Parameters
1. Working temperature:-20-60℃
2. Input voltage: DC12-24V/DC5V
3. Output: SPI
4. Mode: 358 types
5. Controllable IC points: 2048points
6. Support IC: SM16703.UCS1903.WS2811.WS2812B.WS2813. WS2818. SK6812...
7. Size: L40*W12*H5mm
8. One-Year Warranty
Please feel free to contact us if you need more detail about this item, we will contact you in 24 hours.
How to customized LED strip light?
10 Professional engineers are here to serve you
LED Brand & Brightness
Brand LED Chip like Cree, Osram, etc, can be offered. Brightness can be made base on customer's request.
CRI & CCT & Color
CRI 80/90/95/97 optional; CCT can be 1800-6500K, and colors can be red, blue, green, etc.
LED QTY & Rows
The LED QTY per meter in single row can reach 700LEDs/M, and you can customized the rows of the LEDs in the strip.
Print Logo
It's OK to print your logo on the label with no MOQ; if you want your logo on the PCB, then MOQ 500meter.
IP Rating
Hanron offer all types of waterproof led strip in the market. Just choose a suitable waterproof type for your project.
Voltage & Power
Voltage can be made at a specific value like 12V or 24V, can also be a range like 20-28V. Power can be customized also.
LED Strip & Cable Length
It''s OK to customized the length of the led strip, also the length of the cable for the led strip.
PCB Color
Our normal color for PCB is white. Yellow & black is also our standard PCB color. Other colors can be made with MOQ 3000meter.
