SP108E LED Controller

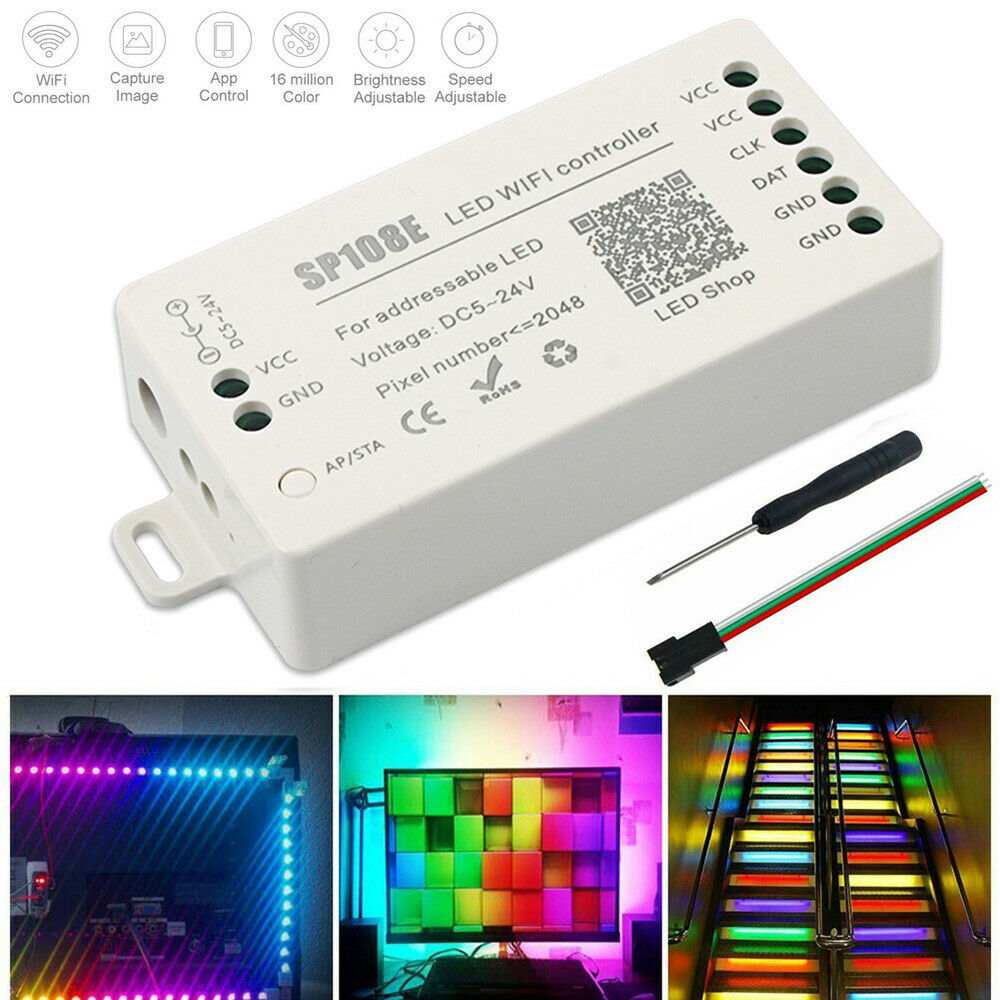

Features of SP108E led controller

1) Long-distance APP remote control via WIFI;
2) Support routing mode(AP) and LAN connection mode(STA);
3) Support almost every kind of one-wire or two-wire LED driver IC ;
4) Brightness adjustable, With 180 kinds of patterns and 8 kinds of color adjustable patterns;
5) Creatively using the from-image-to-effect method for the user to DIY any effect;
6) Support setting pixel number and segments number, able to control up to 2048pixels;
7) DC5V~24V wide range working voltage, preventing reverse connection of power supply;
8) User setting saving;

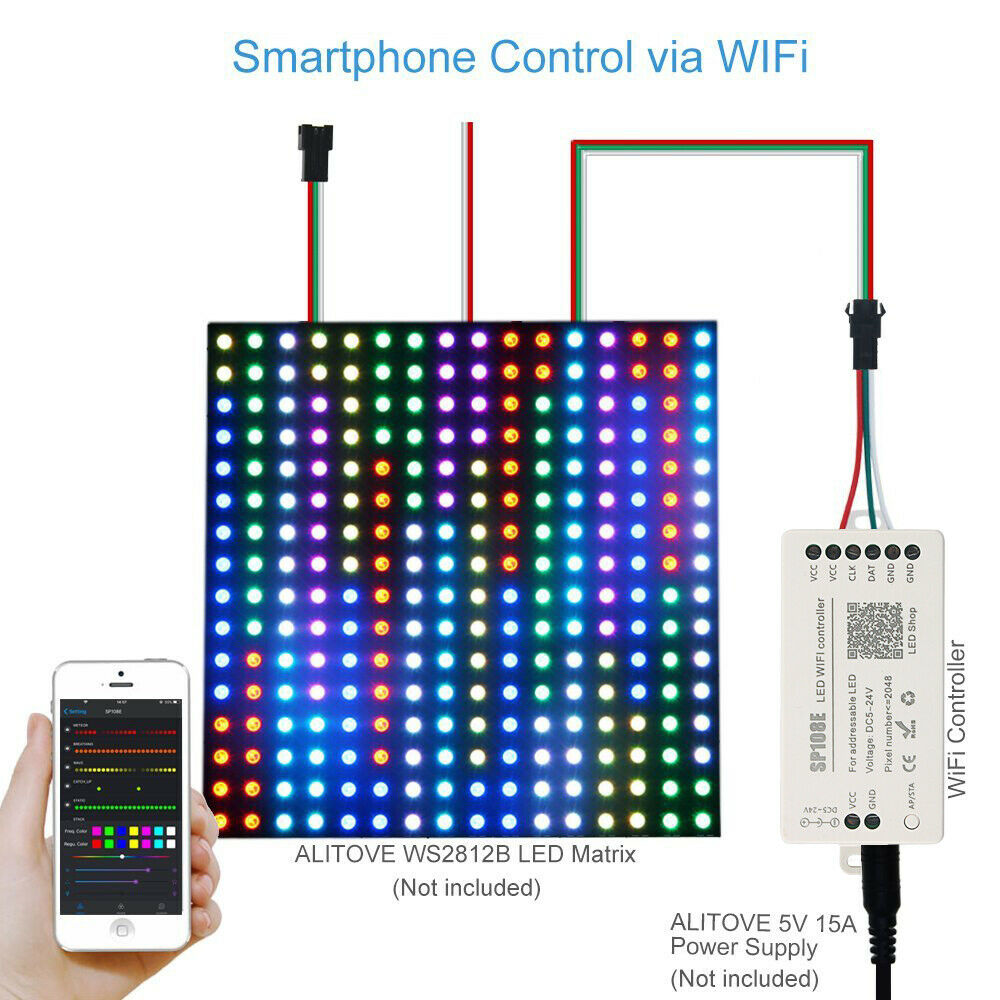

App control

Both the IOS version and Android OS version are available. (hardware should support WIFI)
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search ”LedShop” in App Store or Google pay or scan this QR code to download and install the App:


Specifications:

Working temperature: -20~60 Degrees Celsius
Working Voltage: DC5V~24V;
Working Current:20mA~130mA;
Remote distance:30 Meters;

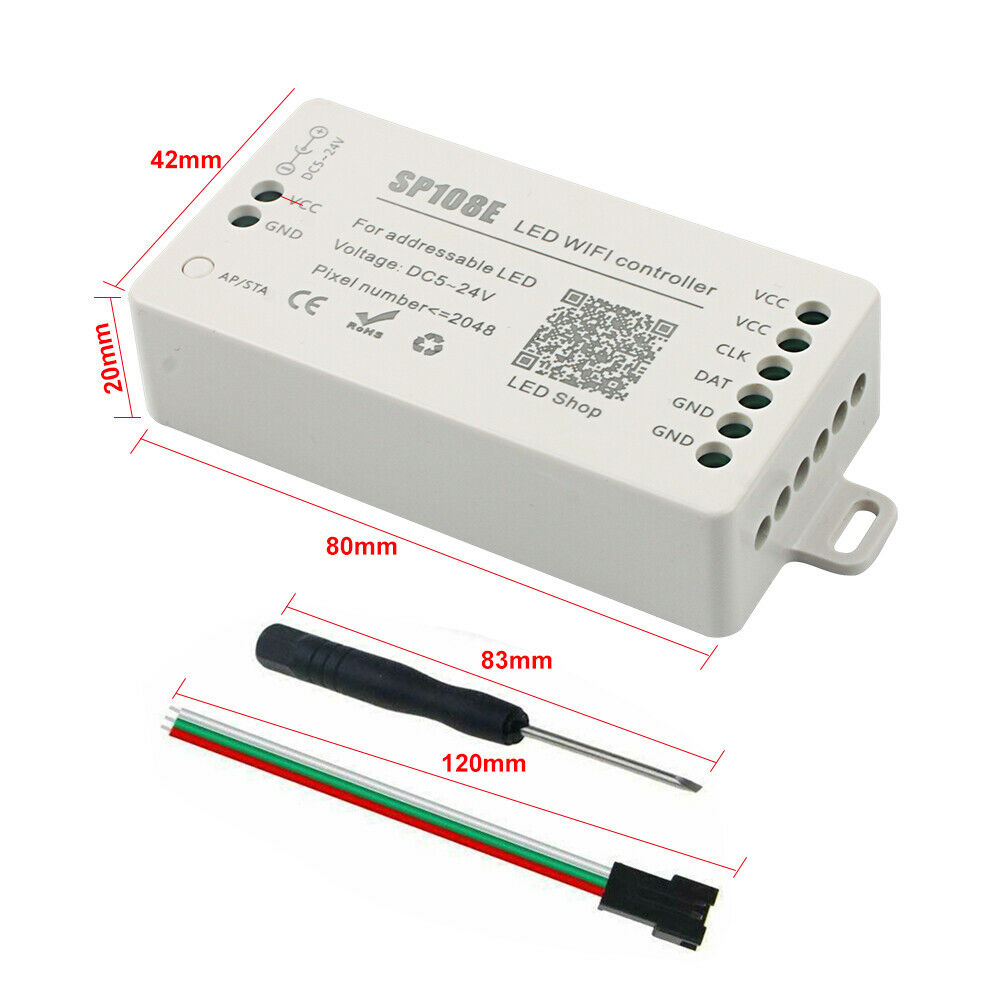

Product size: 85mm*45mm*22mm;
Product weight: 40g ;
Certificates: CE, RoHS;


Working Mode and Connecting

AP(Access Point) mode: Controller and Phone connect directly, the controller works as an access point.
Connect steps:
1) When the device is not connected to any WIFI network, power on the controller and wait for the 20s and then the controller will switch into AP mode ;
2) In the WIFI setting page, find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678),
3)Open the LED Shop App, then the controller will be shown on the device list;

*STA(Station) mode: Controller and phone are in the same WIFI network, in this network, users can operate the controller smoothly.
Connect steps:
1)When the device is not connected to any WIFI network, power on the controller, controller will remain in Wait-For-Connet mode for 20 seconds;
2) Make sure that your phone is connected to a WIFI network, Open LED Shop APP, press the Add Device button, input the WIFI pin code, then press the OK to confirm and wait for the configure processing finish;
3) When the controller successfully enters the WIFI network, it will be shown on the device list;
4) User can select the controller and remove it from the network by pressing the Remove Device button, then the controller will switch into AP mode.


Package includes:
1x SP108E  LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual

This device does not work under 5 ghz wifi
