160lm/W 192灯/米恒压led灯带
HR01-B24A30192P10cv
EXW
50 米
600000米 / 月
深圳
12天
160lm/W 160灯/米恒压led灯带
数量
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.
Features
1. Quality TOP SMD2835 chip, high brightness, low decay.
2. 160lm/W, higher brightness under same power consumption
3. Ideal light source as direct lighting, but not decorative lighting
4. Thick PCB for good heat dissipation
5. IP20/65/66/68 available
6. Easy to install for any bending
7. Low power consumption, long life span, free maintenance
Parameter
| Item | Specification | Item | Specification |
| Item Name | 160lm/w led strip | Light Source | smt 2835 |
| LED QTY | 192leds/M | Brightness | 3200lm/m |
| Color | WW/NW/CW | Voltage | DC24V |
| CRI | 80 | Max Power | 23W/M |
| Working T | -20 to 45 Degree | Real Power | 20W/M |
| PCB color | Black/White/Yellow | Angle | 120 degrees |
| IP Rating | IP20/65/66/68 | Cutting Unit | 41.67mm |
| Package | Anti-Static Bag | OEM&ODM | Available |
| Dimension | 5000mm*10mm | Lifetime | 50000hrs |
| Certificate | ETL,CE, RoSH, Reach... | Warranty | 3years |
* White/Black/Yellow Color FPC optional

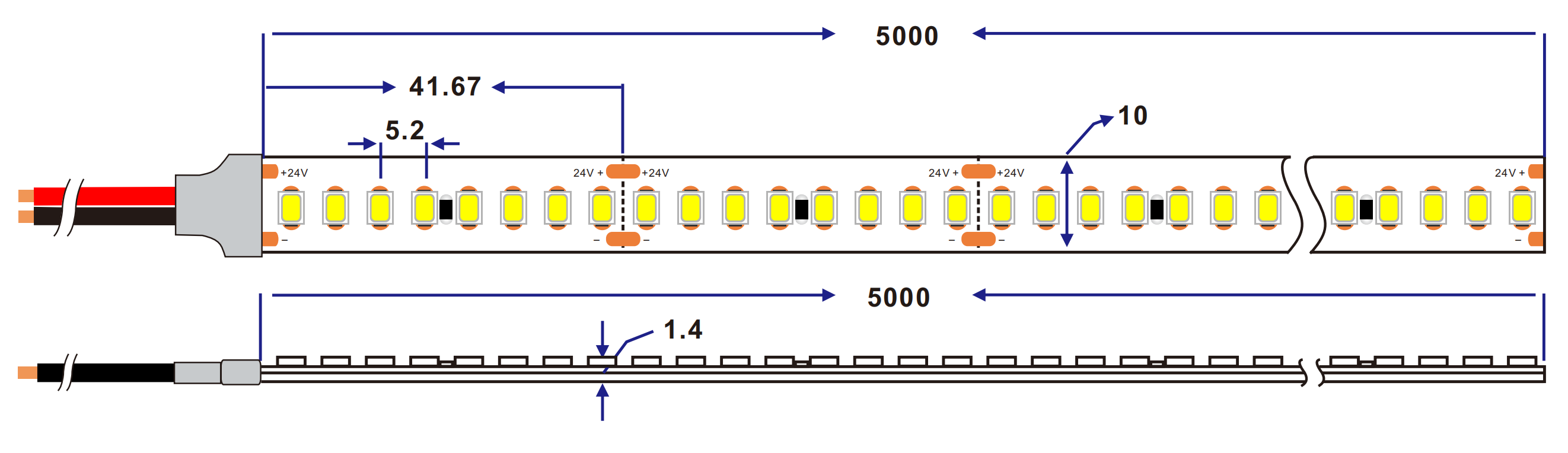

Dimension(mm)
IP Rating
Application
