Model No: HR00-sk68124020-60-rgbP10

SK6812 4020 侧发光5V 60灯/米 RGB LED灯带

DC5V, 14.4W/M, 60pixels/M
交货 :
EXW
最低订单 :
30 米
供货能力 :
600000米 / 月
备货期 :
7-12天
原出产地 :
深圳
数量 :
下载:
侧发光 SK6812 60LED 14.4W LED灯带规格书.pdf
发联系信

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strip, we've cooperated with 500+ customers in 78 countries.


sk6812 sideview led strip light certificate


Feature of side view pixel led strip



sk6812 sideview led strip light

SK6812 side view pixel led strip

1, Original SK6812 4020 led, more stable in quality and higher brightness
2. DC5V design with 1led/cut, individually addressable, more flexible in software control
3. Pixel rgb sideview function, can be used in special applications like cars, LED curtains, etc.
4. The gray levels of each pixel of 256 levels, and the refresh frequency reaches 2KHz/s
5. Strong flexible for heat dissipation and real 3M tape for a strong installation






Specification

ItemSpecificationItemSpecification
Item Nameside view pixel led stripLight Source4020 RGB
IC TypeSK6812IC QTY60pixels/M
LED QTY60leds/MIC LocationInternal IC
ColorRGB Dream ColorVoltageDC5V
Working T-20 to 45 DegreePower14.4W/M
PCB colorBlack/WhiteAngle120 degrees
IP RatingIP20/65/66/68Cutting Unit1.67cm
PackageAnti-Static BagOEM&ODMAvailable
Dimension5000mm*8mmLifetime50000hrs
CertificateETL, CE, RoHS, Reach...Warranty3years

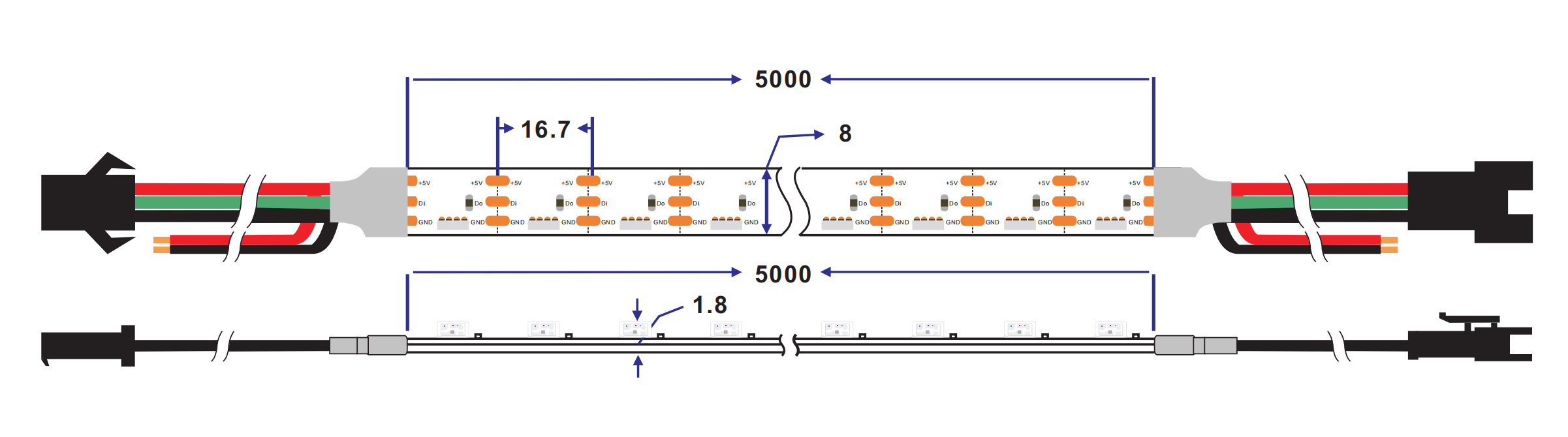

Dimension: mm




dimension of sk6812 led strip sideview

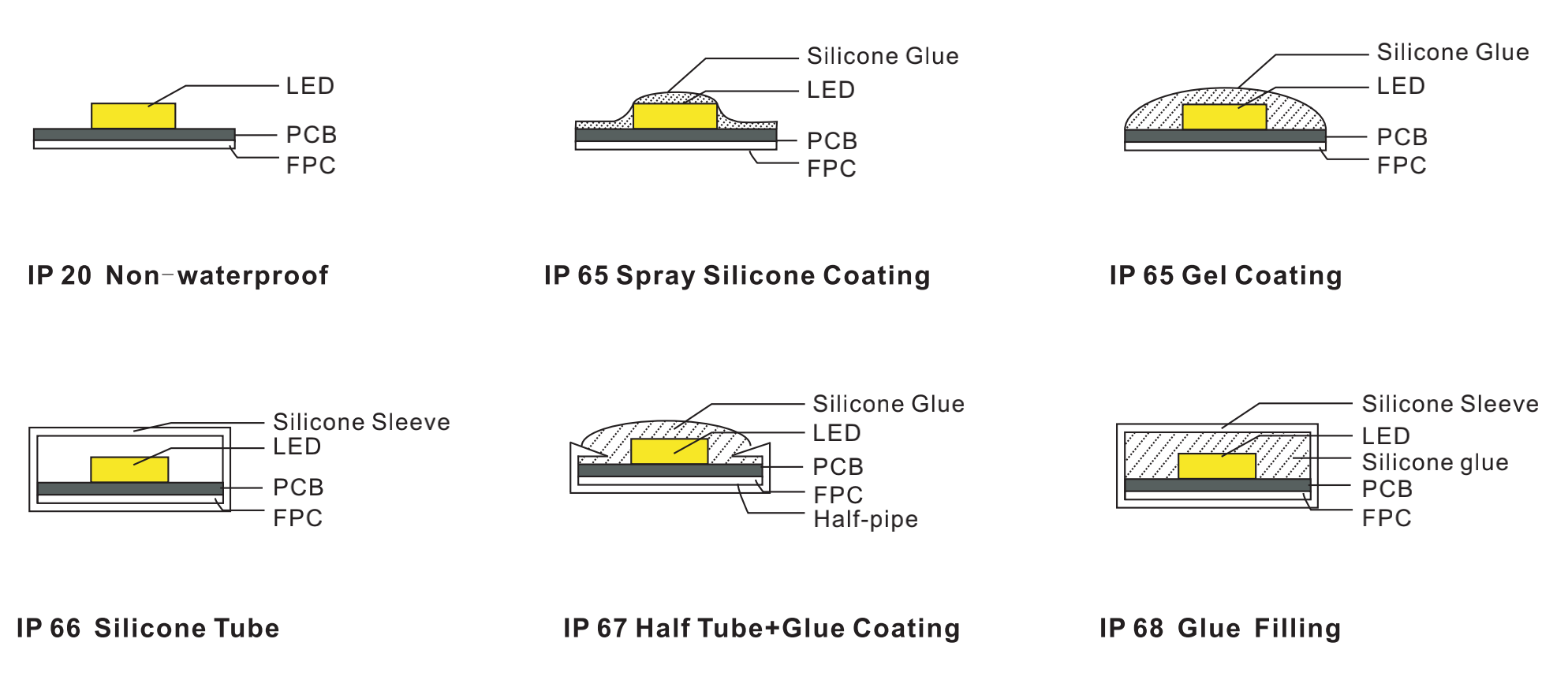

IP Rating



waterproof sk6812 sideview led strip light



Application of  sk6812 led strip sideview



 sk6812 led strip sideview application

如何定制LED灯带?

10位专业工程师为您服务

LED品牌及亮度

可提供Cree、Osram等品牌LED芯片,亮度可根据客户要求定制。

CRI & CCT & 颜色

CRI 80/90/95/97 可选;CCT 可以是 1800-6500K,颜色可以是红色、蓝色、绿色等。

LED 数量和行数

单排每米LED数量可达700LED/M,可定制灯带中LED的排数。

印刷标志

可以在标签上印上您的标识,没有最小起订量;如果您希望将您的标识印在 PCB 上,那么最小起订量为 500 米。

防护等级

杭隆提供市场上所有类型的防水 LED 灯带。只需为您的项目选择合适的防水类型即可。

电压&功率

电压可以设为特定值,例如 12V 或 24V,也可以设为 20-28V 等范围。功率也可以定制。

LED 灯带和电线长度

可以定制 LED 灯带的长度,也可以定制 LED 灯带电线的长度。

PCB颜色

我们的 PCB 常规颜色为白色。黄色和黑色也是我们的标准 PCB 颜色。其他颜色可按 3000 米起订。
