SK6812 Mini 144灯/米 RGB Led灯带

DC5V, 20W/M, 144pixels/M

交货 :

EXW

最低订单 :

30 米

供货能力 :

600000米 / 月

备货期 :

7-12天

原出产地 :

深圳

数量 :

下载:

发联系信

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.

certificate of thin pixel led strip light

Feature of thin pixel led strip light

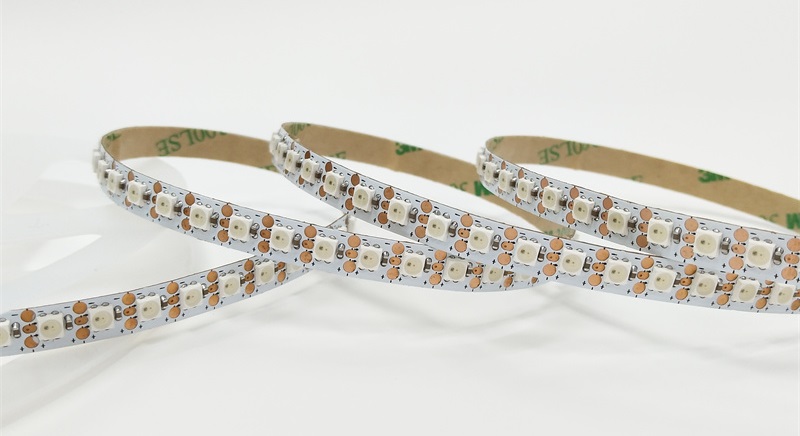

SK6812 mini 7mm width 144led/M narrow pixel led strip

1. 5V, 1 IC / 1 LED chip, individually controlled
2. With the original SK6812 mini led, more stable in quality and more brightness
3. 8mm width with 144leds/M, dotless in many applications
4. 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,
5. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
6. Strong flexible for heat dissipation and real 3M tape for a strong installation

Specification

Item	Specification	Item	Specification
Item Name	thin pixel led strip light	Light Source	3535 RGB
IC Type	SK6812 mini rgb	IC QTY	144pixels/M
LED QTY	144leds/M	IC Location	Internal IC
Color	RGB Dream Color	Voltage	DC5V
Working T	-20 to 45 Degree	Power	20W/M
PCB color	Black/White/Yellow	Angle	120 degrees

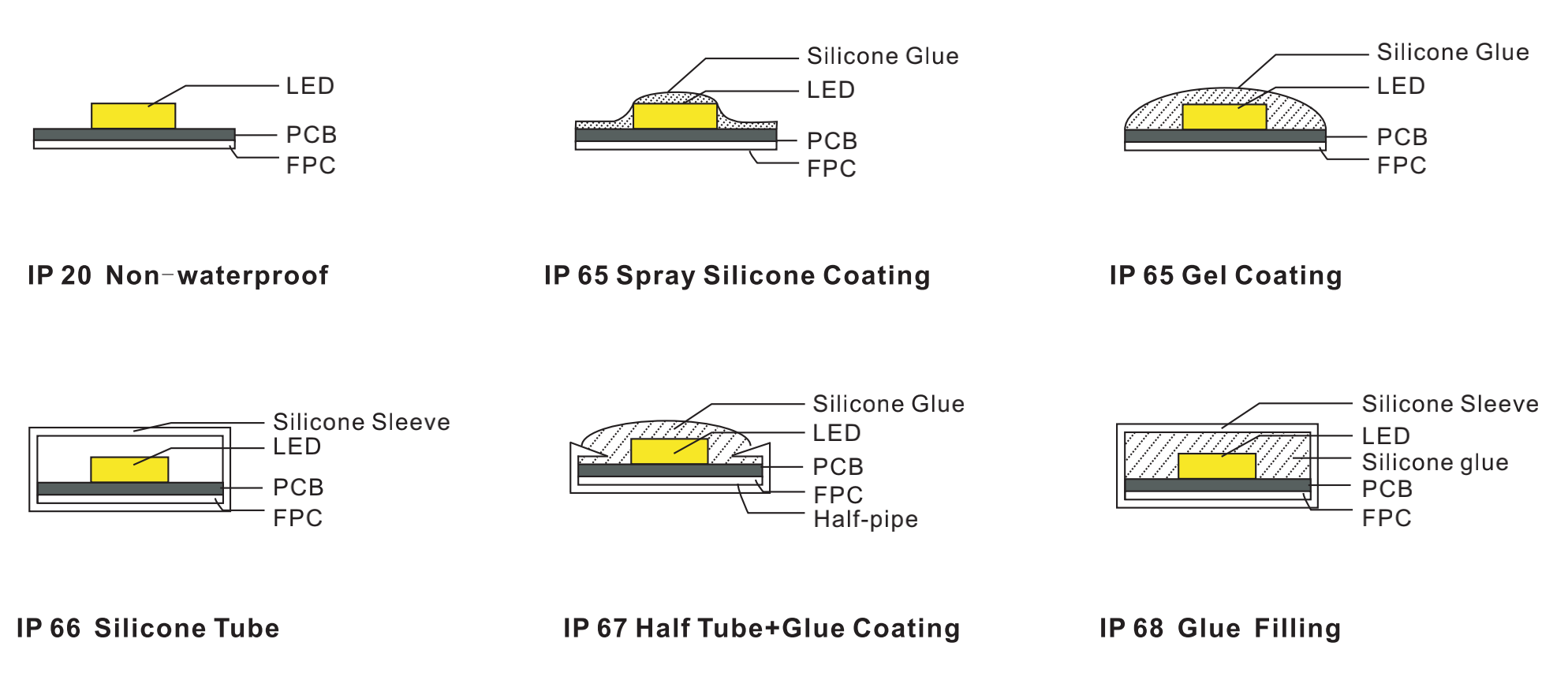

IP Rating	IP20/66	Cutting Unit	6.94mm
Package	Anti-Static Bag	OEM&ODM	Available

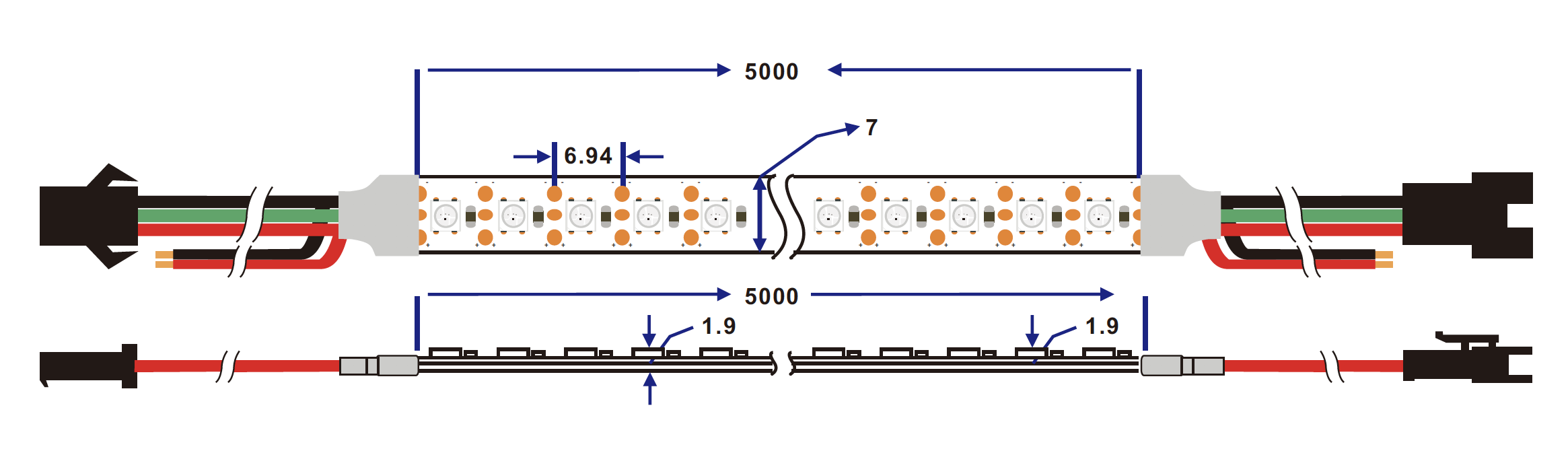

Dimension	5000mm*7mm	Lifetime	50000hrs
Certificate	ETL, CE, RoHS, Reach...	Warranty	3years
