SK9822/APA102/HD107S 30灯/米 RGB Led灯带

DC5V, 14.4W/M, 60pixels/M

交货 :

EXW

最低订单 :

30 米

供货能力 :

600000米 / 月

备货期 :

7-12天

原出产地 :

深圳

数量 :

下载:

发联系信

Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 types of led strips, we've cooperated with 500+ customers in 78 countries.

hd107 apa102 apa102c sk9822 led strip light certificate

Feature of apa102 led strip

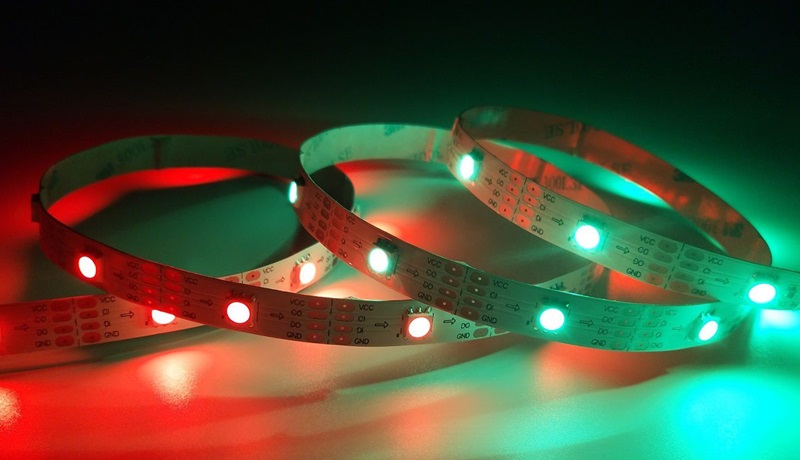

hd107 apa102 apa102c sk9822 led strip light

APA102/HD107S/ SK9822 led strip

1. Two-wire synchronous control
2. With signal self-detection function
3. Fast transmission speed, the maximum serial input data frequency is 30MHZ
4. Two-wire data transmission, built-in oscillation supports uninterrupted PWM output, which can keep the picture still
5. DC5V design with 1led/cut, individually controlled
6. Strong flexible for heat dissipation and real 3M tape for a strong installation

Specification

Item	Specification	Item	Specification
Item Name	SK9822 led strip	Light Source	5050 RGB
IC Type	SK9822/APA102/HD107S	IC QTY	30pixels/M
LED QTY	30leds/M	IC Location	Internal IC
Color	RGB Dream Color	Voltage	DC5V
Working T	-20 to 45 Degree	Power	7.2W/M
PCB color	Black/White/Yellow	Angle	120 degrees
IP Rating	IP20/65/66/68	Cutting Unit	3.33cm
Package	Anti-Static Bag	OEM&ODM	Available
Dimension	5000mm*10mm	Lifetime	50000hrs
Certificate	ETL, CE, RoHS, Reach...	Warranty	3years

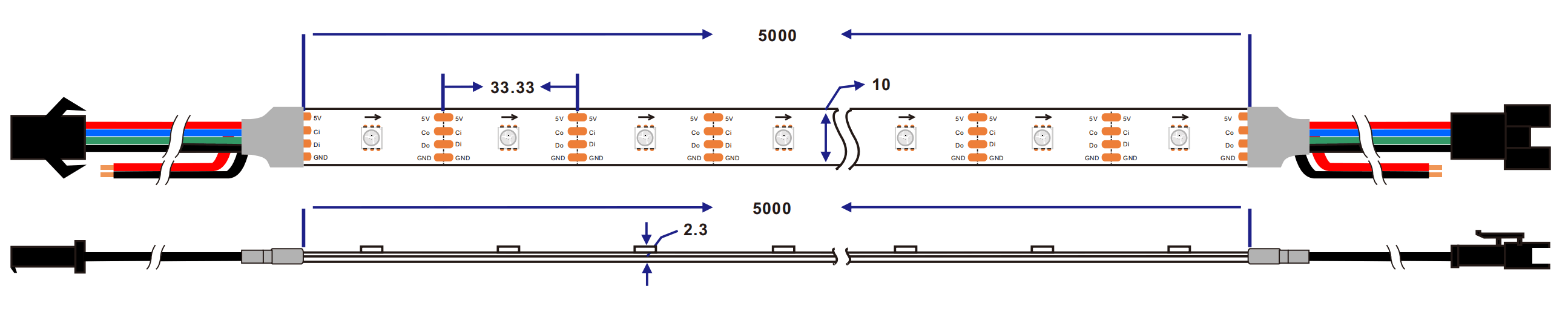

Dimension: mm

IP Rating

hd107 apa102 apa102c waterproof sk9822 led strip light

Application of apa102 led strip

Customized Your Specific Pixel Led Light
10 Professional engineers are here to serve you

Looking to light an irregular space or a super creative project? As China's top pixel led strip supplier, Hanron provides innovative lighting solutions to all your lighting needs, be it residential or commercial, or even industrial.

We can easily translate your lighting needs and provide customized lighting solutions. We have the ability to recommend you suitable pixel led strip, controller and software for the whole project, and give you suggestions during your installation.

At the same time, our experts can provide you with full PCB design support and create LED strips that are just the right pixel IC, color, size, shape, and brightness.

You only need to share us your creative ideas or design, then the rest leave to us Hanron. We will give you a surprise!

Contact a Project Designer →
