H802RA
H802RA 4 ports LED controller
Model No: H802RA LED Controller

H802RA 4 ports LED controller Support Art-Net protocol for MADRIX

H802RA 4 ports salve LED pixel controller Support Art-Net protocol for MADRIX,or marster controller(H803TV/ H803TC) 4096 pixels
Delivery :
EXW
minimum order :
5 pieces
Supply Ability :
300000pieces / Month
Stock Time :
7Day
Country of Origin :
shenzhen
Quantity :
Download:
H802RA specification datasheet.pdf
Contact Now
H802RA 4 ports salve LED pixel controller Support Art-Net protocol for MADRIX,or marster controller(H803TV/ H803TC) 4096 pixels
Features of H802RA 4 ports LED controller
1. Support ArtNet protocol, 4 universes(each has 512 channels) output.
2. Support allocating address for DMX512 chips (for example UCS512, TM512).
3. Transmission distance between two controllers is up to 100 meters.


Specification
Input Voltage:   Customized
Power Consumption:   1.3W
Drive Pixels Number:   4096
Weight:   1KG
Dimension:   L163 x W155 x H54
Carton Size:   L205 x W47 x H21


Supported Chips

TM1812 includes TM1804, TM1809, UCS1903, UCS1909, UCS1902, WS2811, WS2812, WS2813, SK6812, SM16703, SM16709, SM16712, INK1003
DMX512 includes UCS512, WS2821, TM512
APA102 and SK9822


Product Display

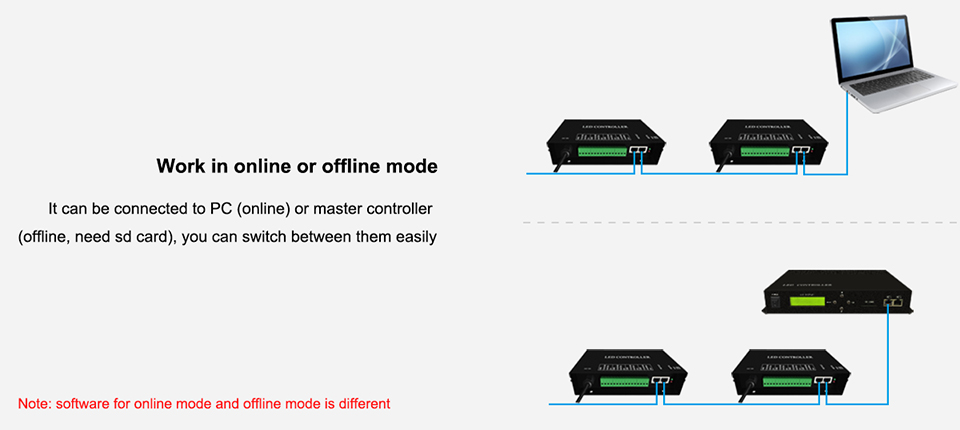

connection of H802RA 4 ports LED controller Support Art-Net protocol for MADRIX

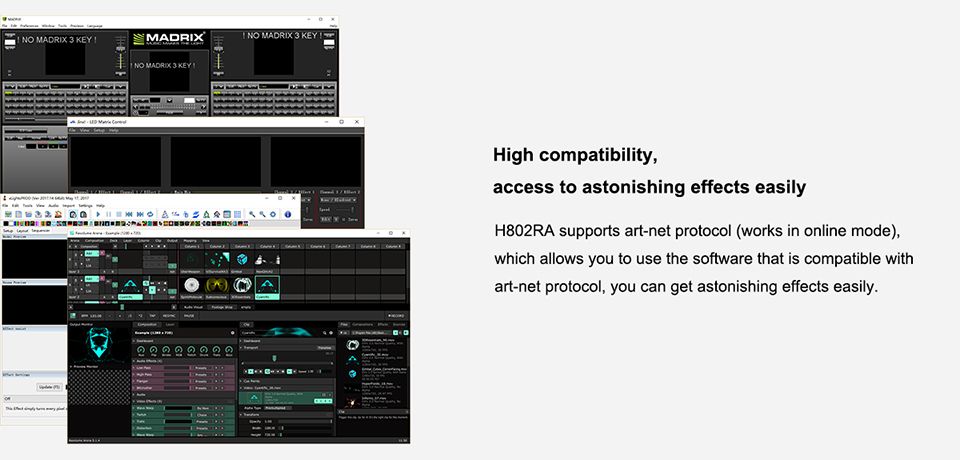

software for H802RA 4 ports LED controller Support Art-Net protocol for MADRIX

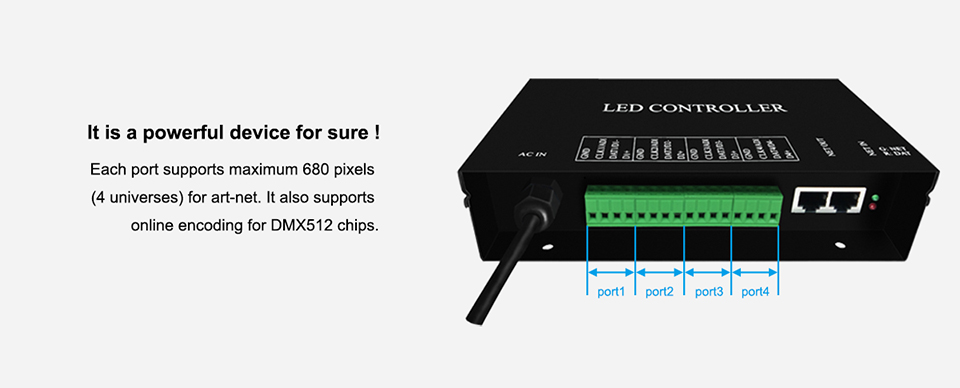

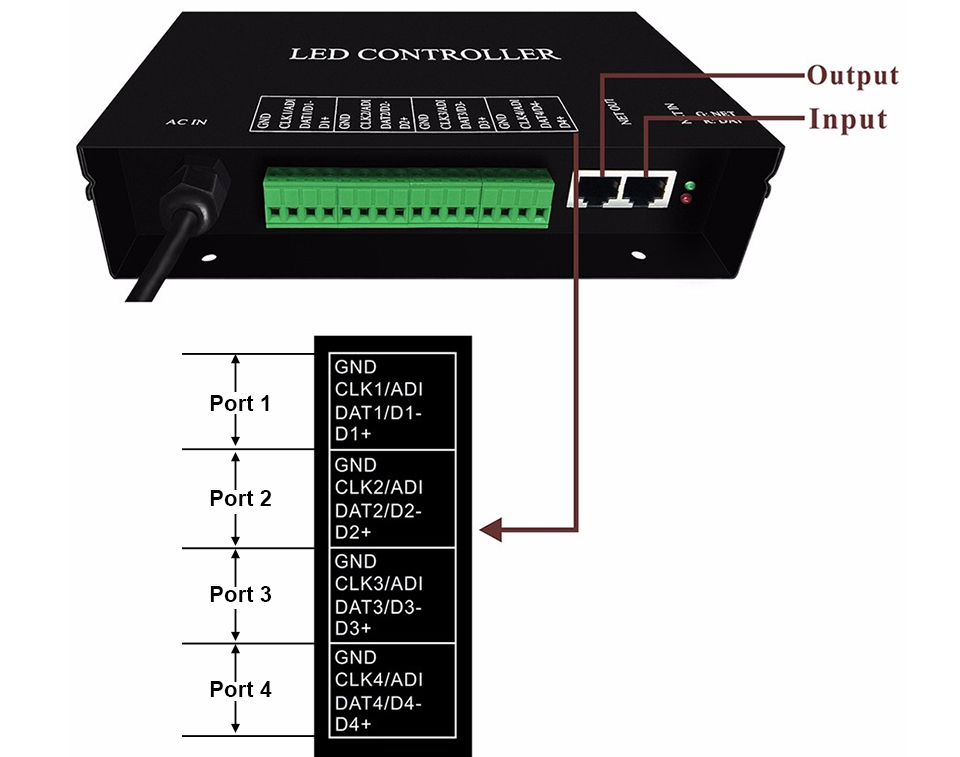

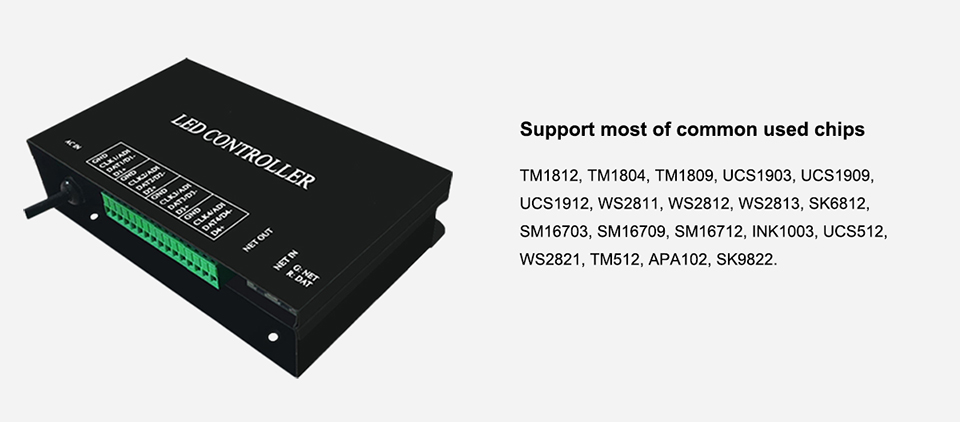

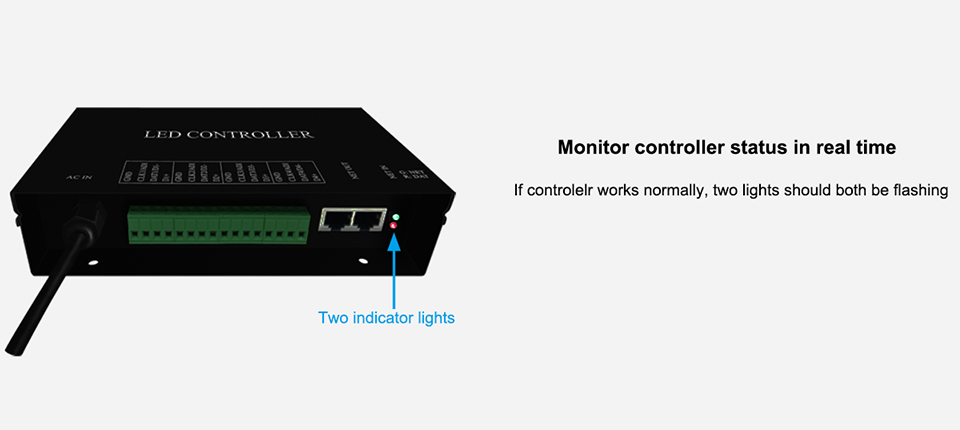

feature of H802RA 4 ports LED controller Support Art-Net protocol for MADRIX

feature of H802RA 4 ports LED controller Support Art-Net protocol for MADRIX

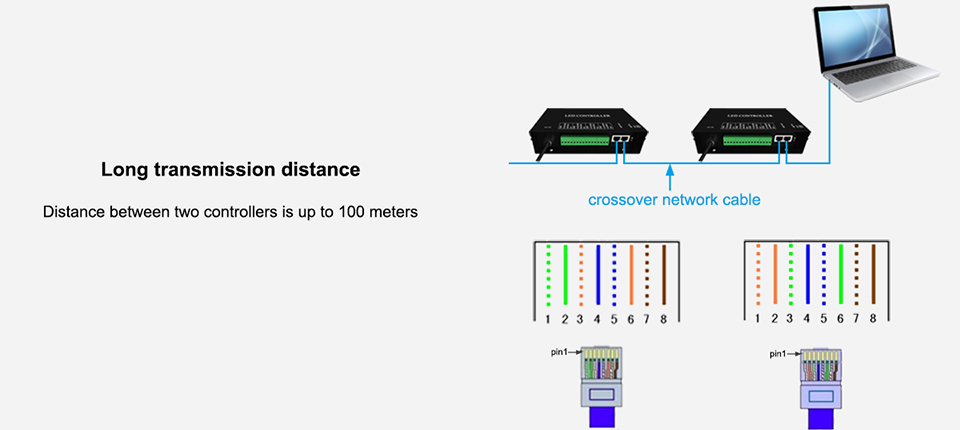

feature of H802RA 4 ports LED controller Support Art-Net protocol for MADRIX

feature of H802RA 4 ports LED controller Support Art-Net protocol for MADRIX

feature of H802RA 4 ports LED controller Support Art-Net protocol for MADRIX


User Manual

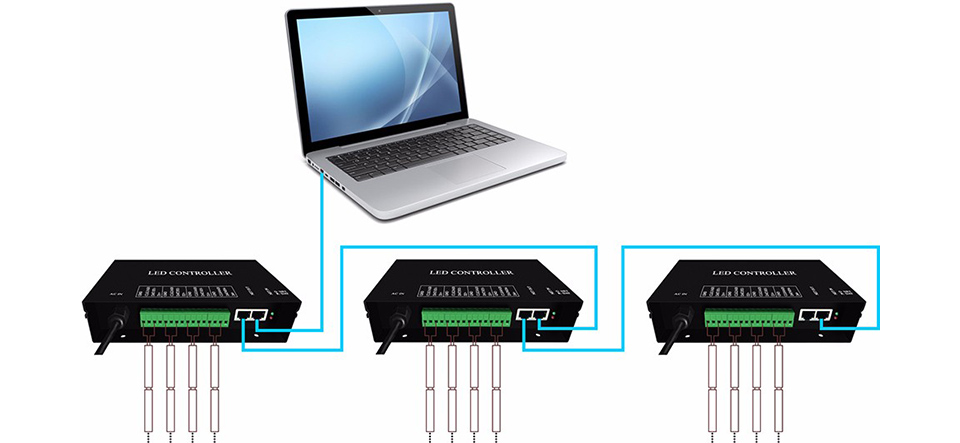

Step1. Connect H802RA to PC and led lights to H802RA like the following image displays (It's online mode)
Connect H802RA to PC and led lights to H802RA like the following image displays (It's online mode)

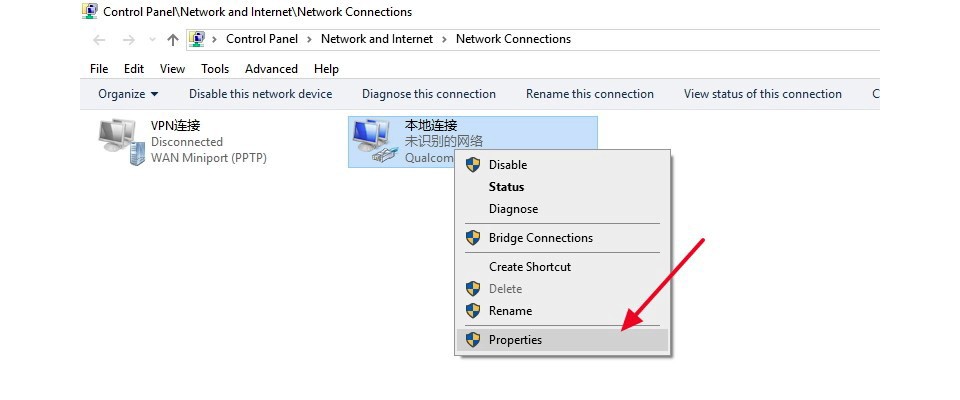

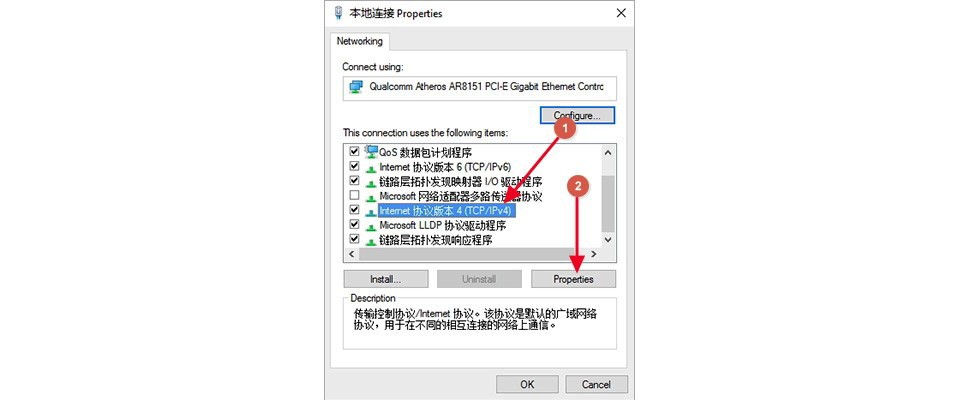

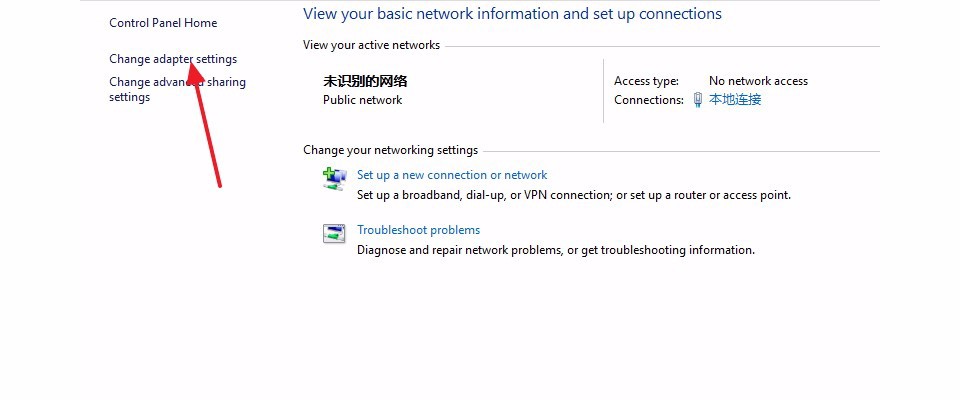

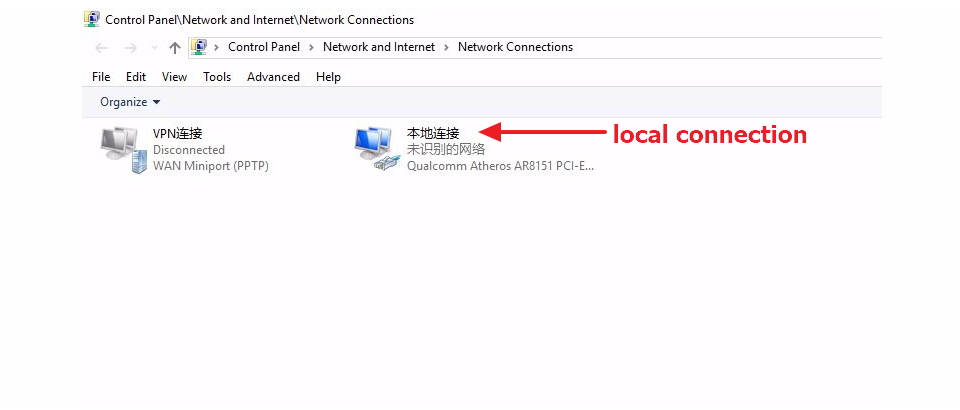

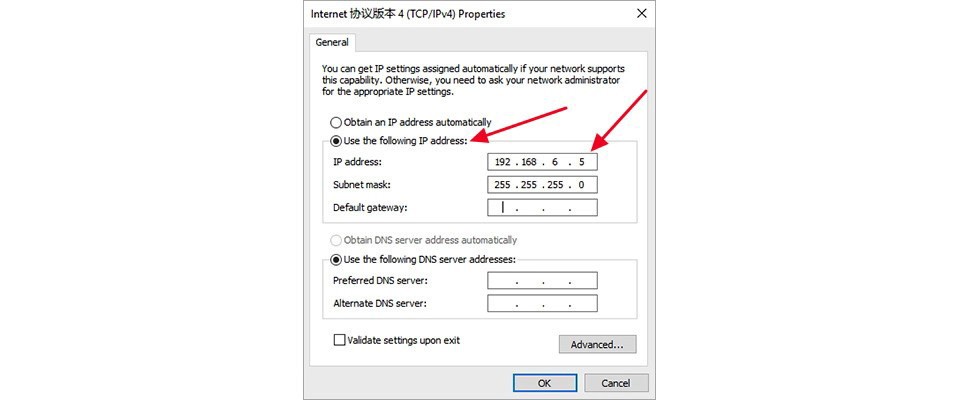

Step2. Set an IP address for H802RA
Step2. Set an IP address for H802RA
Step2. Set an IP address for H802RA

Step2. Set an IP address for H802RA

Step2. Set an IP address for H802RA

Step2. Set an IP address for H802RA



Step3. Configure H802RA
Download Led Studio
Led Studio Download Link: https://drive.google.com/open?id=1u5ybMEMNvOgBGsC8ANA2fo-79k7Vv5p0

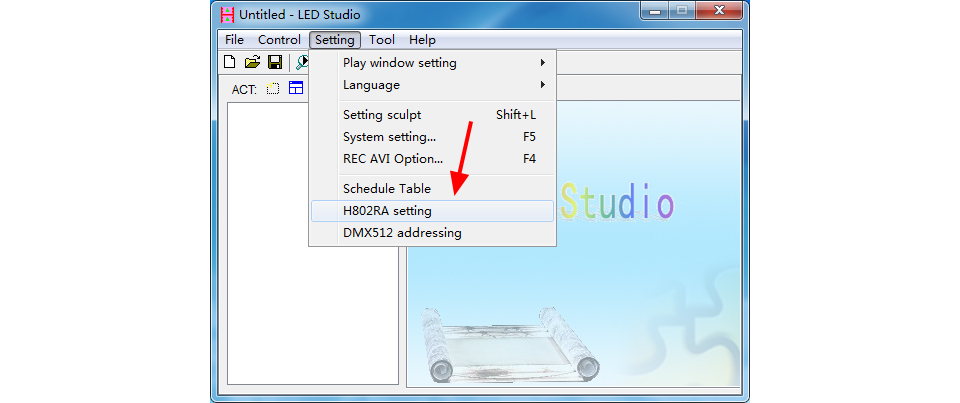

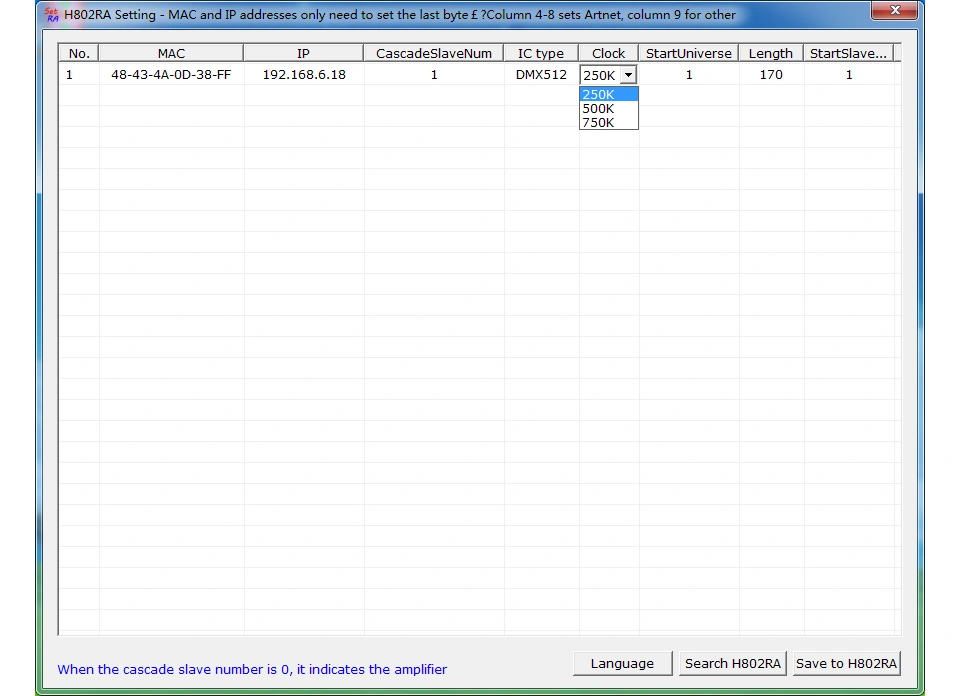

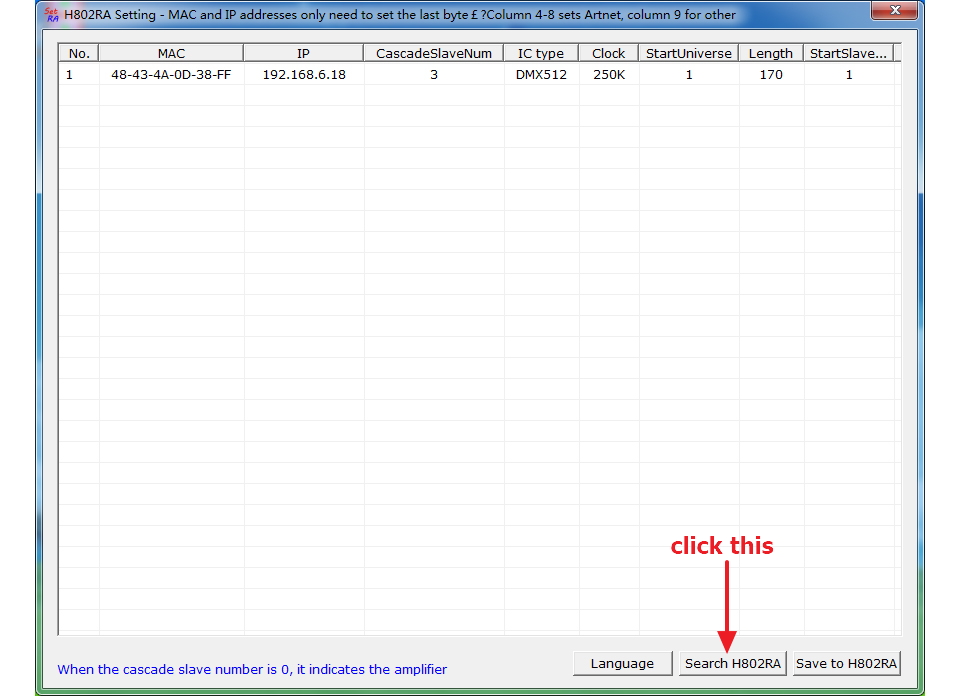

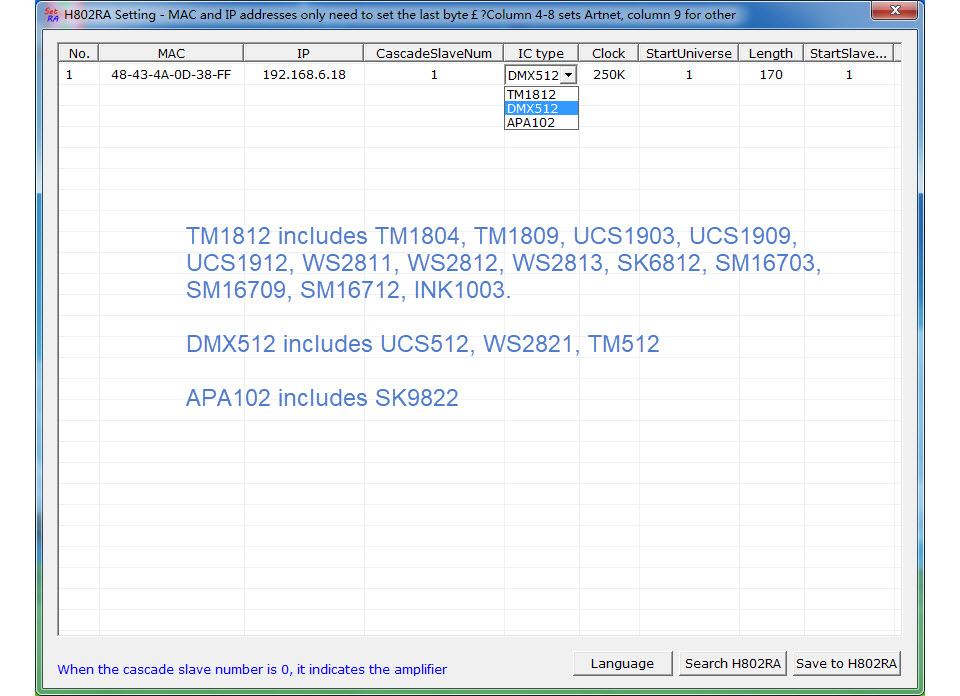

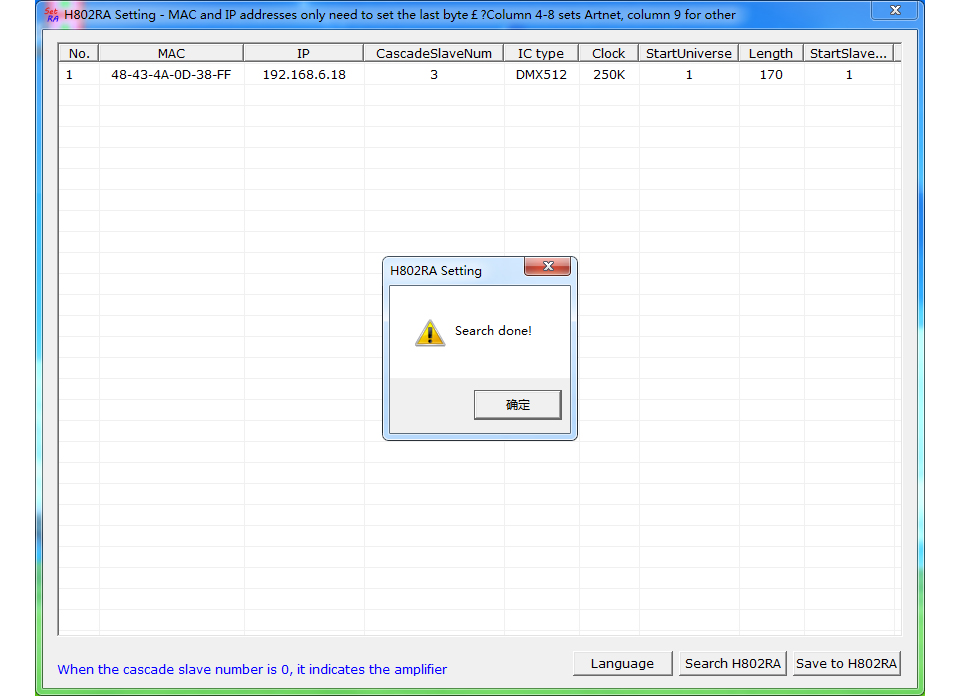

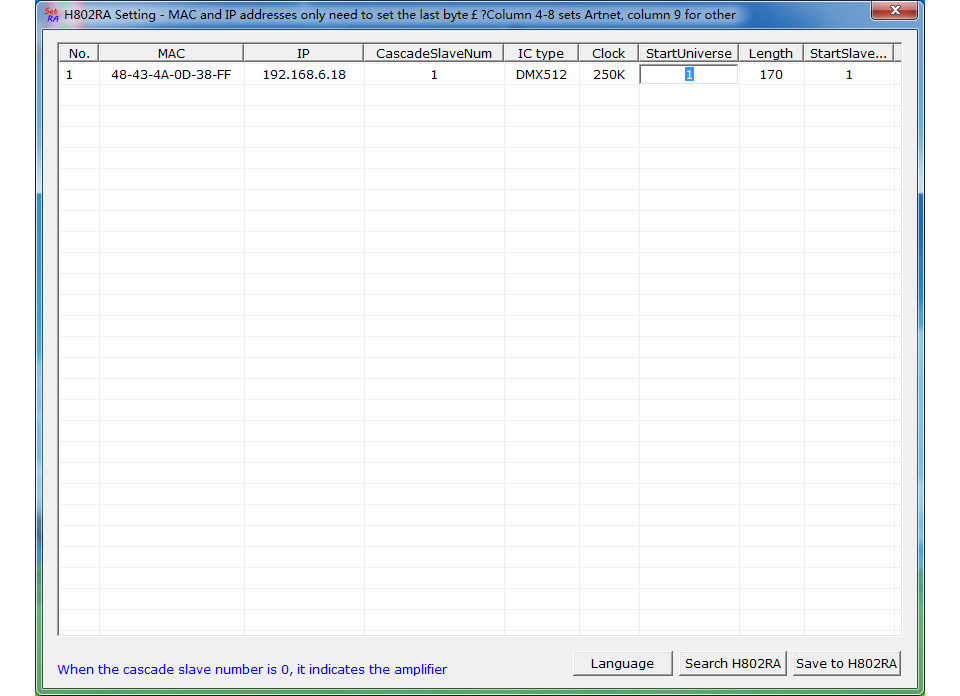

Step3. Configure H802RA

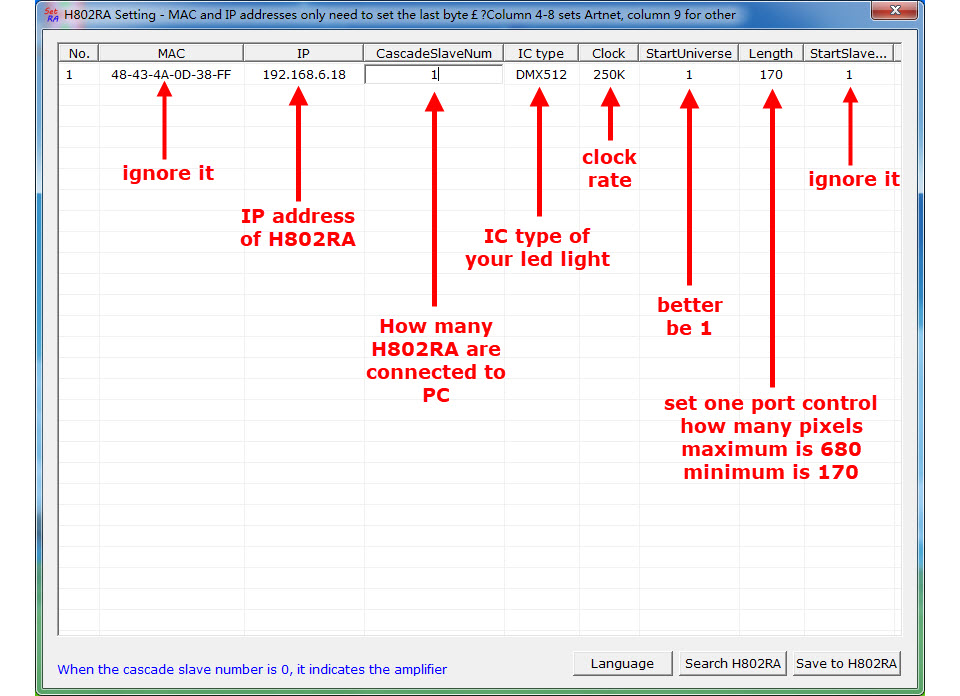

Step3. Configure H802RA

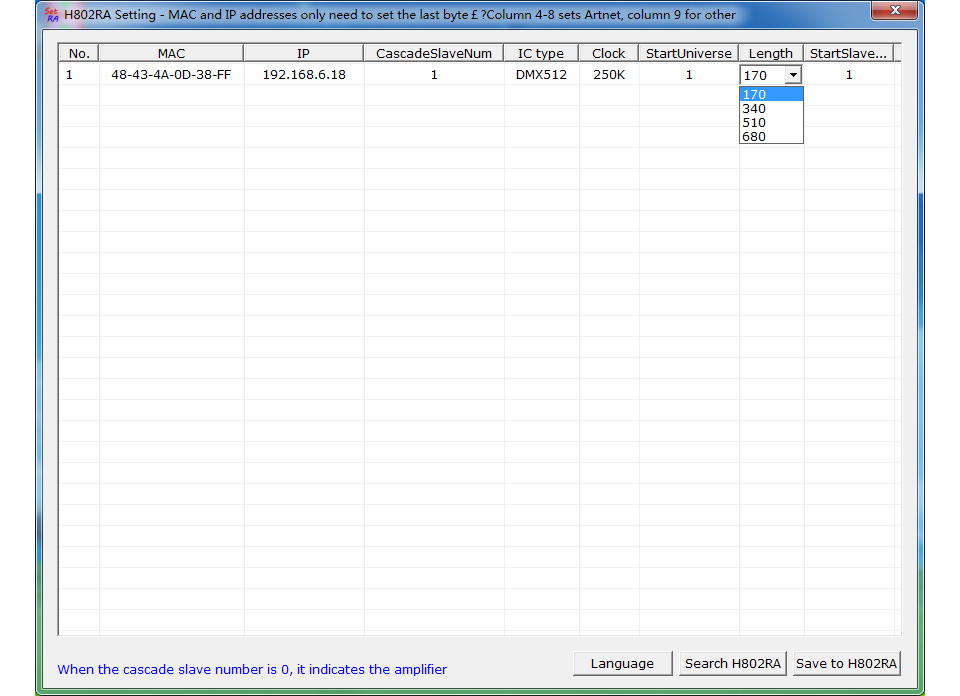

Step3. Configure H802RA

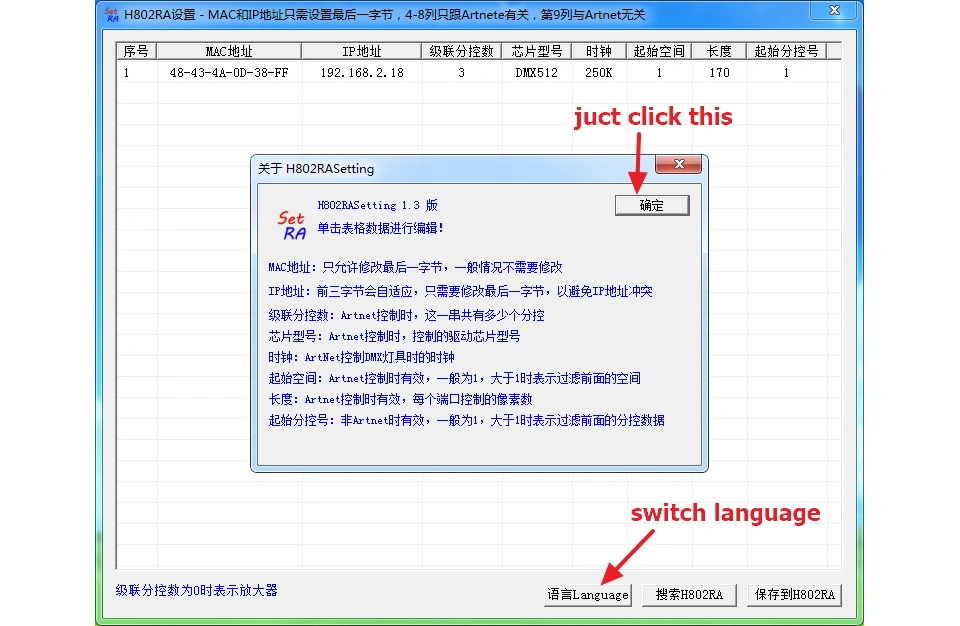

Step3. Configure H802RA

Step3. Configure H802RA

Step3. Configure H802RA

Step3. Configure H802RA

Step3. Configure H802RA

Step3. Configure H802RA

Then, click"Save to H802RA"and close the window.

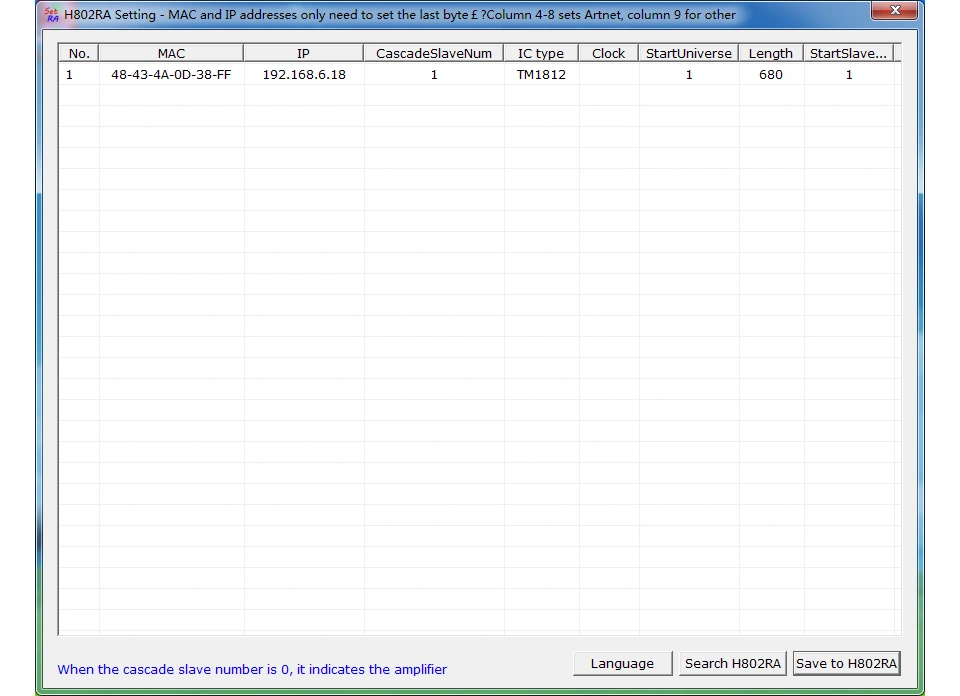

In the following example, i connect 1 pcs H802RA to PC, H802RA connects to a WS2812 panel (32 pixels by 32 pixels), each port of H802RA supports 680 pixels.

connect 1 pcs H802RA to PC, H802RA connects to a WS2812 panel (32 pixels by 32 pixels), each port of H802RA supports 680 pixels.

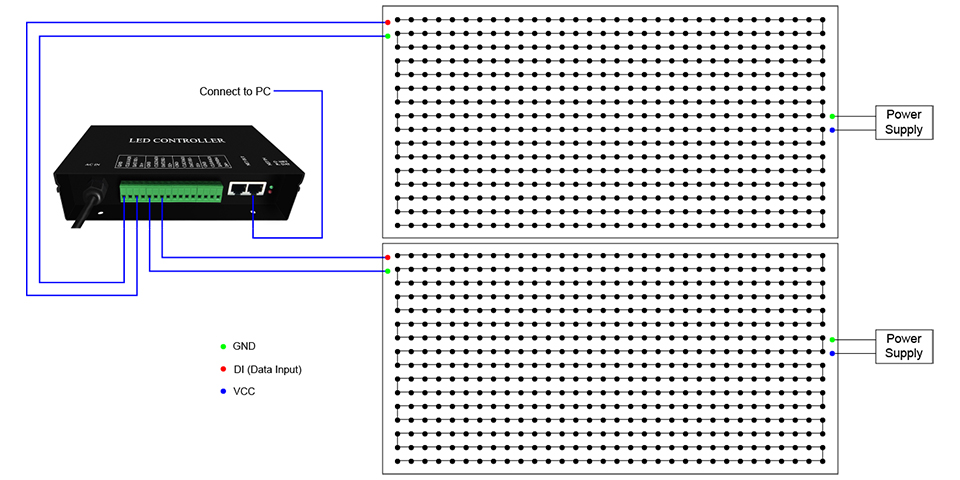

The panel consists of 2 pcs 32*16 panels
The panel consists of 2 pcs 32*16 panels

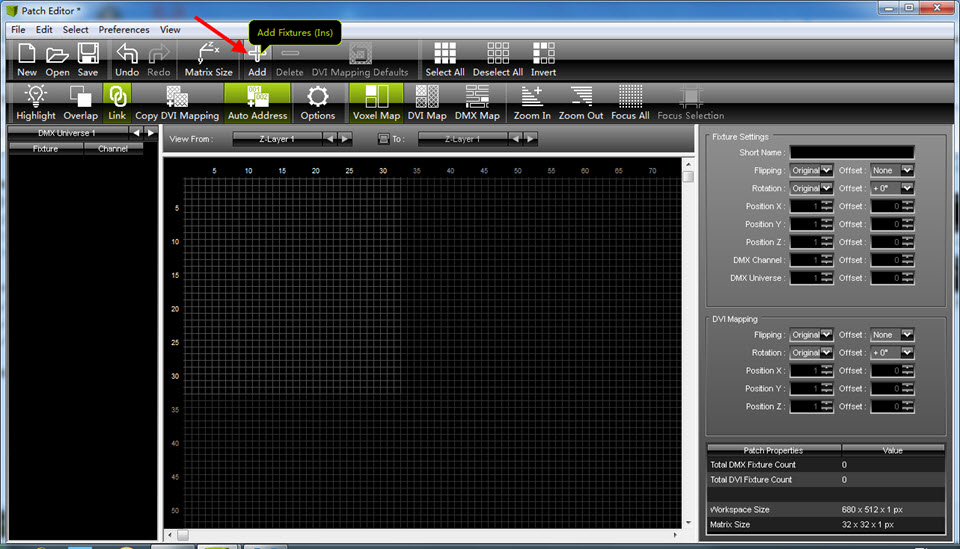

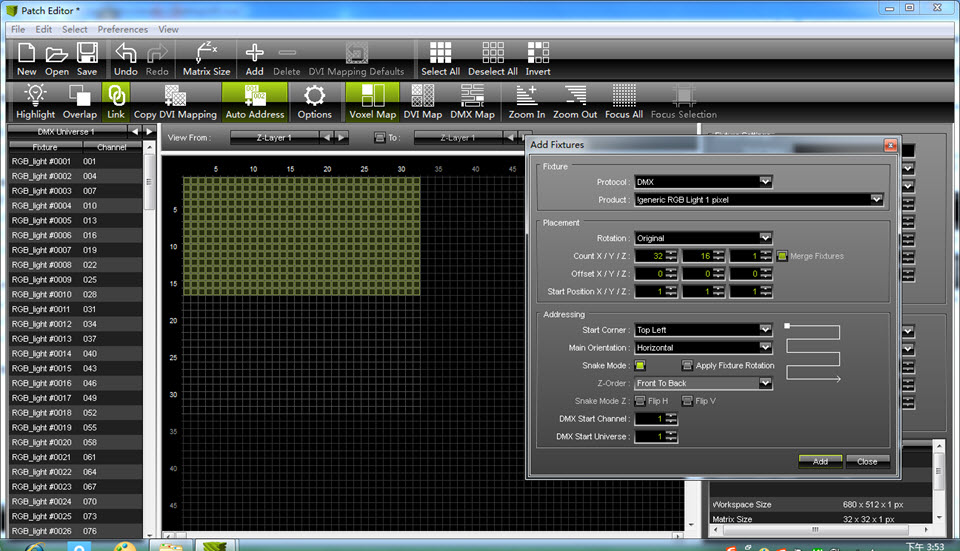

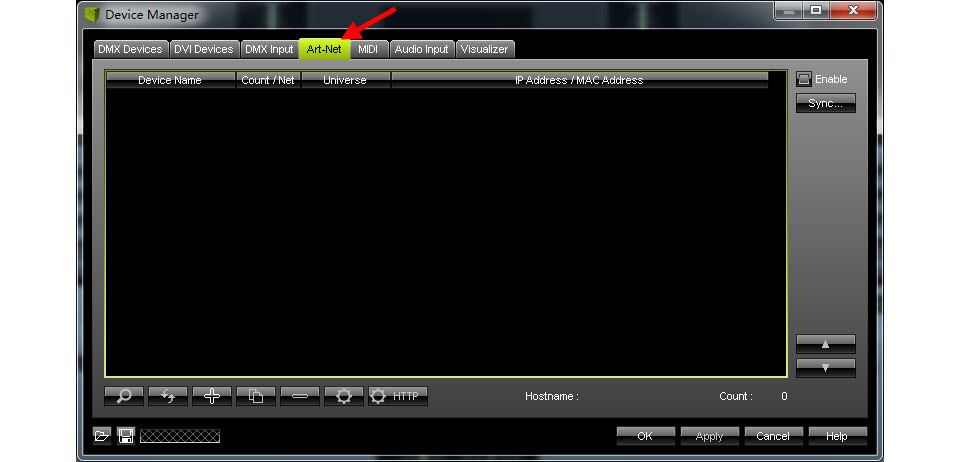

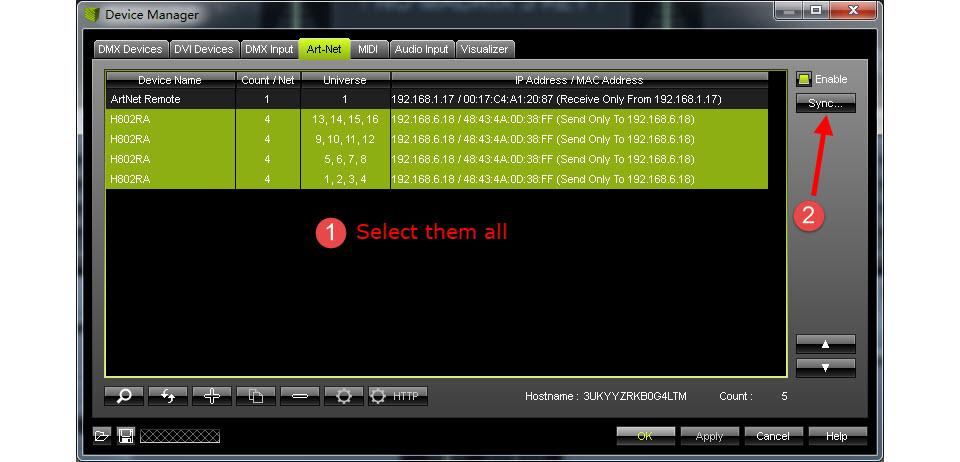

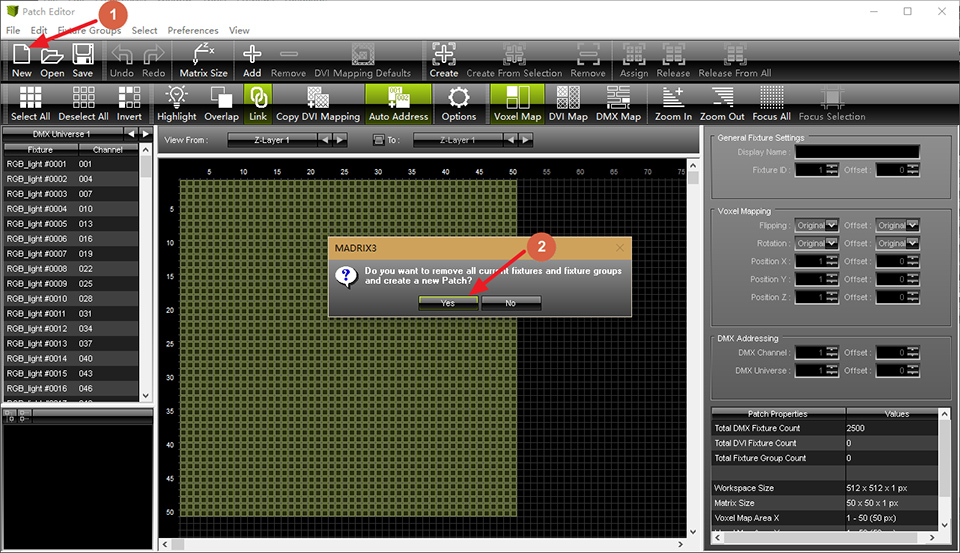

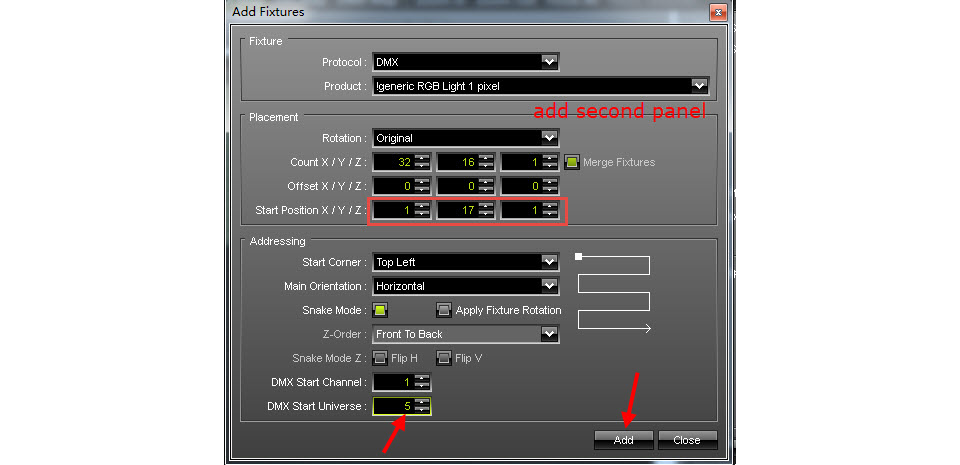

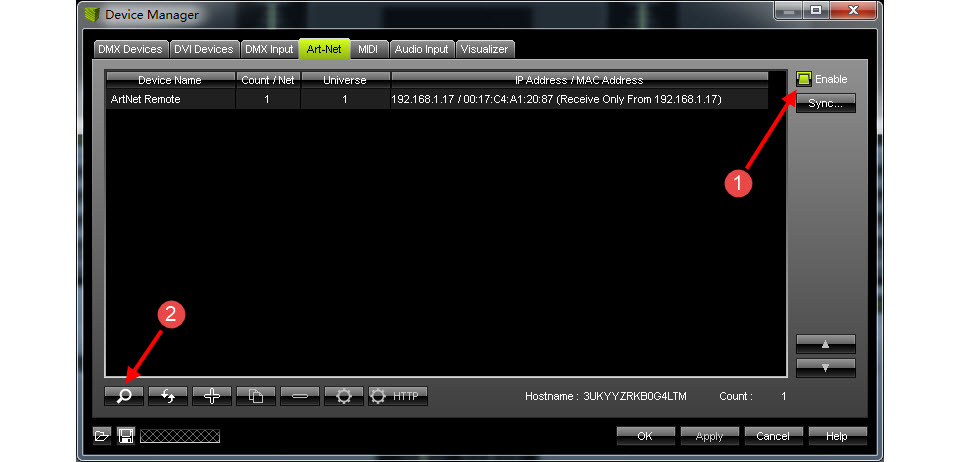

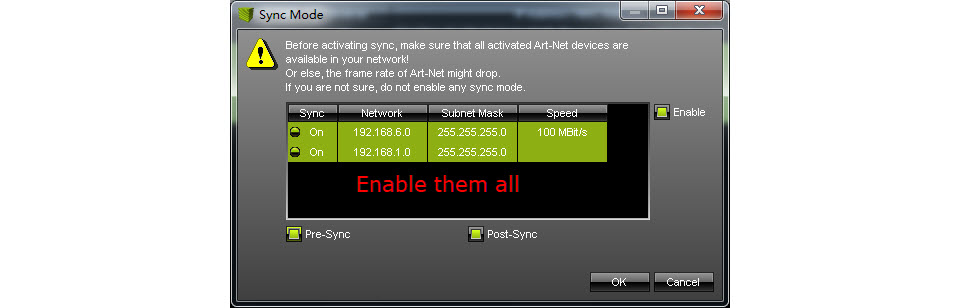

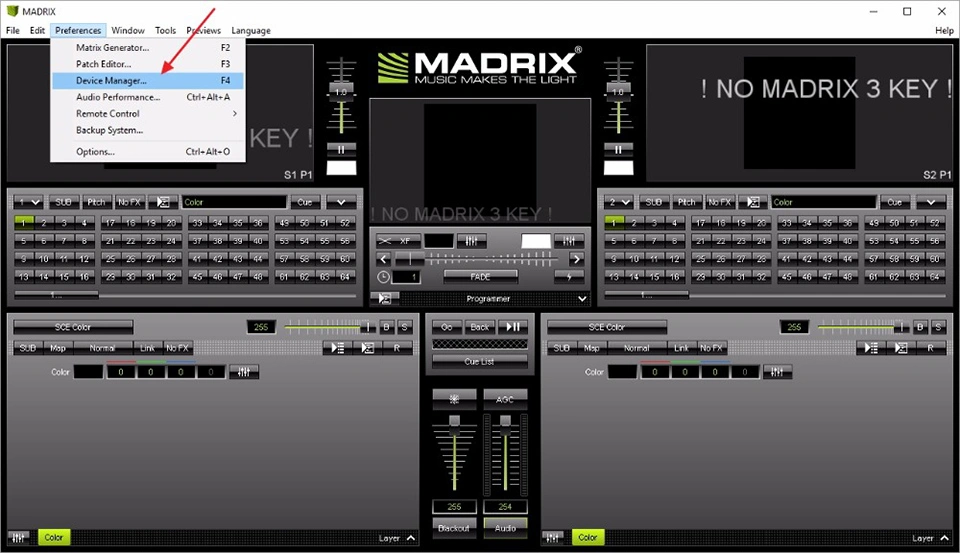

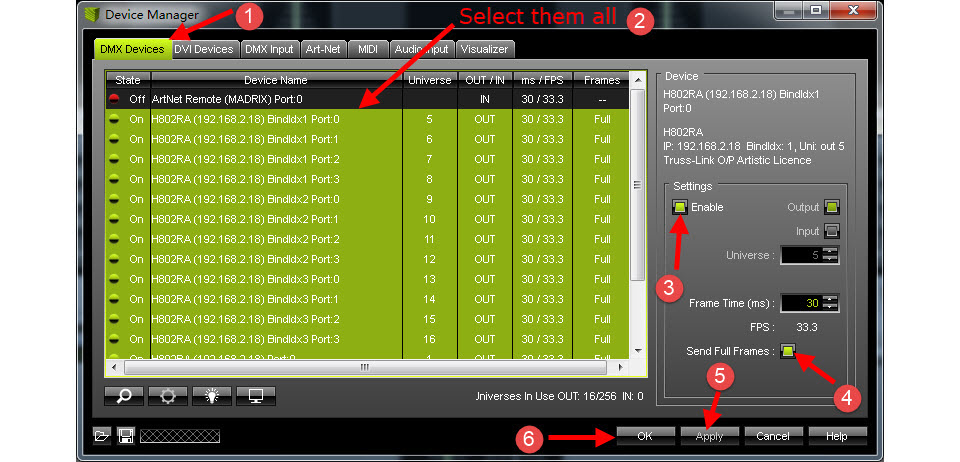

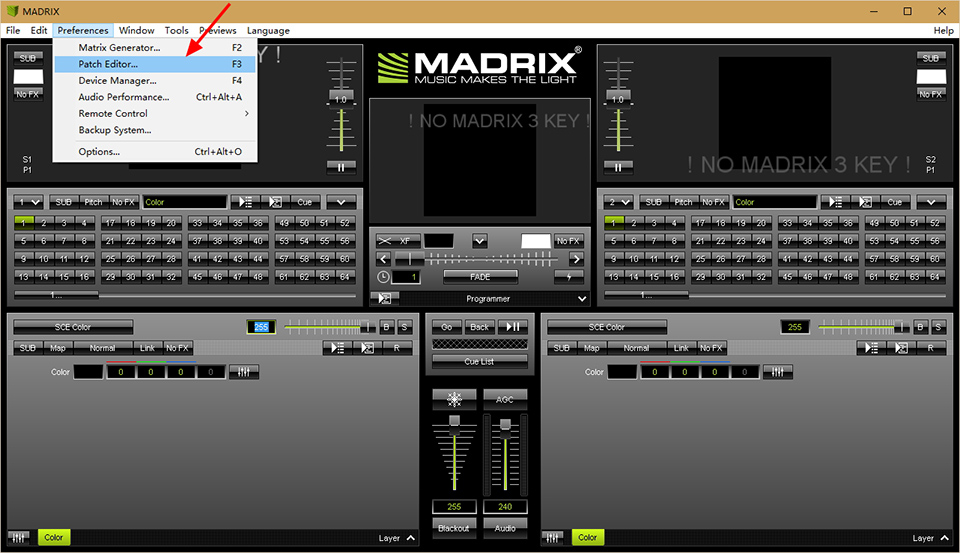

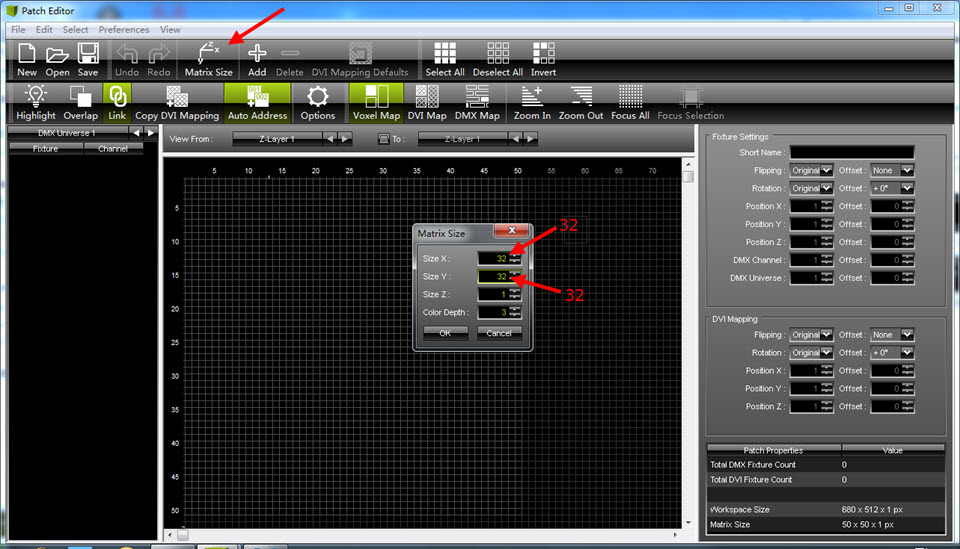

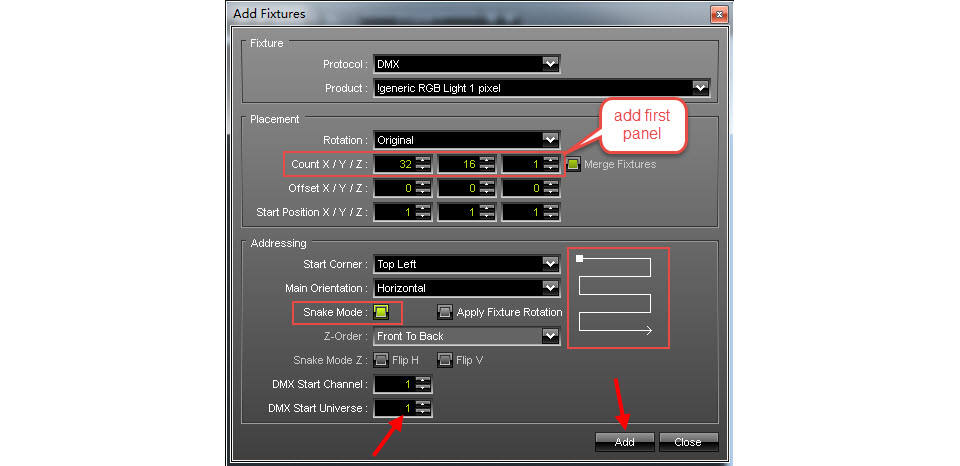

MADRIX  Configurations of H802RA 4 ports LED controller

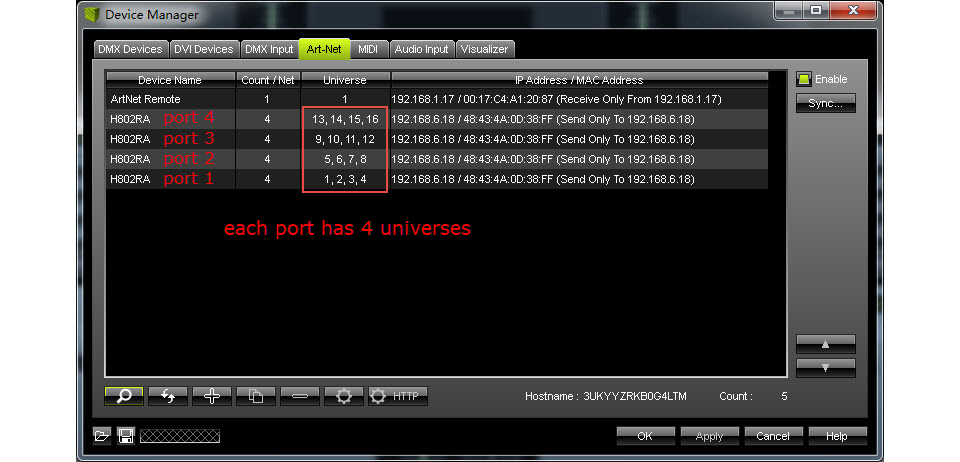

MADRIX  Configurations of H802RA 4 ports LED controller

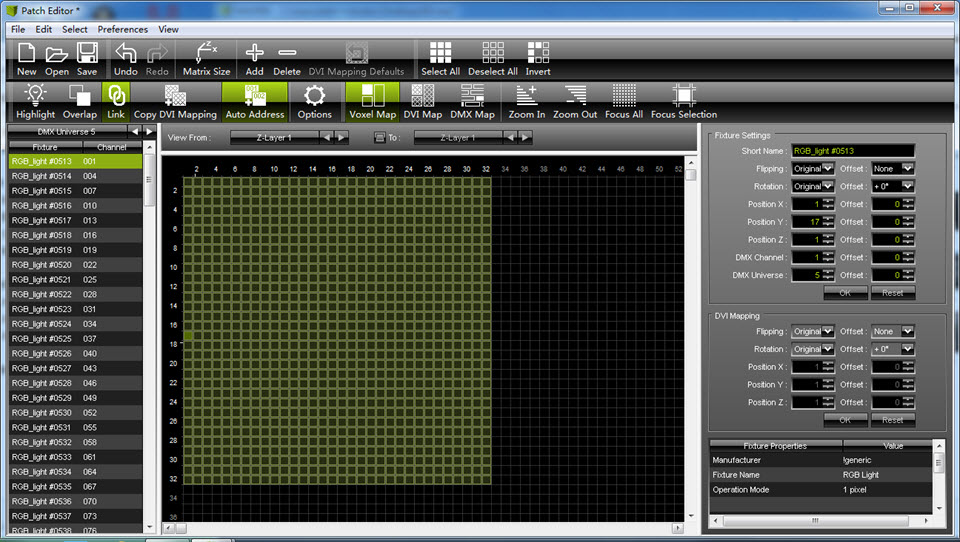

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller

MADRIX  Configurations of H802RA 4 ports LED controller
